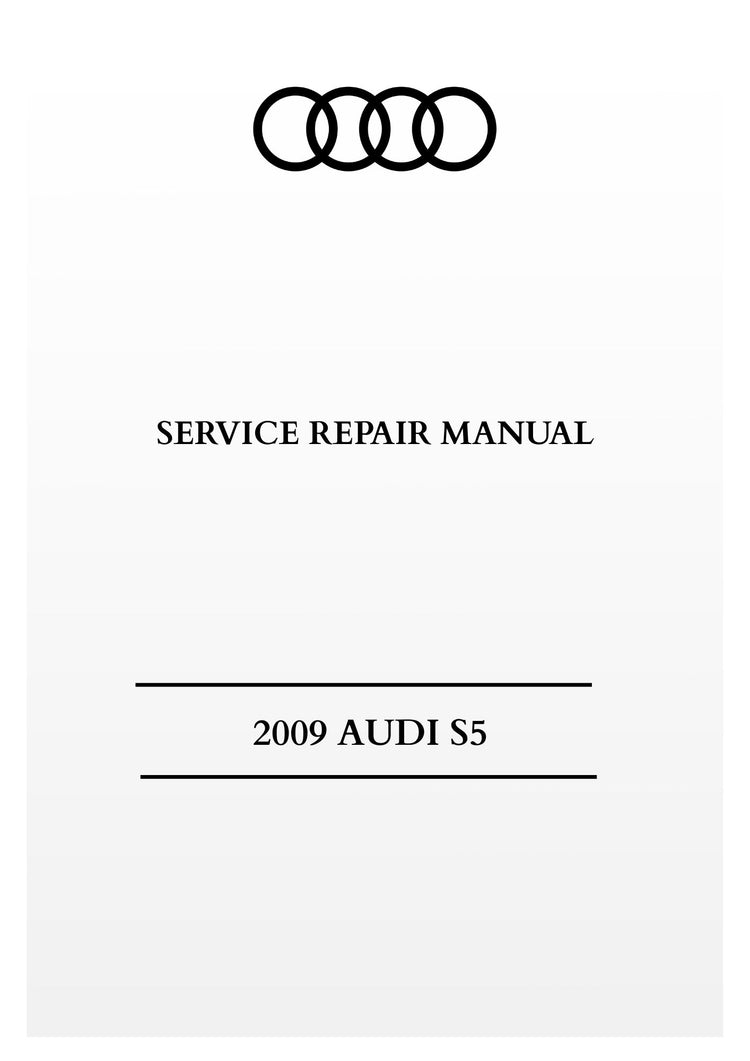

DOWNLOAD COMPLETE SERVICE REPAIR MANUAL FOR THE YEAR 2009 AUDI S5
The 2009 Audi S5 Service Repair Manual is a comprehensive guide designed to help owners and mechanics maintain, repair, and troubleshoot the 2009 Audi S5, which is a high-performance coupe in the Audi A5 family. The 2009 Audi S5 is powered by a 4.2L V8 engine and features Quattro all-wheel drive, offering a blend of luxury and sport performance. The service manual provides detailed information on maintenance, diagnostics, and repair procedures for various components.
Key Areas Covered in the 2009 Audi S5 Service Repair Manual:
Engine & Transmission:
Engine Specifications: The 2009 Audi S5 is equipped with a 4.2L V8 engine, producing around 354 horsepower and 325 lb-ft of torque. The manual includes detailed instructions for:
Oil changes, including the proper oil type and filter replacement.
Timing chain and valve adjustments.
Replacing components like spark plugs, fuel injectors, and air filters.
Troubleshooting engine misfires, oil leaks, and overheating.
Coolant system maintenance, including radiator replacement, water pump, and coolant flush procedures.
Transmission: The S5 comes with a 6-speed manual transmission or 6-speed Tiptronic automatic transmission.
Instructions for replacing the clutch and flywheel (manual transmission models).
Transmission fluid changes, shifter cable replacement, and troubleshooting shifting issues.
Torque converter and transmission diagnostics (for automatic models).
Suspension & Steering:
Suspension System: The 2009 Audi S5 uses a sport-oriented suspension, which includes:
Shock absorber and spring replacements.
Fixing suspension noises, uneven ride height, and alignment issues.
Diagnosing and replacing components like ball joints, bushings, and control arms.
Steering System: The S5 is equipped with power-assisted steering and may also include dynamic steering.
Replacing the steering rack, steering pump, and fluid.
Diagnosing issues such as steering wheel vibrations, clunking noises, or heavy steering.
Braking System:
Brakes: The Audi S5 features ventilated disc brakes at the front and rear with ABS (Anti-lock Braking System).
Brake pad and rotor replacement.
Caliper replacement and diagnosing issues with brake fluid leaks.
Instructions for performing brake fluid changes, and fixing issues like brake fade, squealing brakes, or ABS errors.
Diagnosing brake warning lights and troubleshooting brake system failures.
Electrical System:
Electrical Components: The S5 has many electrical systems such as the infotainment system, lighting, climate control, and more.
Fixing issues with power windows, seats, and mirrors.
Replacing fuses, relays, wiring harnesses, and diagnosing electrical shorts.
Lighting system repairs, including xenon headlights, taillights, and interior lighting.
Diagnostic System: The OBD-II system provides fault codes for diagnosing issues in the engine, transmission, or other electrical systems.
Instructions for using diagnostic tools like VAG-COM to read and clear DTCs (Diagnostic Trouble Codes).
Cooling & HVAC Systems:
Cooling System: The cooling system is critical for engine performance. The manual provides procedures for maintaining and troubleshooting:
Coolant fluid changes and diagnosing coolant leaks.
Replacing components such as the radiator, water pump, and coolant hoses.
Repairing or replacing the coolant temperature sensor and addressing overheating issues.
HVAC System: The heating, ventilation, and air conditioning (A/C) systems require periodic maintenance.
Recharging the A/C system, replacing the compressor, and fixing air conditioning leaks.
Diagnosing issues with the climate control system, such as non-functioning vents, or inconsistent temperatures.
Fuel & Exhaust Systems:
Fuel System: The S5 features high-performance fuel components that require regular maintenance:
Replacing the fuel filter, troubleshooting fuel injectors, and diagnosing fuel pressure issues.
Diagnosing and repairing fuel leaks, and inspecting the fuel tank for damage or cracks.
Exhaust System: Includes maintaining the exhaust system, including catalytic converters, oxygen sensors, and exhaust pipes.
Replacing components like the oxygen sensor, troubleshooting check engine lights related to emissions, and repairing exhaust leaks.
Body & Interior:
Body Panels: The manual includes information on repairing or replacing exterior components like doors, bumpers, grills, and side skirts.
Instructions for fixing paint chips, dents, and scratches.
Procedures for removing and installing side mirrors, headlights, and taillights.
Interior Components: The S5 has a luxurious interior, and the manual helps repair or replace components like seats, upholstery, and dashboard.
Instructions for seat adjustments, fixing issues with infotainment systems, climate control, and replacing power seat motors.
Routine Maintenance:
Oil & Filter Change: Regular oil changes and replacing the oil filter to maintain engine performance.
Scheduled Maintenance: The service manual outlines a maintenance schedule for tasks like spark plug replacement, air filter replacement, and brake inspections.
Fluid checks, including brake fluid, coolant, power steering fluid, and transmission fluid.
Tire Maintenance: Rotating the tires, checking tire pressure, and inspecting the brake pads and rotors.
FILE FORMATE - ENGLISH
DOWNLOAD INFORMATION - THE PDF FILE WILL BE SENT TO YOU VIA EMAIL WITH DOWNLOAD INFORMATION.
