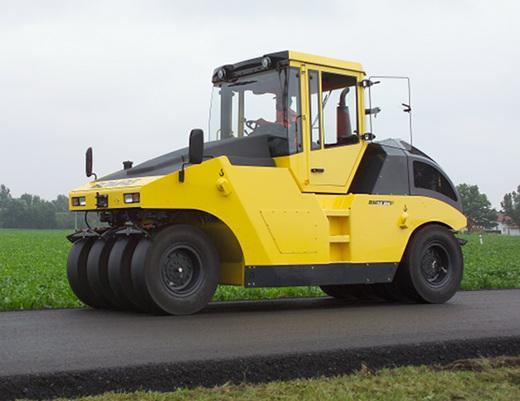

Bomag BW 24 RH Rubber Tire Roller Service Repair Manual 00891504 (10/2013)

Bomag BW 24 RH Rubber Tire Roller Service Repair Manual 00891504 (10/2013)

  • Discount
  • $39.50 USD
  • $89.50 USD

PDF Bomag BW 24 RH Rubber Tire Roller Service Repair Manual Publication No. 00891504 (10/2013) Download

Models Covered:
Bomag BW24 RH Rubber Tire Roller
S/N 101 538 01 …. S/N 101 538 30 ….S/N 861 538 21

Manual Contents:
1.1 Introduction
Safety regulations
General repair instructions
Tightening torques
Rubber tire roller
Technical data
4.1 General notes on maintenance
4.2 Fuels and lubricants
4.3 Table of fuels and lubricants
4.4 Running-in instructions
4.5 Maintenance table
5.1 Level sensor in diesel tank (R03)
5.2 Differential pressure switches hydraulic oil filter, B21and B22
5.3 Brake oil temperature switch, B148
5.4 Brake pressure switches, B12 and B102
5.5 Float switch in water tank, B33
5.6 Oil pressure switch, B06
5.7 Coolant temperature switch, B152
5.8 Sensor (B124), water in fuel filter
5.9 Air filter vacuum switch, B03
5.10 Charge control light, operating hour meter
5.11 Fuel preheating, R79
5.12 Glow plugs
5.13 Engine solenoid to shit down the engine, Y13
5.14 Boost fuel solenoid valve, Y01
5.15 Engine monitoring
5.16 Batteries
5.17 Battery service, checking the main battery switch
5.18 Main battery switch
5.19 Generator
5.20 Replacing the voltage regulator
5.21 Electric starter
Overview of electric components
5.23 Fuse, cabin
5.24 Fuses
5.25 Main battery fuse
5.26 Modules
7.1 Steering column locking module, A100
8.1 Speedometer module
Overview
9.2 Hydraulic circuit
Travel pumps, A4VG105 DA
9.4 Troubleshooting axial piston pumps
External gear pumps
Travel motor, A6VM 107HA2R1
9.7 Trouble shooting, variable displacement axial piston motor
Steering valve
9.9 Travel circuit
9.10 Steering circuit
9.11 Cooling and cross-flushing of the brake housing
9.12 Edge cutter
9.13 Check the hydraulic oil level
9.14 Replace hydraulic oil and breather filter.
9.15 Replace hydraulic oil filter
9.16 Replacing the bypass filter
Overview
Brake system
10.3 Stopping the machine, operating the parking brake
10.4 Driving the machine / braking the machine
10.5 Multi-disc brake, function test
10.6 Towing in case of an engine failure
Overview
Pneumatic system
11.3 Operating the tire inflation system
11.4 Draining the air pressure vessel
11.5 Change the air drier for the brake system
11.6 Check the supply lines for the compressor
12.1 Description of engine
12.2 Lubrication oil circuit TCD 2012 / 2013
12.3 Coolant circuit TCD 2012 / 2013
Exhaust gas recirculation
12.5 Adjust the valve clearance
12.6 Check the engine oil level
12.7 Changing engine oil and oil filter
12.8 Change the fuel filter, bleed the fuel system
12.9 Check, clean the water separator
12.10 Checking the coolant level
12.11 Check the anti-freeze concentration and the condition of the coolant
12.12 Replacing the coolant
12.13 Clean the cooling fins on engine and hydraulic oil cooler
12.14 Checking ribbed V-belts and compressor V-belts
12.15 Replacing ribbed V-belt and idler pulley
12.16 Air filter maintenance
12.17 Replace the injection valves
12.18 Replace crankcase ventilation valve
12.19 Check the engine mounts
12.20 General trouble shooting chart TCD 2012 / 2013
12.21 Special tools, Deutz engine (TCD 2012 2V)
13.1 Physical basics
13.2 Refrigerant R134a
13.3 Compressor oil / refrigeration oil
13.4 Working principle of the air conditioning system
13.5 Monitoring devices
13.6 Description of components
13.7 Measuring the compressor oil level
13.8 Checking the magnetic clutch
13.9 Inspection and maintenance work
13.10 Checking, replacing the refrigerant compressor V-belt
13.11 Service the air conditioning
13.12 Drying and evacuation
13.13 Emptying in case of repair
13.14 Leak test
13.15 Filling instructions
13.16 Trouble shooting in refrigerant circuit, basic principles
13.17 Trouble shooting, refrigerant circuit diagram
13.18 Trouble shooting procedure
Steam table for R134a
15.1 Repair overview for front axle
15.2 Dismantling the front axle
15.3 Assembling the front axle

Pages: 606
