Grove Crane RT855B 77725 Parts Manual 2017 PDF
-
Discount
- Regular price $70.00
- Description
- Download Information
Description
Download Grove Crane RT855B 77725 Parts Manual 2017 PDF (English)
The Grove Crane RT855B 77725 Parts Manual 2017 PDF is an essential technical reference for crane operators, maintenance personnel, mechanics, and equipment owners. This detailed manual contains comprehensive parts catalogs, exploded-view diagrams, component breakdowns, assembly illustrations, and accurate part numbers for the Grove RT855B rough terrain crane. Designed to simplify maintenance, repairs, troubleshooting, and replacement part identification, it helps improve service efficiency and reduce equipment downtime. The manual provides reliable information to support proper crane maintenance, optimal performance, and long-term operational reliability. www.themanualsgroup.com
MODEL COVERED :
Grove RT855B Crane

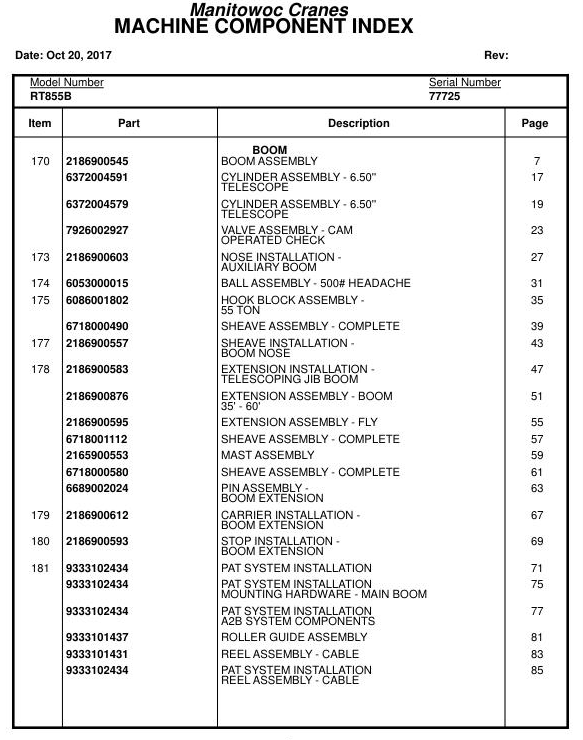

CONTENTS INCLUDED :
Boom Assembly
Cylinder Assembly – 6.50” Telescope
Valve Assembly – Cam Operated Check
Nose Installation – Auxiliary Boom
Ball Assembly – 500# Headache
Hook Block Assembly – 55 Ton
Sheave Assembly – Complete
Sheave Installation – Boom Nose
Extension Installation – Telescoping Jib Boom
Extension Assembly – Boom 35′ – 60′
Extension Assembly – Fly
Mast Assembly
Pin Assembly – Boom Extension
Carrier Installation – Boom Extension
Stop Installation – Boom Extension
Pat System Installation
Pat System Installation Mounting Hardware – Main Boom
Pat System Installation A2b System Components
Roller Guide Assembly
Reel Assembly – Cable
Pat System Installation Reel Assembly – Cable
Pat System Installation Ring Assembly – Slip
Pat System Installation Lmi Mounting Hardware
Pat System Installation Lmi Installation
Pat System Installation Central Unit Assembly
Pat System Installation Lmi Cabin Installation
Console Assembly – 24v Ds350gwv
Pat System Installation Console Assembly – 24v
Pat System Installation Lmi Cabin Kit Installation
Console Assembly – Ds350gw Interactive, (24v) Ce
Pat System Installation Console Assembly
Pat System Installation Light Bar Installation
Pat System Installation Transducer Installation –
Pat System Installation Minimum Wrap Limit Kit
Device Assembly , Third Wrap (Special)
Control Unit Assembly , 24 Volt Mwd 100
Pat System Installation Control Unit Assembly
Pat System Installation 3rd Wrap Limit Kit
Pat System Installation 3rd Wrap Device
Pat System Installation Auxiliary Boom Nose
Pat System Installation Extension Installation
Pat System Installation Tele-Extension Installation
Pat System Installation Base Kit Installation –
Pat System Installation Pin On Snub Nose
Pat System Installation Jumper Cable Assembly
Pat System Installation Weight Assembly – A2b
Pat System Installation Decal Assembly
Pat System Installation Wiring Diagrams
Cover Installation – Boom Latch
Bearing Bolt Installation
Turntable Drive Installation
Box Assembly – Swing Complete
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Lock Pin Installation – Turntable
Swing Lock Installation – 360 Degree
Counterweight Installation – 9500#
Swivel Installation – Electric, Air And Hydraulic
Swivel Assembly – Electric, Air And Hydraulic
Swivel Assembly – 12 Port Hydraulic
Swivel Assembly – 7 Port Air
Slip Ring Assembly – 44 Conductor
Electrical System Installation
Harness Assembly – Superstructure
Plug Assembly
Air Lines Installation – Superstructure
Hydraulic Lines Installation – Telescope
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Test Panel
Cooler Installation – Oil
Cooler Assembly – Oil
Valve Installation – Control
Valve Assembly – 3 Section
Valve Assembly – 2 Section
Valve Assembly – 1 Section Control
Valve Assembly – Pressure/Reducing
Valve Assembly – Sequence
Cover Installation – Control Valve
Cover Assembly – Valve
Door Assembly – Large
Door Assembly – Small
Grill Installation
Hoist Assembly – Model Ho-30d-16
Motor Assembly – Hydraulic Vane Type (Complete Assembly)
Brake Assembly
Hydraulic Lines Installation
Indicator Installation – Hoist Rotation
Sensor Assembly – Rotation Indicator
Mirror Installation – Hoist
Lubrication Installation – Turntable Bearing
Hydraulic Lines Installation – Pat Line
Hydraulic Lines Installation – Supply, Pressure And Return
Hydraulic Lines Installation – Heater
Hydraulic Lines Installation – Steer
Switch Installation – Axle Oscillation Override
Cylinder Installation – Lift
Cylinder Assembly – Lift 12″
Shaft Installation – Pivot
Heater/Tank Valve Installation
Accumulator
Mirror Installation – Rear View
Valve Installation – Heater
Valve Assembly – Solenoid
Valve Assembly – Relief 2500 Psi
Cab Installation
Cab Sub Assembly
Pedal Assembly – Air Throttle
Handle Installation – Lock
Motor Assembly – Wiper 24 Volt
Door Assembly
Column Assembly – Steering (Complete Assembly)
Valve Assembly – Steering Control
Valve Assembly – Dual Brake
Valve Assembly – 6 Station Solenoid
Cab Assembly
Pedal Installation – Boom Telescope
Rocker Pedal – Single Function
Console Installation – Front
Control Assembly – Shift
Harness Installation – Front Console
Harness Assembly – Front Console
Control Handles Installation
Control Seat Installation – Single Axis
Control Seat Assembly – Single Axis
Seat Assembly
Plate Assembly
Controller Assembly – Single Axis
Harness Assembly – Seat Arm
Harness Assembly – Seat
Suspension Assembly – Seat
Seat Suspension Assembly
Covers Installation – Bottom
Pedal Installation – Swing Brake
Screen Installation – Sun
Heater Installation – Hydraulic
Heater Assembly
Mount Assembly – Panel
Light Installation – Work
Light Assembly – Work
Extinguisher Installation – Fire
Electrical System Installation – Cab
Harness Assembly – Cab
Panel Assembly
Harness Assembly – Circuit Breakers
Mat Installation – Floor
Acoustical Installation
Wiper/Washer Installation – Skylight
Hydraulic Heater Installation – 24 Volt
Harness Installation – Heater
Harness Assembly – Heater
Switch Installation – Axle Differential
Sk930801
Window Gage Installation – Radiator With Side Tank Cooler
Frame Assembly
Axle Installation – Front
Axle Assembly – Drive/Steer
Cylinder Assembly – 4″ Steer
Hydraulic Lines Installation – Front Steer
Axle Installation – Rear
Cylinder Assembly – 5″ Lockout
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Hydraulic Lines Installation – Rear Steer
Hydraulic Valves Installation – Carrier
Valve Assembly – 4 Section
Valve Assembly – Inter Grated Outrigger
Valve Assembly – Check
Valve Assembly – Flow Divider (Complete Assembly)
Air Tank And Valve Installation
Dryer Assembly – Air
Valve Assembly – Spring Brake
Valve Assembly – Modified Air
Air Lines Installation – Carrier
Outrigger Beam Installation
Cylinder Assembly – Stabilizer
Cylinder Assembly – Extension
Hydraulic Lines Installation – Outrigger
Stowage Installation – Outrigger Float
Float Assembly – Outrigger
Electrical System Installation – Carrier
Harness Assembly – Carrier
Harness Assembly – Engine Hood
Fuse And Relay Panel Assembly – Carrier
Box Assembly – Relay
Harness Assembly – Relay Box
Exterior Lights Installation
Light Assembly – Yellow Clearance
Light Assembly – Red Clearance
Fender Installation
Hydraulic Tank Installation
Reservoir Assembly – Hydraulic
Cover Assembly – 16 1/4″ Inspection Inspection
Filter Assembly – Return
Fuel Tank Installation
Tire And Wheel Assembly
Hook Installation – Rear Pintle
Hook Assembly – Pintle
Hook Block Stowage And Front Deck Installation
Tray Assembly – Hook Block
Tire Inflation Kit Installation
Engine Installation – Cummins 6cta8.3
Pump Assembly
Cylinder Assembly – Throttle
Disconnect Assembly – Pump
Pump Assembly – Compensated
Cleaner Installation – Air
Cleaner Assembly – Air (Complete Assembly)
Exhaust System Installation
Radiator Installation
Transmission Installation
Transmission Assembly
Transmission Assembly Flange Group
Transmission Assembly Remote Case Group
Transmission Assembly Case And Rear Cover Group
Transmission Assembly Reverse And High Shaft Group
Transmission Assembly Forward And Second Shaft
Transmission Assembly Low Speed Shaft Group
Transmission Assembly Idler Shaft Group
Transmission Assembly Output Shaft Group
Transmission Assembly Hi And Low Range Shift
Transmission Assembly Control Valve Assembly
Transmission Assembly Loose Parts Group
Filter Assembly (Complete Assembly)
Hood Installation – Engine
Cover Assembly
Battery Installation
Driveline Installation
Driveline Assembly
Step Installation
Drip Pan Installation
Cooler Installation – Oil Transmission
Lockout Switch Installation – Rear Axle
Air Lines Installation –
Decal Installation – Rt800b Series
| Field | Details |
|---|---|
| Size | 12.88 MB |
| Format | |
| Language | English |
| Brand | Grove |
| Type of Machine | Crane |
| Type of Manual | Parts Manual |
| Model | Grove RT855B Crane |
| Serial Number | 77725 |
| Publication Date | 2017 |
| Number of Pages | 1183 Pages |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
Download Information
: File Format - PDF (Portable Document Format)
: Manual Images - (High-Quality PDF)
: Printable - Entire Manual
: Compatible - All versions of Windows, ios, android
: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics
: Download - You will receive the PDF manual in your email after the purchase
Order confirmation will be sent to the contact information you provided, and all updates will be delivered promptly.
If you encounter any issues, our dedicated support team is here to assist you. Please contact us at Support@themanualsgroup.com, and a team member will provide real-time updates and address any related queries promptly.
In the event that an incorrect item is purchased by mistake and you identify the correct item you require, we will exchange it for the appropriate item, on the condition that the replacement item is of equal value to the original purchase.
