Grove Crane RT855B 83263 Parts Manual 2010 PDF
-
Discount
- Regular price $70.00
- Description
- Download Information
Description

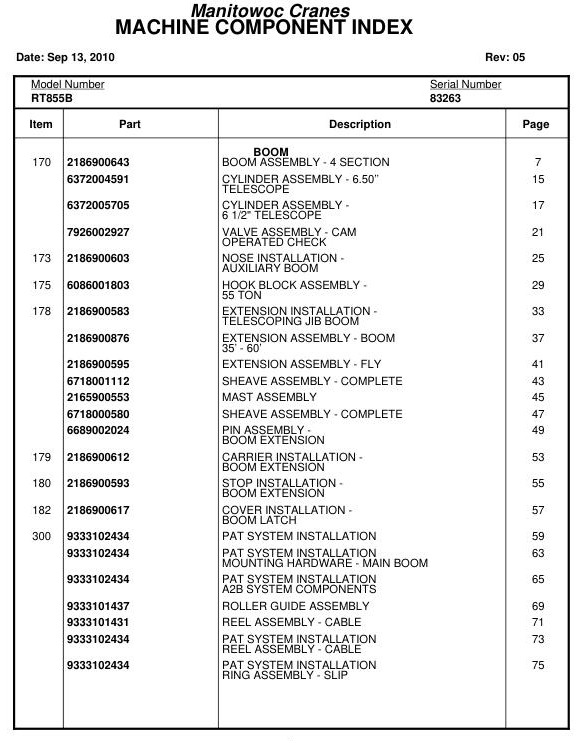

Download Grove Crane RT855B 83263 Parts Manual 2010 PDF (English)
Grove Crane RT855B 83263 Parts Manual 2010 PDF is a detailed technical resource for maintenance technicians, service engineers, and crane operators. It provides complete exploded diagrams, OEM part numbers, assembly breakdowns, and step-by-step repair and servicing instructions. This manual helps ensure accurate identification and replacement of components, reducing downtime and improving equipment reliability. Designed for workshop and field use, it supports safe maintenance procedures and long-term operational efficiency of the Grove RT855B crane series, making it an essential guide for heavy equipment repair, troubleshooting, and parts management. www.themanualsgroup.com
MODEL COVERED :
Grove RT855B Crane
CONTENTS INCLUDED :
Boom Assembly – 4 Section
Cylinder Assembly – 6.50’’ Telescope
Cylinder Assembly – 6 1/2″ Telescope
Valve Assembly – Cam Operated Check
Nose Installation – Auxiliary Boom
Hook Block Assembly – 55 Ton
Extension Installation – Telescoping Jib Boom
Extension Assembly – Boom 35’ – 60’
Extension Assembly – Fly
Sheave Assembly – Complete
Mast Assembly
Pin Assembly – Boom Extension
Carrier Installation – Boom Extension
Stop Installation – Boom Extension
Cover Installation – Boom Latch
Pat System Installation
Pat System Installation Mounting Hardware – Main Boom
Pat System Installation A2b System Components
Roller Guide Assembly
Reel Assembly – Cable
Pat System Installation Reel Assembly – Cable
Pat System Installation Ring Assembly – Slip
Pat System Installation Lmi Mounting Hardware
Pat System Installation Lmi Installation
Central Unit Assembly 24 Volt
Pat System Installation Central Unit Assembly
Pat System Installation Lmi Cabin Installation
Console Assembly – 24v Ds350gwv
Pat System Installation Console Assembly – 24v
Pat System Installation Lmi Cabin Kit Installation
Console Assembly – Ds350gw Interactive, (24v) Ce
Pat System Installation Console Assembly
Pat System Installation Light Bar Installation
Pat System Installation Transducer Installation –
Pat System Installation Minimum Wrap Limit Kit
Device Assembly , Third Wrap (Special)
Control Unit Assembly , 24 Volt Mwd 100
Pat System Installation Control Unit Assembly
Pat System Installation 3rd Wrap Limit Kit
Pat System Installation 3rd Wrap Device
Pat System Installation Auxiliary Boom Nose
Pat System Installation Extension Installation
Pat System Installation Tele-Extension Installation
Pat System Installation Base Kit Installation –
Pat System Installation Pin On Snub Nose
Pat System Installation Jumper Cable Assembly
Pat System Installation Weight Assembly – A2b
Pat System Installation Decal Assembly
Pat System Installation Wiring Diagrams
Bearing Bolt Installation
Turntable Drive Installation – Rotek
Box Assembly – Swing Complete (Mod Gb-200a)
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Turntable Section
Pin Lock Installation (Turntable)
Swing Lock Installation – 360 Degree
Counterweight Installation – 9500#
Swivel Installation – Electric, Air And Hydraulic
Swivel Assembly – Electric, Air And Hydraulic
Swivel Assembly – 12 Port Hydraulic
Swivel Assembly – 7 Port Air
Slip Ring Assembly – 44 Conductor
Hydraulic Lines Installation
Valve Assembly – Relief
Valve Assembly – Residual Check
Air Lines Installation –
Hydraulic Lines Installation – Telescope
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Heater
Hydraulic Lines Installation – Test Panel
Oil Coller Installation
Cooler Assembly – Oil (Complete Assembly)
Valve Installation – Control – Superstructure
Valve Assembly – 3 Section
Valve Assembly – 2 Section Control Control
Valve Bank Assembly
Valve Assembly – Pressure Reducing Sequence
Valve Assembly – Sequence
Cover Installation – Control Valve
Cover Assembly – Valve
Door Assembly – Large
Door Assembly – Small
Grill Installation
Hoist Installation – Main And Auxiliary
Hoist Assembly
Group Assembly – Right Hand
Group Assembly – Left Hand
Group Assembly – Center
Motor Assembly – Hydraulic Vane Type (Complete Assembly)
Brake Assembly
Valve And Plumbing Installation
Valve Assembly – Hoist Control
Follower Assembly – Cable
Indicator Installation – Hoist Rotation
Rotation Indicator Assembly
Mirror Installation – Hoist
Lubrication Installation – Turntable Bearing
Hydraulic Schematic – Lmi
Cylinder Installation – Lift
Cylinder Assembly – 12″ Lift
Hydraulic Lines Installation – Main And Auxiliary Hoist
Hydraulic Lines Installation – Steer
Shaft Installation – Pivot
Heater/Tank Valve Installation
Accumulator
Valve Assembly – Solenoid
Control Handles Installation
Pedal Installation – Swing Brake
Electrical System Installation
Harness Assembly – Superstructure
Plug Assembly
Pedal Installation – Boom Telescope
Sensor Installation
Cab Installation
Cab Assembly
Cab Section
Pedal Assembly – Air Throttle
Handle Installation – Lock
Motor Assembly – Modfied Wiper (Complete Assembly)
Motor Assembly – Wiper 24 Volt
Door Assembly
Skylight Installation – Sliding
Skylight Assembly – Sliding
Column Assembly – Steering (Complete Assembly)
Valve Assembly – Steering Control
Valve Assembly – Dual Brake
Valve Assembly – 6 Station Solenoid
Console Installation – Front
Console Assembly – Front
Control Assembly – Shift
Gauge Cluster – 24v
Harness Installation – Front Console
Harness Assembly – Console
Seat Installation – Single Axis Control
Control Seat Assembly – Single Axis
Seat Assembly
Plate Assembly
Controller Assembly – Single Axis
Harness Assembly – Seat Arm
Harness Assembly – Seat
Suspension Assembly – Seat
Covers Installation – Bottom
Screen Installation – Sun Open Mesh
Hydraulic Heater Installation – 24 Volt
Heater Assembly
Harness Installation – Heater
Harness Assembly – Heater
Work Light Installation
Light Assembly – Work
Extinguisher Installation – Fire
Electrical System Installation – Cab
Harness Assembly – Cab
Panel Assembly – Circuit Breaker
Harness Assembly – Circuit Breaker
Diode Assembly
Fan Installation – Cab Circulating
Fan Assembly – 24 Volt Cab (Complete Assembly)
Mat Installation – Floor
Acoustical Installation
Wiper/Washer Installation – Skylight
Washer Installation – Windshield
Switch Installation – Axle Oscillation Override
Frame Assembly
Front Axle Installation
Axle Assembly – Front
Axle Assembly – Drive Steer
Cylinder Assembly – 4″ Steer
Hydraulic Lines Installation – Front Steer
Rear Axle Installation
Cylinder Assembly – 5″ Lockout
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Hydraulic Lines Installation – Rear Steer
Hydraulic Valve Installation – Carrier
Valve Assembly – 4 Section
Valve Assembly – Inter Grated Outrigger
Valve Assembly – Check
Valve Assembly – Flow Divider (Complete Assembly)
Air Tank And Valve Installation
Dryer Assembly – Air (24 Volt)
Valve Assembly – Spring Brake
Valve Assembly – Modified Air
Bulkhead Assembly
Air Lines Installation – Carrier
Beam Installation – Outrigger
Beam Assembly – Outrigger
Cylinder Assembly – Stabilizer
Cylinder Assembly – Extension
Hydraulic Lines Installation – Outrigger
Stowage Installation – Outrigger Float
Float Assembly – Outrigger
Hydraulic Lines Installation – Supply, Pressure And Return
Exterior Lights Installation
Light Assembly – Yellow Clearance
Light Assembly – Red Clearance
Mirror Installation
Fender Installation
Hydraulic Tank Installation
Reservoir Assembly – Hydraulic
Cover Assembly – 16 1/4″ Inspection Inspection
Filter Assembly – Return
Fuel Tank And Cover Installation
Tank Assembly – Fuel 80 Gallon
Panel Assembly – Fuel Tank Decking
Cover Assembly – Side
Tire And Wheel Assembly
Hook Block Stowage And Front Deck Installation
Tray Assembly – Hook Block
Tire Inflation Kit Installation
Engine Installation – (For Reference Only)
Engine Assembly – Cat 3116
Pump Assembly – 3 Section
Pump Assembly – 2 Section (Complete Assembly)
Cylinder Assembly – Throttle
Pump Assembly – Gear
Tube Installation – Dipstick
Engine Components – Cat 3116
Cleaner Installation – Air
Cleaner Assembly – Air (Complete Assembly)
Exhaust System Installation
Radiator Installation
Transmission Installation
Transmission Assembly
Transmission Assembly Flange Group
Transmission Assembly Remote Case Group
Transmission Assembly Case And Rear Cover Group
Transmission Assembly Reverse And High Shaft Group
Transmission Assembly Forward And Second Shaft
Transmission Assembly Low Speed Shaft Group
Transmission Assembly Idler Shaft Group
Transmission Assembly Output Shaft Group
Transmission Assembly Hi And Low Range Shift
Transmission Assembly Control Valve Assembly
Electrical Installation – Transmission
Harness Assembly – Transmission
Filter Assembly (Complete Assembly)
Hood Installation – Engine
Cover Assembly
Moulding Installation
Battery Installation
Driveline Installation
Driveline Assembly
Step Installation
Drip Pan Installation
Cooler Installation – Oil Transmission
Quick Start Installation
Valve Installation – Heater
Valve Assembly – Control
Lockout Switch Installation – Rear Axle
Electrical System Installation – Carrier
Harness Assembly – Carrier
Harness Assembly – Engine Hood
Fuse And Relay Panel Assembly – Carrier
Box Assembly – Relay
Harness Assembly – Relay Box
Decal Installation – Rt800b Series
| Field | Details |
|---|---|
| Size | 13.09 MB |
| Format | |
| Language | English |
| Brand | Grove |
| Type of Machine | Crane |
| Type of Manual | Parts Manual |
| Model | Grove RT855B Crane |
| Serial Number | 83263 |
| Publication Date | 2010 |
| Number of Pages | 1205 Pages |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
Download Information
: File Format - PDF (Portable Document Format)
: Manual Images - (High-Quality PDF)
: Printable - Entire Manual
: Compatible - All versions of Windows, ios, android
: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics
: Download - You will receive the PDF manual in your email after the purchase
Order confirmation will be sent to the contact information you provided, and all updates will be delivered promptly.
If you encounter any issues, our dedicated support team is here to assist you. Please contact us at Support@themanualsgroup.com, and a team member will provide real-time updates and address any related queries promptly.
In the event that an incorrect item is purchased by mistake and you identify the correct item you require, we will exchange it for the appropriate item, on the condition that the replacement item is of equal value to the original purchase.
- Choosing a selection results in a full page refresh.
- Press the space key then arrow keys to make a selection.
- Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
