Grove Crane RT855B 87099 Parts Manual 2005 PDF
-
Discount
- Regular price $60.00
- Description
- Download Information
Description
Download Grove Crane RT855B 87099 Parts Manual 2005 PDF (English)
Find and download the Grove Crane RT855B 87099 Parts Manual 2005 PDF, designed for technicians, operators, and maintenance teams. This comprehensive manual includes detailed parts lists, exploded diagrams, assembly information, troubleshooting references, and repair guidance. It helps ensure accurate identification of components, efficient servicing, and reduced downtime. Ideal for heavy equipment repair workshops and crane service professionals, this PDF manual provides reliable technical data for the Grove RT855B model. www.themanualsgroup.com
MODEL COVERED :
Grove RT855B Crane
CONTENTS INCLUDED :

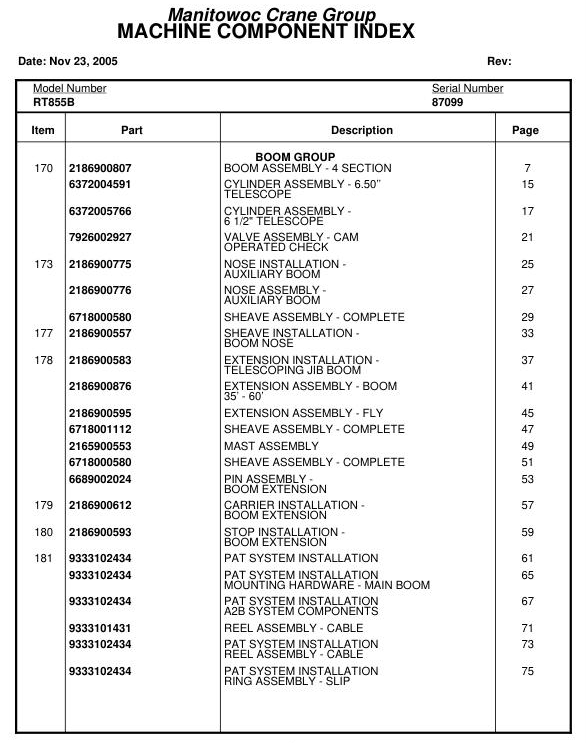

Boom Assembly – 4 Section
Cylinder Assembly – 6.50’’ Telescope
Cylinder Assembly – 6 1/2″ Telescope
Valve Assembly – Cam Operated Check
Nose Installation – Auxiliary Boom
Nose Assembly – Auxiliary Boom
Sheave Assembly – Complete
Sheave Installation – Boom Nose
Extension Installation – Telescoping Jib Boom
Extension Assembly – Boom 35’ – 60’
Extension Assembly – Fly
Mast Assembly
Pin Assembly – Boom Extension
Carrier Installation – Boom Extension
Stop Installation – Boom Extension
Pat System Installation
Pat System Installation Mounting Hardware – Main Boom
Pat System Installation A2b System Components
Reel Assembly – Cable
Pat System Installation Reel Assembly – Cable
Pat System Installation Ring Assembly – Slip
Pat System Installation Lmi Mounting Hardware
Pat System Installation Lmi Installation
Central Unit Assembly 24 Volt
Pat System Installation Central Unit Assembly
Pat System Installation Lmi Cabin Installation
Console Assembly – 24v Ds350gwv
Pat System Installation Console Assembly – 24v
Pat System Installation Lmi Cabin Kit Installation
Console Assembly – Ds350gw Interactive, (24v) Ce
Pat System Installation Console Assembly
Pat System Installation Light Bar Installation
Pat System Installation Transducer Installation –
Pat System Installation Minimum Wrap Limit Kit
Device Assembly , Third Wrap (Special)
Control Unit Assembly , 24 Volt Mwd 100
Pat System Installation Control Unit Assembly
Pat System Installation 3rd Wrap Limit Kit
Pat System Installation 3rd Wrap Device
Pat System Installation Auxiliary Boom Nose
Pat System Installation Extension Installation
Pat System Installation Tele-Extension Installation
Pat System Installation Base Kit Installation –
Pat System Installation Pin On Snub Nose
Pat System Installation Jumper Cable Assembly
Pat System Installation Weight Assembly – A2b
Pat System Installation Decal Assembly
Pat System Installation Wiring Diagrams
Cover Installation – Boom Latch
Nose Installation – Pin On
Nose Assembly – Pin On
Heater/Tank Valve Installation
Accumulator
Electrical Systems Installation – Superstructure
Superstructure
Plug Assembly
Sensor Installation
Cab Installation
Cab Assembly
Cab Section
Pedal Assembly – Air Throttle
Handle Installation – Lock
Motor Assembly – Modified Wiper Complete Assembly
Motor Assembly – Wiper 24 Volt
Door Assembly
Skylight Installation – Sliding
Skylight Assembly – Sliding
Column Assembly – Steering Complete Assembly
Valve Assembly – Steering Control
Valve Assembly – Dual Brake
Valve Assembly – 6 Station Solenoid
Console Installation
Handle Installation – Control
Seat Installation – Single Axis Control
Control Seat Assembly – Single Axis
Seat Assembly
Plate Assembly
Controller Assembly – Single Axis
Harness Assembly – Seat Arm
Harness Assembly – Seat
Suspension Assembly – Seat
Covers Installation – Bottom
Pedal Installation – Swing Brake
Screen Installation – Sun Open Mesh
Hydraulic Heater Installation – 24 Volt
Heater Assembly
Harness Installation – Heater
Harness Assembly – Heater
Work Light Installation
Light Assembly – Work
Extinguisher Installation – Fire
Electrical System Installation – Cab
Harness Assembly – Cab
Panel Assembly – Circuit Breaker
Harness Assembly – Circuit Breaker
Diode Assembly
Fan Installation – Cab Circulating
Fan Assembly – 24 Volt Cab Complete Assembly
Mat Installation – Floor
Acoustical Installation
Wiper/Washer Installation – Skylight
Washer Installation – Windshield
Pedal Installation – Boom Telescope
Single Function Rocker Pedal
Hydraulic Lines Installation – Rear Steer
Hydraulic Lines Installation
Valve Assembly – Relief
Valve Assembly – Residual Check
Air Lines Installation – Superstructure
Hydraulic Lines Installation – Telescope
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Heater
Hydraulic Lines Installation – Test Panel
Valve Installation – Control – Superstructure
Valve Assembly – 3 Section
Valve Assembly – 2 Section Control
Valve Bank Assembly
Valve Assembly – Pressure Reducing Sequence
Valve Assembly – Sequence
Hydraulic Schematic – Lmi
Hydraulic Lines Installation – Cab
Hydraulic Lines Installation – Main And Auxiliary Hoist
Hydraulic Lines Installation – Steer
Air Lines Installation
Ho30g-26g Main & Auxiliary Hoist Installation
Ho30g-26g Complete
Hoist Assembly
Group Assembly – Right Hand
Group Assembly – Left Hand
Group Assembly – Center
Motor Assembly – Hydraulic Vane Type Complete Assembly
Brake Assembly
Rotation Sensor Assembly
Valve And Plumbing Installation
Valve Assembly – Hoist Control
30g-26g Flwr
Kicker Installation
Sensor Installation – Hoist Rotation
Harness Assembly – Rotation Sensor
Mirror Installation – Hoist
Bearing Bolt Installation
Turntable And Drive Installation
Box Assembly – Swing Complete (Mod Gb-200a)
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Turntable Section
Lock Assembly – Swing
Stud Installation Not Available As Assembly
Pin Lock Installation (Turntable)
Swing Lock Installation – 360 Degree
Counterweight Installation – 9500#
Swivel Installation – Electric, Air And Hydraulic
Swivel Assembly – 12 Port Hydraulic
Swivel Assembly – 7 Port Air
Ring Assembly – Slip
Elec, Air & Hyd Swivel Assy
Swivel Assy-12 Port Hyd
Heater Valve And Filter Installation
Valve Assembly – Control
Filter Assembly – Pressure
Oil Cooler Installation
Cooler Assembly – Oil Complete Assembly
Cover Installation – Control Valve
Cover Assembly – Valve
Door Assembly – Large
Door Assembly – Small
Lubrication (Auto) Turntable Bearing
Pump Assembly – Grease
Valve Assembly – Divide
Cylinder Installation – Lift
Cylinder Assembly – 12″ Lift
Shaft Installation – Pivot
Engine Installation – For Reference Only
Engine Assembly
Converter Installation – Torque
Torque Converter Assembly
Torque Converter Assembly Converter Group
Torque Converter Assembly Charging Pump Group
Torque Converter Assembly Pump Assembly
Pump Assembly – 3 Section
Pump Assembly – 2 Section
Electrical System Installation – Engine
Harness Assembly – Cat Engine
Pump Assembly – Compensated
Cylinder Assembly – Throttle
Tube Installation – Dipstick
Pump Assembly – Gear
Engine Components Assembly
Cleaner Installation – Air
Cleaner Assembly – Air Complete Assembly
Exhaust System Installation
Radiator Installation
Hood Installation – Engine
Hood Assembly – Rear Engine
Cover Assembly
Moulding Installation – Engine Hood
Drip Pan Installation
Quick Start Installation
Transmission Installation
Filter Assembly Complete Assembly
Driveline Installation
Driveline Assembly
Cooler Installation – Oil Transmission
Cooler Assembly – Oil
Axle Installation – Front
Axle Assembly – Front
Axle Assembly – Drive Steer
Carrier Differential Assembly 5.29:1 Ratio
Cylinder Assembly – 4″ Steer
Hydraulic Lines Installation – Front Steer
Rear Axle Installation
Axle Assembly – Rear
Cylinder Assembly – 5″ Lockout
Cylinder Assembly – 5″ Lockout Complete Assembly
Tire And Wheel Assembly
Lockout Switch Installation – Rear Axle
Valve Installation – Hydraulic
Valve Assembly – 4 Section
Valve Assembly – Inter Grated Outrigger
Valve Assembly – Check
Valve Assembly – Flow Divider Complete Assembly
Valve Assembly – Solenoid
Valve Assembly – Flow Divider
Beam Installation – Outrigger
Beam Assembly – Outrigger
Cylinder Assembly -5 1/2″ Outrigger Jack Complete Assembly
Cylinder Assembly – Outrigger Extension
Cylinder Assembly – 2 1/2″
Hydraulic Lines Installation – Outrigger
Stowage Installation – Outrigger Float
Float Assembly – Outrigger
Frame Section
Air Tank And Valve Installation
Dryer Assembly – Air
Valve Assembly – Spring Brake
Valve Assembly – Modified Air
Bulkhead Assembly
Electrical System Installation – Carrier
Harness Assembly – Carrier
Harness Assembly – Engine Hood
Panel Assembly – Fuse And Relay – Carrier
Box Assembly – Relay
Harness Assembly – Relay Box
Hydraulic Lines Installation – Supply, Pressure And Return
Exterior Lights Installation
Light Assembly – Yellow Clearance
Light Assembly – Red Clearance
Mirror Installation
Fender Installation
Tank Installation – Hydraulic
Reservoir Assembly – Hydraulic
Cover Assembly – 16 1/4″ Inspection Inspection
Filter Assembly – Return
Fuel Tank And Cover Installation
Tank Assembly – Fuel 80 Gallon
Panel Assembly – Fuel Tank Decking
Cover Assembly – Side
Hook Block Stowage And Front Deck Installation
Tray Assembly – Hook Block
Tire Inflation Kit Installation
Battery Installation
Step Installation
Decal Installation – Rt800b Series
| Field | Details |
|---|---|
| Document Type | Parts Manual |
| Brand | Grove |
| Model | RT855B Crane |
| Type of Machine | Crane |
| Serial Number | 87099 |
| Publication Date | 2005 |
| Language | English |
| Format | |
| Number of Pages | 1231 pages |
| File Size | 13.24 MB |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
Download Information
: File Format - PDF (Portable Document Format)
: Manual Images - (High-Quality PDF)
: Printable - Entire Manual
: Compatible - All versions of Windows, ios, android
: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics
: Download - You will receive the PDF manual in your email after the purchase
Order confirmation will be sent to the contact information you provided, and all updates will be delivered promptly.
If you encounter any issues, our dedicated support team is here to assist you. Please contact us at Support@themanualsgroup.com, and a team member will provide real-time updates and address any related queries promptly.
In the event that an incorrect item is purchased by mistake and you identify the correct item you require, we will exchange it for the appropriate item, on the condition that the replacement item is of equal value to the original purchase.
- Choosing a selection results in a full page refresh.
- Press the space key then arrow keys to make a selection.
- Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
