Download Grove Crane RT865B 79936 Parts Manual 2008 PDF (English)

Download the Grove Crane RT865B 79936 Parts Manual 2008 PDF, a complete and detailed parts catalog designed for technicians, crane operators, and maintenance professionals. This manual includes exploded-view diagrams, OEM part numbers, component breakdowns, assembly illustrations, and accurate replacement part references for the Grove RT865B rough terrain crane. Ideal for servicing, repairs, troubleshooting, and parts identification, this PDF helps reduce downtime, improve maintenance efficiency, and ensure precise ordering of genuine components for reliable crane performance and long-term operation. www.themanualsgroup.com

MODEL COVERED :
Grove RT865B Crane

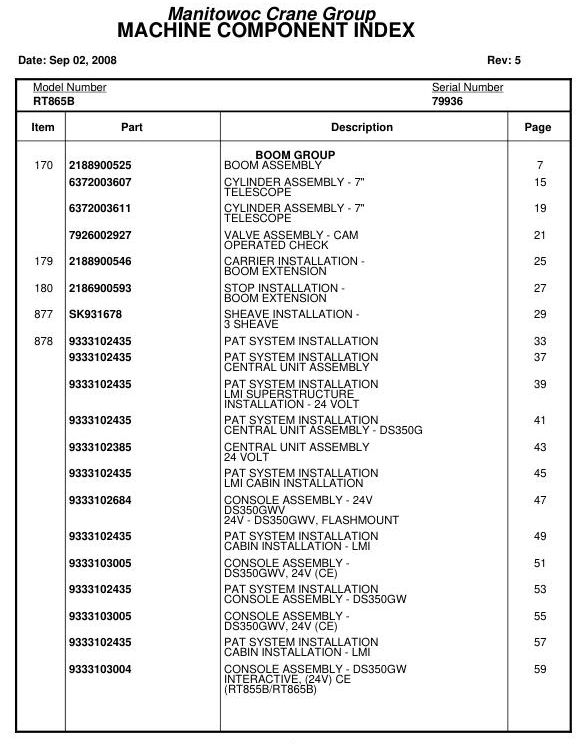

CONTENTS INCLUDED :
Boom Assembly
Cylinder Assembly – 7″ Telescope
Valve Assembly – Cam Operated Check
Carrier Installation – Boom Extension
Stop Installation – Boom Extension
Sheave Installation – 3 Sheave
Pat System Installation
Pat System Installation Central Unit Assembly
Pat System Installation Lmi Superstructure
Pat System Installation Central Unit Assembly – Ds350g
Central Unit Assembly 24 Volt
Pat System Installation Lmi Cabin Installation
Console Assembly – 24v Ds350gwv
Pat System Installation Cabin Installation – Lmi
Console Assembly – Ds350gwv, 24v (Ce)
Pat System Installation Console Assembly – Ds350gw
Console Assembly – Ds350gw Interactive, (24v) Ce
Pat System Installation Console Assembly
Pat System Installation Light Bar Installation – Lmi
Pat System Installation External Light Bar Installation
Light Bar, External
Light Bar Driver Assembly (External)
Pat System Installation Superstructure
Installation – Lmi Mounting Hardware
Pat System Installation Transducer Installation –
Pat System Installation Cable Reel Assembly –
Reel Assembly – Cable
Pat System Installation Control Unit Assembly – Mwd100
A2b System Components
Console Assembly Anti 2 Block
Pat System Installation 3rd Wrap Device – Special
Pat System Installation Auxiliary Boom Nose
Pat System Installation Extension Installation
Pat System Installation Tele Extension Installation
Pat System Installation Boom Extension Base Kit
Pat System Installation Pin On Snub Nose
Pat System Installation Jumper Cable Assembly
Pat System Installation Weight Assembly – A2b
Weight And Chain Assembly (Complete Assembly)
Pat System Installation Decal Kit
Slip Ring Assy.Pat Sys. Rt865b
Console Accy, External Light B
Console Accy, Light Bar Driver
Lmi-3rd Wrap Device Pat Rt865b
Device Assembly , Third Wrap (Special)
Control Unit Assembly , 24 Volt Mwd 100
Control Unit Assy. Pat Rt865b
3rd Wrap Limit Install. Aux.
Minimun Wrap Limit Device
Pat System Installation Mounting Hardware
Heater/Tank Valve Installation
Accumulator
Hydraulic Lines Installation – Heater
Valve Assembly – Solenoid
Electrical System Installation
Harness Assembly – Superstructure
Plug Assembly
Cab Installation
Cab Sub Assembly
Pedal Assembly – Air Throttle
Handle Installation – Lock
Motor Assembly – Wiper 24 Volt
Door Assembly
Column Assembly – Steering (Complete Assembly)
Valve Assembly – Steering Control
Valve Assembly – Dual Brake
Valve Assembly – 6 Station Solenoid
Cab Assembly
Console Installation – Front
Console Assembly – Front
Control Assembly – Shift
Gauge Cluster – 24v
Harness Installation – Front Console
Harness Assembly – Console
Control Handles Installation
Control Seat Installation – Single Axis
Control Seat Assembly – Single Axis Without Auxiliary
Seat Assembly
Plate Assembly
Controller Assembly – Single Axis
Harness Assembly – Seat Arm
Harness Assembly – Seat
Suspension Assembly – Seat
Seat Suspension Assembly
Covers Installation – Bottom
Pedal Installation – Swing Brake
Screen Installation – Sun
Hydraulic Heater Installation – 24 Volt
Heater Assembly
Harness Installation – Heater
Harness Assembly – Heater
Extinguisher Installation – Fire
Electrical System Installation – Cab
Harness Assembly – Cab
Panel Assembly
Harness Assembly – Circuit Breakers
Mat Installation – Floor
Acoustical Installation
Wiper/Washer Installation – Skylight
Washer Installation – Windshield
Pedal Installation – Boom Telescope
Light Installation – Work
Light Assembly – Work
Air Lines Installation –
Hydraulic Lines Installation – Telescope
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Test Panel
Valve Installation – Control – Superstructure
Valve Assembly – 3 Section
Valve Assembly – 2 Section Control Control
Valve Bank Assembly
Valve Assembly – Pressure Reducing Sequence
Valve Assembly – Sequence
Hydraulic Schematic – Lmi
Hydraulic Lines Installation – Supply, Pressure And Return
Hydraulic Lines Installation – Main And Auxiliary Hoist
Hydraulic Lines Installation – Steer
Hydraulic Schematic – Main And Future Auxiliary Hoist
Hoist Installation – Main
Hoist Assembly
Group Assembly – Right Hand
Group Assembly – Left Hand
Group Assembly – Center
Motor Assembly – Hydraulic Vane Type (Complete Assembly)
Brake Assembly
Valve And Plumbing Installation
Valve Assembly – Hoist Control
Follower Assembly – Cable
Indicator Installation – Hoist Rotation
Rotation Indicator Assembly
Mirror Installation – Hoist
Bearing Bolt Installation
Turntable Drive Installation
Box Assembly – Swing Complete
Motor Assembly – Orbit
Brake Assembly – Swing
Lock Pin Installation – Turntable
Swing Lock Installation – 360 Degree
Counterweight Installation – 13500 Lbs
Counterweight Installation
Swivel Installation – Electric, Air And Hydraulic
Elec, Air & Hyd Swivel Assy
Swivel Assy-12 Port Hyd
Swivel Assembly – 7 Port Air
Ring Assembly – Slip
Cooler Installation – Oil
Cooler Assembly – Oil
Cover Installation – Control Valve
Cover Assembly – Valve
Door Assembly – Large
Door Assembly – Small
Grill Installation
Lubrication Installation – Turntable Bearing
Cylinder Installation – Lift
Cylinder Assembly – Lift
Shaft Installation – Pivot
Engine Installation – W/Heater Pump Cat-3116dita
Pump Assembly
Cylinder Assembly – Throttle
Disconnect Assembly – Pump
Pump Assembly – Gear
Pump Assembly – Compensated
Cleaner Installation – Air
Cleaner Assembly – Air (Complete Assembly)
Exhaust System Installation
Radiator Installation
Quick Start Installation
Valve Installation – Heater
Valve Assembly – Control
Evacution System Installation – Engine Oil
Transmission Installation
Transmission Assembly
Transmission Assembly Flange Group
Transmission Assembly Remote Case Group
Transmission Assembly Case And Rear Cover Group
Transmission Assembly Reverse And High Shaft Group
Transmission Assembly Forward And Second Shaft
Transmission Assembly Low Speed Shaft Group
Transmission Assembly Idler Shaft Group
Transmission Assembly Output Shaft Group
Transmission Assembly Hi And Low Range Shift
Transmission Assembly Control Valve Assembly
Electrical Installation – Transmission
Harness Assembly – Transmission
Hydraulic Lines Installation
Filter Assembly (Complete Assembly)
Driveline Installation
Driveline Assembly
Cooler Installation – Oil Transmission
Axle Installation – Front
Axle Assembly
Axle Assembly Differential Carrier Parts
Axle Assembly Housing Parts
Axle Assembly Shaft And Hub Parts
Axle Assembly Brake Parts – Right Hand
Axle Assembly Brake Parts – Left Hand
Axle Assembly Brake Chamber Assembly
Cylinder Assembly – 4″ Steer (Complete Assembly)
Hydraulic Lines Installation – Front Steer
Axle Installation – Rear
Cylinder Assembly – 5″ Lockout
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Hydraulic Lines Installation – Rear Steer
Tire And Wheel Assembly
Lockout Switch Installation – Rear Axle
Stowage Installation – Outrigger Float
Float Assembly – Outrigger
Beam Installation – Outrigger
Cylinder Assembly – Stabilizer
Cylinder Assembly – Extension
Decal Installation – Rt800b Series
Hydraulic Valve Installation -Carrier
Valve Assembly – 4 Section
Valve Assembly – Inter Grated Outrigger
Valve Assembly – Check
Valve Assembly – Flow Divider (Complete Assembly)
Air Tank And Valve Installation
Dryer Assembly – Air (24 Volt)
Valve Assembly – Spring Brake
Valve Assembly – Modified Air
Bulkhead Assembly
Air Lines Installation – Carrier
Electrical System Installation – Carrier
Harness Assembly – Carrier
Harness Assembly – Engine Hood
Fuse And Relay Panel Assembly – Carrier
Box Assembly – Relay
Harness Assembly – Relay Box
Tire Inflation Kit Installation
Battery Installation
Fuel Tank Installation
Cover Assembly – Side
Storage Installation – Protection Covers
Covers Installation – Vandalism Protection
Hydraulic Lines Installation – Outrigger
