Grove Crane RT865B 81544 Parts Manual 2007 PDF
-
Discount
- Regular price $70.00
- Description
- Download Information
Description
Download Grove Crane RT865B 81544 Parts Manual 2007 PDF (English)
Download the Grove Crane RT865B 81544 Parts Manual 2007 PDF, a comprehensive parts catalog created for technicians, mechanics, and crane owners. This detailed manual includes exploded-view diagrams, part numbers, component identification, assembly illustrations, and replacement part information for the Grove RT865B rough terrain crane. Ideal for maintenance, repairs, troubleshooting, and equipment servicing, this PDF manual helps ensure accurate parts ordering, minimizes downtime, and supports efficient machine performance. An essential resource for maintaining Grove RT865B crane equipment. www.themanualsgroup.com
MODEL COVERED :
Grove RT865B Crane
CONTENTS INCLUDED :

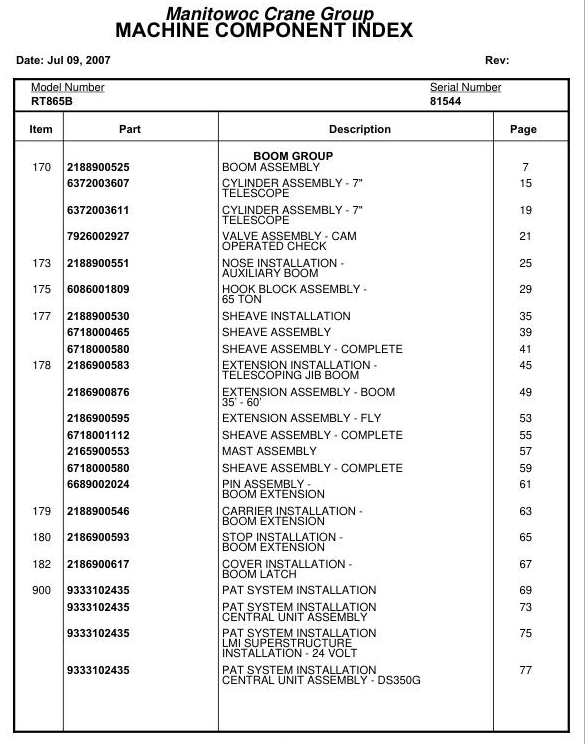

Boom Assembly
Cylinder Assembly – 7″ Telescope
Valve Assembly – Cam Operated Check
Nose Installation – Auxiliary Boom
Hook Block Assembly – 65 Ton
Sheave Installation
Sheave Assembly
Sheave Assembly – Complete
Extension Installation – Telescoping Jib Boom
Extension Assembly – Boom 35’ – 60’
Extension Assembly – Fly
Mast Assembly
Pin Assembly – Boom Extension
Carrier Installation – Boom Extension
Stop Installation – Boom Extension
Cover Installation – Boom Latch
Pat System Installation
Pat System Installation Central Unit Assembly
Pat System Installation Lmi Superstructure
Pat System Installation Central Unit Assembly – Ds350g
Pat System Installation Lmi Cabin Installation
Console Assembly – 24v Ds350gwv
Pat System Installation Cabin Installation – Lmi
Console Assembly – Ds350gwv, 24v (Ce)
Pat System Installation Console Assembly – Ds350gw
Console Assembly – Ds350gw Interactive, (24v) Ce
Pat System Installation Console Assembly
Pat System Installation Light Bar Installation – Lmi
Pat System Installation External Light Bar Installation
Light Bar, External
Light Bar Driver Assembly (External)
Pat System Installation Light Bar – External
Central Unit Assembly 24 Volt
Pat System Installation Light Bar Driver Assembly
Pat System Installation Transducer Installation –
Pat System Installation Minimum Wrap Kit
Pat System Installation Control Unit Assembly – Mwd100
Reel Assembly – Cable
Pat System Installation 3rd Wrap Limit Kit –
Pat System Installation 3rd Wrap Device – Special
Pat System Installation Auxiliary Boom Nose
Pat System Installation Extension Installation
Pat System Installation Tele Extension Installation
Pat System Installation Boom Extension Base Kit
Pat System Installation Pin On Snub Nose
Pat System Installation Jumper Cable Assembly
Pat System Installation Weight Assembly – A2b
Pat System Installation Decal Kit
Heater/Tank Valve Installation
Accumulator
Hydraulic Lines Installation – Heater
Valve Assembly – Solenoid
Electrical System Installation
Harness Assembly – Superstructure
Plug Assembly
Cab Installation
Cab Assembly
Cab Sub Assembly
Pedal Assembly – Air Throttle
Motor Assembly – Wiper 24 Volt
Door Assembly
Column Assembly – Steering Complete Assembly
Valve Assembly – Steering Control
Valve Assembly – Dual Brake
Valve Assembly – 6 Station Solenoid
Console Installation – Front
Console Assembly – Front
Control Assembly – Shift
Gauge Cluster – 24v
Harness Installation – Front Console
Harness Assembly – Console
Control Handles Installation
Control Seat Installation – Single Axis
Control Seat Assembly – Single Axis
Seat Assembly
Plate Assembly
Controller Assembly – Single Axis
Harness Assembly – Seat Arm
Harness Assembly – Seat
Suspension Assembly – Seat
Seat Suspension Assembly
Covers Installation – Bottom
Pedal Installation – Swing Brake
Screen Installation – Sun
Hydraulic Heater Installation – 24 Volt
Heater Assembly
Harness Installation – Heater
Harness Assembly – Heater
Light Installation – Work
Light Assembly – Work
Extinguisher Installation – Fire
Electrical System Installation – Cab
Harness Assembly – Cab
Panel Assembly
Harness Assembly – Circuit Breakers
Mat Installation – Floor
Acoustical Installation
Wiper/Washer Installation – Skylight
Washer Installation – Windshield
Pedal Installation – Boom Telescope
Single Function Rocker Pedal
Hydraulic Lines Installation – Supply, Pressure And Return
Valve Assembly – Relief
Valve Assembly – Residual Check
Air Lines Installation
Hydraulic Lines Installation – Telescope
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Test Panel
Valve Installation – Control – Superstructure
Valve Assembly – 3 Section
Valve Assembly – 2 Section Control Control
Valve Bank Assembly
Valve Assembly – Pressure Reducing Sequence
Valve Assembly – Sequence
Hydraulic Lines Installation
Hydraulic Schematic – Lmi
Hydraulic Lines Installation – Main And Auxiliary Hoist
Hydraulic Lines Installation – Steer
Switch Installation – Axle Oscillation Override
Hoist Installation – Main And Auxiliary
Hoist Assembly
Group Assembly – Right Hand
Group Assembly – Left Hand
Group Assembly – Center
Motor Assembly – Hydraulic Vane Type Complete Assembly
Brake Assembly
Valve And Plumbing Installation
Valve Assembly – Hoist Control
Follower Assembly – Cable
Indicator Installation – Hoist Rotation
Rotation Indicator Assembly
Mirror Installation – Hoist
Bearing Bolt Installation
Turntable And Drive (Rotek)
Swing Lock Installation – 360 Degree
Counterweight Installation – 13500 Lbs
Swivel Installation – Electric, Air And Hydraulic
Elec, Air & Hyd Swivel Assy
Swivel Assy-12 Port Hyd
Swivel Assembly – 7 Port Air
Ring Assembly – Slip
Cooler Installation – Oil
Cooler Assembly – Oil
Cover Installation – Control Valve
Cover Assembly – Valve
Door Assembly – Large
Door Assembly – Small
Grill Installation
Lubrication Installation – Turntable Bearing
Cylinder Installation – Lift
Cylinder Assembly 13.00’’ Lift
Shaft Installation – Pivot
Engine Installation – W/Heater Pump Cat-3116dita
Pump Assembly
Cylinder Assembly – Throttle
Disconnect Assembly – Pump
Pump Assembly – Gear
Pump Assembly – Compensated
Cleaner Installation – Air
Cleaner Assembly – Air Complete Assembly
Exhaust System Installation
Radiator Installation
Hood Installation – Engine
Cover Assembly
Moulding Installation
Drip Pan Installation
Quick Start Installation
Valve Installation – Heater
Valve Assembly – Control
Transmission Installation
Transmission Assembly
Transmission Assembly Flange Group
Transmission Assembly Remote Case Group
Transmission Assembly Case And Rear Cover Group
Transmission Assembly Reverse And High Shaft Group
Transmission Assembly Forward And Second Shaft
Transmission Assembly Low Speed Shaft Group
Transmission Assembly Idler Shaft Group
Transmission Assembly Output Shaft Group
Transmission Assembly Hi And Low Range Shift
Transmission Assembly Control Valve Assembly
Electrical Installation – Transmission
Harness Assembly – Transmission
Filter Assembly Complete Assembly
Driveline Installation
Driveline Assembly
Cooler Installation – Oil Transmission
Front Axle Installation
Hydraulic Lines Installation – Front Steer
Rear Axle Installation
Cylinder Assembly – 5″ Lockout
Cylinder Assembly – 5″ Lockout Complete Assembly
Hydraulic Lines Installation – Rear Steer
Tire And Wheel Assembly
Lockout Switch Installation – Rear Axle
Beam Installation – Outrigger
Cylinder Assembly – Stabilizer
Cylinder Assembly – Extension
Stowage Installation – Outrigger Float
Float Assembly – Outrigger
Hydraulic Valve Installation -Carrier
Valve Assembly – 4 Section
Valve Assembly – Inter Grated Outrigger
Valve Assembly – Check
Valve Assembly – Flow Divider Complete Assembly
Air Tank And Valve Installation
Dryer Assembly – Air (24 Volt)
Valve Assembly – Spring Brake
Valve Assembly – Modified Air
Bulkhead Assembly
Air Lines Installation – Carrier
Electrical System Installation – Carrier
Harness Assembly – Carrier
Harness Assembly – Engine Hood
Fuse And Relay Panel Assembly – Carrier
Box Assembly – Relay
Harness Assembly – Relay Box
Exterior Lights Installation
Light Assembly – Yellow Clearance
Light Assembly – Red Clearance
Mirror Installation
Fender Installation
Hydraulic Tank Installation
Reservoir Assembly – Hydraulic
Cover Assembly – 16 1/4″ Inspection Inspection
Filter Assembly – Return
Filter Assembly
Fuel Tank Installation
Cover Assembly – Side
Hook Block Stowage And Front Deck Installation
Tray Assembly – Hook Block
Tire Inflation Kit Installation
Battery Installation
Step Installation
Decal Installation – Rt800b Series
Hydraulic Lines Installation – Outrigger
| Field | Details |
|---|---|
| Document Type | Parts Manual |
| Brand | Grove |
| Machine Type | Crane |
| Model | Grove RT865B Crane |
| Serial Number | 81544 |
| Publication Date | 2007 |
| Language | English |
| Format | |
| File Size | 12.60 MB |
| Number of Pages | 1167 pages |
