Grove Crane RT865B 81943 Parts Manual 2010 PDF
-
Discount
- Regular price $60.00
- Description
- Download Information
Description
Download Grove Crane RT865B 81943 Parts Manual 2010 PDF (English)
Download the Grove Crane RT865B 81943 Parts Manual 2010 PDF, a comprehensive parts catalog designed to help technicians, mechanics, and equipment owners identify, order, and replace genuine components accurately. This detailed manual includes exploded-view diagrams, parts listings, component identification, assembly references, and maintenance support information for the Grove RT865B rough terrain crane. Ideal for repair, servicing, troubleshooting, and preventive maintenance, this PDF manual helps reduce downtime and ensures efficient equipment operation with accurate parts identification. www.themanualsgroup.com
MODEL COVERED :
Grove RT865B Crane

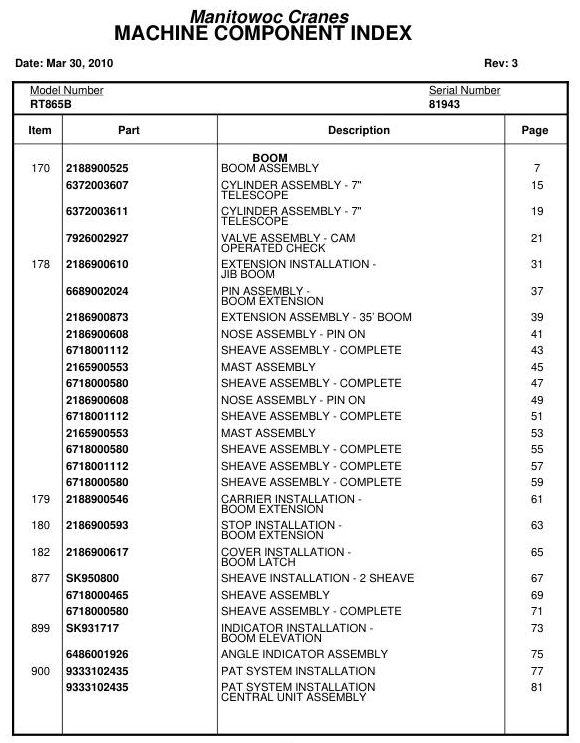

CONTENTS INCLUDED :
Boom Assembly
Cylinder Assembly – 7″ Telescope
Valve Assembly – Cam Operated Check
Extension Installation – Jib Boom
Pin Assembly – Boom Extension
Extension Assembly – 35’ Boom
Nose Assembly – Pin On
Sheave Assembly – Complete
Mast Assembly
Carrier Installation – Boom Extension
Stop Installation – Boom Extension
Cover Installation – Boom Latch
Sheave Installation – 2 Sheave
Sheave Assembly
Indicator Installation – Boom Elevation
Angle Indicator Assembly
Pat System Installation
Pat System Installation Central Unit Assembly
Pat System Installation Lmi Superstructure
Pat System Installation Central Unit Assembly – Ds350g
Central Unit Assembly 24 Volt
Pat System Installation Lmi Cabin Installation
Console Assembly – 24v Ds350gwv
Pat System Installation Cabin Installation – Lmi
Console Assembly – Ds350gwv, 24v (Ce)
Pat System Installation Console Assembly – Ds350gw
Console Assembly – Ds350gw Interactive, (24v) Ce
Pat System Installation Console Assembly
Pat System Installation Light Bar Installation – Lmi
Pat System Installation External Light Bar Installation
Light Bar, External
Light Bar Driver Assembly (External)
Pat System Installation Superstructure
Installation – Lmi Mounting Hardware
Pat System Installation Transducer Installation –
Pat System Installation Cable Reel Assembly –
Reel Assembly – Cable
Pat System Installation Control Unit Assembly – Mwd100
Roller Guide Assembly
A2b System Components
Pat System Installation 3rd Wrap Device – Special
Pat System Installation Auxiliary Boom Nose
Pat System Installation Extension Installation
Pat System Installation Tele Extension Installation
Pat System Installation Boom Extension Base Kit
Pat System Installation Pin On Snub Nose
Pat System Installation Jumper Cable Assembly
Pat System Installation Weight Assembly – A2b
Weight And Chain Assembly (Complete Assembly)
Pat System Installation Decal Kit
Slip Ring Assy.Pat Sys. Rt865b
Console Accy, External Light B
Console Accy, Light Bar Driver
Lmi-3rd Wrap Device Pat Rt865b
Device Assembly , Third Wrap (Special)
Control Unit Assembly , 24 Volt Mwd 100
Control Unit Assy. Pat Rt865b
3rd Wrap Limit Install. Aux.
Minimun Wrap Limit Device
Pat System Installation Mounting Hardware
Bearing Bolt Installation
Turntable And Drive (Rotek)
Pin Lock Installation (Turntable)
Swing Lock Installation – 360 Degree
Counterweight Installation – 13500 Lbs
Counterweight Installation
Swivel Installation – Electric, Air And Hydraulic
Swivel Assembly – Electric, Air And Hydraulic
Swivel Assembly – 12 Port Hydraulic
Swivel Assembly – 7 Port Air
Slip Ring Assembly – 44 Conductor
Hydraulic Lines Installation – Supply, Pressure And Return
Valve Assembly – Relief
Valve Assembly – Residual Check
Air Lines Installation –
Hydraulic Lines Installation – Telescope
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Heater
Hydraulic Lines Installation – Test Panel
Cooler Installation – Oil
Cooler Assembly – Oil
Valve Installation – Control – Superstructure
Valve Assembly – 3 Section
Valve Assembly – 2 Section Control Control
Valve Bank Assembly
Valve Assembly – Pressure Reducing Sequence
Valve Assembly – Sequence
Cover Installation – Control Valve
Cover Assembly – Valve
Door Assembly – Large
Door Assembly – Small
Grill Installation
Hoist Installation – Main
Hoist Assembly
Group Assembly – Right Hand
Group Assembly – Left Hand
Group Assembly – Center
Motor Assembly – Hydraulic Vane Type (Complete Assembly)
Brake Assembly
Valve And Plumbing Installation
Valve Assembly – Hoist Control
Follower Assembly – Cable
Indicator Installation – Hoist Rotation
Rotation Indicator Assembly
Mirror Installation – Hoist
Lubrication Installation – Turntable Bearing
Hydraulic Schematic – Lmi
Cylinder Installation – Lift
Cylinder Assembly 13.00’’ Lift
Hydraulic Lines Installation – Main And Auxiliary Hoist
Hydraulic Lines Installation – Steer
Shaft Installation – Pivot
Hydraulic Schematic – Main And Future Auxiliary Hoist
Heater/Tank Valve Installation
Accumulator
Valve Assembly – Solenoid
Electrical System Installation
Harness Assembly – Superstructure
Plug Assembly
Cab Installation
Cab Assembly
Cab Sub Assembly
Pedal Assembly – Air Throttle
Motor Assembly – Wiper 24 Volt
Door Assembly
Column Assembly – Steering (Complete Assembly)
Valve Assembly – Steering Control
Valve Assembly – Dual Brake
Valve Assembly – 6 Station Solenoid
Console Installation – Front
Console Assembly – Front
Control Assembly – Shift
Gauge Cluster – 24v
Harness Installation – Front Console
Harness Assembly – Console
Control Handles Installation
Control Seat Installation – Single Axis
Control Seat Assembly – Single Axis Without Auxiliary
Seat Assembly
Plate Assembly
Controller Assembly – Single Axis
Harness Assembly – Seat Arm
Harness Assembly – Seat
Suspension Assembly – Seat
Seat Suspension Assembly
Covers Installation – Bottom
Pedal Installation – Swing Brake
Screen Installation – Sun
Hydraulic Heater Installation – 24 Volt
Heater Assembly
Harness Installation – Heater
Harness Assembly – Heater
Extinguisher Installation – Fire
Electrical System Installation – Cab
Harness Assembly – Cab
Panel Assembly
Harness Assembly – Circuit Breakers
Mat Installation – Floor
Acoustical Installation
Wiper/Washer Installation – Skylight
Washer Installation – Windshield
Pedal Installation – Boom Telescope
Light Installation – Work
Light Assembly – Work
Frame Assembly
Front Axle Installation
Hydraulic Lines Installation – Front Steer
Rear Axle Installation
Cylinder Assembly – 5″ Lockout
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Hydraulic Lines Installation
Hydraulic Lines Installation – Rear Steer
Hydraulic Valve Installation – Carrier
Valve Assembly – 4 Section
Valve Assembly – Inter Grated Outrigger
Valve Assembly – Check
Valve Assembly – Flow Divider (Complete Assembly)
Air Lines Installation – Carrier
Hydraulic Lines Installation – Outrigger
Stowage Installation – Outrigger Float
Float Assembly – Outrigger
Electrical System Installation – Carrier
Harness Assembly – Carrier
Harness Assembly – Engine Hood
Fuse And Relay Panel Assembly – Carrier
Box Assembly – Relay
Harness Assembly – Relay Box
Exterior Lights Installation
Light Assembly – Yellow Clearance
Light Assembly – Red Clearance
Mirror Installation
Fender Installation
Tire And Wheel Assembly
Front Pintle
Hook Assembly – Pintle
Hook Installation – Rear Pintle
Hook Block Stowage And Front Deck Installation
Tray Assembly – Hook Block
Tire Inflation Kit Installation
Engine Installation – W/Heater Pump Cat-3116dita
Pump Assembly
Cylinder Assembly – Throttle
Disconnect Assembly – Pump
Pump Assembly – Gear
Pump Assembly – Compensated
Cleaner Installation – Air
Cleaner Assembly – Air (Complete Assembly)
Exhaust System Installation
Radiator Installation
Transmission Installation
Transmission Assembly
Transmission Assembly Flange Group
Transmission Assembly Remote Case Group
Transmission Assembly Case And Rear Cover Group
Transmission Assembly Reverse And High Shaft Group
Transmission Assembly Forward And Second Shaft
Transmission Assembly Low Speed Shaft Group
Transmission Assembly Idler Shaft Group
Transmission Assembly Output Shaft Group
Transmission Assembly Hi And Low Range Shift
Transmission Assembly Control Valve Assembly
Electrical Installation – Transmission
Harness Assembly – Transmission
Filter Assembly (Complete Assembly)
Hood Installation – Engine
Cover Assembly
Moulding Installation
Battery Installation
Driveline Installation
Driveline Assembly
Step Installation
Drip Pan Installation
Cooler Installation – Oil Transmission
Quick Start Installation
Valve Installation – Heater
Valve Assembly – Control
Lockout Switch Installation – Rear Axle
Hydraulic Tank Installation
Reservoir Assembly – Hydraulic
Cover Assembly – 16 1/4″ Inspection Inspection
Filter Assembly – Return
Filter Assembly
Fuel Tank Installation
Cover Assembly – Side
Beam Installation – Outrigger
Cylinder Assembly – Stabilizer
Cylinder Assembly – Extension
Storage Installation – Protection Covers
Covers Installation – Vandalism Protection
Evacuation System Installation – Engine Oil
Decal Installation – Rt800b Series
| Field | Details |
|---|---|
| Document Type | Parts Manual |
| Brand | Grove |
| Machine Type | Crane |
| Model | Grove RT865B Crane |
| Serial Number | 81943 |
| Publication Date | 2010 |
| Language | English |
| Format | |
| File Size | 17.36 MB |
| Number of Pages | 1197 pages |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
Download Information
: File Format - PDF (Portable Document Format)
: Manual Images - (High-Quality PDF)
: Printable - Entire Manual
: Compatible - All versions of Windows, ios, android
: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics
: Download - You will receive the PDF manual in your email after the purchase
Order confirmation will be sent to the contact information you provided, and all updates will be delivered promptly.
If you encounter any issues, our dedicated support team is here to assist you. Please contact us at Support@themanualsgroup.com, and a team member will provide real-time updates and address any related queries promptly.
In the event that an incorrect item is purchased by mistake and you identify the correct item you require, we will exchange it for the appropriate item, on the condition that the replacement item is of equal value to the original purchase.
- Choosing a selection results in a full page refresh.
- Press the space key then arrow keys to make a selection.
- Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
