Grove Crane RT875 78220 Parts Manual 2022 PDF
-
Discount
- Regular price $80.00
- Description
- Download Information
Description

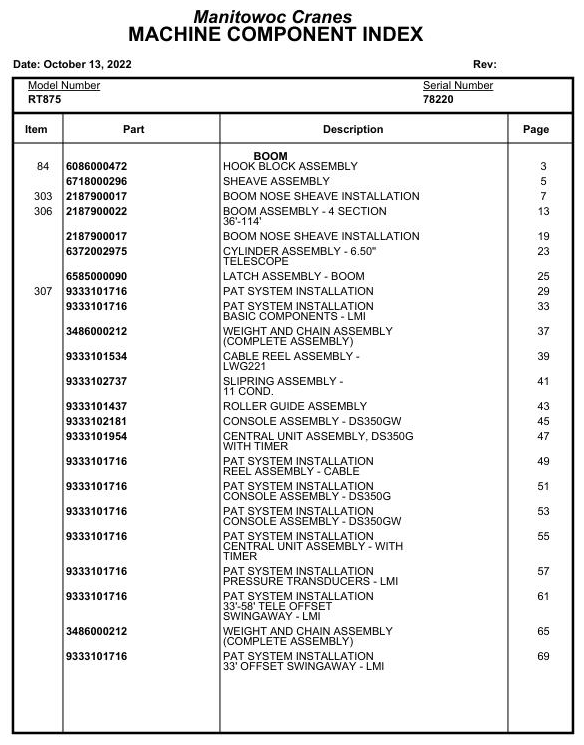

Download Grove Crane RT875 78220 Parts Manual 2022 PDF (English)
Download the Grove Crane RT875 78220 Parts Manual 2022 PDF for complete reference. This manual includes detailed part numbers, diagrams, and maintenance instructions for accurate repairs and replacements. Ideal for technicians, operators, and engineers, it provides step-by-step assembly guides, specifications, and troubleshooting tips. Ensure safe and efficient crane operation while optimizing maintenance workflows. Access all essential information to keep your Grove RT875 78220 crane performing at its best with this official 2022 parts manual. www.themanualsgroup.com
MODEL COVERED :
Grove RT875 Crane
CONTENTS INCLUDED :
Hook Block Assembly
Sheave Assembly
Boom Nose Sheave Installation
Boom Assembly – 4 Section36′-114′
Cylinder Assembly – 6.50”Telescope
Latch Assembly – Boom
Pat System Installation
Pat System Installation basic Components – Lmi
Weight And Chain Assembly (Complete Assembly)
Cable Reel Assembly -Lwg221
Slip Ring Assembly -11 Cond.
Roller Guide Assembly
Console Assembly – Ds350gw
Central Unit Assembly , Ds350gwith Timer
Pat System Installation reel Assembly – Cable
Pat System Installation console Assembly – Ds350g
Pat System Installation console Assembly – Ds350gw
Pat System Installation central Unit Assembly – With
Pat System Installation pressure Transducers – Lmi
Pat System Installation 33′-58′ Tele Offset
Pat System Installation 33′ Offset Swing Away – Lmi
Pat System Installation 60′-88′ Lattice Jib – Lmi
Pat System Installation auxiliary Boom Nose – Lmi
Pat System Installation anti 2 Block Weight Assembly
Pat System Installation minimum Layer Device
Pat System Installation decal Installation – Ds350
Pat System Installation wiring Diagrams
Sk911245
Boom Elevation Indicator Installation
Angle Indicator Assembly
Shaft Installation -Boom Pivot
Valve Installation -Pressure Reducing
Valve Assembly – Pressure/Reducing/Relieving
Hydraulic Oil Cooler Andby-Pass Valve Installation
Motor Assembly – Fan
Fan Assembly – Oil Cooler
Cooler Assembly – Oil
Valve Assembly -Selector
Reel Installation – Hose
Reel Assembly – Hose
Elevation And Swing Warning Installation
Hydraulic Lines Installation -Outer Mid
Lines Installation – Transmission Shift
Panel Installation -Hydraulic Test
Hydraulic Lines Installation -Free Swing
Indicator Installation -Ho30b Hoist Rotation
Cable Follower Installation
Hydraulic Lines Installation -Inner Mid Telescope
Hydraulic Lines Installation -Lift
Sk930276
Control Valve And Linkage Installation
Valve Assembly -4 Section
Valve Assembly – Outlet
Valve Assembly – 2 Section Control
Valve Assembly -3 Section
Valve Assembly – 1 Section Control
Skb820829
Valve Assembly – Solenoid
Hydraulic Lines Installation -Main Hoist
Hoist Assembly -Model Ho30b-26g
Motor Assembly – Hydraulic
Brake Assembly
Sk930281
Hoist Installation -Main
Sk930282
Hoist Assembly – Complete(Ho30b-26g)
Cylinder Assembly – Air
Bearing Bolt Installation
Lock Installation – Swing
Cable Assy, Swing Lock
Counterweight Installation
Turntable Drive Installation
Swing Box Assembly -Complete
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Block Assy,Swing Lock
Hydraulic Lines Installation -Supply, Pressure And Return
Swivel Installation -Electric/Hydraulic
Swivel Assembly -Hydraulic
Swivel Assembly – 12 Port Air/Hydraulic
Ring Assembly – Slip
Cylinder Installation -Lift
Cylinder Assembly -10” Lift
Valve Assembly – Overcenter
Hydraulic Lines Installation -Front Steer – Cab
Instruments And Lights Installation
Harness Assembly – Right Hand Side Console
Harness Assembly – Right Hand Front Console
Harness Assembly – Left Hand Front Console
Extinguisher Installation – Fire
Cab Installation
Cab Section
Console Assembly
Latch Kit – Door
Cover Assembly – Valve
Valve Assembly – Transmission Shift Control
Valve Assembly – Steering Control
Shaft Assembly – Pivot
Lockout Installation -Automatic Control Lever
Pedal And Valve Assembly -Accelerator
Valve Assembly – Control
Valve Assembly -Spring Brake
Valve Assembly – Dual Brake
Acoustical Installation
Rotating Light Installation
Seat Assembly
Valve And Pedal Installation – Swing Brake
Valve Assembly -Power Brake
Air Lines Installation –
Seat Installation
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab(Complete Assembly)
Control Lever Lockout Installation
Weatherstrip Installation – Cab
Warning System Installation – Audio/Visual
Load Chart Manual Installation
Grab Rail Installation
Heater And Defroster Installation
Heater Assembly – Diesel
Heater Assembly – Diesel Exhaust Parts
Heater Assembly – Diesel Case And Heater Exchanger
Heater Assembly – Diesel Parts
Heater Assembly – Diesel Fuel And Ignition Systems
Heater Assembly – Diesel Control Panel Parts
Heater Assembly – Diesel Circuit Board Parts
Heater Assembly – Diesel Carburetor Parts
Heater Assembly – Diesel Motor And Blower Parts
Heater Assembly – Diesel Remote Control Parts
Sk910735
Electrical System Installation
Harness Assembly -Superstructure
Harness Assembly -S/S Cab Interior
Fuse And Connector Panel Assembly
Harness Assembly -Connector Panel
Axle Installation -Front
Axle Assembly
Axle Assembly housing Assembly
Axle Assembly differential Carrier Assembly
Axle Assembly hub And Shaft Group
Axle Assembly brake Assembly
Axle Assembly Fail Safe Brake Chamber
Cylinder Assembly – Steer
Converter Oil Filter Installation
Filter Assembly – Oil
Cover Installation -Hydraulic Tank
Tank Installation – Fuel
Tool Box And Ladder Installation
Hood Installation – Engine
Fenders And Battery Box Installation
Rear Steer Hydraulic Schematic
Transmission And Torque Converter
Valve Installation -Relief
Valve Assembly – Relief
Rear View Mirror Installation
Tire Inflation Kit Installation
Pintle Hook Installation
Hook Assembly – Pintle
Fuel/Water Separater Installation
Fuel/Water Separater Assembly
Radiator Installation
Exhaust System And Aircleaner Installation
Cleaner Assembly – Air
Belt & Filter Cat 3306-T-D1
Hydraulic Lines Installation -Outrigger
Battery Installation
Quick Start Installation
Engine Installation -Cat3306t
Torque Converter Assembly
Torque Converter Assembly converter Group
Torque Converter Assembly pressure Regulating Valve
Torque Converter Assembly disconnect Assembly – Pump
Pump Assembly -(W/O Return To Center Steering)
Pump Assembly
Cylinder Assembly – Throttle
Pump Cover Installation
Harness Assembly – Carrier
Sk921263
Controls Installation -Pump Disconnect
Driveline Installation
Driveline Assembly
Transmission Installation
Transmission Assembly
Cylinder Assembly – Air Lockout
Valve Assembly transmission
Hydraulic Lines Installation -Front Steer
Hydraulic Lines Installation -Axle Lockout
Axle Installation – Rear
Axle Assembly air Brake Chamber
Cylinder Assembly -Lockout
Rear Steer Indicator Installation
Valve Installation -Rear Axle Lockout
Valve Assembly – Rear Axle Lockout
Lug Nut And Washer Installation
Tire And Wheel Assembly
Sk911247
Air Systems Schematic
Outrigger Pad And Storage Installation
Float Assembly – Outrigger(Complete Assembly)
Outrigger Beam Installation
Cylinder Assembly – 6.50”Stabilizer
Cylinder Assembly – 2 1/2″Outrigger Extension
Valve Installation -Outrigger Control
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly – Integrated Outrigger
Weatherstrip Installation – Tool Box
Moulding Installation – Battery Box
Dryer Assembly – Air
Turn Signal And Lights Installation
Reservoir Installation -Hydraulic
Filter Assembly
Alarm Installation -Back-Up
Sk930275
Light Installation -Third Wrap Warning
Decal Installation – Rt875
| Field | Details |
|---|---|
| Document Type | Parts Manual |
| Brand | Grove |
| Machine Type | Crane |
| Model | Grove RT875 Crane |
| Serial Number | 78220 |
| Publication Date | 2022 |
| Language | English |
| Format | |
| File Size | 6.39 MB |
| Number of Pages | 869 pages |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
Download Information
: File Format - PDF (Portable Document Format)
: Manual Images - (High-Quality PDF)
: Printable - Entire Manual
: Compatible - All versions of Windows, ios, android
: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics
: Download - You will receive the PDF manual in your email after the purchase
Order confirmation will be sent to the contact information you provided, and all updates will be delivered promptly.
If you encounter any issues, our dedicated support team is here to assist you. Please contact us at Support@themanualsgroup.com, and a team member will provide real-time updates and address any related queries promptly.
In the event that an incorrect item is purchased by mistake and you identify the correct item you require, we will exchange it for the appropriate item, on the condition that the replacement item is of equal value to the original purchase.
