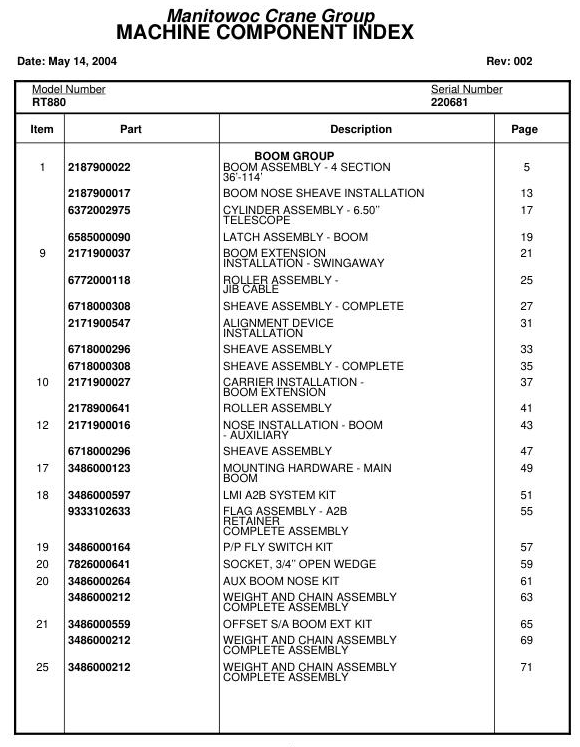

Grove Crane RT880 220681 Parts Manual 2004 PDF
-
Discount
- Regular price $55.00
- Description
- Download Information
Description
Download Grove Crane RT880 220681 Parts Manual 2004 PDF (English)
Download the Grove Crane RT880 220681 Parts Manual 2004 PDF for complete parts breakdowns, detailed diagrams, and technical reference information. This manual is designed for maintenance technicians, engineers, and operators who need accurate part numbers, assembly details, and troubleshooting guidance. It helps ensure proper servicing, repair accuracy, and safe crane operation. Ideal for workshop use, this comprehensive guide supports efficient maintenance and replacement of components for the Grove RT880 crane system. www.themanualsgroup.com
MODEL COVERED :
Grove RT880 Crane
CONTENTS INCLUDED :
Boom Assembly – 4 Section 36’-114’
Boom Nose Sheave Installation
Cylinder Assembly – 6.50’’ Telescope
Latch Assembly – Boom
Boom Extension Installation – Swing Away
Roller Assembly – Jib Cable
Sheave Assembly – Complete
Alignment Device Installation
Sheave Assembly
Carrier Installation – Boom Extension
Roller Assembly
Nose Installation – Boom – Auxiliary
Mounting Hardware – Main Boom
Lmi A2b System Kit
Flag Assembly – A2b Retainer
P/P Fly Switch Kit
Socket, 3/4’’ Open Wedge
Aux Boom Nose Kit
Weight And Chain Assembly Complete Assembly
Offset S/A Boom Ext Kit
Lmi System Kit (1318)
Console Assembly , Ds350 Graphic – Horizontal
Central Unit Assembly – Ds350 Modular
Sk911245
Boom Elevation Indicator Installation
Angle Indicator Assembly
Decal Installation – English Lmi
Electrical System Installation
Harness Assembly – Superstructure
Harness Assembly – Superstructure Cab
Panel Assembly – Fuse And Connector
Harness Assembly
Air Lines Installation
Rear View Mirror Installation
A/V Warning System Installation
Light Installation – Red Indicator
Lines Installation – Transmission Shift
Cab Installation
Cab Assembly
Console Assembly
Latch Kit – Door
Cover Assembly – Valve
Valve Assembly – Steering Control
Shaft Assembly – Pivot
Control Installation
Lockout Installation – Automatic Control Lever
Cylinder Assembly – Air
Valve Assembly – Selector
Pedal And Valve Assembly – Accelerator
Valve Assembly – Control
Valve Assembly – Spring Brake
Valve Assembly – Dual Brake
Instruments And Lights Installation
Harness Assembly – Right Hand Side Console
Panel Assembly – Front Console
Harness Assembly – Right Hand Front Console
Console Assembly – Front
Harness Assembly – Front Console
Valve And Pedal Installation – Swing Brake
Valve Assembly – Power Brake
Weatherstrip Installation
Seat Installation
Seat Assembly
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab Complete Assembly
Acoustical Installation
Grab Rail Installation
Heater And Defroster Installation
Heater Assembly – Propane
Heater Assembly – Propane Circuit Board Assembly
Heater Assembly – Propane Fuel And Ignition Systems
Heater Assembly – Propane Remote Control Parts
Heater Assembly – Propane Control Panel Parts
Heater Assembly – Propane Motor And Blower Parts
Heater Assembly – Propane Case And Exchanger Parts
Heater Assembly – Propane Regulator And Exhaust Parts
Kit Installation – Propane Tank Mounting
Kit, Tank Mounting
Fire Extinguisher Installation
Skylight Wiper Installation
Light Bar Installation Lmi
Hydraulic Lines Installation – Inner Mid Telescope
Hydraulic Lines Installation – Outer Mid
Hydraulic Lines Installation – Fly Telescope
Panel Installation – Hydraulic Test
Hoist Installation – Ho30-26 Main And Auxiliary
Lift Lines Installation
Control Valve And Linkage Installation
Valve Assembly – 4 Section
Valve Assembly – Outlet
Valve Assembly – 2 Section
Valve Assembly – 3 Section
Valve Assembly – 1 Section
Hydraulic Lines Installation – Front Steer
Hydraulic Lines Installation – Free Swing
Air Lines Installation – Auto Control Lockout
Rotation Indicator Installation – Main Hoist
Rotation Sensor Assembly
Harness Assembly – Rotation Module
Harness Assembly – Hoist Rotation Indicator
Resistor Assembly – 6 Ohms
Rotation Indicator Installation –
Turntable And Drive Installation
Box Assembly – Swing
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Swing Lock Block Assembly
Lock Installation – Swing
Control Lever Installation
Shaft Installation – Boom Pivot
Counterweight Installation
Swivel Installation – Electric/Hydraulic
Swivel Assembly – Electric/Hydraulic
Swivel Assembly – Hydraulic
Swivel Assembly – 12 Port Air/Hydraulic
Slip Ring Assembly – 36 Conductor
Elevation And Swing Warning Installation
Hydraulic Oil Cooler And By-Pass Valve Installation
Motor Assembly – Fan
Fan Assembly – Oil Cooler
Cooler Assembly – Oil
Reel Installation – Hose
Reel Assembly – Hose
Support Installation – Plumbing And Tube
Valve Installation – Pressure Reducing
Valve Assembly – Pressure/ Reducing/Relieving
Lift Cylinder Installation
Cylinder Assembly – 10.00’’ Lift
Valve Assembly – Overcenter
Turntable Lock Pin Installation Installation
Bearing Bolt Installation
Engine Installation – For Reference Only
Engine Components
Radiator Installation
Radiator Assembly
Exhaust Installation Not Available As Assembly
Cleaner Installation – Air
Cleaner Assembly – Air Complete Assembly
Separator Installation – Fuel Water
Valve Assembly – Solenoid 3 Way 2 Position
Engine Assembly – Cummins 6cta8.3
Torque Converter Installation
Torque Converter Assembly
Torque Converter Assembly Converter Group
Torque Converter Assembly Pressure Regulator Valve
Torque Converter Assembly Disconnect Assembly – Pump
Pump Assembly
Pump Assembly – Steer
Cylinder Assembly – Throttle
Electrical Systems Installation – Engine
Harness Assembly – Cummins Engine
Quick Start Installation
Filter Installation – Oil Converter
Filter Assembly – Oil
Pump Disconnect Installation – Cummins
Switch Installation – Jogging
Engine Counterweight Installation
Motor Lines Installation – Fan
Transmission Installation
Transmission Assembly
Transmission Assembly Flange Group
Transmission Assembly Remote Case Group
Transmission Assembly Case And Rear Cover Group
Transmission Assembly Reverse And High Shaft Group
Transmission Assembly Forward And Second Shaft
Transmission Assembly Low Speed Shaft Group
Transmission Assembly Idler Shaft Group
Transmission Assembly Output Shaft Group
Transmission Assembly Control Valve Assembly
Transmission Assembly High And Low Range Shift
Shifter Installation – Range Rear Axle
Range Shifter Assembly – Rear Axle
Cylinder Assembly – Air Lockout
Valve Assembly Transmission
Hydraulic Lines Installation
Driveline Installation
Driveline Assembly
Cooler Installation – Transmission Oil
Axle Installation – Front
Axle Assembly – Front
Axle Assembly – Drive/Steer
Brake Chamber Assembly
Cylinder Assembly – Steer
Steer Installation – Front (W/O Emergency Steer)
Axle Installation – Rear
Axle Assembly – Rear
Cylinder Assembly – Lockout
Rear Steer Indicator Installation
Valve Installation – Rear Axle Lockout
Valve Assembly – Rear Axle Lockout
Rear Steer Hydraulic Schematic
Hydraulic Lines Installation – Axle Lockout
Tire And Wheel Assembly
Lug Nut And Washer Installation
Tire Inflation Kit Installation
Outrigger Installation
Outrigger Assembly
Cylinder Assembly – 6 ” Outrigger Jack Complete Assembly
Cylinder Assembly – 2 1/2″ Outrigger Extension
Outrigger Control Valve Installation
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly – Integrated Outrigger
Hydraulic Lines Installation – Outrigger
Outrigger Pad And Storage Installation
Float Assembly – Outrigger
Frame Section
Harness Assembly – Carrier
Plumbing And Tube Support Installation
Reservoir Installation – Hydraulic
Filter Assembly
Cover Installation – Hydraulic Tank
Tank Installation – Fuel
Fuel Tank Assembly – 100 Gallon
Tool Box And Ladder Assembly
Cover Assembly – Front Side
Weatherstrip Installation – Tool Box
Turn Signal And Lights Installation
Pintle Hook Installation
Hook Assembly – Pintle
Alarm Installation – Back-Up
Hood Installation – Engine
Hood Assembly – Engine
Door Assembly – Left Hand Side
Door Assembly – Right Hand
Fender And Battery Box Installation
Cover Installation – Pump
Battery Installation – Cummins Engine
Moulding Installation – Battery Box
Hydraulic Schematic – Supply Pressure And Return
| Field | Details |
|---|---|
| Size | 8.39 MB |
| Format | |
| Language | English |
| Brand | Grove |
| Type of Machine | Crane |
| Type of Manual | Parts Manual |
| Model | Grove RT880 Crane |
| Serial Number | 220681 |
| Publication Date | 2004 |
| Number of Pages | 969 Pages |
www.themanualsgroup.com
