Download Grove Crane RT880E 229702 Parts Manual 2008 PDF (English)

Download the Grove Crane RT880E 229702 Parts Manual 2008 PDF for complete technical reference, parts identification, and maintenance guidance. This detailed manual includes exploded diagrams, part numbers, assembly breakdowns, and service instructions to support accurate repair and efficient servicing of the RT880E crane. Ideal for technicians, engineers, and operators, it ensures safe operation, correct troubleshooting, and proper replacement of components. A reliable workshop and field resource for maintaining long-term equipment performance and reliability. www.themanualsgroup.com

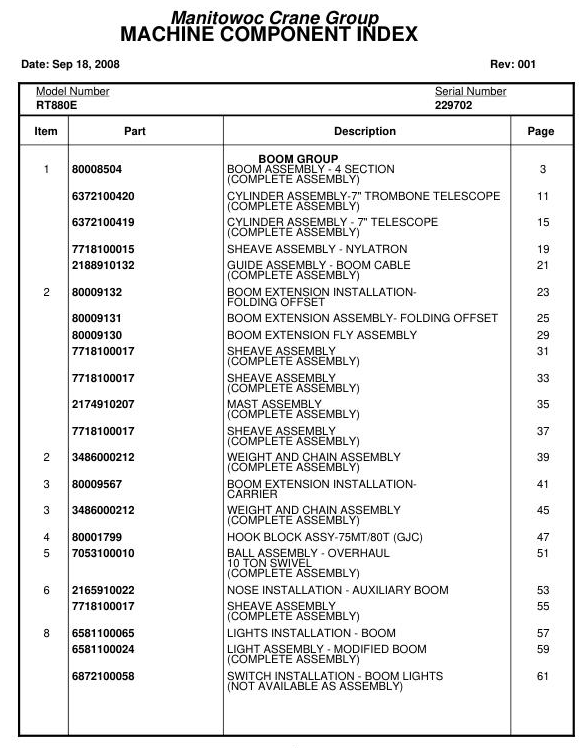

MODEL COVERED :
Grove RT880E Crane

CONTENTS INCLUDED :
Boom Assembly – 4 Section (Complete Assembly)
Cylinder Assembly -7″ Trombone Telescope (Complete Assembly)
Cylinder Assembly – 7″ Telescope (Complete Assembly)
Sheave Assembly – Nylatron
Guide Assembly – Boom Cable (Complete Assembly)
Boom Extension Installation – Folding Offset
Boom Extension Assembly – Folding Offset
Boom Extension Fly Assembly
Sheave Assembly (Complete Assembly)
Mast Assembly (Complete Assembly)
Weight And Chain Assembly (Complete Assembly)
Boom Extension Installation – Carrier
Hook Block Assy-75mt/80t (Gjc)
Ball Assembly – Overhaul 10 Ton Swivel
Nose Installation – Auxiliary Boom
Lights Installation – Boom
Light Assembly – Modified Boom (Complete Assembly)
Switch Installation – Boom Lights (Not Available As Assembly)
Cable Assembly – Boom Lights (Complete Assembly)
Socket, 3/4’’ Open Wedge
Kit Installation – Iflex 5 Lmi Boom Lwg508
Reel Assembly – Lwg509 Cable (Complete Assembly)
Box Assembly – Junction
Flag Assembly – A2b Retainer
Connector Assembly Dummy Plug, 2-Pin
Kit Installation – Lmi Boom
Kit – Lmi Auxiliary Boom Nose
Kit Installation – Auxiliary Boom Nose
Boom Extension Kit
Junction Box Assembly – 80mm X 75mm, Pg9 + 2-Pin
Extension Installation – Boom Lmi Fixed-Off
Electrical System Installation – Boom/Jib Actuator Control
Harness Assembly – Boom/Jib Stowage (Complete Assembly)
Harness Assembly – Jib Stowage Control (Complete Assembly)
Control Assembly
Cab Installation
Cab Assembly (Complete Assembly)
Cab Weld (With Door Install)
Door Installation – Cab (Not Available As Assembly)
Skylight Assembly – Sliding
Window Assembly – Rear (Complete Assembly)
Cable Assembly (Complete Assembly)
Valve Assembly – Treadle (Swing Brake)
Fan Assembly – 12 Volt Cab (Complete Assembly)
Front Console Installation
Console Assembly – Front (Complete Assembly)
Panel Assembly – Front Console (Complete Assembly)
Harness Assembly – Front Console
Harness Assembly – Potentiometer (Complete Assembly)
Acoustics Install – Rt”E”
Rt”E” Series Acoustics Kit
Seat Installation – Control (Single Axis With Auxiliary Hoist)
Seat Assembly – Control (Single Axis With Auxiliary Hoist)
Switch Assembly – Proximity (Normally Open)
Controller Assembly – Single Axis (Complete Assembly)
Handle Assembly (W/Solenoid)
Harness Assembly – Seat (Complete Assembly)
Electrical System Installation – Superstructure – Cab
Pedal Installation – Telescope
Valve Assembly – Treadle (Telescope)
Pedal Installation – Brake
Valve Assembly – Brake With Treadle
Kit, Lmi S/S Iflex 5
Shifter Installation – Transmission
Kit Installation – Iflex 5 Lmi Superstructure
360 Lever Install
Valve Installation – Steer
Valve Assembly – Steering Control (Complete Assembly)
Pedal Installation – Throttle (Electric)
Binder Installation
Kit – Lmi Iflex 5 Cab
Centeral Unit – Iflex 5
Graph. Console (Ver.) – Iflex5
Kit Installation – Iflex5 Lmi Cab
Air Conditioning & Heater Installation (Cab)
Kit – Cab Heater And Air Conditioner (Complete Assembly)
Screen Installation – Sun
Tilt Installation – Cab
Cylinder Assembly – 2 1/2″ Steer (Also Used As A Cab Tilt Cylinder)
Support Installation – Cab
Pin Installation – Lock
Spotlight Installation
Lmi Internal Light Bar Kit
Air Conditioning Installation – Superstructure
Kit – Air Conditioner Condenser (Complete Assembly)
Switch Installation – Air Conditioner
Cover Installation – Cab Rear
Lines Installation – Air Conditioning (Cab)
Kit – Air Conditioner Hose (Complete Assembly)
Light Installation – Strobe
Pole Installation -Jib Release
Valve Installation – Control (Superstructure)
Valve Assembly – 4 Section Main (Complete Assembly)
Valve Assembly – Swing, Steer And Brake (Complete Assembly)
Valve Assembly – Brake Charge (Complete Assembly)
Valve Assembly – Cab Tilt (Complete Assembly)
Valve Assembly – Counterweight Removal (Complete Assembly)
Valve Assembly – 2 Speed Swing (Complete Assembly)
Control Lever Installation – Counterweight
Lines Installation – Air Conditioning (Superstructure)
Hydraulic Lines Installation – Main And Auxiliary Hoist
Hydraulic Lines Installation – Cab With Main And Auxiliary Hoist
Lines Installation – Air Conditioning (Carrier)
Hydraulic Lines Installation – Carrier
Switch Assembly – Pressure (Normally Closed)
Hoist Installation – Main
Hoist Assembly – Hp30-18g (Complete Assembly)
Cable Assembly – Auxiliary Hoist Hi Speed (Complete Assembly)
Wire Rope-19mm 35×7-185m
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator (Complete Assembly)
Hoist Installation – 18000 Lb Counterweight And Auxiliary
Counterweight Assembly – 1800 Lbs.
Cylinder Assembly – Counterweight (Complete Assembly)
Cylinder Assembly – 3 1/2″ Cwt Removal (Complete Assembly)
Mirror Installation – Auxiliary Hoist (Not Available As Assembly)
Turntable Weld And Drive Installation (Rt875e)
Box Assembly – Swing (Complete Assembly)
Swivel Installation – Electric Hydraulic, Water And Air Conditioning
Swivel Assembly – Electric, Hydraulic, Water And Air Conditioning
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Ring Assembly – Slip 15 Conductor
Electrical System Installation – Superstructure
Harness Assembly – Superstructure (Rt875e)
Bolt Installation – Bearing
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Lock Installation – Swing
Swing Lock Assembly
Cover Installation – Valve
Cylinder Installation – Lower Pin & Lift
Cylinder Assembly – 12″ Lift (Complete Assembly)
Valve Assembly – Holding (Complete Assembly)
Engine Hood Assembly And Rear Cover Installation
Hood Assembly – Engine (Complete Assembly)
Radiator Installation – Charge Air Cooler
Radiator Assembly – Charge Air Cooler
Cooler Assembly – Radiator/Charge Air (Complete Assembly)
Tank Assembly – Surge (Not Available As Assembly)
Exhaust System Installation
Intake Installation – Air
Cleaner Assembly – Air (Complete Assembly)
Compressor Installation – Air Conditioner
Kit – Cummins Air Conditioner Compressor 12 Volt
Fan Installation
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly – Rear Slip (Complete Assembly)
Driveline Assembly (Complete Assembly)
Filter Installation – Transmission
Filter Assembly (Complete Assembly)
Axle Installation – Rear Standard Differential
Axle Assembly – Rear Drive Steer Without Differential Lock
Diff. Carrier Group
Housing, Axle Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Axle Installation – Front Standard Differential
Axle Assembly – Front Drive Steer Without Differential Lock
Brake Group 4,Set
Brake Assembly – Parking (Complete Assembly)
Tire And Wheel Installation – 29.5 X 25 General
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 (Complete Assembly)
Float Installation – Outrigger
Float Assembly – Outrigger
Cover Installation – Outrigger Grill And
Frame – Carrier (For Reference Only)
Frame – Carrier (Complete Assembly)
Beam Install – Outrigger (Not Available As Assembly)
Beam Assembly – Outrigger (Complete Assembly)
Cylinder Assembly -5 1/2″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – Outrigger Extension (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Decal Installation – Rt800e 875e – Standard
Decal Installation – Rt800e (Standard)
Decal Installation – Rt800e (Standard Carrier)
Decal Installation – Rt875e (Standard Superstructure)
Decal Installation – Rt800e (Standard Boom)
Fender And Decking Installation
Door Assembly – Fuel Tank Cover And (Complete Assembly)
Cover Install – Hydraulic Tank
Decal Installation – Rt880e (Nomenclature)
Hook Block Tie-Down Installation
Mirror Installation – Rear View
Mirror Installation – Hoist
Step Installation
Electrical System Installation – Carrier Rt800e3
Panel Assembly – Engine Relays (Complete Assembly)
Harness Assembly – Engine Relay Panel (Complete Assembly)
Kit – Cable (Battery) (Complete Assembly)
Reservoir Installation – Hydraulic
Reservoir Assembly – Hydraulic (Complete Assembly)
Filter Assembly , Return Hyd.
Hardware Kit – Decal
Cooler Installation – Hydraulic And Transmission Oil
Cooler Assembly – Hydraulic And Transmission Oil
Tray Installation – Storage
Tank Installation – Fuel
Tank Assembly – Fuel (Complete Assembly)
Mounting Kit – Oil Cooler
Valve Installation – Carrier Without Differential Lock
Valve Assembly – Rear Steer,Axle Lockout And Fan Drive
Valve Assembly – Park Brake/Range Shift (Complete Assembly)
Valve Assembly – Outrigger/Stablizer (Complete Assembly)
Valve Assembly – Selectable Psi Reducing (Complete Assembly)
