Download Grove Crane RT880E 230346 Parts Manual 2015 PDF (English)

Download the Grove Crane RT880E 230346 Parts Manual 2015 PDF, a detailed reference guide for maintenance, repair, and spare parts identification. This manual includes comprehensive exploded diagrams, part numbers, assembly instructions, and technical specifications to ensure accurate servicing of the Grove RT880E crane. Ideal for technicians, operators, and service engineers, it helps improve machine uptime and reduce repair errors. Get instant access to the official 2015 parts catalog in PDF format for efficient troubleshooting and maintenance support. Fast download available online. www.themanualsgroup.com

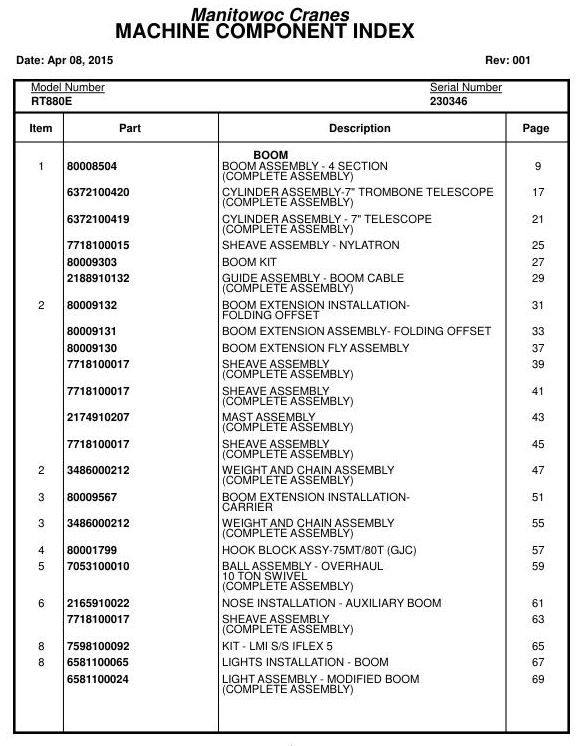

MODEL COVERED :
Grove RT880E Crane

CONTENTS INCLUDED :
Boom Assembly – 4 Section (Complete Assembly)
Cylinder Assembly -7″ Trombone Telescope (Complete Assembly)
Cylinder Assembly – 7″ Telescope (Complete Assembly)
Sheave Assembly – Nylatron
Boom Kit
Guide Assembly – Boom Cable (Complete Assembly)
Boom Extension Installation – Folding Offset
Boom Extension Assembly – Folding Offset
Boom Extension Fly Assembly
Sheave Assembly (Complete Assembly)
Mast Assembly (Complete Assembly)
Weight And Chain Assembly (Complete Assembly)
Boom Extension Installation – Carrier
Hook Block Assy-75mt/80t (Gjc)
Ball Assembly – Overhaul 10 Ton Swivel
Nose Installation – Auxiliary Boom
Kit – Lmi S/S Iflex 5
Lights Installation – Boom
Light Assembly – Modified Boom (Complete Assembly)
Switch Installation – Boom Lights (Not Available As Assembly)
Cable Assembly – Boom Lights (Complete Assembly)
Socket, 3/4” Open Wedge
Kit Installation – Iflex 5 Lmi Boom Lwg508
Reel Assembly – Lwg509 Cable (Complete Assembly)
Roller Guide Assembly
Connector Assembly Dummy Plug, 2-Pin
Box Assembly – Junction
Flag Assembly – A2b Retainer
Kit Installation – Lmi Boom
Kit-Lmi Auxiliary Boom Nose
Kit Installation – Auxiliary Boom Nose
Boom Extension Kit
Junction Box Assembly – 80mm X 75mm, Pg9 + 2-Pin
Cable Assembly , Jumper
Extension Installation – Boom Lmi Fixed-Off
Boom Modification
Electrical System Installation – Boom/Jib Actuator Control
Harness Assembly – Boom/Jib Stowage (Complete Assembly)
Harness Assembly – Jib Stowage Control (Complete Assembly)
Control Assembly
Kit – Lmi Wireless Anemometer
Turntable Weld And Drive Installation (Rt875e)
Box Assembly – Swing (Complete Assembly)
Swivel Installation – Electric Hydraulic, Water And Air Conditioning
Swivel Assembly – Electric, Hydraulic, Water And Air Conditioning
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Ring Assembly – Slip 15 Conductor
Electrical System Installation – Superstructure
Harness Assembly – Superstructure (Rt875e)
Switch Assembly – Proximity (Normally Open)
Valve Installation – Control (Superstructure)
Valve Assembly – 4 Section Main (Complete Assembly)
Valve Assembly – Swing, Steer And Brake (Complete Assembly)
Valve Assembly – Brake Charge (Complete Assembly)
Valve Assembly – Cab Tilt (Complete Assembly)
Valve Assembly – Counterweight Removal (Complete Assembly)
Valve Assembly – 2 Speed Swing (Complete Assembly)
Hoist Installation – Main
Hoist Assembly – Hp30-18g (Complete Assembly)
Bolt Installation – Bearing
3/4″ Dia Wire Rope 6×37 600 Ft
Mirror Installation – Hoist
Wire Rope-19mm 35×7-185m
Kit Installation – Iflex 5 Lmi Superstructure
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Binder Installation
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator (Complete Assembly)
Lock Installation – Swing
Swing Lock Assembly
Cover Installation – Valve
Lines Installation – Air Conditioning (Superstructure)
Hydraulic Lines Installation – Main And Auxiliary Hoist
Hydraulic Lines Installation – Cab With Main And Auxiliary Hoist
Cylinder Installation – Lower Pin & Lift
Cylinder Assembly – 12″ Lift (Complete Assembly)
Valve Assembly – Holding (Complete Assembly)
Hoist Installation – 18000 Lb Counterweight And Auxiliary
Counterweight Assembly – 1800 Lbs.
Cylinder Assembly – Counterweight (Complete Assembly)
Cylinder Assembly – 3 1/2″ Cwt Removal (Complete Assembly)
Mirror Installation – Auxiliary Hoist (Not Available As Assembly)
Cab Installation
Cab Assembly
Cab (With Door Installation)
Door Installation – Cab (Not Available As Assembly)
Skylight Assembly – Sliding
Window Assembly – Rear (Complete Assembly)
Cable Assembly (Complete Assembly)
Valve Assembly – Treadle (Swing Brake)
Fan Assembly – 12 Volt Cab (Complete Assembly)
Front Console Installation
Console Assembly – Front (Complete Assembly)
Panel Assembly – Front Console (Complete Assembly)
Harness Assembly – Front Console
Harness Assembly – Potentiometer (Complete Assembly)
Acoustics Install – Rt”E”
Rt”E” Series Acoustics Kit
Seat Installation – Control (Single Axis With Auxiliary Hoist)
Seat Assembly – Control (Single Axis With Auxiliary Hoist)
Controller Assembly – Single Axis (Complete Assembly)
Handle Assembly (W/Solenoid)
Harness Assembly – Seat (Complete Assembly)
Electrical System Installation – Superstructure – Cab
Control Lever Installation – Counterweight
Pedal Installation – Telescope
Valve Assembly – Treadle (Telescope)
Pedal Installation – Brake
Valve Assembly With Treadle
Step Installation
Shifter Installation – Transmission
360 Lever Install
Valve Installation – Steer
Valve Assembly – Steering Control (Complete Assembly)
Pedal Installation – Throttle (Electric)
Kit – Lmi Iflex 5 Cab
Centeral Unit – Iflex 5
Graph. Console (Ver.) – Iflex5
Kit Installation – Iflex5 Lmi Cab
Air Conditioning & Heater Installation (Cab)
Kit – Cab Heater And Air Conditioner (Complete Assembly)
Screen Installation – Sun
Tilt Installation – Cab
Cylinder Assembly – 2 1/2″ Steer (Complete Assembly)
Support Installation – Cab
Kit- Rt”E” Series Cab Std Comp
Pin Installation – Lock
Spotlight Installation
Lmi Internal Light Bar Installation
Switch Install – Axle Diff Lock (Not Available As Assembly)
Air Conditioning Installation – Superstructure
Kit – Air Conditioner Condenser (Complete Assembly)
Switch Installation – Air Conditioner
Cover Installation – Cab Rear
Lines Installation – Air Conditioning (Cab)
Kit – Air Conditioner Hose (Complete Assembly)
Kit Installation -Lmi Wireless Anemometer
Light Installation – Strobe
Pole Installation -Jib Release
Carrier Frame Complete `
Beam Install – Outrigger (Not Available As Assembly)
Beam Assembly – Outrigger (Complete Assembly)
Cylinder Assembly -5 1/2″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – Outrigger Extension (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Fender And Decking Installation
Door Assembly – Fuel Tank Cover And (Complete Assembly)
Cover Install – Hydraulic Tank
Engine Hood Assembly And Rear Cover Installation
Hood Assembly – Engine (Complete Assembly)
Float Installation – Outrigger
Float Assembly – Outrigger
Hook Block Tie-Down Installation
Mirror Installation – Rear View
Electrical System Installation – Carrier Rt800e3
Harness Assembly – Carrier
Panel Assembly – Engine Relays (Complete Assembly)
Harness Assembly – Engine Relay Panel (Complete Assembly)
Kit – Cable (Battery) (Complete Assembly)
Reservoir Installation – Hydraulic
Reservoir Assembly – Hydraulic (Complete Assembly)
Filter Assembly , Return Hyd.
Valve Installation – Carrier (With Differential Lock)
Valve Assembly – Rear Steer,Axle Lockout And Fan Drive
Valve Assembly – Park Brake/Range Shift (Complete Assembly)
Valve Assembly – Outrigger/Stablizer (Complete Assembly)
Valve Assembly – Solenoid (Complete Assembly)
Valve Assembly – Selectable Psi Reducing (Complete Assembly)
Rear Axle Installation – With Differential Lock
Axle Assembly – Rear Drive Steer With Differential Lock
Housing, Axle Group
Hub & Shaft Group
Brake Group 2,Set
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Front Axle Installation – With Differential Lock
Axle Assembly – Front Drive Steer With Differential Lock
Diff.Carrier Group @ 488 Ratio
Brake Group 4,Set
Brake Assembly – Parking (Complete Assembly)
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly (Complete Assembly)
Slip Shaft Assy
Tire And Wheel Installation – 29.5 X 25 General
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 (Complete Assembly)
Engine Installation – Cummins Qsb-275 Tier 3
Engine Assembly – Cummins Qsb-275 Tier 3
Transmission Assembly
Converter Housing Group
Case, Transmission Group
Rear Cover Group
Drive Plate Group
Turbine Shaft/Oil Baffle Group
Turbine/Impeller Group
Pump Drive Group
Reverse & High Shaft Group
Forward & 2nd Shaft Group
Forward & Reverse Gear Group
Low Shaft Group
Idler Shaft Group
Output Shaft Group
Charge Pump & Regulator Group
Pressure Regulator Group
Charge Pump Group
Elect.Control Cart.Valve Group
Hi & Low Shift Control Group
Output Flange Group
Pump Adaptor Group
Pump Drive Sleeve Assy. Group
Control Valve Group
Mounting, Control Valve Group
Dust Cover Mounting Group
Pump Assembly – Piston (Complete Assembly)
Pump Assembly – 1 Section Gear (Complete Assembly)
Electrical System Installation – Engine (Not Available As Assembly)
Harness Assembly – Engine (Complete Assembly)
Kit – Cable (Engine) (Complete Assembly)
Radiator Installation – Charge Air Cooler
Radiator Assembly – Charge Air Cooler
Cooler Assembly – Radiator/Charge Air (Complete Assembly)
Tank Assembly – Surge (Not Available As Assembly)
Exhaust System Installation
Intake Installation – Air
Cleaner Assembly – Air (Complete Assembly)
Cooler Installation – Hydraulic And Transmission Oil
Cooler Assembly – Hydraulic And Transmission Oil
Tray Installation – Storage (With Mat)
Filter Installation – Transmission
Filter Assembly (Complete Assembly)
Lines Installation – Air Conditioning (Carrier)
Compressor Installation – Air Conditioner
Kit – Cummins Air Conditioner Compressor 12 Volt
Hydraulic Lines Installation – Carrier With Differential Lock
Switch Assembly – Pressure (Normally Closed)
Cover Installation – Outrigger Grill And
Decal Installation – Rt890e (Supplementary)
Tank Installation – Fuel
Tank Assembly – Fuel (Complete Assembly)
Mounting Kit – Oil Cooler
Fan Installation
Engine Block Heater Installation – 120v
Override Installation – Manual Park Brake
Miscellaneous Decals
Decal Installation – Rt880e Standard
Decal Installation – Rt880e Standard Cab
Decal Installation – Rt800e (Standard Carrier)
Decal Installation – Rt875e (Standard Superstructure)
Decal Installation – Rt800e (Standard Boom)
Decal Installation -Rt880e Nomenclature
Hardware Kit – Decal
