Download Grove Crane RT880E 231406 Parts Manual 2010 PDF (English)

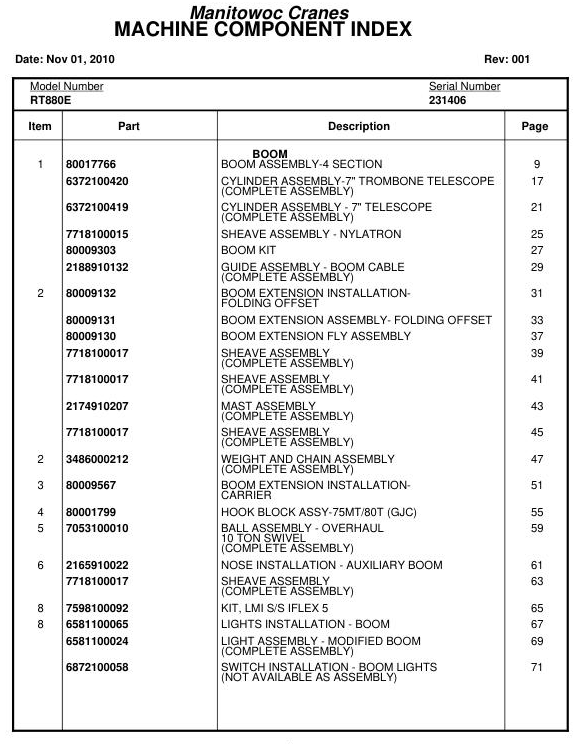

Maximize your equipment uptime with the official 2010 Grove Crane RT880E Parts Manual (Serial Number 231406) in convenient PDF format. This comprehensive parts catalog is an essential resource for operators, mechanics, and fleet managers, providing detailed exploded-view diagrams, accurate component breakdowns, and original OEM part numbers. Whether you are performing routine maintenance or major hydraulic, electrical, or structural repairs, this digital manual ensures you order the exact components needed. Download your copy today for instant access to reliable crane service data. www.themanualsgroup.com

MODEL COVERED :
Grove RT880E Crane

CONTENTS INCLUDED :
Boom Assembly -4 Section
Cylinder Assembly -7″ Trombone Telescope (Complete Assembly)
Cylinder Assembly – 7″ Telescope (Complete Assembly)
Sheave Assembly – Nylatron
Boom Kit
Guide Assembly – Boom Cable (Complete Assembly)
Boom Extension Installation – Folding Offset
Boom Extension Assembly – Folding Offset
Boom Extension Fly Assembly
Sheave Assembly (Complete Assembly)
Mast Assembly (Complete Assembly)
Weight And Chain Assembly (Complete Assembly)
Boom Extension Installation – Carrier
Hook Block Assy-75mt/80t (Gjc)
Ball Assembly – Overhaul 10 Ton Swivel
Nose Installation – Auxiliary Boom
Kit, Lmi S/S Iflex 5
Lights Installation – Boom
Light Assembly – Modified Boom (Complete Assembly)
Switch Installation – Boom Lights (Not Available As Assembly)
Cable Assembly – Boom Lights (Complete Assembly)
Socket, 3/4’’ Open Wedge
Kit Installation – Iflex 5 Lmi Boom Lwg508
Reel Assembly – Lwg509 Cable (Complete Assembly)
Roller Guide Assembly
Box Assembly – Junction
Flag Assembly – A2b Retainer
Connector Assembly Dummy Plug, 2-Pin
Kit Installation – Lmi Boom
Kit-Lmi Auxiliary Boom Nose
Kit Installation – Auxiliary Boom Nose
Boom Extension Kit
Junction Box Assembly – 80mm X 75mm, Pg9 + 2-Pin
Extension Installation – Boom
Electrical System Installation – Boom/Jib Actuator Control
Harness Assembly – Boom/Jib Stowage (Complete Assembly)
Harness Assembly – Jib Stowage Control (Complete Assembly)
Control Assembly
Lift Cylinder & Lower Pin Installation
Lift Cylinder
Valve Assembly – 3/4 Holding (Complete Assembly)
Turntable Weld & Drive Installation (Rt875e)
Box Assembly – Swing (Complete Assembly)
Swivel Installation – Electric Hydraulic, Water And Air Conditioning
Swivel Assembly – Electric, Hydraulic, Water And Air Conditioning
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Ring Assembly – Slip 15 Conductor
Electrical System Installation – Superstructure
Harness Assembly – Superstructure (Rt875e)
Switch Assembly – Proximity (Normally Open)
Valve Installation -Ss
Valve Assembly – 4 Section Main (Complete Assembly)
Valve Assembly – Swing, Steer And Brake (Complete Assembly)
Dual Accumulator Charge Valve
Valve Assembly – Cab Tilt (Complete Assembly)
Valve Assembly – 2 Speed Swing (Complete Assembly)
Hoist Installation – Main
Hoist Assembly – Hp30-18g (Complete Assembly)
Bolt Installation – Bearing
3/4″ Dia Wire Rope 6×37 600 Ft
Mirror Installation – Hoist
Kit Installation – Iflex 5 Lmi Superstructure
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Binder Installation
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator (Complete Assembly)
Cover Installation – Valve
Lines Installation – Air Conditioning (Superstructure)
Hydraulic Lines Installation Superstructure
Hydraulic Lines Installation – Cab Future Auxiliary
Counterweight Installation – 1800 Lbs.
Counterweight Assembly – 1800 Lbs.
Cylinder Assembly – Counterweight (Complete Assembly)
Cylinder Assembly – 3 1/2″ Cwt Removal (Complete Assembly)
Cab Assembly
Cab (With Door Installation)
Door Installation – Cab (Not Available As Assembly)
Skylight Assembly – Sliding
Window Assembly – Rear (Complete Assembly)
Cable Assembly (Complete Assembly)
Valve Assembly – Treadle (Swing Brake)
Fan Assembly – 12 Volt Cab (Complete Assembly)
Front Console Installation
Console Assembly – Front (Complete Assembly)
Panel Assembly – Front Console (Complete Assembly)
Harness Assembly – Front Console
Harness Assembly – Potentiometer (Complete Assembly)
Acoustics Installation -Rt”E”
Control Seat Installation Single Axis
Control Seat Assembly – Single Axis
Single Axis Controller
Handle Assembly (W/Solenoid)
Harness Assembly – Seat (Complete Assembly)
Electrical System Installation Superstructure Cab
Control Lever Installation – Counterweight
Pedal Installation – Brake
Valve Assembly – Brake With Treadle
Shifter Installation – Transmission
Valve Installation – Steer
Valve Assembly – Steering Control (Complete Assembly)
Pedal Installation – Throttle (Electric)
Kit – Lmi Iflex 5 Cab
Centeral Unit – Iflex 5
Graph. Console (Ver.) – Iflex5
Kit Installation – Iflex5 Lmi Cab
Air Conditioning & Heater Installation (Cab)
Kit – Cab Heater And Air Conditioner (Complete Assembly)
Screen Installation – Sun
Tilt Installation – Cab
Cylinder Assembly – 2 1/2″ Steer (Complete Assembly)
Support Installation – Cab
Kit- Rt”E” Series Cab Std Comp
Pin Installation – Lock
Spotlight Installation
Lmi Internal Light Bar Installation
Air Conditioning Installation – Superstructure
Kit – Air Conditioner Condenser (Complete Assembly)
Switch Installation – Air Conditioner
Cover Installation – Cab Rear
Lines Installation – Air Conditioning (Cab)
Kit – Air Conditioner Hose (Complete Assembly)
Light Installation – Strobe
Cab Installation Components
Carrier Frame Complete
Frame Weld And Assembly
Outrigger Beam Installation
Outrigger Beam Assembly
Cylinder Assembly -5 1/2″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – Outrigger Extension (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Fender & Decking Installation
Fuel Tank Cover & Door Assy
Engine Hood & Rear Covers Installation
Hood Assembly – Engine (Complete Assembly)
Float Installation – Outrigger
Float Assembly – Outrigger
Hook Block Tie-Down Installation
Mirror Installation – Rear View
Step Installation
Esi Carrier Rt800e3
Harness Assembly – Carrier Rt800e3
Panel Assembly – Engine Relays
Harness Assembly – Engine Relay Panel (Complete Assembly)
Cable Kit-Rt800e Relay Panel
Cable Kit-Rt800e Batteries
Hydraulic Reservoir Installation
Hydraulic Reservoir Assembly
Valve Installation -Carrier Without Differential Lock
Rear Steer Axle Lo Fan Drive
Valve Assembly – Park Brake Range Shift (Complete Assembly)
Valve Assembly – Outrigger/Stablizer (Complete Assembly)
Manifold,Selectable Psi Red’g
Rear Axle Installation – Standard Differential
Axle Assembly – Rear Drive Steer Without Differential Lock
Diff. Carrier Group
Housing, Axle Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Axle Installation – Front Standard Differential
Axle Assembly – Front Drive Steer Without Differential Lock
Brake Group 4,Set
Brake Assembly – Parking (Complete Assembly)
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly (Complete Assembly)
Slip Shaft Assy
Tire And Wheel Installation
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 (Complete Assembly)
Engine Installation -Tier3
Engine Assembly -Tier 3 (C.E. Conformity)
Transmission Assembly
Converter Housing Group
Case, Transmission Group
Rear Cover Group
Drive Plate Group
Turbine Shaft/Oil Baffle Group
Turbine/Impeller Group
Pump Drive Group
Reverse & High Shaft Group
Forward & 2nd Shaft Group
Forward & Reverse Gear Group
Low Shaft Group
Idler Shaft Group
Output Shaft Group
Charge Pump & Regulator Group
Pressure Regulator Group
Charge Pump Group
Elect. Control Valve Group
Hi & Low Shift Control Group
Output Flange Group
Pump Adaptor Group
Pump Drive Sleeve Assy. Group
Pump Assy
Pump Assembly – 1 Section Gear (Complete Assembly)
Esi Engine Rt800e3
Harness Assembly – Engine (Complete Assembly)
Kit – Cable (Engine) (Complete Assembly)
Radiator Installation
Radiator Assembly
Cooler Assembly – Radiator/Charge Air (Complete Assembly)
Tank Assembly – Surge (Not Available As Assembly)
Exhaust System Installation
Air Intake Installation
Cleaner Assembly – Air (Complete Assembly)
Oil Cooler Installation – Hydraulic Transmission
Cooler Assembly – Hydraulic And Transmission Oil
Tray Installation – Storage (With Mat)
Filter Installation – Transmission
Filter Assembly (Complete Assembly)
Lines Installation – Air Conditioning (Carrier)
Compressor Installation – Air Conditioner
Kit – Cummins Air Conditioner Compressor 12 Volt
Hydraulic Lines Installation Carrier
Cover Installation – Outrigger Grill And
Fuel Tank Installation
Fuel Tank Assembly
Mounting Kit – Oil Cooler
Fan Installation
Engine Block Heater Installation – 120v
Decal Installation – Rt880e Standard
Decal Installation -Rt880e Standard Cab
Decal Installation – Rt800e (Standard Carrier)
Decal Installation – Rt875e (Standard Superstructure)
Decal Installation – Rt800e (Standard Boom)
Decal Installation -Rt880e Nomenclature
Rt880e Deca001
Decal Installation – Rt880e
Decal Installation -Rt880e Foreign Standard
Decal Installation -Rt880e (French)
Decal Installation – Rt880e (Dutch)
Decal Installation – Rt880e (Russian)
Supplemental Decal Installation (Russian)
Hardware Kit – Decal
