Download Grove Crane RT880E 231551 Parts Manual 2011 PDF (English)

Grove Crane RT880E 231551 Parts Manual 2011 PDF is a comprehensive technical guide designed for service engineers, operators, and maintenance professionals. It includes detailed exploded diagrams, parts identification numbers, assembly instructions, and troubleshooting procedures. This manual helps ensure accurate repairs, efficient maintenance, and reduced downtime. Ideal for workshop use, it provides essential information for understanding crane components and improving equipment performance and safety. Downloadable PDF format ensures easy access on all devices for quick reference in field operations. www.themanualsgroup.com

MODEL COVERED :
Grove RT880E Crane

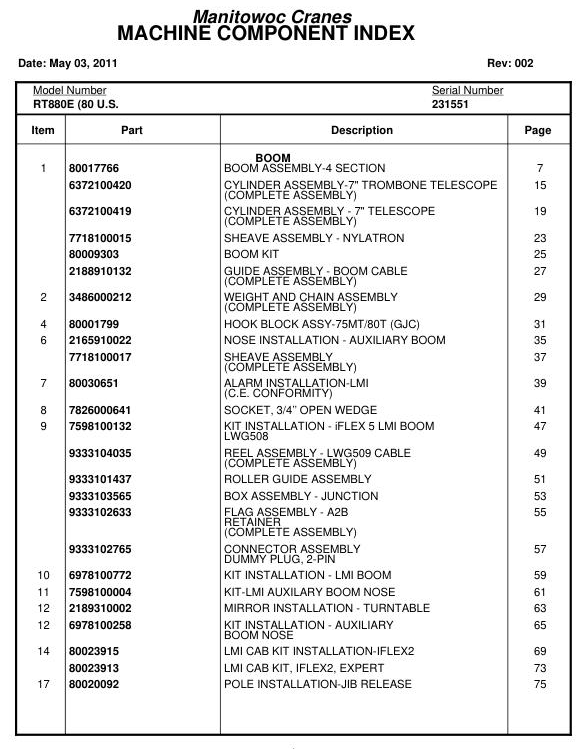

CONTENTS INCLUDED :
Boom Assembly -4 Section
Cylinder Assembly -7″ Trombone Telescope (Complete Assembly)
Cylinder Assembly – 7″ Telescope (Complete Assembly)
Sheave Assembly – Nylatron
Boom Kit
Guide Assembly – Boom Cable (Complete Assembly)
Weight And Chain Assembly (Complete Assembly)
Hook Block Assy-75mt/80t (Gjc)
Nose Installation – Auxiliary Boom
Sheave Assembly (Complete Assembly)
Alarm Installation -Lmi (C.E. Conformity)
Socket, 3/4’’ Open Wedge
Kit Installation – Iflex 5 Lmi Boom Lwg508
Reel Assembly – Lwg509 Cable (Complete Assembly)
Roller Guide Assembly
Box Assembly – Junction
Flag Assembly – A2b Retainer
Connector Assembly Dummy Plug, 2-Pin
Kit Installation – Lmi Boom
Kit-Lmi Auxiliary Boom Nose
Mirror Installation – Turntable
Kit Installation – Auxiliary Boom Nose
Lmi Cab Kit Installation -Iflex2
Lmi Cab Kit, Iflex2, Expert
Pole Installation -Jib Release
Lift Cylinder & Lower Pin Installation
Lift Cylinder
Valve Assembly – 3/4 Holding (Complete Assembly)
Turntable & Drive Installation (C.E. Conformity)
Box Assembly – Swing (Complete Assembly)
Swivel Installation Hydraulic, Water, Electric And A/C
Swivel Assembly Hydraulic, Water, Electric And A/C
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Slip Ring Assy 20 Cond W/Slew
Esi Superstructure Rt880e4
Harness Assembly -Ss
Diode (Modified)
Switch Assembly – Proximity (Normally Open)
Valve Installation -Superstructure (C.E. Conformity)
Valve Assembly – 4 Section Main (Complete Assembly)
Valve Assembly – Swing, Steer And Brake (Complete Assembly)
Dual Accum Charge Valve
Valve Assembly – Cab Tilt (Complete Assembly)
Cwt Removal Valve
Valve Assembly – 2 Speed Swing (Complete Assembly)
Accumulator Assembly – Emergency Steer
Main Hoist Installation With 3rd Wrap
Hp30-18g Hoist W/ Acc W 3rd
Bolt Installation – Bearing
Wire Rope-19mm 35×7-185m
Mirror Installation – Hoist
Kit Installation – Iflex 5 Lmi Superstructure
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Binder Installation
Cover Installation – Valve (C.E. Conformity)
Turntable Lock Pin Installation
Hydraulic Lines Installation (Superstructure)
Hoist Covers Installation -Superstructure (C.E. Conformity)
Counterweight Installation – 1800 Lbs.
Counterweight Assembly – 1800 Lbs.
Cylinder Assembly – Counterweight (Complete Assembly)
Cylinder Assembly – 3 1/2″ Cwt Removal (Complete Assembly)
Foam Installation – Under Turntable Superstructure Rt875
Lmi Override Installation (C.E. Conformity)
Lmi Override Assy
Pilot Press Reduction Installation (C.E. Conformity)
Washer Bottle Installation
Crane Star Installation -Superstructure (C.E. Conformity)
Tcu And Sat Antenna Kit
Cab Assembly -12v Purchased (C.E. Conformity)
Cab Sub-Assy Ce Std 12v
Glass Door Assembly
Wiper Kit – Front 12 Volt
Kit – Wiper Skylight 12 Volt
Fan Assembly – 12 Volt Cab (Complete Assembly)
Window Assembly – Side Rh
Window Assembly – Rear (Complete Assembly)
Heater Installation 12v
Kit, Heater/Cool 12v.
Superstructure Cab – 12v Miscellaneous Parts Installation
Cab Brackets Installation
Acoustics Installation (Sg)
Lmi Warning Light Installation -12v
Cab Crane Star Installation
Control Seat Installation Dual Axis
Control Seat Assembly Dual Axis
Valve Assembly – Joy Stick (Complete Assembly)
Handles Installation – Control With Main Rotation Indicator
Harness Assembly -Seat
Heater And Air Conditioning Control Panel Installation
Plastic Covers Installation
Pin Lock Cable Installation
Control Lever Installation – Counterweight
Drive Controls Installation
Steering Column W/ Cluster
Valve Assembly – Steering Control (Complete Assembly)
Ce Panel Installation
Hydraulic Lines Installation -Cab Future Auxiliary Hoist
Cab Tilt Installation
Cylinder Assembly – 2 1/2″ Steer (Complete Assembly)
Air Condition Installation Superstructure
Air Cond Lines Kit-Ss
A/C Condenser-Vertical Mount
Rear Cab Cover Installation (C.E. Conformity)
Rear Cab Cover Modified (C.E. Conformity)
Electrical System Installation -Cab (C.E. Conformity)
Panel Assembly -Fuse & Relay (C.E. Conformity)
Harness Assembly -Fuse & Relay Panel
Panel Assembly -Cab Overhead
Harness Assembly -Overhead Cab Panel
Panel Assembly -Front Console
Harness Assembly -Front Panel Cab
Harness Assembly -Interior Cab
Sw Install T4 Regen Permit/Inhib
Front Sun Visor Installation
First Aid Kit Installation
Cab Grab Handle Rework
360 Pedal Group-Modified
Cab Installation -12v
Heater Lines Installation -Cab
Fire Extinguisher Installation (C.E. Conformity)
Carrier Frame Complete
Frame Weldment & Assembly
Outrigger Beam Installation
Outrigger Beam Assembly
Cylinder Assembly -5 1/2″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – Outrigger Extension (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Fender & Decking Installation
Kit Fender And Decking
Kit Fenders Rt800e4
Engine Hood & Rear Covers Installation (C.E. Conformity)
Kit Engine Hood Rt800e4
Outrigger Float Installation – Russian (C.E. Conformity)
Float Assembly – Outrigger
Hook Block Tie-Down Installation
Mirror Installation – Rear View
Step Installation
Electrical System Installation -Carrier
Harness Assembly -Carrier
Hydraulic Reservoir Installation
Hydraulic Reservoir Assembly
Hydraulic Return Filter
Valve Installation -Carrier Without Differential Lock
Rear Steer Axle Lo Fan Ce
Valve Assembly – Park Brake Range Shift (Complete Assembly)
Valve Assembly – Outrigger/Stablizer (Complete Assembly)
Manifold,Selectable Psi Red’g
Rear Axle Installation Standard Differential
Axle Assembly – Rear Drive Steer Without Differential Lock
Diff. Carrier Group
Housing, Axle Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Valve Assembly – Solenoid
Outrigger Controller Installation
Outrigger Controller Assembly -Right
Cable Assembly
Axle Installation – Front Standard Differential
Axle Assembly – Front Drive Steer Without Differential Lock
Brake Group 4,Set
Brake Assembly -Parking
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly (Complete Assembly)
Slip Shaft Assy
Tire And Wheel Installation
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 (Complete Assembly)
Engine Installation-Cummins Qsb T4
Engine Assembly -Cummins Qsb T4
Transmission Assembly
Converter Housing Group
Case, Transmission Group
Rear Cover Group
Drive Plate Group
Turbine Shaft/Oil Baffle Group
Turbine/Impeller Group
Pump Drive Group
Reverse & High Shaft Group
Forward & 2nd Shaft Group
Forward & Reverse Gear Group
Low Shaft Group
Idler Shaft Group
Output Shaft Group
Charge Pump & Regulator Group
Pressure Regulator Group
Charge Pump Group
Elect. Control Valve Group
Hi & Low Shift Control Group
Output Flange Group
Pump Adaptor Group
Pump Drive Sleeve Assy. Group
Pump Assy
Pump Assembly – 1 Section Gear (Complete Assembly)
Esi Engine Rt800e4
Harness Assembly -Engine
Cable Kit Engine Rt800et4
Harness Assembly – Jib Stowage Control (Complete Assembly)
Control Assembly
Radiator Installation
Radiator Assembly
Surge Tank Assembly
Exhaust Installation Tier4i
After Treatment Device
Warning Light-Modified
Air Intake Installation T4
Air Cleaner Assembly
Oil Cooler Installation (C.E. Conformity)
Cooler Assembly – Hydraulic And Transmission Oil
Foam Installation – Main Hoist (C.E. Conformity)
Cover Installation
Electrical Components Installation C. E. Conformity
Harness Assembly – Ce Axle Oscillation
Filter Installation – Transmission
Filter Assembly (Complete Assembly)
Valve Covers Foam Installation – Rt800e
Air Condition Lines Installation -Carrier
A/C Hose Kit Carrier
A/C Compressor Installation
Freon Compressor-12v W/Pad Mtg
Hydraulic Lines Installation -Carrier (C.E. Conformity)
Foam Installation -Ce Conform
Fuel Tank Installation -T4 (C.E. Conformity)
Fuel Tank Assembly
Mounting Kit – Oil Cooler
Noise Panel Installation -Carrier (C.E. Conformity)
Block Heater Installation -Qsb 240v
Battery & Disconnect Installation
Cable Kit Batteries Rt800et4
Fuse Panel Assembly
Harness Assembly -Engine Relay Panel
Exterior Lights & Alarm Installation
Decal Install Rt880e4-Forgn Std
Decal Installation -Rt880e Nomenclature
80030980 Rt880e4 Decal
Decal Installation
Decal Install Rt880e4-Std
Decal Installation -Standard Cab
Decal Installation -Standard Carrier
Decal Installation -Standard Ss
Decal Installation -Standard Boom
Decal Install.Rt880e4-Spanish
Supplemental Decal Installation (Russian)
Hardware Kit – Decal
Decal Installation -Rt880e3 Supplemental
Kit, Lmi S/S Iflex 5
