Download Grove Crane RT880E 235295 Parts Manual 2016 PDF (English)

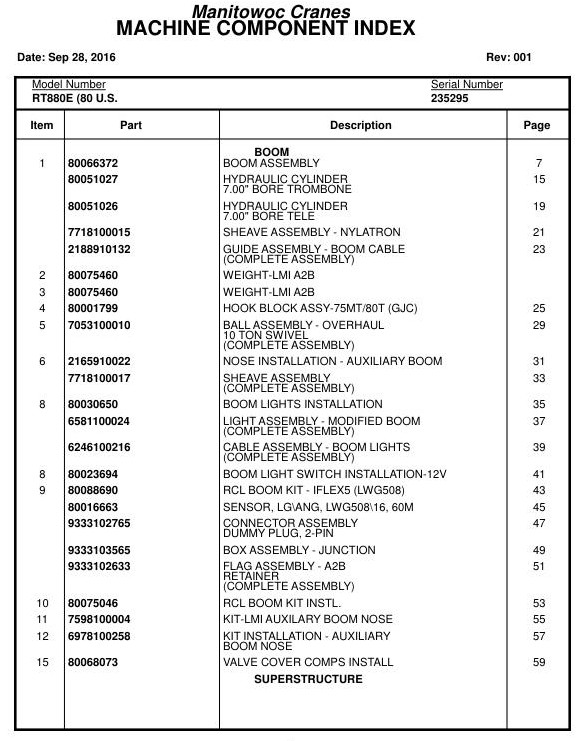

The Grove Crane RT880E 235295 Parts Manual 2016 PDF provides a complete and detailed breakdown of all components, assemblies, and part numbers used in the RT880E crane model. This manual is essential for technicians, service engineers, and equipment owners to accurately identify, maintain, and replace parts. It includes detailed diagrams, exploded views, and manufacturer specifications to ensure proper servicing and repair. Ideal for heavy equipment maintenance, this guide helps improve efficiency, reduce downtime, and ensure safe crane operation with correct Grove OEM parts information. www.themanualsgroup.com

MODEL COVERED :
Grove RT880E Crane

CONTENTS INCLUDED :
Boom Assembly
Hydraulic Cylinder 7.00″ Bore Trombone
Hydraulic Cylinder 7.00″ Bore Tele
Sheave Assembly – Nylatron
Guide Assembly – Boom Cable (Complete Assembly)
Hook Block Assy-75mt/80t (Gjc)
Ball Assembly – Overhaul 10 Ton Swivel
Nose Installation – Auxiliary Boom
Sheave Assembly (Complete Assembly)
Boom Lights Installation
Light Assembly – Modified Boom (Complete Assembly)
Cable Assembly – Boom Lights (Complete Assembly)
Boom Light Switch Installation -12v
Rcl Boom Kit – Iflex5 (Lwg508)
Sensor, LgAng, Lwg50816, 60m
Connector Assembly Dummy Plug, 2-Pin
Box Assembly – Junction
Flag Assembly – A2b Retainer
Rcl Boom Kit Install.
Kit-Lmi Auxiliary Boom Nose
Kit Installation – Auxiliary Boom Nose
Valve Cover Comps Install
Install, T/T Weld And Drive
Box Assembly – Swing (Complete Assembly)
Hydraulic,Water,Electric & Ac Swivel Installation
Hydraulic,Water,Electric & Ac Swivel Assembly
Swivel Assy-14 Port Hyd Assy.
Slip Ring Assembly
Esi-Ss
Harness Assembly -Ss
Diode (Modified)
Switch Assembly – Proximity (Normally Open)
Wiring Harness, Main Hoist Sw
Valve Install S/S
Valve Assembly – 4 Section Main (Complete Assembly)
Valve Assembly – Swing, Steer And Brake (Complete Assembly)
Dual Accum Charge Valve
Valve Assembly – Cab Tilt (Complete Assembly)
Cwt Removal Valve
Valve Assy. Less Fittings
Valve Assy. Inlet Section
Valve Assy. Dual Work Section
Valve Assy. Work Section
Valve Assy. Outlet Section
Valve Assembly – 2 Speed Swing (Complete Assembly)
Main Hoist Installation
Hp30-18g Hoist W/ Acc
Counterweight Control Lever Installation
Wire Rope-19mm 35×7-185m
Bolt Installation – Bearing
Hoist Mirror Installation
Rcl S/S Kit Install (6m)
Socket, 3/4” Open Wedge
Hydraulic Lines Installation -Cab Main And Auxiliary Hoist
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Binder Installation
Swing Lock Install
Swing Lock Assy
Valve Cover Install
Pin Installation
Air Conditioning Installation (Superstructure)
Air Cond Lines Kit-Ss
A/C Condenser-Vertical Mount
Hyd Lines Install-Ss Main & Aux
360 Swing Lock Pedal Install
Pedal Assembly – Foot (Complete Assembly)
Lift Cyl & Lower Pin Install
Cylinder Assy, 12″ Bore
Valve – Lift Cyl Pilot Hold
Cwt Installation -18000# W/Aux
Beacon Light Installation
Light Assembly – Modified Strobe (Complete Assembly)
Washer Bottle Installation
Crane Star Installation -Ss
Hoist Access Platform Install
Mirror Installation -Aux Hoist
Esi-Ss W/Aux Hoist
Wiring Harness, Aux Hoist Sw
Cab Assy – (12v) Purch
Sub Assy – Cab Std 12v
Glass Door Assembly
Sliding Skylight
Sliding Glass Sub/Assy.
Window Assy. Rh Side
Glass Assy. Sliding
Glass Assy. Fixed
Window Assy-Rear
Kit – Wiper Skylight 12 Volt
Wiper Kit – Front 12 Volt
Fan Assembly -12v (Cab)
Cab Hvac Install – 12v
12v Cab Hvac Kit (Large Core)
Superstructure Cab – 12v Miscellaneous Parts Installation
Cab Brackets Installation
Pedal Group Installation
Valve Assembly – Treadle (Swing Brake)
Valve-Brake Pedal
Acoustics Installation (Sg)
Cab Crane Star Installation
Ctrl Seat Install S.A. W/Aux
Control Seat Assembly Single Axis With Auxiliary Hoist
Single Axis Controller
Harness Assembly -Seat
Seat
Heater & Air Condition Control Panel Installation
Heat/Ac Control 12v/24v Grove
Plastic Covers Installation
Assy, Hoist Indicator Panel
Pin Lock Cable Installation
Pedal Installation – Boom Telescope
Tredal Valve Assembly – Bi Directional Hydraulic Proportional Remote
Switch Inst,Crossaxle Difflock
Lmi Internal Light Bar Installation
Rcl Cab Kit Installation
Lmi Cab Kit, Iflex2, Expert
Cab Tilt Installation
Cylinder Assembly – 2 1/2″ Steer (Complete Assembly)
Esi-Cab
Panel Assy – Fuse & Relay
Ha-Fuse And Relay Panel
Control Panel O/H Console
Harness Assembly -Overhead Cab Panel
Panel Assembly -Front Console
Harness Assembly -Front Panel Cab
Harness Assembly -Interior Cab
Wiring Harness, Hst Ind. Power
Rear Cab Cover Installation
Grab Handle Installation
Cab Installation -Components
Heater Lines Installation -Cab
Fan Installation
Frame Weldment Complete
Frame Weldment & Assembly
Outrigger Beam Install
Outrigger Beam Ass’y.
Cyl Assembly -5.50 Jack
Cylinder Assembly – Outrigger Extension (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Fender & Decking Install W/Mat
Door Assembly
Engine Hood & Rear Covers Inst
Outrigger Float Installation
Outrigger Float Assembly
Hook Block Tie-Down Installation
Drive Controls Installation
Steering Column W/ Cluster
Valve Assembly – Steering Control (Complete Assembly)
Mirror Installation – Rear View
Step Installation
Esi-Carrier
Wiring Harness-Carrier
Outrigger Controller Installation
Outrigger Controller Assembly
Cable Assembly
Hydraulic Reservoir Install
Hydraulic Reservoir Assembly
Hydraulic Return Filter
Valve Installation -Carrier With Differential Lock
Rear Steer Axle Lo Fan Drive
Valve Assembly – Park Brake Range Shift (Complete Assembly)
Valve Assy.Outrigger
Solenoid Valve – Diff Lock
Manifold,Selectable Psi Red’g
Rear Axle Installation With Differential Lock
Axle-Drive/Steer Rear W/Lock
Diff Carr W/Lock Parts Group
Axle Housing Parts Group
Hub Assy. & Shaft Parts Group
Brake Assy. Parts Group (2)
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Front Axle Installation – With Differential Lock
Axle Assembly – Front Drive Steer With Differential Lock
Diff.Carrier Group @ 488 Ratio
Housing, Axle Group
Hub & Shaft Group
Brake Assy. Group (4) Set
Brake Assembly Group
Brake Assembly – Parking (Complete Assembly)
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly (Complete Assembly)
Slip Shaft Assy
Install, T&W 29.5×25-34p Titan
T&W Assy-Titan 29.5×25-34p
Engine Install-Cummins Qsbt3
Engine Assembly -Cummins Qsbt3
Transmission
Converter Housing Group
Case, Transmission Group
Rear Cover Group
Drive Plate Group
Turbine Shaft Group
Torque Converter Group
Pump Drive Group
Forward & Reverse Gear Group
Reverse & High Shaft Group
Forward & 2nd Shaft Group
Low Shaft Group
Idler Shaft Group
Output Shaft Group
Charge Pump & Regulator Group
Pressure Regulator Group
Charge Pump Group
Electric Control & Cover Group
Control Valve Assy. Group
Hi & Low Shift Control Group
Pump Adaptor Group
Pump Drive Sleeve Assy. Group
Flange Group – Output
Pump Assembly
Pump Assembly – 1 Section Gear (Complete Assembly)
Radiator Installation
Radiator Assy T4f
Rad/Cac Assembly
Surge Tank Assy
Exh Inst T3
Mounting Kit-T3
Air Intake Installation T3
Air Cleaner Assembly
Installation -Cooler Trans Oil
Oil Cooler Assembly
Filter Installation – Transmission
Filter Assembly (Complete Assembly)
Air Condition Lines Installation -Carrier
A/C Hose Kit Carrier
A/C Compressor Installation
Freon Compressor-12v
Hydraulic Lines Installation -Carrier With Differential Lock
Fuel Tank Installation
Fuel Tank Assembly
Fuel Tank Assy.
Block Heater Installation -Qsb 240v
Battery And Disconnect Install
Fuse Panel Assembly
Harness Assembly -Engine Relay Panel
Exterior Lights & Alarm Installation
Esi Engine W/T3 Engine
Harness – Engine (W/T3 Eng)
Cable Kit Engine
Coolant Lines Installation
Cover Plate Installation
Harness Assembly – Jib Stow Control
Control Station, Two Button
Miscellaneous Decals
Decal Installation -Standard
Decal Install-Stnd Cab
Decal Install-Stnd Carrier
Decal Install-Standard Ss
Decal Install-Stnd Boom
Decal Install-Nomenclature
Hardware Kit – Decal
