Download Grove Crane RT890E 224358 Parts Manual 2015 PDF (English)

Download the Grove Crane RT890E 224358 Parts Manual 2015 PDF, a complete technical reference guide for operators, technicians, and maintenance professionals working with Grove rough terrain cranes. This detailed parts catalog includes exploded diagrams, illustrated assembly breakdowns, component identification numbers, and full parts listings for accurate servicing and replacement. Ideal for troubleshooting, repairs, preventive maintenance, and parts ordering, the 2015 edition ensures reliable performance, reduced downtime, and efficient maintenance of the Grove RT890E crane in demanding job site conditions. www.themanualsgroup.com

MODEL COVERED :
Grove RT890E Crane

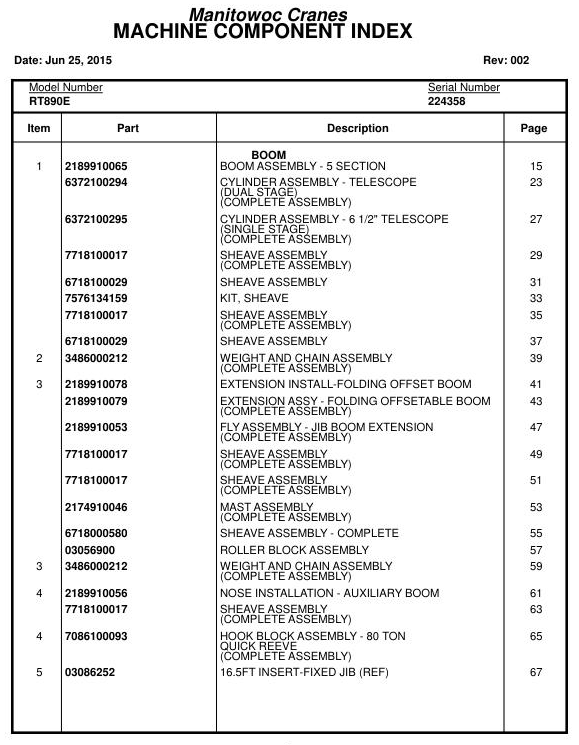

CONTENTS INCLUDED :
Boom Assembly – 5 Section
Cylinder Assembly – Telescope (Dual Stage)
Cylinder Assembly – 6 1/2″ Telescope (Single Stage)
Sheave Assembly (Complete Assembly)
Sheave Assembly
Kit, Sheave
Weight And Chain Assembly (Complete Assembly)
Extension Install-Folding Offset Boom
Extension Assy – Folding Offset Table Boom (Complete Assembly)
Fly Assembly – Jib Boom Extension (Complete Assembly)
Mast Assembly (Complete Assembly)
Sheave Assembly – Complete
Roller Block Assembly
Nose Installation – Auxiliary Boom
Hook Block Assembly – 80 Ton Quick Reeve
16.5ft Insert-Fixed Jib (Ref)
Harness Assembly – Jib Extension Wiring
Roller Holder Assembly
Ball Assembly – Overhaul 10 Ton Swivel
16.5ft Insert
Socket, 3/4” Open Wedge
Kit – Lmi S/S Iflex 5
Lights Installation – Boom
Light Assembly – Modified Boom (Complete Assembly)
Switch Installation – Boom Lights (Not Available As Assembly)
Cable Assembly – Boom Lights (Complete Assembly)
Lmi Boom Kit (Bcs)
Cable Reel Lwg521-Iflex5 (Bcs)
Slip Ring Assembly – 11 Cond.
Cable Reel Lg152-Iflex5 (Bcs)
Flag Assembly – A2b Retainer
Kit Installation – Lmi Boom
Lmi Aux Nose Kit
Kit Installation – Auxiliary Nose Lmi
Kit – Lmi Bi-Fold Jib Boom Extension (Complete Assembly)
Box Assembly – Junction
Connector Assembly Dummy Plug, 2-Pin
Junction Box Assembly – 80mm X 75mm, Pg9 + 2-Pin
Cable Assembly , Jumper
Kit Install – Lmi Bi-Fold Jib Extension
Carrier Installation – Boom Extension
Hanger Assembly – Rear (Complete Assembly)
Lmi Insert Kit
Holder Assembly – Sheave
Drive Installation – Turntable And
Turntable Section
Box Assembly – Swing (Complete Assembly)
Swivel Installation – Electric Hydraulic, Water And Air Conditioning
Swivel Assembly – Electric, Hydraulic, Water And Air Conditioning
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Ring Assembly – Slip 15 Conductor
Lift Cylinder & Lower Pin Installation
Valve Assembly – Holding (Complete Assembly)
Reel Installation – Hose
Reel Assembly – Hose (Complete Assembly)
Brake Assembly
Motor Assembly – Hydraulic (Complete Assembly)
Valve Installation – Control (Superstructure)
Valve Assembly – Tele Rod Drain (Complete Assembly)
Valve Assembly – 5 Section Directional (Complete Assembly)
Valve Assembly – Swing/Steer/Brake (Complete Assembly)
Valve Assembly – Brake Charge (Complete Assembly)
Valve Assembly – 2 Section Control Luffing Jib And Cab Tilt
Bank Assembly – 3 Section Control Valve (Complete Assembly)
Valve Assembly – 2 Speed Swing (Complete Assembly)
Bolt Installation – Bearing
Hoist Installation – Main
Hoist Assembly (Complete Assembly)
Motor,Hyd.Old Type Brake Valve
Cable Assembly – Auxiliary Hoist Hi Speed (Complete Assembly)
3/4″ Dia Wire Rope 6×37 600 Ft
Wire Rope-19mm 35×7-185m
Mirror Installation – Hoist
Kit Installation – Iflex 5 Lmi Superstructure
Binder Installation
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator (Complete Assembly)
Lock Installation – Swing
Swing Lock Assembly
Cover Installation – Valve
Hoist Installation – Counterweight And Auxiliary
Counterweight & Auxiliary Hoist Assembly (Complete Assembly)
Cylinder Assembly -Counterweight Removal (Complete Assembly)
Cylinder Assembly – 3 1/2″ Cwt Removal (Complete Assembly)
Lock Installation – House
Lines Installation – Air Conditioning (Superstructure)
Kit – Air Conditioner Hose (Complete Assembly)
Hydraulic Lines Installation – Main And Auxiliary Hoist
Switch Assembly – Pressure (Modified)
Cab Installation
Cab Assembly
Cab Section
Skylight Assembly – Sliding
Window Assembly – Rear (Complete Assembly)
Cable Assembly (Complete Assembly)
Valve Assembly – Treadle (Swing Brake)
Fan Assembly – 12 Volt Cab (Complete Assembly)
Horn Assembly – Modified (Complete Assembly)
Harness Assembly – Horn (Complete Assembly)
Console Installation – Front
Console Assembly – Front (Complete Assembly)
Panel Assy-Front Console
Acoustics Install – Rt”E”
Rt”E” Series Acoustics Kit
Electrical System Installation – Superstructure
Harness Assembly – Superstructure (Complete Assembly)
Switch Assembly – Proximity (Normally Open)
Seat Installation – Control (Single Axis With Auxiliary Hoist)
Seat Assembly – Control (Single Axis With Auxiliary Hoist)
Controller Assembly – Single Axis (Complete Assembly)
Handle, With Solenoid Assembly
Harness Assembly – Seat (Complete Assembly)
Electrical System Installation – Superstructure Cab
Pedal Installation – Telescope
Valve Assembly – Treadle (Telescope)
Control Lever Installation – Counterweight
Pedal Installation – Brake
Valve Assembly With Treadle
Shifter Installation – Transmission
360 Lever Install
Valve Installation – Steer
Valve Assembly – Steering Control (Complete Assembly)
Pedal Installation – Throttle (Electric)
Kit – Lmi Iflex 5 Cab (For Bcs Machines)
Centeral Unit – Iflex 5
Graph. Console (Ver.) – Iflex5
Kit Installation – Iflex5 Lmi Cab
Air Conditioning & Heater Installation
Kit – Cab Heater And Air Conditioner (Complete Assembly)
Screen Installation – Sun
Support Installation – Cab
Tilt Installation – Cab
Cylinder Assembly – 2 1/2″ Steer (Also Used As A Cab Tilt Cylinder)
Spotlight Installation
Light Installation – Strobe
Air Conditioning Installation – Superstructure
Kit – Air Conditioner Condenser (Complete Assembly)
Lmi Internal Light Bar Kit
Cover Installation – Cab Rear
Main & Aux Hst Speed Sw Install
Switch Installation – Air Conditioner
Lines Installation – Air Conditioning (Cab)
Harness Installation – Cab Air Conditioning
Harness Assembly – Air Conditioner Condenser Fan
Carrier Frame Complete
Frame Assembly
Beam Install – Outrigger
Beam Assembly – Outrigger (Complete Assembly)
Cylinder Assembly -5 1/2″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Fender And Decking Installation
Door Assembly – Fuel Tank Cover And (Complete Assembly)
Cover Install – Hydraulic Tank
Engine Hood Assembly And Rear Cover Installation
Engine Hood Assembly
Float Installation – Outrigger
Float Assembly – Outrigger
Tie Down Installation – Hook Block
Mirror Installation – Rear View
Step Installation
Electrical System Installation – Carrier
Harness Assembly – Carrier (Complete Assembly)
Harness Assembly – Engine Coolant Level
Panel Assembly – Engine Relays (Complete Assembly)
Harness Assembly – Engine Relay Panel (Complete Assembly)
Kit – Cable (Battery) (Complete Assembly)
Tank Installation – Fuel And Hydraulic
Tank Assembly – Fuel (Complete Assembly)
Reservoir Assembly – Hydraulic (Complete Assembly)
Filter Assembly , Return Hyd.
Mounting Kit – Oil Cooler
Valve Installation – Carrier Without Differential Lock
Valve Assembly – Rear Steer,Axle Lockout And Fan Drive
Valve Assembly – Park Brake/Range Shift (Complete Assembly)
Valve Assembly – Outrigger/Stablizer (Complete Assembly)
Valve Assembly – Selectable Psi Reducing (Complete Assembly)
Axle Installation – Rear Standard Differential
Axle Assembly – Rear Drive Steer Without Differential Lock
Diff. Carrier Group @ 4.88
Housing Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Axle Installation – Front Standard Differential
Axle Assembly – Front Drive Steer Without Differential Lock
Diff.Carrier Group @ 4.88:1
Brake Group 4,Set
Brake Assembly – Parking (Complete Assembly)
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly – Rear Slip (Complete Assembly)
Driveline Assembly (Complete Assembly)
Tire And Wheel Installation – 29.5 X 25 General
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 (Complete Assembly)
Engine Installation – Cummins Qsb-275 T2
Engine Assembly – Cummins Qsb-275 Tier 2 (Not Available As Assembly)
Transmission
Converter Housing Group
Case,Transmission Group
Rear Cover Group
Drive Plate Group
Turbine Shaft/Oil Baffle Group
Turbine/Impeller Group
Pump Drive Group
Reverse & High Shaft Group
Fwd. & 2nd. Shaft Group
Low Shaft Group
Idler Shaft Group
Output Shaft Group
Pressure Regulator/Valve Group
Charge Pump & Cover Group
Elect.Control Valve Group
Hi & Low Shift Control Group
Pump Adaptor Group
Pump Assembly – Piston (Complete Assembly)
Pump Assembly – 1 Section Gear (Complete Assembly)
Electrical System Installation – Engine
Harness Assembly – Engine (Complete Assembly)
Cable Kit-Rt800e Engine
Radiator Installation
Radiator Assembly
Cooler Assembly – Radiator/Charge Air (Complete Assembly)
Tank Assembly – Surge (Not Available As Assembly)
Exhaust System Installation
Cleaner Installation – Air
Cleaner Assembly – Air (Complete Assembly)
Cooler Installation – Hydraulic And Transmission Oil
Cooler Assembly – Hydraulic And Transmission Oil
Tray Installation – Storage
Filter Installation – Transmission
Filter Assembly (Complete Assembly)
Lines Installation – Air Conditioning (Carrier)
Compressor Installation – Air Conditioner (Engine)
Kit – Cummins Air Conditioner Compressor (Complete Assembly)
Hydraulic Lines Installation – Carrier Supply, Pressure And Return
Switch Assembly – Pressure (Normally Closed)
Cover Installation – Outrigger Grill And
Miscellaneous Decals
Decal Installation – Rt890e (Standard)
Decal Installation – Rt800e (Standard Carrier)
Decal Installation – Rt800e (Standard Superstructure)
Decal Installation – Rt800e (Standard Boom)
Decal Installation – Rt800e (Nomenclature)
Hardware Kit – Decal

www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
