Download Grove Crane RT890E 231834 Parts Manual 2011 PDF (English)

Download the Grove Crane RT890E 231834 Parts Manual 2011 PDF for complete maintenance, repair, and assembly information. This detailed manual provides exploded diagrams, parts lists, and technical specifications to help technicians and operators identify and replace components accurately. Ideal for heavy equipment service, repair workshops, and crane maintenance professionals. Get instant access to ensure efficient troubleshooting, downtime reduction, and proper machine performance for Grove RT890E crane model. www.themanualsgroup.com

MODEL COVERED :
Grove RT890E Crane

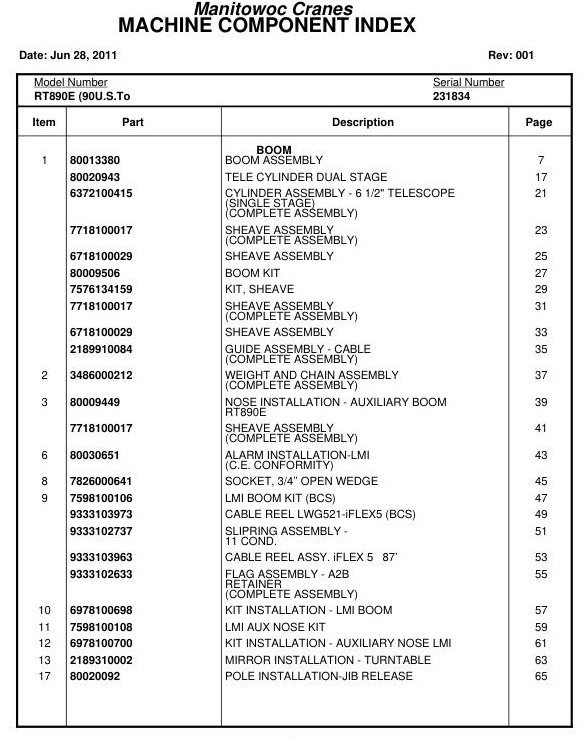

CONTENTS INCLUDED :
Boom Assembly
Tele Cylinder Dual Stage
Cylinder Assembly – 6 1/2″ Telescope (Single Stage)
Sheave Assembly (Complete Assembly)
Sheave Assembly
Boom Kit
Kit, Sheave
Guide Assembly – Cable (Complete Assembly)
Weight And Chain Assembly (Complete Assembly)
Nose Installation – Auxiliary Boom Rt890e
Alarm Installation -Lmi (C.E. Conformity)
Socket, 3/4’’ Open Wedge
Lmi Boom Kit (Bcs)
Cable Reel Lwg521-Iflex5 (Bcs)
Slip Ring Assembly – 11 Cond.
Cable Reel Assy. Iflex 5 87’
Flag Assembly – A2b Retainer
Kit Installation – Lmi Boom
Lmi Aux Nose Kit
Kit Installation – Auxiliary Nose Lmi
Mirror Installation – Turntable
Pole Installation -Jib Release
Lift Cylinder & Lower Pin Installation
Lift Cylinder
Valve Assembly – 3/4 Holding (Complete Assembly)
Turntable Weld & Drive Installation (C.E. Conformity)
Box Assembly – Swing (Complete Assembly)
Swivel Installation Hydraulic, Water, Electric And A/C
Swivel Assembly Hydraulic, Water, Electric And A/C
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Slip Ring Assy 20 Cond W/Slew
Electrical System Installation Superstructure
Harness Assembly -Superstructure Rt800e4
Diode (Modified)
Switch Assembly – Proximity (Normally Open)
Bolt Installation – Bearing
Main Hoist Installation With 3rd Wrap
Hp30-18g Hoist W/ Acc W 3rd
Mirror Installation – Hoist
Binder Installation
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Valve Cover Installation (C.E. Conformity)
Turntable Lock Pin Installation
Counterweight Installation (Without Auxiliary Hoist)
Counterweight Assembly 20,000 Lbs.
Cylinder Assembly – Counterweight (Complete Assembly)
Cylinder Assembly – 3 1/2″ Cwt Removal (Complete Assembly)
Pilot Press Reduction Installation (C.E. Conformity)
Washer Bottle Installation
Crane Star Installation -Superstructure (C.E. Conformity)
Tcu And Sat Antenna Kit
Lmi Override Installation (C.E. Conformity)
Lmi Override Assy
Cab Assembly -12v Purchased (C.E. Conformity)
Cab Sub-Assy Ce Std 12v
Glass Door Assembly
Wiper Kit – Front 12 Volt
Kit – Wiper Skylight 12 Volt
Fan Assembly – 12 Volt Cab (Complete Assembly)
Window Assembly – Side Rh
Window Assembly – Rear (Complete Assembly)
Heater Installation 12v
Kit, Heater/Cool 12v.
Superstructure Cab – 12v Miscellaneous Parts Installation
Cab Brackets Installation
Pedal Group Installation
Pedal Assembly – Foot (Complete Assembly)
Valve Assembly – Treadle (Swing Brake)
Valve-Brake Pedal
Acoustics Installation (Sg)
Lmi Warning Light Installation -12v
Cab Crane Star Installation
Heater And Air Conditioning Control Panel Installation
Heater & A/C Ctrl Panel (12v)
Plastic Covers Installation
Pin Lock Cable Installation
Control Lever Installation – Counterweight
Drive Controls Installation
Steering Column W/ Cluster
Valve Assembly – Steering Control (Complete Assembly)
Lmi S/S Kit Install, 2 Port P/T
Lmi S/S Kit – 2 Port P/T Block
Ce Panel Installation
Lmi Cab Kit Installation -Iflex5/Exp
Lmi Cab Kit, Iflex5/Expert Bcs
Cab Tilt Installation
Cylinder Assembly – 2 1/2″ Steer (Complete Assembly)
Heater Lines Installation -Cab
Air Condition Installation Superstructure
Air Cond Lines Kit-Ss
A/C Condenser-Vertical Mount
Esi-Cab
Panel Assembly -Fuse & Relay
Harness Assembly -Fuse & Relay Panel
Panel Assembly -Cab Overhead
Harness Assembly -Overhead Cab Panel
Panel Assembly -Front Console
Harness Assembly -Front Panel Cab
Harness Assembly -Interior Cab
Panel Assembly -Overhead Boom Control
Harness Assembly -Overhead Boom Control
Rear Cab Cover Installation (C.E. Conformity)
Rear Cab Cover Modified (C.E. Conformity)
Sw Install T4 Regen Permit/Inhib
Switch & Lamp Installation -A/B Mode
Front Sun Visor Installation
First Aid Kit Installation
Indicator Installation 3rd Wrap & Override
Cab Grab Handle Rework
360 Pedal Group-Modified
Cab Installation -12v
Fire Extinguisher Installation (C.E. Conformity)
Carrier Frame Complete
Frame Weldment & Assembly
Outrigger Beam Installation
Outrigger Beam Assembly
Cylinder Assembly -5 1/2″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – Outrigger Extension (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Fender & Decking Installation
Kit Fender And Decking
Kit Fenders Rt800e4
Engine Hood & Rear Covers Installation (C.E. Conformity)
Kit Engine Hood Rt800e4
Hose Reel Installation
Hose Reel Assembly
Brake Assy. Hyd
Motor Assembly – Hydraulic (Complete Assembly)
Outrigger Float Installation – Russian (C.E. Conformity)
Float Assembly – Outrigger
Hook Block Tie-Down Installation
Mirror Installation – Rear View
Step Installation
Esi-Carrier
Harness Assembly -Carrier
Hydraulic Reservoir Installation
Hydraulic Reservoir Assembly
Hydraulic Return Filter
Valve Installation -Carrier Without Differential Lock
Rear Steer Axle Lo Fan Ce
Valve Assembly – Park Brake Range Shift (Complete Assembly)
Valve Assembly – Outrigger/Stablizer (Complete Assembly)
Manifold,Selectable Psi Red’g
Rear Axle Installation Standard Differential
Axle Assembly – Rear Drive Steer Without Differential Lock
Diff. Carrier Group
Housing, Axle Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Valve Assembly – Solenoid
Outrigger Controller Installation
Outrigger Controller Assembly -Right
Cable Assembly
Axle Installation – Front Standard Differential
Axle Assembly – Front Drive Steer Without Differential Lock
Brake Group 4,Set
Brake Assembly -Parking
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly (Complete Assembly)
Slip Shaft Assy
Tire And Wheel Installation
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 (Complete Assembly)
Engine Installation-Cummins Qsb T4
Engine Assembly -Cummins Qsb T4
Transmission Assembly
Converter Housing Group
Case, Transmission Group
Rear Cover Group
Drive Plate Group
Turbine Shaft/Oil Baffle Group
Turbine/Impeller Group
Pump Drive Group
Reverse & High Shaft Group
Forward & 2nd Shaft Group
Forward & Reverse Gear Group
Low Shaft Group
Idler Shaft Group
Output Shaft Group
Charge Pump & Regulator Group
Pressure Regulator Group
Charge Pump Group
Elect. Control Valve Group
Hi & Low Shift Control Group
Output Flange Group
Pump Adaptor Group
Pump Drive Sleeve Assy. Group
Pump Assy
Pump Assembly – 1 Section Gear (Complete Assembly)
Esi Engine Rt800e4
Harness Assembly -Engine
Cable Kit Engine Rt800et4
Radiator Installation
Radiator Assembly
Surge Tank Assembly
Exhaust Installation Tier4i
Warning Light-Modified
Air Intake Installation T4
Air Cleaner Assembly
Oil Cooler Installation (C.E. Conformity)
Cooler Assembly – Hydraulic And Transmission Oil
Cover Installation
Foam Installation – Main Hoist (C.E. Conformity)
Electrical Components Installation C. E. Conformity
Harness Assembly – Ce Axle Oscillation
Transmission Filter Installation
Air Condition Lines Installation -Carrier
A/C Hose Kit Carrier
A/C Compressor Installation
Freon Compressor-12v W/Pad Mtg
Valve Covers Foam Installation – Rt800e
Hydraulic Lines Installation -Carrier (C.E. Conformity)
Hose Reel Foam Installation – Rt890e
Foam Installation -Ce Conform
Fuel Tank Installation -T4 (C.E. Conformity)
Fuel Tank Assembly
Mounting Kit – Oil Cooler
Noise Panel Installation -Carrier (C.E. Conformity)
Block Heater Installation -Qsb 240v
Battery & Disconnect Installation
Cable Kit Batteries Rt800et4
Fuse Panel Assembly
Harness Assembly -Engine Relay Panel
Exterior Lights & Alarm Installation
Decal Installation Rt800e4 Foreign Standard
Decal Installation -Rt890e Nomenclature
80030980 Rt880e4 Decal
Decal Installation Rt890e4
Decal Installation Rt800e4 Standard
Decal Installation Rt800e4 Standard Cab
Decal Installation Rt800e4 Standard Carrier
Decal Installation Rt800e4 Standard Superstructure
Decal Installation Rt800e4 Standard Boom
Decal Installation Rt800e4 (Spanish)
Supplemental Decal Installation (Russian)
Hardware Kit – Decal
Decal Installation -Rt880e3 Supplemental
