Grove Crane RT890E3 225667 Parts Manual 2006 PDF
-
Discount
- Regular price $65.00
- Description
- Download Information
Description
Download Grove Crane RT890E3 225667 Parts Manual 2006 PDF (English)
Grove Crane RT890E3 225667 Parts Manual 2006 PDF is a complete technical reference guide for maintenance, repair, and servicing of the Grove RT890E3 crane. It includes detailed parts breakdowns, exploded diagrams, assembly layouts, and accurate part numbers to support quick identification and replacement of components. This manual is essential for technicians, engineers, and equipment operators to ensure proper servicing, reduce downtime, and maintain optimal performance. The 2006 edition provides factory-approved specifications and clear illustrations for safe and efficient crane operation and maintenance. www.themanualsgroup.com
MODEL COVERED :
Grove RT890E3 Crane
CONTENTS INCLUDED :

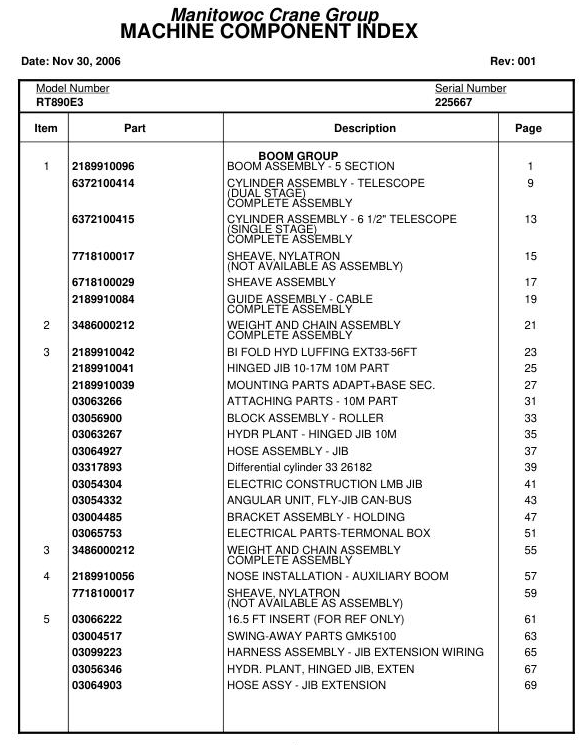

Boom Assembly – 5 Section
Cylinder Assembly – Telescope (Dual Stage)
Cylinder Assembly – 6 1/2″ Telescope (Single Stage)
Sheave, Nylatron (Not Available As Assembly)
Sheave Assembly
Guide Assembly – Cable Complete Assembly
Weight And Chain Assembly Complete Assembly
Bi Fold Hyd Luffing Ext33-56ft
Hinged Jib 10-17m 10m Part
Mounting Parts Adapt+Base Sec.
Attaching Parts – 10m Part
Block Assembly – Roller
Hydr Plant – Hinged Jib 10m
Hose Assembly – Jib
Differential Cylinder 33 26182
Electric Construction Lmb Jib
Angular Unit, Fly-Jib Can-Bus
Bracket Assembly – Holding
Electrical Parts-Termonal Box
Nose Installation – Auxiliary Boom
16.5 Ft Insert (For Ref Only)
Swing-Away Parts Gmk5100
Harness Assembly – Jib Extension Wiring
Hydr. Plant, Hinged Jib, Exten
Hose Assy – Jib Extension
Roller Holder Assembly
Ball Assembly – Overhaul 10 Ton Swivel
16.5ft Insert
Luffing Hydraulics Install
Reel Assembly – Hose
Socket, 3/4’’ Open Wedge
Lights Installation – Boom
Light Assembly – Modified Boom Complete Assembly
Switch Installation – Boom Lights (Not Available As Assembly)
Cable Assembly – Boom Lights Complete Assembly
Lmi Boom Kit (Bcs)
Cable Reel Lwg521-Iflex5 (Bcs)
Slip Ring Assembly – 11 Cond.
Cable Reel Assy. Iflex 5 87’
Flag Assembly – A2b Retainer
Kit Installation – Lmi Boom
Hook Block Assembly – 90 Ton 5 Sheave
Lmi Aux Nose Kit
Kit Installation – Auxiliary Nose Lmi
Kit – Lmi Luffing Boom Extension Complete Assembly
Lmi Lufing Ext Kit Install
Lmi Insert Kit
Holder Assembly – Sheave
Cab Installation
Cab Assembly
Cab Section
Skylight Assembly – Sliding
Window Assembly – Rear Complete Assembly
Cable Assembly
Valve Assembly – Treadle (Swing Brake)
Fan Assembly – 12 Volt Cab Complete Assembly
Console Installation – Front
Console Assembly – Front Complete Assembly
Panel Assembly – Front Console Complete Assembly
Harness Assembly – Front Console Complete Assembly
Harness Assembly – Potentiometer Complete Assembly
Acoustics Install – Rt”E”
Rt”E” Series Acoustics Kit
Electrical System Installation – Superstructure Cab
Harness Assembly – Superstructure Complete Assembly
Switch Assembly – Proximity Complete Assembly
Seat Installation – Control (Single Axis With Auxiliary Hoist)
Seat Assembly – Control (Single Axis With Auxiliary Hoist)
Controller Assembly – Single Axis Complete Assembly
Handle, With Solenoid Assembly
Harness Assembly – Seat Complete Assembly
Pedal Installation – Telescope
Valve Assembly – Treadle (Telescope)
Pedal Installation – Brake
Valve Assembly – Brake With Treadle
Shifter Installation – Transmission
360 Lever Install
Kit, Lmi S/S Iflex 5
Valve Installation – Steer
Kit Installation – Iflex 5 Lmi Superstructure
Pedal Installation – Throttle (Electric)
Binder Installation
Kit – Lmi Iflex 5 Cab (For Bcs Machines)
Centeral Unit – Iflex 5
Graph. Console (Ver.) – Iflex5
Kit Installation – Iflex5 Lmi Cab
Air Conditioning & Heater Installation
Kit – Cab Heater And Air Conditioner Complete Assembly
Screen Installation – Sun
Support Installation – Cab
Tilt Installation – Cab
Cylinder Assembly – 2 1/2″ Steer (Also Used As A Cab Tilt Cylinder)
Spotlight Installation
Lock Installation – House
Light Installation – Strobe
Luffing Jib Switch Install
Lmi Internal Light Bar Kit
Cover Installation – Cab Rear
Main & Aux Hst Speed Sw Install
Switch Install – Axle Diff Lock (Not Available As Assembly)
Switch Installation – Air Conditioner
Lines Installation – Air Conditioning (Cab)
Kit – Air Conditioner Hose Complete Assembly
Valve Installation – Control (Superstructure)
Valve Assembly – Tele Rod Drain Complete Assembly
Valve Assembly – 5 Section Directional Complete Assembly
Valve Assembly – Swing/Steer/Brake Complete Assembly
Valve Assembly – Brake Charge Complete Assembly
Valve Assembly – 2 Section Control Luffing Jib And Cab Tilt
Bank Assembly – 3 Section Control Valve Complete Assembly
Valve Assembly – 2 Speed Swing Complete Assembly
Control Lever Installation – Counterweight
Hydraulic Lines Installation – Main And Auxiliary Hoist
Pressure Switch Rework
Hoist Installation – Main
Hoist Assembly Complete Assembly
Cable Assembly – Auxiliary Hoist Hi Speed Complete Assembly
Wire Rope-19mm 35×7-185m
Mirror Installation – Hoist
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator Complete Assembly
22000 Lb Counterweight Installation – And Auxiliary Hoist
22000 Lb Counterweight Assembly – And Auxiliary Hoist
Cylinder Assembly -Counterweight Removal Complete Assembly
Cylinder Assembly – 3 1/2″ Cwt Removal Complete Assembly
Mirror Installation – Auxiliary Hoist (Not Available As Assembly)
Drive Installation – Turntable And
Turntable Section
Box Assembly – Swing Complete Assembly
Swivel Installation – Electric Hydraulic, Water And Air Conditioning
Swivel Assembly – Electric, Hydraulic, Water And Air Conditioning
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Ring Assembly – Slip 15 Conductor
Cylinder Installation – Lower Pin & Lift
Cylinder Assembly – 12″ Lift Complete Assembly
Valve Assembly – Holding Complete Assembly
Reel Installation – Hose
Brake Assembly
Motor Assembly – Hydraulic Complete Assembly
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Lock Installation – Swing
Swing Lock Assembly
Cover Installation – Valve
Engine Hood Assembly And Rear Cover Installation
Hood Assembly – Engine Complete Assembly
Radiator Installation – Charge Air Cooler
Radiator Assembly – Charge Air Cooler
Radiator/Charge Air Cooler Assembly Complete Assembly
Tank Assembly – Surge (Not Available As Assembly)
Exhaust Installation
Intake Installation – Air
Cleaner Assembly – Air Complete Assembly
Compressor Installation – Air Conditioner
Kit – Cummins Air Conditioner Compressor 12 Volt
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly – Rear Slip Complete Assembly
Driveline Assembly Complete Assembly
Filter Installation – Transmission
Filter Assembly Complete Assembly
Axle Installation – Rear With Differential Lock
Axle Assembly – Rear Drive Steer With Differential Lock
Diff. Carrier Group
Housing, Axle Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer Complete Assembly
Cylinder Assembly – 5″ Lockout Complete Assembly
Switch Installation – Axle Differential Lock
Axle Installation – Front With Differential Lock
Axle Assembly – Front Drive Steer With Differential Lock
Brake Assembly – Parking Complete Assembly
Tire And Wheel Installation – 29.5 X 25 General
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 Complete Assembly
Float Installation – Outrigger
Float Assembly – Outrigger
Tie Down Installation – Hook Block
Cover Installation – Outrigger Grill And
Decking Installation – Fender And
Door Assembly – Fuel Tank Cover And Complete Assembly
Cover Install – Hydraulic Tank
Decal Installation – Rt890e (Nomenclature)
Mirror Installation – Rear View
Step Installation
Electrical System Installation – Carrier
Harness Assembly – Carrier Complete Assembly
Panel Assembly – Engine Relays Complete Assembly
Harness Assembly – Engine Relay Panel Complete Assembly
Cable Kit – Battery Complete Assembly
Reservoir Installation – Hydraulic
Reservoir Assembly – Hydraulic Complete Assembly
Filter Assembly , Return Hyd.
Valve Installation – With Differential Lock
Valve Assembly – Rear Steer,Axle Lockout And Fan Drive
Valve Assembly – Park Brake/Range Shift Complete Assembly
Valve Assembly – Outrigger/Stablizer Complete Assembly
Valve Assembly – Solenoid Complete Assembly
Valve Assembly – Selectable Psi Reducing Complete Assembly
Hardware Kit – Decal
Cooler Installation – Hydraulic And Transmission Oil
Cooler Assembly – Hydraulic And Transmission Oil
Tray Installation – Storage
Hook Installation – Pintle
Hook Assembly – Pintle
Lines Installation – Air Conditioning (Carrier)
Hydraulic Lines Installation – Carrier Supply, Pressure And Return
Switch Assembly – Pressure (Normally Closed)
Hydraulic Lines Installation – Carrier Modification
Tank Installation – Fuel
Tank Assembly – Fuel Complete Assembly
Mounting Kit – Oil Cooler
| Field | Details |
|---|---|
| Document Type | Parts Manual |
| Brand | Grove |
| Machine Type | Crane |
| Model | Grove RT890E3 Crane |
| Serial Number | 225667 |
| Publication Date | 2006 |
| Language | English |
| Format | |
| File Size | 13.55 MB |
| Number of Pages | 893 pages |
www.themanualsgroup.com
