Download Grove Crane RT890E3 226348 Parts Manual 2007 PDF (English)

Grove Crane RT890E3 226348 Parts Manual 2007 PDF is a detailed technical guide for maintenance, repair, and servicing of the Grove RT890E3 crane model. It includes complete parts breakdowns, exploded diagrams, assembly references, and accurate part numbers to support fast identification and replacement of components. This manual is ideal for technicians, engineers, and equipment owners to ensure proper maintenance, reduce downtime, and improve efficiency. The 2007 edition provides factory-approved specifications and clear illustrations for safe and reliable crane operation and servicing. www.themanualsgroup.com

MODEL COVERED :
Grove RT890E3 Crane

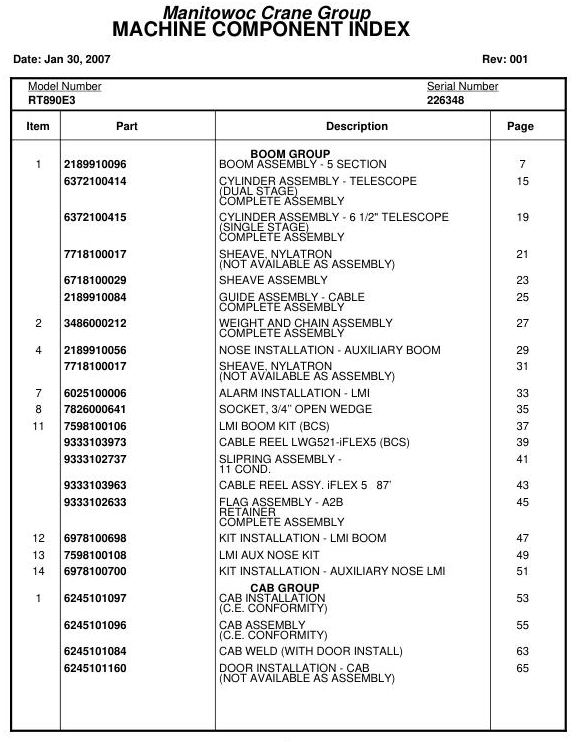

CONTENTS INCLUDED :
Boom Assembly – 5 Section
Cylinder Assembly – Telescope (Dual Stage)
Cylinder Assembly – 6 1/2″ Telescope (Single Stage)
Sheave, Nylatron (Not Available As Assembly)
Sheave Assembly
Guide Assembly – Cable Complete Assembly
Weight And Chain Assembly Complete Assembly
Nose Installation – Auxiliary Boom
Alarm Installation – Lmi
Socket, 3/4’’ Open Wedge
Lmi Boom Kit (Bcs)
Cable Reel Lwg521-Iflex5 (Bcs)
Slip Ring Assembly – 11 Cond.
Cable Reel Assy. Iflex 5 87’
Flag Assembly – A2b Retainer
Kit Installation – Lmi Boom
Lmi Aux Nose Kit
Kit Installation – Auxiliary Nose Lmi
Cab Installation (C.E. Conformity)
Cab Assembly (C.E. Conformity)
Cab Weld (With Door Install)
Door Installation – Cab (Not Available As Assembly)
Window Assembly – Rear Complete Assembly
Motor Assembly – Modified Wiper Complete Assembly
Harness Assembly – Skylight Wiper (C.E. Conformity)
Valve Assembly – Treadle (Swing Brake)
Fan Assembly – 12 Volt Cab Complete Assembly
Console Installation – Front
Console Assembly – Front Complete Assembly
Panel Assembly – Front Console Complete Assembly
Harness Assembly – Front Console Complete Assembly
Harness Assembly – Potentiometer Complete Assembly
Acoustics Install – Rt”E”
Rt”E” Series Acoustics Kit
Electrical System Installation – Superstructure Cab
Harness Assembly – Superstructure Complete Assembly
Switch Assembly – Proximity Complete Assembly
Seat Installation – Dual Axis Control Without Auxiliary Hoist Control
Seat Assembly – Dual Axis Control Without Auxiliary Hoist Control
Controller Assembly – Dual Axis Complete Assembly
Handles Installation – Control With Main Rotation Indicator
Harness Assembly – Seat Complete Assembly
Pedal Installation – Brake
Valve Assembly – Brake With Treadle
Shifter Installation – Transmission
Kit, Lmi S/S Iflex 5
Valve Installation – Steer
Kit Installation – Iflex 5 Lmi Superstructure
Pedal Installation – Throttle (Electric)
Binder Installation
Kit – Lmi Iflex 5 Cab (For Bcs Machines)
Centeral Unit – Iflex 5
Graph. Console (Ver.) – Iflex5
Kit Installation – Iflex5 Lmi Cab
Air Conditioning & Heater Installation
Kit – Cab Heater And Air Conditioner Complete Assembly
Screen Installation – Sun
Support Installation – Cab
Tilt Installation – Cab
Cylinder Assembly – 2 1/2″ Steer (Also Used As A Cab Tilt Cylinder)
Lock Installation – House
Air Conditioning Installation – Superstructure
Kit – Air Conditioner Condenser Complete Assembly
Cover Installation – Cab Rear
Console Ce Components Install
Main & Aux Hst Speed Sw Install
Switch Installation – Air Conditioner
Lines Installation – Air Conditioning (Cab)
Kit – Air Conditioner Hose Complete Assembly
Ce Panel Installation
Valve Installation – Control (Superstructure)
Valve Assembly – Tele Rod Drain Complete Assembly
Valve Assembly – 5 Section Directional Complete Assembly
Valve Assembly – Swing/Steer/Brake Complete Assembly
Valve Assembly – Brake Charge Complete Assembly
Valve Assembly – 2 Section Control Luffing Jib And Cab Tilt
Bank Assembly – 3 Section Control Valve Complete Assembly
Accumulator Assembly – Emergency Steer
Valve Assembly – 2 Speed Swing Complete Assembly
Control Lever Installation – Counterweight
Hydraulic Lines Installation – Main And Future Auxiliary Hoist
Pressure Switch Rework
Hoist Installation – Main
Hoist Assembly Complete Assembly
Cable Assembly – Auxiliary Hoist Hi Speed Complete Assembly
Mirror Installation – Hoist
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator Complete Assembly
3rd Wrap Indicator Install – Main Hoist
Limit Kit – Third Wrap (Main Hoist)
Control Unit Assembly , Mwd 100 – Third Wrap
Minimum Layer Device, W/ Notch In Ring
Kit Installation – 3rd Wrap Limit
Drive Installation – Turntable And (C.E. Conformity)
Turntable Section
Box Assembly – Swing Complete Assembly
Swivel Installation – Electric Hydraulic, Water And Air Conditioning
Swivel Assembly – Electric, Hydraulic, Water And Air Conditioning
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Ring Assembly – Slip 15 Conductor
Cylinder Installation – Lower Pin & Lift
Cylinder Assembly – 12″ Lift Complete Assembly
Valve Assembly – Holding Complete Assembly
Reel Installation – Hose
Reel Assembly – Hose
Brake Assembly
Motor Assembly – Hydraulic Complete Assembly
Bolt Installation – Bearing
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Mirror Installation – Turntable
Cover Installation – Valve
Counterweight Installation (Without Auxiliary Hoist)
Cylinder Assembly -Counterweight Removal Complete Assembly
Cylinder Assembly – 3 1/2″ Cwt Removal Complete Assembly
Foam Installation – Sound With Main Hoist
Sheet Metal Installation – Superstructure
Engine Hood Assembly And Rear Cover Installation
Hood Assembly – Engine Complete Assembly
Engine Installation – Cummins Qsb-275 Tier 3
Engine Assembly – Cummins Qsb-275 Tier 3 (Not Available As Assembly)
Transmission Assembly – 6 Speed Complete Assembly
Converter Housing Group
Case,Transmission Group
Rear Cover Group
Drive Plate Group
Turbine Shaft/Oil Baffle Group
Turbine/Impeller Group
Pump Drive Group
Reverse & High Shaft Group
Fwd. & 2nd. Shaft Group
Low Shaft Group
Idler Shaft Group
Output Shaft Group
Pressure Regulator/Valve Group
Charge Pump & Cover Group
Elect.Control Valve Group
Hi & Low Shift Control Group
Pump Adaptor Group
Pump Assembly – Piston Complete Assembly
Pump Assembly – 1 Section Gear Complete Assembly
Electrical System Installation – Engine (Not Available As Assembly)
Harness Assembly – Engine Complete Assembly
Kit – Cable (Engine) Complete Assembly
Radiator Installation – Charge Air Cooler
Radiator Assembly – Charge Air Cooler
Radiator/Charge Air Cooler Assembly Complete Assembly
Tank Assembly – Surge (Not Available As Assembly)
Exhaust Installation
Intake Installation – Air
Cleaner Assembly – Air Complete Assembly
Compressor Installation – Air Conditioner
Kit – Cummins Air Conditioner Compressor 12 Volt
Suppression Installation – Sound (C.E. Conformity)
Foam Installation – Outrigger Box (Not Available As Assembly)
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly – Rear Slip Complete Assembly
Driveline Assembly Complete Assembly
Filter Installation – Transmission
Filter Assembly Complete Assembly
Axle Installation – Rear Standard Differential
Axle Assembly – Rear Drive Steer Without Differential Lock
Diff. Carrier Group
Housing, Axle Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer Complete Assembly
Cylinder Assembly – 5″ Lockout Complete Assembly
Valve Assembly – Solenoid
Axle Installation – Front Standard Differential
Axle Assembly – Front Drive Steer Without Differential Lock
Brake Assembly – Parking Complete Assembly
Tire And Wheel Installation – 29.5 X 25 General
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 Complete Assembly
Float Installation – Outrigger
Float Assembly – Outrigger
Tie Down Installation – Hook Block
Cover Installation
Cover Installation – Outrigger Grill And
Frame Assembly (For Reference Only)
Frame Assembly
Beam Install – Outrigger (Not Available As Assembly)
Beam Assembly – Outrigger Complete Assembly
Cylinder Assembly -5 1/2″ Outrigger Jack Complete Assembly
Cylinder Assembly – Outrigger Extension Complete Assembly
Cylinder Assembly – 2 1/2″ O/R Extension Complete Assembly
Decal Installation – Rt890e (Standard)
Decal Installation – Rt890e (Standard Cab)
Decal Installation – Rt800e (Standard Carrier)
Decal Installation – Rt800e (Standard Superstructure)
Decal Installation – Rt800e (Standard Boom)
Decking Installation – Fender And
Door Assembly – Fuel Tank Cover And Complete Assembly
Cover Install – Hydraulic Tank
Decal Installation – Rt890e (Nomenclature)
Mirror Installation – Rear View
Step Installation
Electrical System Installation – Carrier
Harness Assembly – Carrier Complete Assembly
Panel Assembly – Engine Relays Complete Assembly
Harness Assembly – Engine Relay Panel Complete Assembly
Kit – Cable (Battery) Complete Assembly
Reservoir Installation – Hydraulic
Reservoir Assembly – Hydraulic Complete Assembly
Filter Assembly , Return Hyd.
Valve Installation – Carrier Without Differential Lock
Valve Assembly – Rear Steer,Axle Lockout And Fan Drive
Valve Assembly – Park Brake/Range Shift Complete Assembly
Valve Assembly – Outrigger/Stablizer Complete Assembly
Valve Assembly – Selectable Psi Reducing Complete Assembly
Hardware Kit – Decal
Cooler Installation – Hydraulic And Transmission Oil
Cooler Assembly – Hydraulic And Transmission Oil
Tray Installation – Storage
Lines Installation – Air Conditioning (Carrier)
Hydraulic Lines Installation – Carrier Supply, Pressure And Return
Switch Assembly – Pressure (Normally Closed)
Cover Installation – Oil Cooler Tier 3
Hydraulic Lines Installation – Carrier Modification
Tank Installation – Fuel
Tank Assembly – Fuel Complete Assembly
Mounting Kit – Oil Cooler
Components Installation – Electrical C. E. Conformity
Harness Assembly – Ce Axle Oscillation
