Download Grove Crane RT890E3 226833 Parts Manual 2007 PDF (English)

Grove Crane RT890E3 226833 Parts Manual 2007 PDF is a detailed OEM parts catalog designed for technicians, operators, and service professionals. It contains exploded diagrams, part numbers, assembly references, and technical breakdowns to support accurate repair and maintenance work. This manual helps in troubleshooting issues, identifying correct replacement components, and performing efficient servicing on Grove RT890E3 crane model 226833. Ideal for workshop and field use, it ensures quick access to manufacturer specifications, structured parts information, and reliable maintenance guidance in downloadable PDF format for heavy equipment professionals. www.themanualsgroup.com

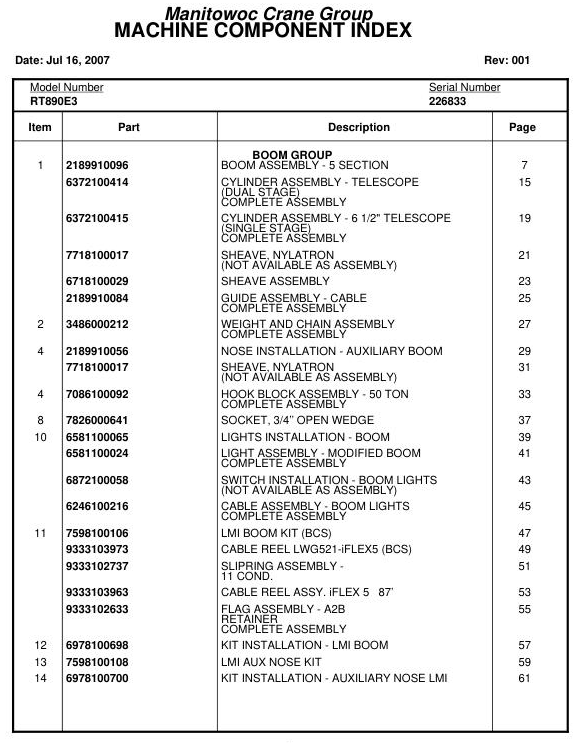

MODEL COVERED :
Grove RT890E3 Crane

CONTENTS INCLUDED :
Boom Assembly – 5 Section
Cylinder Assembly – Telescope (Dual Stage)
Cylinder Assembly – 6 1/2″ Telescope (Single Stage)
Sheave, Nylatron (Not Available As Assembly)
Sheave Assembly
Guide Assembly – Cable Complete Assembly
Weight And Chain Assembly Complete Assembly
Nose Installation – Auxiliary Boom
Hook Block Assembly – 50 Ton Complete Assembly
Socket, 3/4’’ Open Wedge
Lights Installation – Boom
Light Assembly – Modified Boom Complete Assembly
Switch Installation – Boom Lights (Not Available As Assembly)
Cable Assembly – Boom Lights Complete Assembly
Lmi Boom Kit (Bcs)
Cable Reel Lwg521-Iflex5 (Bcs)
Slip Ring Assembly – 11 Cond.
Cable Reel Assy. Iflex 5 87’
Flag Assembly – A2b Retainer
Kit Installation – Lmi Boom
Lmi Aux Nose Kit
Kit Installation – Auxiliary Nose Lmi
Boom Assembly Modification
Console Installation – Front
Console Assembly – Front Complete Assembly
Panel Assembly – Front Console Complete Assembly
Harness Assembly – Front Console Complete Assembly
Harness Assembly – Potentiometer Complete Assembly
Acoustics Install – Rt”E”
Rt”E” Series Acoustics Kit
Electrical System Installation – Superstructure Cab
Harness Assembly – Superstructure Complete Assembly
Switch Assembly – Proximity Complete Assembly
Seat Installation – Control (Single Axis Without Auxiliary Hoist)
Seat Assembly – Control (Single Axis Without Auxiliary Hoist)
Controller Assembly – Single Axis Complete Assembly
Handle, With Solenoid Assembly
Harness Assembly – Seat Complete Assembly
Pedal Installation – Brake
Valve Assembly – Brake With Treadle
Shifter Installation – Transmission
Kit, Lmi S/S Iflex 5
Valve Installation – Steer
Kit Installation – Iflex 5 Lmi Superstructure
Pedal Installation – Throttle (Electric)
Binder Installation
Kit – Lmi Iflex 5 Cab (For Bcs Machines)
Centeral Unit – Iflex 5
Graph. Console (Ver.) – Iflex5
Kit Installation – Iflex5 Lmi Cab
Air Conditioning & Heater Installation
Kit – Cab Heater And Air Conditioner Complete Assembly
Screen Installation – Sun
Support Installation – Cab
Tilt Installation – Cab
Cylinder Assembly – 2 1/2″ Steer (Also Used As A Cab Tilt Cylinder)
Spotlight Installation
Lock Installation – House
Light Installation – Strobe
Cover Installation – Cab Rear
Main & Aux Hst Speed Sw Install
Switch Install – Axle Diff Lock (Not Available As Assembly)
Valve Installation – Control (Superstructure)
Valve Assembly – Tele Rod Drain Complete Assembly
Valve Assembly – 5 Section Directional Complete Assembly
Valve Assembly – Swing/Steer/Brake Complete Assembly
Valve Assembly – Brake Charge Complete Assembly
Valve Assembly – 2 Section Control Luffing Jib And Cab Tilt
Bank Assembly – 3 Section Control Valve Complete Assembly
Valve Assembly – 2 Speed Swing Complete Assembly
Control Lever Installation – Counterweight
Hydraulic Lines Installation – Main And Future Auxiliary Hoist
Switch Assembly – Pressure (Modified)
Hoist Installation – Main
Hoist Assembly Complete Assembly
Cable Assembly – Auxiliary Hoist Hi Speed Complete Assembly
3/4″ Dia Wire Rope 6×37 600 Ft
Mirror Installation – Hoist
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator Complete Assembly
Drive Installation – Turntable And
Turntable Section
Box Assembly – Swing Complete Assembly
Swivel Installation – Electric Hydraulic, Water And Air Conditioning
Swivel Assembly – Electric, Hydraulic, Water And Air Conditioning
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Ring Assembly – Slip 15 Conductor
Bolt Installation – Bearing
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Lock Installation – Swing
Swing Lock Assembly
Cover Installation – Valve
Cylinder Installation – Lower Pin & Lift
Cylinder Assembly – 12″ Lift Complete Assembly
Valve Assembly – Holding Complete Assembly
Counterweight Installation (Without Auxiliary Hoist)
Cylinder Assembly -Counterweight Removal Complete Assembly
Cylinder Assembly – 3 1/2″ Cwt Removal Complete Assembly
Engine Hood Assembly And Rear Cover Installation
Hood Assembly – Engine Complete Assembly
Engine Installation – Cummins Qsb-275 Tier 3
Engine Assembly – Cummins Qsb-275 Tier 3 (Not Available As Assembly)
Transmission Assembly – 6 Speed Complete Assembly
Converter Housing Group
Case,Transmission Group
Rear Cover Group
Drive Plate Group
Turbine Shaft/Oil Baffle Group
Turbine/Impeller Group
Pump Drive Group
Reverse & High Shaft Group
Fwd. & 2nd. Shaft Group
Low Shaft Group
Idler Shaft Group
Output Shaft Group
Pressure Regulator/Valve Group
Charge Pump & Cover Group
Elect.Control Valve Group
Hi & Low Shift Control Group
Pump Adaptor Group
Pump Assembly – Piston Complete Assembly
Pump Assembly – 1 Section Gear Complete Assembly
Electrical System Installation – Engine (Not Available As Assembly)
Harness Assembly – Engine Complete Assembly
Kit – Cable (Engine) Complete Assembly
Radiator Installation – Charge Air Cooler
Radiator Assembly – Charge Air Cooler
Cooler Assembly – Radiator/Charge Air Complete Assembly
Tank Assembly – Surge (Not Available As Assembly)
Exhaust Installation
Intake Installation – Air
Cleaner Assembly – Air Complete Assembly
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly – Rear Slip Complete Assembly
Driveline Assembly Complete Assembly
Filter Installation – Transmission
Filter Assembly Complete Assembly
Axle Installation – Rear With Differential Lock
Axle Assembly – Rear Drive Steer With Differential Lock
Diff. Carrier Group
Housing, Axle Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer Complete Assembly
Cylinder Assembly – 5″ Lockout Complete Assembly
Switch Installation – Axle Differential Lock
Axle Installation – Front With Differential Lock
Axle Assembly – Front Drive Steer With Differential Lock
Brake Group 4,Set
Brake Assembly – Parking Complete Assembly
Tire And Wheel Installation – 29.5 X 25 General
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 Complete Assembly
Float Installation – Outrigger
Float Assembly – Outrigger
Tie Down Installation – Hook Block
Cover Installation – Outrigger Grill And
Frame Assembly (For Reference Only)
Frame Assembly
Beam Install – Outrigger (Not Available As Assembly)
Beam Assembly – Outrigger Complete Assembly
Cylinder Assembly -5 1/2″ Outrigger Jack Complete Assembly
Cylinder Assembly – Outrigger Extension Complete Assembly
Cylinder Assembly – 2 1/2″ O/R Extension Complete Assembly
Decal Installation – Rt890e (Standard)
Decal Installation – Rt890e (Standard Cab)
Decal Installation – Rt800e (Standard Carrier)
Decal Installation – Rt800e (Standard Superstructure)
Decal Installation – Rt800e (Standard Boom)
Decking Installation – Fender And
Door Assembly – Fuel Tank Cover And Complete Assembly
Cover Install – Hydraulic Tank
Decal Installation – Rt890e (Nomenclature)
Mirror Installation – Rear View
Step Installation
Electrical System Installation – Carrier
Harness Assembly – Carrier Complete Assembly
Panel Assembly – Engine Relays Complete Assembly
Harness Assembly – Engine Relay Panel Complete Assembly
Kit – Cable (Battery) Complete Assembly
Reservoir Installation – Hydraulic
Reservoir Assembly – Hydraulic Complete Assembly
Filter Assembly , Return Hyd.
Valve Installation – With Differential Lock
Valve Assembly – Rear Steer,Axle Lockout And Fan Drive
Valve Assembly – Park Brake/Range Shift Complete Assembly
Valve Assembly – Outrigger/Stablizer Complete Assembly
Valve Assembly – Solenoid Complete Assembly
Valve Assembly – Selectable Psi Reducing Complete Assembly
Hardware Kit – Decal
Cooler Installation – Hydraulic And Transmission Oil
Cooler Assembly – Hydraulic And Transmission Oil
Tray Installation – Storage
Hydraulic Lines Installation – Carrier Supply, Pressure And Return
Switch Assembly – Pressure (Normally Closed)
Hydraulic Lines Installation – Carrier Modification
Tank Installation – Fuel
Tank Assembly – Fuel Complete Assembly
Mounting Kit – Oil Cooler
Kit – Engine/Rear Axle Rework
