Download Grove Crane RT890E3 229720 Parts Manual 2014 PDF (English)

Download the Grove Crane RT890E3 229720 Parts Manual 2014 PDF, a detailed technical guide featuring complete parts listings, exploded diagrams, and component breakdowns for accurate identification and replacement. This manual is essential for maintenance technicians, engineers, and service professionals working on Grove RT890E3 cranes. It supports efficient repair, troubleshooting, and assembly procedures while minimizing downtime. Ideal for workshop and field operations, this PDF provides reliable reference data for safe and effective crane maintenance. www.themanualsgroup.com

MODEL COVERED :
Grove RT890E3 Crane

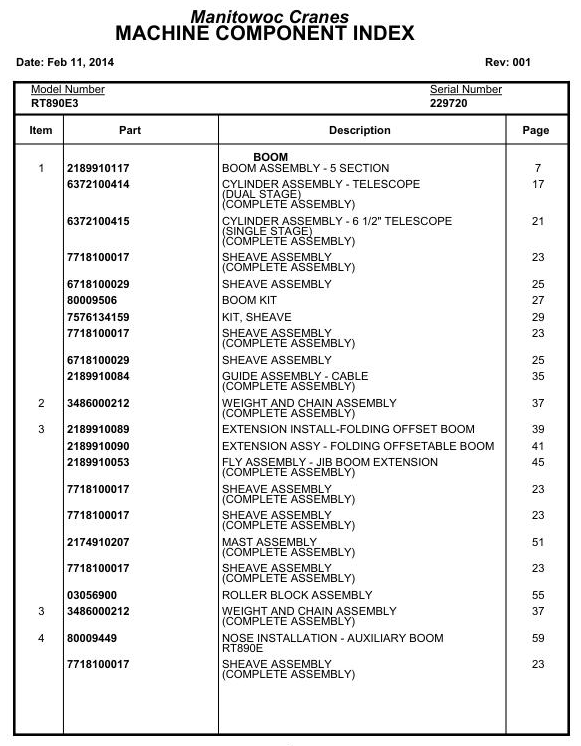

CONTENTS INCLUDED :
Boom Assembly – 5 Section
Cylinder Assembly – Telescope (Dual Stage)
Cylinder Assembly – 6 1/2″ Telescope (Single Stage)
Sheave Assembly (Complete Assembly)
Sheave Assembly
Boom Kit
Kit, Sheave
Guide Assembly – Cable (Complete Assembly)
Weight And Chain Assembly (Complete Assembly)
Extension Install-Folding Offset Boom
Extension Assy – Folding Offset Table Boom
Fly Assembly – Jib Boom Extension (Complete Assembly)
Mast Assembly (Complete Assembly)
Roller Block Assembly
Nose Installation – Auxiliary Boom Rt890e
Ball Assembly – Overhaul 10 Ton Swivel
Socket, 3/4” Open Wedge
Kit – Lmi S/S Iflex 5
Lights Installation – Boom
Light Assembly – Modified Boom (Complete Assembly)
Switch Installation – Boom Lights (Not Available As Assembly)
Cable Assembly – Boom Lights (Complete Assembly)
Lmi Boom Kit (Bcs)
Cable Reel Lwg521-Iflex5 (Bcs)
Slip Ring Assembly – 11 Cond.
Cable Reel Lg152-Iflex5 (Bcs)
Flag Assembly – A2b Retainer
Kit Installation – Lmi Boom
Hook Block Assembly – 90 Ton 5 Sheave
Lmi Aux Nose Kit
Kit Installation – Auxiliary Nose Lmi
Kit – Lmi Bi-Fold Jib Boom Extension (Complete Assembly)
Box Assembly – Junction
Connector Assembly Dummy Plug, 2-Pin
Junction Box Assembly – 80mm X 75mm, Pg9 + 2-Pin
Kit Install – Lmi Bi-Fold Jib Extension
Carrier Installation – Boom Extension
Hanger Assembly – Rear (Complete Assembly)
Turntable Weld And Drive Installation
Box Assembly – Swing (Complete Assembly)
Swivel Installation – Electric Hydraulic, Water And Air Conditioning
Swivel Assembly – Electric, Hydraulic, Water And Air Conditioning
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Ring Assembly – Slip 15 Conductor
Reel Installation – Hose
Reel Assembly – Hose (Complete Assembly)
Brake Assembly
Motor Assembly – Hydraulic (Complete Assembly)
Valve Installation – Control (Superstructure)
Valve Assembly – Tele Rod Drain (Complete Assembly)
Valve Assembly – 5 Section Directional (Complete Assembly)
Valve Assembly – Swing/Steer/Brake (Complete Assembly)
Valve Assembly – Brake Charge (Complete Assembly)
Valve Assembly – 2 Section Control Luffing Jib And Cab Tilt
Bank Assembly – 3 Section Control Valve (Complete Assembly)
Valve Assembly – 2 Speed Swing (Complete Assembly)
Bolt Installation – Bearing
Hoist Installation – Main
Hoist Assembly – Hp30-18g (Complete Assembly)
3/4″ Dia Wire Rope 6×37 600 Ft
Wire Rope-19mm 35×7-185m
Mirror Installation – Hoist
Kit Installation – Iflex 5 Lmi Superstructure
Binder Installation
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator (Complete Assembly)
Lock Installation – Swing
Swing Lock Assembly
Cover Installation – Valve
Lines Installation – Air Conditioning (Superstructure)
Hydraulic Lines Installation – Main And Auxiliary Hoist
Switch Assembly – Pressure (Modified)
Hydraulic Lines Installation – Carrier
Switch Assembly – Pressure (Normally Closed)
Cylinder Installation – Lower Pin & Lift
Cylinder Assembly – 12″ Lift (Complete Assembly)
Valve Assembly – Holding (Complete Assembly)
22000 Lb Counterweight Installation – And Auxiliary Hoist
22000 Lb Counterweight Assembly – And Auxiliary Hoist
Cylinder Assembly – Counterweight (Complete Assembly)
Cylinder Assembly – 3 1/2″ Cwt Removal (Complete Assembly)
Mirror Installation – Auxiliary Hoist (Not Available As Assembly)
Cab Installation
Cab Assembly
Cab (With Door Installation)
Door Installation – Cab (Not Available As Assembly)
Skylight Assembly – Sliding
Window Assembly – Rear (Complete Assembly)
Cable Assembly (Complete Assembly)
Valve Assembly – Treadle (Swing Brake)
Fan Assembly – 12 Volt Cab (Complete Assembly)
Front Console Installation
Console Assembly – Front (Complete Assembly)
Panel Assembly – Front Console (Complete Assembly)
Harness Assembly – Front Console
Harness Assembly – Potentiometer (Complete Assembly)
Acoustics Install – Rt”E”
Rt”E” Series Acoustics Kit
Electrical System Installation – Superstructure Cab
Harness Assembly – Superstructure (Complete Assembly)
Switch Assembly – Proximity (Normally Open)
Seat Installation – Control (Single Axis With Auxiliary Hoist)
Seat Assembly – Control (Single Axis With Auxiliary Hoist)
Controller Assembly – Single Axis (Complete Assembly)
Handle, With Solenoid Assembly
Harness Assembly – Seat (Complete Assembly)
Electrical System Installation Superstructure Cab
Pedal Installation – Telescope
Valve Assembly – Treadle (Telescope)
Control Lever Installation – Counterweight
Pedal Installation – Brake
Valve Assembly With Treadle
Shifter Installation – Transmission
360 Lever Install
Valve Installation – Steer
Valve Assembly – Steering Control (Complete Assembly)
Pedal Installation – Throttle (Electric)
Kit – Lmi Iflex 5 Cab (For Bcs Machines)
Centeral Unit – Iflex 5
Graph. Console (Ver.) – Iflex5
Kit Installation – Iflex5 Lmi Cab
Air Conditioning & Heater Installation (Cab)
Kit – Cab Heater And Air Conditioner (Complete Assembly)
Screen Installation – Sun
Support Installation – Cab
Tilt Installation – Cab
Cylinder Assembly – 2 1/2″ Steer (Complete Assembly)
Kit- Rt”E” Series Cab Std Comp
Spotlight Installation
Pin Installation – Lock
Light Installation – Strobe
Air Conditioning Installation – Superstructure
Kit – Air Conditioner Condenser (Complete Assembly)
Lmi Internal Light Bar Kit
Cover Installation – Cab Rear
Main & Aux Hst Speed Sw Install
Switch Installation – Air Conditioner
Lines Installation – Air Conditioning (Cab)
Kit – Air Conditioner Hose (Complete Assembly)
Pole Installation -Jib Release
Frame – Carrier (For Reference Only)
Frame – Carrier (Complete Assembly)
Beam Install – Outrigger (Not Available As Assembly)
Beam Assembly – Outrigger (Complete Assembly)
Cylinder Assembly -5 1/2″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – Outrigger Extension (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Fender And Decking Installation
Door Assembly – Fuel Tank Cover And (Complete Assembly)
Cover Install – Hydraulic Tank
Engine Hood Assembly And Rear Cover Installation
Hood Assembly – Engine (Complete Assembly)
Float Installation – Outrigger
Float Assembly – Outrigger
Hook Block Tie-Down Installation
Mirror Installation – Rear View
Step Installation
Electrical System Installation – Carrier Rt800e3
Harness Assembly – Carrier
Panel Assembly – Engine Relays (Complete Assembly)
Harness Assembly – Engine Relay Panel (Complete Assembly)
Kit – Cable (Battery) (Complete Assembly)
Reservoir Installation – Hydraulic
Reservoir Assembly – Hydraulic (Complete Assembly)
Filter Assembly , Return Hyd.
Valve Installation – Carrier Without Differential Lock
Valve Assembly – Rear Steer,Axle Lockout And Fan Drive
Valve Assembly – Park Brake/Range Shift (Complete Assembly)
Valve Assembly – Outrigger/Stablizer (Complete Assembly)
Valve Assembly – Selectable Psi Reducing (Complete Assembly)
Axle Installation – Rear Standard Differential
Axle Assembly – Rear Drive Steer Without Differential Lock
Diff. Carrier Group
Housing, Axle Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Axle Installation – Front Standard Differential
Axle Assembly – Front Drive Steer Without Differential Lock
Brake Group 4,Set
Brake Assembly – Parking (Complete Assembly)
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly – Rear Slip (Complete Assembly)
Driveline Assembly (Complete Assembly)
Tire And Wheel Installation – 29.5 X 25 General
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 (Complete Assembly)
Engine Installation – Cummins Qsb-275 Tier 3
Engine Assembly – Cummins Qsb-275 Tier 3
Electrical System Installation – Engine (Not Available As Assembly)
Harness Assembly – Engine (Complete Assembly)
Kit – Cable (Engine) (Complete Assembly)
Radiator Installation – Charge Air Cooler
Radiator Assembly – Charge Air Cooler
Cooler Assembly – Radiator/Charge Air (Complete Assembly)
Tank Assembly – Surge (Not Available As Assembly)
Exhaust System Installation
Intake Installation – Air
Cleaner Assembly – Air (Complete Assembly)
Cooler Installation – Hydraulic And Transmission Oil
Cooler Assembly – Hydraulic And Transmission Oil
Tray Installation – Storage (With Mat)
Hook Installation – Pintle
Hook Assembly – Pintle (Complete Assembly)
Filter Installation – Transmission
Filter Assembly (Complete Assembly)
Lines Installation – Air Conditioning (Carrier)
Compressor Installation – Air Conditioner
Kit – Cummins Air Conditioner Compressor 12 Volt
Cover Installation – Outrigger Grill And
Tank Installation – Fuel
Tank Assembly – Fuel (Complete Assembly)
Mounting Kit – Oil Cooler
Fan Installation
Engine Block Heater Installation – 120v
Miscellaneous Decals
Decal Installation – Rt890e3 Standard
Decal Installation – Rt890e3 Standard Cab
Decal Installation – Rt800e (Standard Carrier)
Decal Installation – Rt800e (Standard Superstructure)
Decal Installation – Rt800e (Standard Boom)
Decal Installation – Rt890e (Nomenclature)
Hardware Kit – Decal
