Grove Crane RT9100 78007 Parts Manual 2006 PDF
-
Discount
- Regular price $55.00
- Description
- Download Information
Description
Download Grove Crane RT9100 78007 Parts Manual 2006 PDF (English)
Grove Crane RT9100 78007 Parts Manual 2006 PDF is a detailed technical guide designed for maintenance, repair, and servicing of the Grove RT9100 crane model. It includes comprehensive parts diagrams, exploded views, part numbers, assembly instructions, and component breakdowns to support accurate identification and replacement of crane parts. Ideal for technicians, operators, and service engineers, this manual ensures efficient troubleshooting and maintenance, helping extend equipment life and improve operational safety and performance for Grove RT9100 78007 crane systems. www.themanualsgroup.com
MODEL COVERED :
Grove RT9100 Crane
CONTENTS INCLUDED :

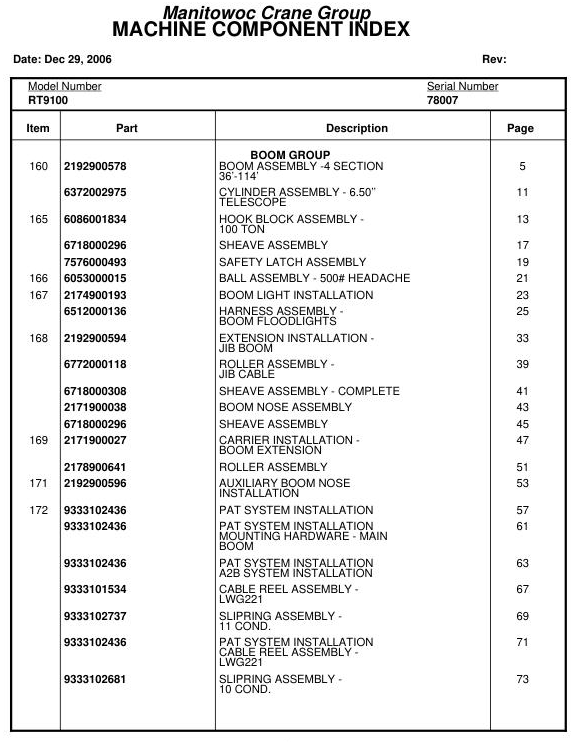

Boom Assembly -4 Section 36’-114’
Cylinder Assembly – 6.50’’ Telescope
Hook Block Assembly – 100 Ton
Sheave Assembly
Safety Latch Assembly
Ball Assembly – 500# Headache
Boom Light Installation
Harness Assembly – Boom Floodlights
Extension Installation – Jib Boom
Roller Assembly – Jib Cable
Sheave Assembly – Complete
Boom Nose Assembly
Carrier Installation – Boom Extension
Roller Assembly
Auxiliary Boom Nose Installation
Pat System Installation
Pat System Installation Mounting Hardware – Main
Pat System Installation A2b System Installation
Cable Reel Assembly – Lwg221
Slip Ring Assembly – 11 Cond.
Pat System Installation Cable Reel Assembly –
Slip Ring Assembly – 10 Cond.
Pat System Installation Slip Ring Assembly –
Pat System Installation Mounting Hardware
Pat System Installation Superstructure
Console Assembly – Ds350gw
Central Unit Assembly , 12 Volt
Frame Assembly – Water Deflection
Pat System Installation Central Unit Assembly –
Pat System Installation Frame Assembly , Water
Pat System Installation Console Assembly –
Pat System Installation Console Assembly – Ds350gw
Pat System Installation Light Bar Installation –
Pat System Installation External Light Bar
Light Bar, External
Light Bar Driver Assembly (External)
Pat System Installation Light Bar –
Pat System Installation Light Bar Driver Assembly
Pat System Installation Transducer Installation –
Pat System Installation 3rd Wrap Limit
Device Assembly , Third Wrap (Special)
Control Unit Assembly , Mwd 100 – Third Wrap
Pat System Installation Control Unit Assembly –
Pat System Installation 3rd Wrap Device – Special
Pat System Installation Auxiliary Boom Nose
Pat System Installation Offset S/A Extension
Pat System Installation Tele-Extension
Pat System Installation 88’ Fixed Lattice Jib
Pat System Installation Jumper Cable Assembly
Pat System Installation Weight Assembly – A2b
Pat System Installation Decal – Lmi
A/V Warning System Installation
Light Installation – Red Indicator
Controls Installation – Pump Disconnect
Harness Assembly – Remote Crank
Air Lines Installation
Cab Installation
Cab Section
Console Assembly
Latch Kit – Door
Cover Assembly – Valve
Valve Assembly – Transmission Shift Control
Valve Assembly – Steering Control
Shaft Assembly – Pivot
Lockout Installation – Automatic Control Lever
Cylinder Assembly – Air
Valve Assembly – Selector
Pedal And Valve Assembly – Accelerator
Valve Assembly – Control
Valve Assembly – Spring Brake
Valve Assembly – Dual Brake
Instruments And Lights Installation (Cummins)
Right Hand Side Console Assembly –
Harness Assembly – Console
Panel Assembly – Front Console
Harness Assembly – Right Hand Front Console
Harness Assembly – Engine
Valve And Pedal Installation – Swing Brake
Valve Assembly – Power Brake
Weatherstrip Installation – Cab
Seat Installation
Seat Assembly
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab Complete Assembly
Acoustical Installation
Control Lever Lockout Installation
Grab Rail Installation
Front Steer – Hydraulic Schematic
Heater And Defroster Installation
Heater Assembly – Diesel
Heater Assembly – Diesel Exhaust Parts
Heater Assembly – Diesel Case And Heater Exchanger
Heater Assembly – Diesel Parts
Heater Assembly – Diesel Fuel And Ignition Systems
Heater Assembly – Diesel Control Panel Parts
Heater Assembly – Diesel Circuit Board Parts
Heater Assembly – Diesel Carburetor Parts
Heater Assembly – Diesel Motor And Blower Parts
Heater Assembly – Diesel Remote Control Parts
Install Diesel Tank Mtg Kit
Tank Assembly – Fuel
Extinguisher Installation – Fire
Skylight Wiper Installation
Load Chart Manual Installation
Lines Installation – Transmission Shift
Panel Installation – Hydraulic Test
Hydraulic Lines Installation
Control Valve And Linkage Installation
Valve Assembly – 4 Section
Valve Assembly – Outlet
Valve Assembly – 2 Section Control
Valve Assembly – 1 Section Control
Hydraulic Lines Installation – Free Swing
Hydraulic Lines Installation – Inner Mid Telescope
Hydraulic Lines Installation – Outer Mid Telescope
Hydraulic Lines Installation – Fly Telescope
Hoist Installation – Main And Auxiliary
Hoist Assembly – Complete
Hoist Assembly – Model Ho30b-26g
Motor Assembly – Hydraulic
Brake Assembly
Hydraulic Lines Installation – Hoist
Indicator Installation – Ho30b Hoist Rotation
Bearing Bolt Installation
Turntable Drive Installation
Swing Box Assembly – Complete
Motor Assembly – Orbit
Brake Assembly – Swing
Lock Installation – Swing
Counterweight Installation
Swivel Installation – Electric, Air And Hydraulic
Swivel Assembly – 14 Port Hydraulic
Swivel Assembly – 12 Port Air/Hydraulic
Slip Ring Assembly – 36 Conductor
Elevation And Swing Warning Installation
Hydraulic Oil Cooler And By-Pass Valve Installation
Motor Assembly – Fan
Fan Assembly – Oil Cooler
Cooler Assembly – Oil
Hose Reel Installation
Reel Assembly – Hose
Electrical System Installation – S/S
Harness Assembly – Superstructure
Harness Assembly – S/S Cab Interior
Fuse And Connector Assembly
Harness Assembly – Fuse And Connector Panel
Valve Installation – Pressure Reducing
Valve Assembly – Pressure/ Reducing/Relieving
Cylinder Installation – Lift
Cylinder Assembly – Lift
Valve Assembly – Overcenter
Hydraulic Lines Installation – Lift
Shaft Installation – Boom Pivot
Electrical System Installation
Harness Assembly – Carrier
Alarm Installation – Back-Up
Engine Installation – Cummins 6ct8.3
Pump Assembly
Cylinder Assembly – Throttle
Compressor Assembly – Air
Pump Assembly – Piggyback
Pump Assembly – Steer
Disconnect Assembly – Pump
Valve Assembly – Shuttle
Quick Start Installation
Hood Installation – Engine
Door Assembly – Left Hand
Door Assembly – Right Hand
Weatherstrip Installation – Engine Hood
Battery Installation
Transmission Installation
Transmission Assembly
Cylinder Assembly – Air Lockout
Valve Assembly Transmission
Driveline Installation
Driveline Assembly
Axle Installation – Front
Axle Assembly
Axle Assembly Housing Assembly
Axle Assembly Hub And Shaft Group
Axle Assembly Differential Carrier Assembly
Axle Assembly Brake Assembly
Axle Assembly Fail Safe Brake Chamber
Axle Assembly Air Brake Chamber
Cylinder Assembly – Steer
Hydraulic Lines Installation – Front Steer
Front Steer Relief Valve Installation
Valve Assembly – Relief
Axle Installation – Rear
Cylinder Assembly – 7″ Lockout
Rear Steer Indicator Installation
Valve Installation – Rear Axle Lockout
Valve Assembly – Rear Axle Lockout
Rear Steer – Hydraulic Schematic
Tire And Wheel Assembly
Wheel And Disc Assembly
Tire Inflation Kit Installation
Tire Inflation Kit
Valve Assembly – Check
Outrigger Beam Installation
Cylinder Assembly – 6.00’’ Outrigger Jack
Cylinder Assembly – Outrigger Extension
Valve Installation – Outrigger Control
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly – Integrated Outrigger
(Carrier) Hydraulic Lines Installation – Outrigger
Outrigger Pad And Storage Installation
Float Assembly – Outrigger Complete Assembly
Decal Installation
Dryer Assembly – Air
Hydraulic Reservoir Installation
Filter Assembly – Oil
Cover, Hydraulic Tank Installation
Tank Installation – Fuel
Tank Assembly – Fuel 100 Gallon
Tool Box And Ladder Installation
Fender And Battery Box Installation
Turn Signal And Clearance Lights Installation
Rear View Mirror Installation
Filter Installation – Oil Converter
Pump Cover Installation
| Field | Details |
|---|---|
| Size | 8.23 MB |
| Format | |
| Language | English |
| Brand | Grove |
| Type of Machine | Crane |
| Type of Manual | Parts Manual |
| Model | Grove RT9100 Crane |
| Serial Number | 78007 |
| Publication Date | 2006 |
| Number of Pages | 995 Pages |
