Grove Crane TM200C 46069 Parts Manual 2018 PDF

Grove Crane TM200C 46069 Parts Manual 2018 PDF

  • Discount
  • $30.00

Download Grove Crane TM200C 46069 Parts Manual 2018 PDF (English)

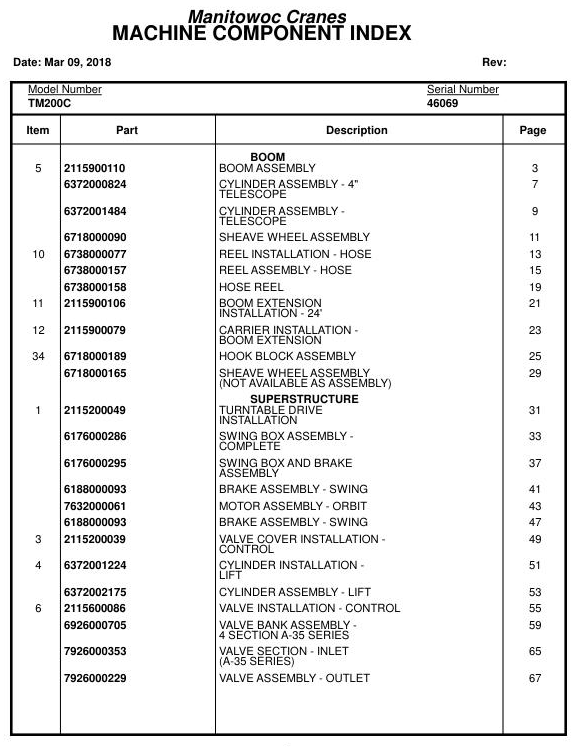

Get the ultimate resource for your lifting equipment with the official Grove Crane TM200C 46069 Parts Manual 2018 PDF. This comprehensive digital catalog provides an exhaustive breakdown of every component, complete with precise exploded views, detailed diagrams, and genuine manufacturer part numbers. Perfect for fleet managers, heavy machinery mechanics, and operators, this downloadable PDF ensures accurate part identification, reducing downtime and streamlining your maintenance and repair workflows. Keep your Grove TM200C crane performing at its peak. www.themanualsgroup.com

MODEL COVERED :
Grove TM200C Crane

CONTENTS INCLUDED :
Boom
Boom Assembly
Cylinder Assembly – 4″
Telescope
Cylinder Assembly –
Telescope
Sheave Wheel Assembly
Reel Installation – Hose
Reel Assembly – Hose
Hose Reel
Boom Extension
Installation – 24′
Carrier Installation –
Boom Extension
Hook Block Assembly
Sheave Wheel Assembly
(Not Available As Assembly)
Superstructure
Turntable Drive
Installation
Swing Box Assembly –
Complete
Swing Box And Brake
Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Brake Assembly – Swing
Valve Cover Installation –
Control
Cylinder Installation –
Lift
Cylinder Assembly – Lift
Valve Installation – Control
Valve Bank Assembly –
4 Section A-35 Series
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Outlet
Valve Assembly – 4-Way Section
(A-35 Series)
Valve Sub-Assembly –
Relief
Cartridge Assembly –
Relief Valve
Valve Section – Relief
Valve Assembly – Relief
Valve Section – 4 Way
Relief Valve
Cartridge Assembly
Cartridge Assembly –
Relief Valve
Valve Assembly – Relief
Relief Valve
Valve Bank Assembly –
2 Section A-20 Series
Valve Assembly – Section
Inlet (A-20 Series)
Valve Section – Outlet
Valve Assembly – 4-Way Section
Valve Assembly – Relief
Valve Section – 4 Way
Valve Assembly – Relief
1500 Psi
Valve Assembly – Relief
Valve Assembly – Relief
1500 Psi
Valve Bank Assembly – One
Section A-35 Series
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Relief
2250 Psi
Cartridge Assembly
Valve Assembly – Outlet
Valve Assembly – 4-Way Section
(A-35 Series)
Valve Assembly – Relief
2250 Psi
Cartridge Assembly
Cartridge Assembly
Valve Assembly – Relief
Hoist Installation – Main
Hoist Assembly –
Model Ho15b-16
Valve Assembly – Motor
Control
Gear Reduction Assembly
Motor Assembly – Hydraulic
Counterweight Installation
Reservoir Installation –
Hydraulic
Rotation Indicator
Installation – Model 15
Driver Assembly
Driver Assembly
Indicator Assembly
Transmitter Assembly
Fuel Tank Installation
Tank Assembly – Fuel
Hydraulic Lines Installation –
Supply, Pressure And Return
Hydraulic Lines Installation –
Fly Section
Hydraulic Lines Installation –
Section, Mid
Free Swing (Hyd Sch)
Valve Assembly – Solenoid
Valve Assembly – Solenoid
Valve Assembly – Solenoid
Valve Assembly – Relief
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation –
Main Hoist
Swivel Installation –
Electro-Hydraulic
Swivel Assembly
Ring Assembly – Slip
12 Conductor
Cable Follower
Installation
Cable Follower Assembly –
Hoist
Cable Follower
Cable Follower
Superstructure Cab
Cab Installation
Seat Assembly
Door Assembly
Wiring Harness
Installation – Sub-Frame
Control Lever Lockout
Installation
Cylinder Assembly-Lockout
Indicator Installation –
Boom Angle
Fan Installation
Fan Assembly – 12 Volt Cab
Throttle Control
Installation
Spotlight Installation
Spotlight
Front Console Lights
Assembly And Installation
Control Lever Installation
Acoustical Installation
Heater Installation –
Hot Water
Heater Assembly –
Hot Water
Extinguisher Installation – Fire
Carrier/Lowerworks
Fenders Installation –
Rear
Lights Installation –
Exterior
Valve Installation –
Selector And Solenoid
Valve Assembly – 4 Stack
Outrigger Solenoid
Valve Assembly – Outrigger Selector
(Complete Assembly)
Valve Assembly – Solenoid
Outrigger Installation –
Front
Cylinder Assembly –
Stabilizer
Cylinder Assembly –
Extension
Outrigger Installation –
Rear
Beam Assembly – Outrigger
Cylinder Assembly –
Stabilizer
Cylinder Assembly –
Extension
Cylinder Assembly –
Stabilizer
Cylinder Assembly –
Extension
Pad And Storage
Installation – Outrigger
Float Assembly – Outrigger
Mud Flap Installation
Hydraulic Lines Installation –
Outrigger
Engine Installation –
Gmc
Pump Assembly – 3 Section
Cover Installation –
Engine
Prop
Wiring Harness
Installation
Bolt Installation –
Sub-Frame Mounting
Plumbing And Tube Support
Installation
Tie Down Installation –
Hook Block
Swing Horn Installation
Decals
Decal Installation –
Tm200c, Tm150c, Tm180c

Attribute Specification
Brand Grove
Model TM200C Crane
Type of Machine Crane
Type of Manual Parts Manual
Serial Number 46069
Publication Date 2018
Language English
Format PDF
Size 2.76 MB
Number of Pages 413 Pages

www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.

: File Format - PDF (Portable Document Format)


: Manual Images - (High-Quality PDF)


: Printable - Entire Manual


: Compatible - All versions of Windows, ios, android


: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics


: Download - You will receive the PDF manual in your email after the purchase
