Grove Crane TM3000 68005 Parts Manual 2019 PDF
-
Discount
- Regular price $80.00
- Description
- Download Information
Description
Download Grove Crane TM3000 68005 Parts Manual 2019 PDF (English)
Get the ultimate resource for your lifting equipment with the official Grove Crane TM3000 68005 Parts Manual 2019 PDF. This comprehensive digital catalog provides an exhaustive breakdown of every component, complete with precise exploded views, detailed diagrams, and genuine manufacturer part numbers. Perfect for fleet managers, heavy machinery mechanics, and operators, this downloadable PDF ensures accurate part identification, reducing downtime and streamlining your maintenance and repair workflows. Keep your Grove TM3000 crane performing at its peak. www.themanualsgroup.com

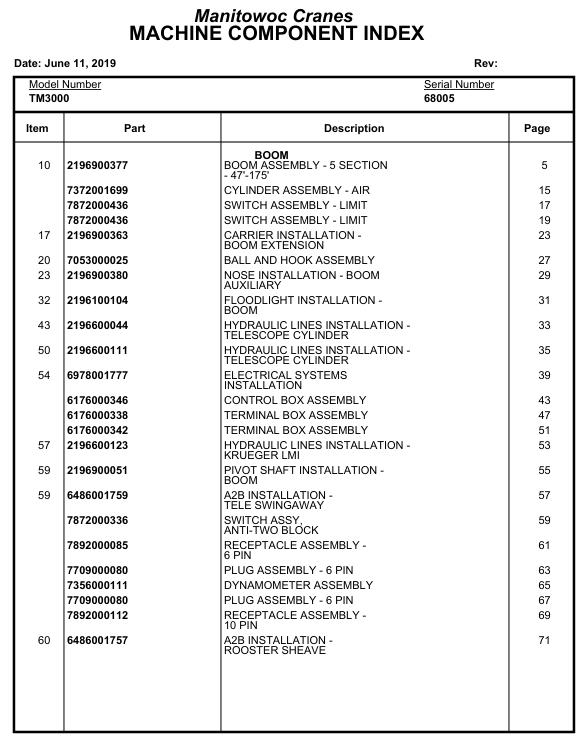

MODEL COVERED :
Grove TM3000 Crane
CONTENTS INCLUDED :
Boom
Boom Assembly – 5 Section
– 47′-175′
Cylinder Assembly – Air
Switch Assembly – Limit
Switch Assembly – Limit
Carrier Installation –
Boom Extension
Ball And Hook Assembly
Nose Installation – Boom
Auxiliary
Floodlight Installation –
Boom
Hydraulic Lines Installation –
Telescope Cylinder
Hydraulic Lines Installation –
Telescope Cylinder
Electrical Systems
Installation
Control Box Assembly
Terminal Box Assembly
Terminal Box Assembly
Hydraulic Lines Installation –
Krueger Lmi
Pivot Shaft Installation –
Boom
A2b Installation –
Tele Swingaway
Switch Assy,
Anti-Two Block
Receptacle Assembly –
6 Pin
Plug Assembly – 6 Pin
Dynamometer Assembly
Plug Assembly – 6 Pin
Receptacle Assembly –
10 Pin
A2b Installation –
Rooster Sheave
Switch Assy,
Anti-Two Block
Receptacle Assembly –
6 Pin
Panel Assembly –
Selector Switch
Valve Heaters Installation
-Boom Control
Valve Assembly
Extension Installation –
Offsettable Telescopic
Lmi Installation – Krueger
Mark Iii
Switch Assy,
Anti-Two Block
Receptacle Assembly –
6 Pin
Plug Assembly – 6 Pin
Plug Assembly – 6 Pin
Anti-Two Block Weight W/Chain
Guide Assembly – Roller
Guide Assembly – Roller
Plug Assembly – 16 Pin
Receptacle Assembly –
16 Pin
Pressure Transducer
Assembly
Pressure Transducer
Assembly
Pressure Transducer
Assembly
Pressure Transducer
Assembly
Cord Assembly – Extension
Plug Assembly – 6 Pin
Cord Assembly – Extension
Plug Assembly – 6 Pin
Panel Assembly – Selector
Switch, 24 Volt
A2b Installation – Tele
Swingaway
Switch Assy,
Anti-Two Block
Receptacle Assembly –
6 Pin
Plug Assembly – 6 Pin
Superstructure
Turntable Drive
Installation
Speed Reducer Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Reservoir Installation –
Hydraulic
Valve Assembly – Butterfly
Cylinder Installation –
Lift
Cylinder Assembly – Lift
Valve Assembly – Holding
Swivel Installation –
Electric
Ring Assembly – Slip
4 Conductor
Tank Installation – Fuel
Fuel Tank Assy
Manifold Installation –
Hydraulic
Control Valves And Oil
Filters Installation
Valve Assembly – Control
Section, Outlet
Valve Assembly – Control
Valve Assembly – Control
Valve Assembly – Control
Valve Assembly – Relief
2500 Psi
Valve Assembly – Relief
Filter Assembly – Oil
Valve Bank Assembly –
1 Section (A-20 Series)
Valve Section – 4 Way
Valve Assembly – Solenoid
Valve Assembly
Valve Bank Assembly –
5 Section
Valve Assembly – Solenoid
Valve Assembly – Solenoid
Valve Assembly – Solenoid
Valve Assembly – Control
Valve Stack Assembly –
Remote Control
Valve Assembly – Solenoid
Valve Assembly – Solenoid
Valve Assembly – Solenoid
Valve Assembly – Shuttle
Valve Assembly – Relief
Hoist Installation – Main
Hoist Assembly- Model 54
Hoist Installation –
Auxiliary
Hoist Assembly – Model 44
Cylinder Assembly –
Hydraulic
Switch Assembly – Limit
Follower Assembly – Cable
Bearing Bolt Installation
Lock Installation – Swing
Horn Installation – Swing
Hydraulic Lines Installation –
Supply, Pressure And Return
Hydraulic Lines Installation –
Swing
Valve Assembly – Check
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation –
Main And Auxiliary Hoist
Valve Assembly –
Flow Control
Reel Installation –
Air And Electric
Reel Assembly – Hose
Cable Reel Assembly –
Electric
Reel Assembly – Cable
Rotary Switch Assembly
Idler Assembly
Rotation Indicator
Installation
Driver Assembly
Driver Assembly
Indicator Assembly
Transmitter Assembly
Transmitter Assembly
Hydraulic Lines Installation –
Counterweight Removal
Switch Installation –
Safety
Cooler Installation – Oil
Hydraulic
Motor Assembly
Hd 1500
Cooler Assembly – Oil
Valve Assembly – Selector
Air Dryer And Reservoir
Installation
Dryer Assembly – Air
Guard Installation –
Pinion
Cover Installation -Rear
Springs Installation –
Lift Cylinder Hose
Counterweight Installation
Cylinder Assembly –
Counterweight
Counterweight Installation
Cylinder Assembly –
Counterweight
Superstructure Cab
Cab Installation
Seat Assembly
Accelerator Pedal Assy
Accelerator Pedal Design “B”
Accelerator Pedal Design “A”
Fire Extinguisher Assembly
Seat Assembly
Instruments And Lights
Installation
Extinguisher Installation – Fire
Fire Extinguisher Assembly
Acoustical Installation
Spotlight Installation
Spotlight
Hydraulic Schematic – Cab
Remote Control
Weatherstrip Installation
– Cab
Fan Installation – Cab
Fan Assembly – 12 Volt Cab
Electrical System
Installation
Panel Assembly –
Fuse And Connector
Decal Installation
Carrier/Lowerworks
Engine Installation –
M.A.N. D2542 Mte
Fuel/Water Separater
Assembly
Pump Assembly
Drive Line Assembly
Solenoid
Valve Assembly – Solenoid
Valve Assembly – Solenoid
Valve Assembly – Solenoid
Pump, Hydraulic
Valve Assembly
Control Installation –
(W/O Return To Center Steering)
Column, Steering
Control Assembly –
(W/O Return To Center Steering)
Outrigger Beam
Installation
Cylinder Assembly –
Stabilizer
Cylinder Assembly –
Extension
Fenders Installation –
Front
Fenders Installation –
Rear
Mounting Bracket Assembly
– Rh Blocking Valve
Valve And Manifold,
Anti Double-Blocking
Valve Assembly
Valve Assembly
Valve And Manifold
Anti Double-Blocking
Valve Assembly
Valve Assembly
Mounting Bracket Assembly
– Lh Blocking Valve
Valve And Manifold,
Anti Double-Blocking
Valve Assembly
Valve Assembly
Valve And Manifold
Anti Double-Blocking
Valve Assembly
Valve Assembly
Tank Installation – Fuel
Drive Line Installation
Drive Line Assembly
Drive Line Assembly
Drive Line Assembly
Drive Line Assembly
Drive Line Assembly
Drive Line Assembly
Drive Line Assembly
Drive Line Assembly
Lights And Horn
Installation – Exterior
Light, Indentity
(For Reference Only)
Engine Installation –
M.A.N. D2566 Mte
Drive Assembly – Pump
Pump Assembly
Pump Assembly
Hood Installation – Engine
Hydraulic Lines Installation –
(W/O Return To Center Steering)
Valve Assembly
Air System Schematic
Valve, Safety
Valve Assembly –
Protection
Valve, Check
Emergency Coupling
Valve, Check
Air Tank And Valve
Installation
Air Dryer Assembly
Valve Assembly
Valve Assembly – Shuttle
Valve Assembly – Control
Cylinder Assembly – Air
Hydraulic Lines Installation –
Outrigger
Valve Installation – Control
– Outrigger
Valve Assembly –
4 Section
Valve Stack Assembly –
5 Section
Valve Assembly – Selector
Valve Assembly – Relief
Valve Assembly – Relief
Valve Assembly –
Flow Control
Rest Installation – Boom
Control Box Installation –
Outrigger
Box Assy, O/R Control
Box Assy, O/R Control
Hydraulic Lines Installation –
Supply, Pressure And Return
Level Installation
Level Assembly
Stabilizer Installation –
Front Center
Cylinder Assembly –
Stabilizer
Switch Assembly – Limit
Transfer Case Installation
Case Assembly – Transfer
Alarm Installation –
Back-Up
Pumps Installation –
(W/O Return To Center Steering)
Pump Assembly – Auxiliary
(W/O Return To Center Steering)
Float Assembly – Outrigger
(Complete Assembly)
Hook Anchor Installation
Accumulator Installation
Accumulator Assembly
Electrical Systems
Installation-Carrier
Hydraulic Lines Installation –
Suspension
Valve, Throttle
Valve Assembly – Check
Valve Assembly
Valve Installation –
Hydraulic Suspension
Valve Assembly
Valve Assembly – Solenoid
Valve Installation –
(W/O Return To Center Steering)
Valve Assembly – Steering
Valve Assembly – Pressure
Indicator Assembly – Flow
Valve Assembly – Relief
Valve Assembly – Steering
Indicator Assembly – Flow
Valve Assembly – Relief
Valve Assembly –
Distribution
Valve Assembly –
Anti Double-Blocking
Storage Installation –
Ladder, Access
Reservoir Installation –
Hydraulic
Cooler Installation – Oil
Cooler Assembly – Oil
Hydraulic Motor Assembly
Fan
Motor Assembly – Hydraulic
Exhaust, Air Intake And
Battery Installation
Cleaner Assembly – Air
Gear Change Installation
Box Assembly – Junction
Cover Installation
Cover Plate Installation
Battery Installation
Control Box Installation –
Suspension
Tie Down Lug Installation
– Rear
Oil Cooler And Valve
Installation
Cooler Assembly – Oil
Valve Assembly
Float Assembly – Outrigger
Float Assembly – Outrigger
Stowage Installation –
Outrigger Pad
Stowage Installation –
Outrigger Float
Handle Installation –
Screw Lock
Axle Installation
Rod Assembly – Torque
Axle Assembly
Expander Assembly
Hub End Assy
Expander Assembly
Brake Chamber Assembly
Cylinder Assembly – Steer
Axle Assembly
Expander Assembly
Brake Assembly
Expander Assembly
Brake Chamber Assembly
Cylinder Assembly – Steer
Axle Assembly
Expander Assembly
Brake Assembly
Expander Assembly
Brake Chamber Assembly
Cylinder Assembly – Steer
Axle Assembly
Expander Assembly
Brake Assembly
Expander Assembly
Brake Chamber Assembly
Axle Assembly
Expander Assembly
Brake Assembly
Expander Assembly
Brake Chamber Assembly
Axle Assembly
Brake Chamber Assembly
Cylinder Assembly – Steer
Axle Assembly
Brake Chamber Assembly
Cylinder Assembly – Steer
Axle Assembly
Expander Assembly
Brake Chamber Assembly
Cylinder Assembly – Steer
Carrier/Frame Cab
Cab Installation
Cab Sub Assembly
Pedal Assembly
Box, Triplex
Pump Assembly – Hand
Pedal Installation –
Clutch And Brake
Lever Weld, Control
Lever Weld, Control
Control Installation –
Clutch
Cylinder Assembly – Master
| Attribute | Specification |
| Brand | Grove |
| Model | TM3000 Crane |
| Type of Machine | Crane |
| Type of Manual | Parts Manual |
| Serial Number | 68005 |
| Publication Date | 2019 |
| Language | English |
| Format | |
| Size | 6.87 MB |
| Number of Pages | 1085 Pages |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
Download Information
: File Format - PDF (Portable Document Format)
: Manual Images - (High-Quality PDF)
: Printable - Entire Manual
: Compatible - All versions of Windows, ios, android
: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics
: Download - You will receive the PDF manual in your email after the purchase
Order confirmation will be sent to the contact information you provided, and all updates will be delivered promptly.
If you encounter any issues, our dedicated support team is here to assist you. Please contact us at Support@themanualsgroup.com, and a team member will provide real-time updates and address any related queries promptly.
In the event that an incorrect item is purchased by mistake and you identify the correct item you require, we will exchange it for the appropriate item, on the condition that the replacement item is of equal value to the original purchase.
- Choosing a selection results in a full page refresh.
- Press the space key then arrow keys to make a selection.
- Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
