Grove Crane TM750E Parts Manual PDF
-
Discount
- Regular price $55.00
- Description
- Download Information
Description

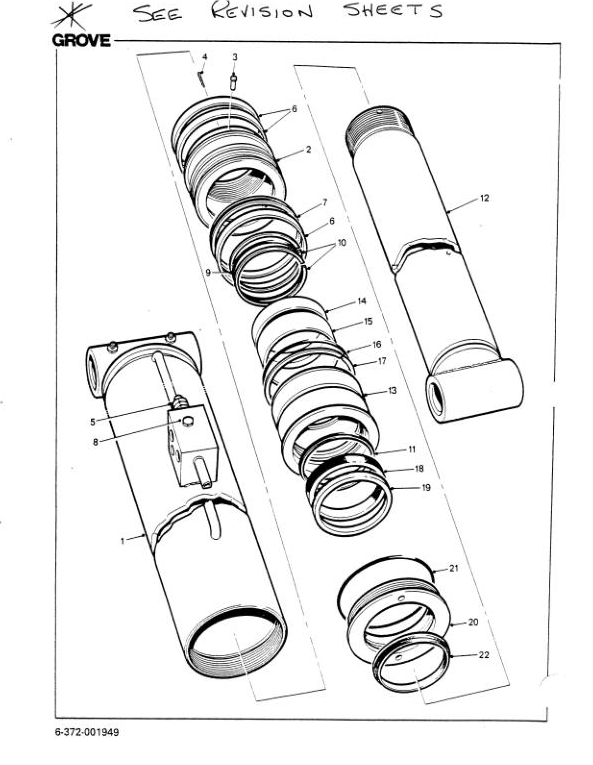

Download Grove Crane TM750E Parts Manual PDF (English)
Maximize your equipment's uptime with the official Grove Crane TM750E Parts Manual PDF. This comprehensive digital catalog is an essential resource for fleet managers, crane operators, and heavy machinery mechanics. It features high-resolution exploded view diagrams, detailed component breakdowns, and accurate OEM part numbers for the hydraulic systems, engine assembly, boom structure, and carrier chassis. Ensure precise maintenance, eliminate ordering errors, and speed up troubleshooting. Download your copy today for instant access to reliable data. www.themanualsgroup.com
MODEL COVERED :
Grove TM750E Crane
CONTENTS INCLUDED :
Boom Group
Kruger Ap Installation
Electric Cable Assembly
Kruger Anti-Two Installation • Rooster Sheave
Anti•Two Block Switch Assembly
Anti.Two Block Installation Swingaway
Anti-Two Block Switch Assembly
Anti•Tw0 Block Installation – Tele Swingaway
Anti•Two Switch Assembly
Kruger Mk Ill L.M.I. Installation
‘H’ Anti-Two Block Installation
Anti•Two Block Switch Assembly
Extension Cord
Anti-Two Block Rooster • Bracketry
Anti-Two Block Rooster Sheave Kruger Components
Anti•Two Block Switch Assembly
Anti-Two Block Bracketry
‘H’ Anti-Two Block Kruger Components
Anti•Two Block Switch Assembly
Anti-Two Block – Tele Swingaway Bracketry
Anti-Two Block Tele Swingaway Kruger Components
Anti•Two Block Switch Assembly
Auxiliary Boom Nose – Rooster Sheave
Auxiliary Boom Nose – Rooster Sheave
Sheave Assembly Complete
Sheave Assembly
Boom Assembly
Boom Nose Sheave Installation
Boom Lockout Cylinder Assembly
Latch And Cylinder
Auto Latch Assembly
Tele Cylinder Assembly
Holding Valve Assembly
Boom
Boom Nose Sheave Installation
Boom Lockout Cylinder Installation
Latch And Cylinder Support Installation
Latch
Limit Switch Assembly
Tele Cylinder Assembly
Holding Valve Assembly
Boom Latch Sub-Plate Installation
Hydraulic Sub-Plate Assembly Boom Latch
Boom Pivot Shaft Installation
Boom Pivot Shaft Installation
19 Mm Dyform 34 Lr Main Hoist Rope X 183 M –
No Breakdown Required
6 Tonne, I Sheave Block
10 Tonne, 1 Hook Block
33 Tonne, 4 Sheave Hook Block
50 Tonne Block
Weighload Main Winch
Dynamometer Guard
Weighload Turntable
Multi-Offset Tele Swingaway Extension Installation
Multi•Offset Swingaway
Base Section Assembly
Multi•Offset Swingaway
Base Section Assembly
Fly Section Assembly
Sheave Assembly
Roller Assembly
Lower Roller Assembly
Roller Assembly
Mounting Roller Assembly
Roller Assembly
Jib Cable Roller Assembly
Sheave Wheel Assembly
Multi-Offset Swingaway Installation
Multi•Offset Swingaway Assembly
Base Section Assembly
Multi•Offset Swingaway Assembly
Base Section Assembly
Swing Around Nose Assembly
Sheave Assembly
Sheave Assembly
Jib Cable Roller Assembly
Sheave Wheel Assembly
Jib Carrier Installation
Roller Weld And Assembly
Roller Assembly
Extension Cord Assembly
Hose Reel Installation
Hose Reel Assembly – Complete
Hose Reel Assembly
Hose Reel Installation
Hose Reel Assembly Complete
Hose Reel Assembly
Hose Reel Assembly • Complete
Electric Hydraulic – Hose Reel
Harness – Hose Reel
Inner Mid Hydraulic Schematic
Outer Mid Tele Hydraulic Fittings Installation
Boom Latch Hydraulic Schematic
Boom Latch Control Rework
Rope Socket – No Breakdown Required
Cab Group Superstructure
Acoustics Installation
Boom Latch Control And Hour Meter
Cab Installation
Cab Assembly
Cab Sub-Assembly
Cab Assembly
Cab Weld And Assembly
Cab
Cover Plate Installation
Weather Strip Installation
Cab Panels • Interior
Two Position Selector Valve
Circular Level Installation
Control Lever Installation
Cab Circulating Fan Installation
Fan Assembly
Harness Installation – Superstructure
Installation Superstructure
Loom Installation • Deutz
Superstructure Heater Installation
Superstructure Heater Installation
Heater/Demister Kit
Heater Installation • Diesel
Swing Horn Installation
Rotation Indicator Installation
Transmitter And Installation
Krueger Hoist Drum Rotation Indicator Installation •
H030 – 24v
Hoist Drum Rotation Installation – 15a
Transmitter Installation
Hoist Drum Rotation Indicator Installation •
H015 24v
Fuel Gauge – No Breakdown Required
3600 Working Light Installation
Instrument And Lights Assembly And Installation
Control Panels Installation • Cummins
Front Panel Assembly
Control Panel Assembly • Outrigger
Console Panel Assembly
Heater Control Panel
Control Panels Installation – Deutz
Front Panel Assembly – Deutz
Control Panel Assembly • Outriggers
Console Panel Assembly – R.H.Side
Heater Control Panel Assembly
Rotating Beacon Installation
Lever Lockout Hydraulic Schematic Without
Auxiliary Hoist
Lever Lockout Hydraulic Fittings And Schematic
Seat Installation
Seat Installation – Superstructure
Working Lights Installation – Double
Swing Brake Valve And Pedal Installation
Glide Swing Brake Power Valve
Swing Brake Valve And Pedal Installation
Glide Swing Brake Power Valve
Throttle Control Installation
Windshield Washer Installation
Windshield Washer Installation
Windshield Wiper Installation
Manual Skylight Wiper Installation
Electric Wiper Installation
Control Valve And Linkage Group
Control Valve And Linkage Installation • Main And Auxiliary
Valve Bank • Main Hoist Auxiliary Hoist, Lift
Inner Mid Tele
Valve Bank Swing
Valve Bank • Lift
Valve Bank • Main Hoist, Auxiliary Hoist
Solenoid Valve – Lever
Pressure Reducing Valve
Dual Relief Valve
Valve
Hoist Group
Cable Follower Installation –
Main
Cable Follower
Cable Follower Installation – Main
Hoist Installation
Winch
Hoist Assembly
Vane Type Fluid Motor
Selector Valve
Motor Control Valve
Hydraulic Cylinder Assembly
Auxiliary Hoist Installation
Roller
Cable Roller Assembly
Cable Follower Installation Auxiliary
Cable Follower 92 Mm Assembly
Hoist – 15a
Motor Control Valve
Gear Reduction Unit
Plumbing And Tubing Installation • Auxiliary Hoist
Auxiliary Hoist Hydraulic Schematic
Plumbing And Tubing Installation
Main Hoist Hydraulic Fittings Installation And
Schematic
Turntable Group
Battery Installation
Bearing Bolt Installation
Counterweight Installation With Auxiliary Hoist
Counterweight Installation Without Auxiliary Hoist
Valve Cover Installation
Valve Cover Installation
Counterweight Cover Plate Installation
Lift Cylinder Installation
Lift Cylinder Assembly
Cartridge Holding Valve
Overcentre Valve
Valve Assembly
Overcentre Valve
Lift Cylinder Installation
Lift Cylinder Assembly
Holding Valve Assembly
Overcentre Valve
Valve Assembly
Overcentre Valve
Lift Cylinder Installation
Lift Cylinder Assembly
Holding Valve Assembly
Overcentre Valve
Valve Assembly
Overcentre Valve
Lift Cylinder Installation
Lift Cylinder Assembly
Holding Valve
Overcentre Valve
Lift Cylinder Installation
Lift Cylinder Assembly
Holding Valve Assembly
Overcentre Valve
English Decal Kit Tm – No Breakdown Required
French Decal Kit – Tm – No Breakdown Required
German Decal Kit Tm • No Breakdown Required
Dutch Decal Kit • Tm No Breakdown Required
Norwegian Decal Kit • Tm – No Breakdown Required
Turkish Decal Kit – Tm – No Breakdown Required
Swedish Decal Kit – Tm – No Breakdown Required
Danish Decal Kit • Tm No Breakdown Required
Finnish Decal Kit Tm No Breakdown Required
Italian Decal Kit • Tm No Breakdown Required
Portuguese Decal Kit • Tm • No Breakdown Required
Serbo Croat Decal Kit •Tm .No Breakdown Required
Arabic Decal Kit • Tm • No Breakdown Required
R.H. Sheet Metal Installation
Battery Cover Weld And Assembly
Fuel Tank And Swing Box Cover Weld
Front Engine Weld And Assembly
Rear Engine Weld And Assembly
Fire Extinguisher Installation
Pinion Guard Installation
Hook Block Installation
Hook Block Stowage Installation
Standard Hose Set
Hose Set Lever Lockout With Auxiliary
Main Hoist Schematic Hoses
Hose Set Lift Hydraulic Schematic
Hose Set Inner Mid Hydraulic Schematic
Hose Set Inner Mid Hydraulic Schematic
Outer Mid Tele Schematic Hoses
Outer Mid Tele Schematic Hoses
Hose Set Hydraulic Schematic
Hose Set Outrigger Hydraulic Schematic
Hose Set Supply, Pressure And Return
Hose Set Supply, Pressure And Return
Hose Set Swing Hydraulic Schematic
Hose Set Boom Latch Schematic
Turntable Lock Pin Installation
Lift Hydraulic Fittings And Schematic
Outrigger Hydraulic Fittings Installation And
Schematic
Outrigger Hydraulic Fittings Installation And
Schematic
Supply And Return Hydraulic Fittings And Schematic
Supply Pressure And Return Hydraulic Fittings And Schematic
Swing Hydraulic Fittings Installation And Schematic
Swing Hydraulic Installation And Schematic
Electro Hydraulic Swivel Installation
2•Port Hydraulic Swivel Coupling
Fuel Tank Installation
Hydraulic Tank Installation
Hydraulic Reservoir Assembly
Hydraulic Reservoir Weld
Filter Sub-Assembly
Return Filter
Tool Kit
Tool Kit
Tool Kit
Turntable Weld And Drive Installation
Swing Box Assembly • Model Gb 200a
Turntable Weld And Drive Installation
Swing Box Assembly
Orbit Motor
Brake Assembly
Engine Group Superstructure
Muffler And Air Cleaner
Air Cleaner • Cummins
Air Cleaner And Silencer Installation
Silencer And Air Cleaner Installation – Deutz • Mild Steel
Silencer And Air Cleaner Installation – Deutz • Mild Steel
Air Cleaner Assembly
Silencer And Air Installation • Deutz • Stainless Steel
Silencer And Air Cleaner Installation • Deutz • Stainless Steel
Air Cleaner Assembly
Silencer And Air Cleaner Installation – Cummins • Mild Steel
Air Cleaner Assembly
Silencer And Air Cleaner Installation • Cummins • Stainless Steel
Air Cleaner Assembly
Silencer And Air Cleaner Installation • Deutz – Mild Steel
Air Cleaner Assembly
Silencer And Air Cleaner Installation • Deutz – Stainless Steel
Air Cleaner Assembly
Silencer And Air Cleaner Installation • Cummins • Mild Steel
Air Cleaner Assembly
Silencer And Air Cleaner Installation • Cummins • Stainless Steel
Air Cleaner Assembly
Cold Start Installation
Oil Cooler Installation
Engine Installation • Cummins
Fuel-Water Seperator
Pump Drive Z Pad
Clutch Installation
Clutch Assembly
2•Section Pump
Pump
Engine Installation – Deutz
Fuel-Water Seperator
Pump Drive Z Pad
Clutch Installation
Clutch Assembly
2-Section Pump
Pump
‘Q’ Appendix Tm 750e
Battery Box Installation – Q 334
Hook Block Stowage Installation – Q 410
| Document Property | Details |
| Brand | Grove |
| Machine Type | Crane |
| Model | TM750E |
| Manual Type | Parts Manual |
| Format | |
| File Size | 24.82 MB |
| Language | English |
| Page Count | 696 Pages |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
Download Information
: File Format - PDF (Portable Document Format)
: Manual Images - (High-Quality PDF)
: Printable - Entire Manual
: Compatible - All versions of Windows, ios, android
: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics
: Download - You will receive the PDF manual in your email after the purchase
Order confirmation will be sent to the contact information you provided, and all updates will be delivered promptly.
If you encounter any issues, our dedicated support team is here to assist you. Please contact us at Support@themanualsgroup.com, and a team member will provide real-time updates and address any related queries promptly.
In the event that an incorrect item is purchased by mistake and you identify the correct item you require, we will exchange it for the appropriate item, on the condition that the replacement item is of equal value to the original purchase.
- Choosing a selection results in a full page refresh.
- Press the space key then arrow keys to make a selection.
- Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
