Grove Crane TM865E 47251 Parts Manual 2017 PDF

Grove Crane TM865E 47251 Parts Manual 2017 PDF

  • Discount
  • $60.00

Download Grove Crane TM865E 47251 Parts Manual 2017 PDF (English)

Download the Grove Crane TM865E 47251 Parts Manual 2017 PDF for complete OEM parts breakdowns, technical diagrams, and maintenance references. This detailed manual provides accurate component identification, assembly instructions, and troubleshooting guidance for efficient repair and servicing. Ideal for technicians, engineers, and equipment operators, it ensures proper maintenance and reduced downtime. Includes hydraulic layouts, electrical schematics, and full parts listings for Grove TM865E crane models used in field operations and heavy-duty lifting applications. www.themanualsgroup.com

MODEL COVERED :
Grove TM865E Crane

CONTENTS INCLUDED :

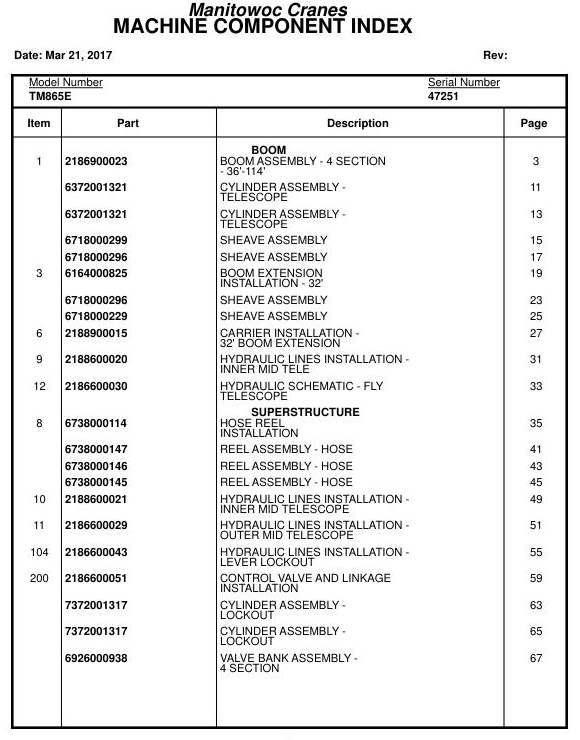

Boom
Boom Assembly – 4 Section
– 36′-114′
Cylinder Assembly –
Telescope
Cylinder Assembly –
Telescope
Sheave Assembly
Sheave Assembly
Boom Extension
Installation – 32′
Sheave Assembly
Sheave Assembly
Carrier Installation –
32′ Boom Extension
Hydraulic Lines Installation –
Inner Mid Tele
Hydraulic Schematic – Fly
Telescope
Superstructure
Hose Reel
Installation
Reel Assembly – Hose
Reel Assembly – Hose
Reel Assembly – Hose
Hydraulic Lines Installation –
Inner Mid Telescope
Hydraulic Lines Installation –
Outer Mid Telescope
Hydraulic Lines Installation –
Lever Lockout
Control Valve And Linkage
Installation
Cylinder Assembly –
Lockout
Cylinder Assembly –
Lockout
Valve Bank Assembly –
4 Section
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Outlet
Valve Assembly – 4-Way Section
(A-35 Series)
Valve Assembly – 4-Way Section
(A-35 Series)
Valve Assembly – 4-Way Section
(A-35 Series)
Valve Section – 4 Way
Relief Valve
Cartridge Assembly
Relief Valve
Valve Bank Assembly –
1 Section A-20 Series
Valve Assembly – Section
Inlet (A-20 Series)
Valve Section – Outlet
Valve Section – 4 Way
Valve Bank Assembly –
2 Section
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Outlet
Valve Section – Relief
Valve Assembly – Relief
Valve Section – 4 Way
Relief Valve
Cartridge Assembly
Valve Assembly – Relief
Relief Valve
Valve Bank Assembly –
3 Section
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Outlet
Valve Assembly – 4-Way Section
(A-35 Series)
Valve Assembly – 4-Way Section
(A-35 Series)
Valve Section – 4 Way
Relief Valve
Cartridge Assembly
Relief Valve
Valve Assembly – Solenoid
Hoist Installation –
Main
Cylinder Assembly –
Hydraulic
Hoist Assembly –
Model Ho30a-26
Motor Assembly, Hydraulic
Valve Assembly – Selector
Valve Assembly –
Motor Control
Cable Follower And Idler
Assembly
Rotation Indicator
Installation – Model 30
Driver Assembly
Driver Assembly
Indicator Assembly
Transmitter Assembly
Hydraulic Lines Installation –
Main Hoist
Turntable Drive
Installation
Swing Box And Brake
Assembly
Motor Assembly – Orbit
Brake Assembly
Valve Assembly – Solenoid
Valve Assembly – By-Pass
Valve Assembly – Selector
Cooler Assembly – Oil
Motor Assembly
Hd 1500
Valve Cover Installation –
Control
Door Assembly – Access
Cylinder Installation –
Lift
Cylinder Assembly – Lift
Valve Assembly
– Overcenter
Hydraulic Lines Installation – Lift
Swivel Installation –
Electric/Hydraulic
Swivel Assembly
Ring Assembly – Slip
Lock Installation – Swing
Block Assy,Swing Lock
Fuel Tank Assembly And
Installation
Hydraulic Lines Installation –
Free Swing W/Lever Lockout
Valve Assembly – Relief
Superstructure Cab
Cab Installation
Seat Assembly
Fire Extinguisher Assembly
Throttle Control
Installation
Pedal Assembly –
Accelerator
Fan Installation
Fan Assembly – 12 Volt Cab
Control Lever Installation
Heater Installation
Heater Assembly –
Hot Water
Instruments And Lights
Installation
Acoustical Installation
Stabilizer Warning Light
And Buzzer Installation
Elect Schematic S/S
Supply, Pressure And Return
Hydraulic Schematic
Electric System
Installation
Fuse And Connector Panel
Assembly
Lowerworks/Carrier
Counterweight Installation
Quick Start Installation
Hydraulic Reservoir
Assembly And Installation
Filter Assembly – Oil
Engine Installation –
Cummins V-555-C
Pump Assembly
Pump Assembly
Pump Assembly
Fitting Assy
Hood Installation – Engine
Door Assembly – Access
Door Assembly – Access
Exhaust And Air Cleaner
Installation
Cleaner Assembly – Air
Battery Installation
Warning System
Installation-Audio/Visual
Valve Installation –
Outrigger Selector
Valve Assembly – Outrigger Selector
(Complete Assembly)
Valve Assembly – Solenoid
Carrier/Frame Cab
Swing Horn Installation

Field Details
Document Type Parts Manual
Brand Grove
Machine Type Crane
Model Grove TM865E Crane
Serial Number 47251
File Format PDF
Language English
File Size 2.98 MB
Publication Date 2017
Number of Pages 433 pages

www.themanualsgroup.com
