Grove Crane TM880 69440 Parts Manual 2005 PDF
-
Discount
- Regular price $55.00
- Description
- Download Information
Description
Download Grove Crane TM880 69440 Parts Manual 2005 PDF (English)
Download Grove Crane TM880 69440 Parts Manual 2005 PDF for complete parts breakdown, technical diagrams, and maintenance guidance. This manual provides detailed component identification, OEM part numbers, and assembly references for accurate servicing and repair work. Ideal for technicians, engineers, and workshop professionals, it supports efficient troubleshooting, spare parts ordering, and equipment maintenance. A reliable reference for Grove TM880 crane model 69440 ensuring proper operation and reduced downtime. www.themanualsgroup.com

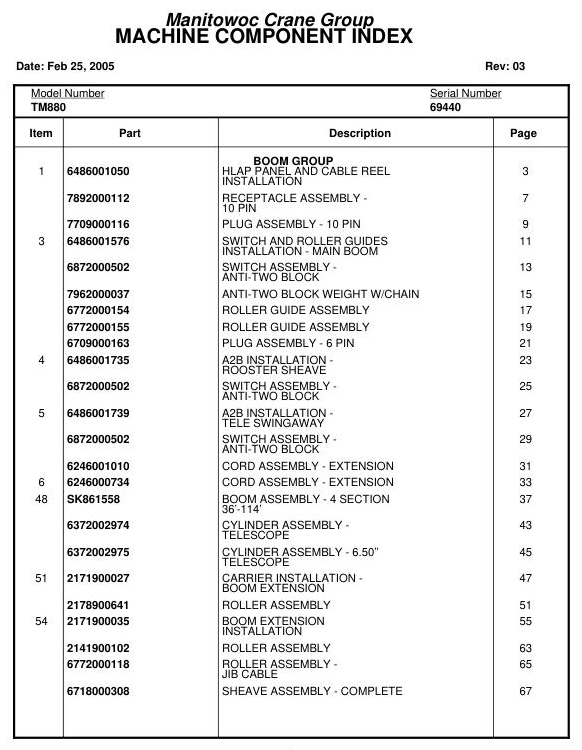

MODEL COVERED :
Grove TM880 Crane
CONTENTS INCLUDED :
Boom Group
Hlap Panel And Cable Reel
Installation
Receptacle Assembly –
10 Pin
Plug Assembly – 10 Pin
Switch And Roller Guides
Installation – Main Boom
Switch Assembly –
Anti-Two Block
Anti-Two Block Weight W/Chain
Roller Guide Assembly
Roller Guide Assembly
Plug Assembly – 6 Pin
A2b Installation –
Rooster Sheave
Switch Assembly –
Anti-Two Block
A2b Installation –
Tele Swingaway
Switch Assembly –
Anti-Two Block
Cord Assembly – Extension
Cord Assembly – Extension
Boom Assembly – 4 Section
36’-114’
Cylinder Assembly –
Telescope
Cylinder Assembly – 6.50’’
Telescope
Carrier Installation –
Boom Extension
Roller Assembly
Boom Extension
Installation
Roller Assembly
Roller Assembly –
Jib Cable
Sheave Assembly – Complete
Extension Assembly –
Multiple Offset
Telescopic Boom
Fly Assembly – Stinger
Sheave Assembly
Roller Assembly
Roller Assembly –
Jib Cable
Sheave Assembly – Complete
Boom Extension Alignment
Device Installation
Sheave Assembly
Sheave Assembly – Complete
Nose Installation – Boom
– Auxiliary
Sheave Assembly
Boom Light Installation
Trailing Boom Preparation
Hook Block Assembly
Ball Assembly – 500# Headache
Cab Group
Cab Installation
Cab Weldment And Assembly
Valve Assembly –
Selector
Control Installation –
Air Throttle
Pedal Assembly –
Accelerator
Pedal Assembly –
Accelerator
Pedal Assembly –
Accelerator
Fire Extinguisher
Installation
Heater – Defroster
Installation
Heater/Defroster Assembly
Acoustical Installation
Instruments And Lights
Installation
Light Installation – Red
Indicator
Valve And Pedal
Installation – Swing Brake
Valve Assembly –
Power Brake
Lever Installation – Control
Electrical Systems
Installation
Harness Assembly –
Superstructure Wiring
Panel Assembly – Fuse And
Connector
Wiper Installation –
Cab Windshield
Washer Installation –
Windshield
Warning System
Installation – Visual
Light Installation – Red
Indicator
Wiper Installation –
Skylight
Motor Assembly –
Windshield Wiper
Harness Assembly – Skylight
Wiper
Hardware Installation
Spotlight Installation
Strobe Light Installation
Strobe Light Assembly
Control Valve Group
Hydraulic Lines Installation –
Free Swing
Hydraulic Lines Installation –
Lift With Trailing Boom
Hydraulic Lines Installation –
Main Hoist
Hydraulic Lines Installation –
Inner Mid Telescope
Hydraulic Lines Installation –
Outer Mid Telescope
Hydraulic Lines Installation –
Fly Telescope
Control Valve And Linkage
Installation
Cylinder Assembly –
Lockout
Valve Bank Assembly –
4 Section (A-35 Series)
Valve Assembly – Outlet
Valve Section – Inlet
(A-35 Series)
Cartridge Assembly
Valve Bank Assembly –
1 Section
Valve Section – Outlet
Valve Bank Assembly –
2 Section (A-35 Series)
Valve Section – Outlet
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Relief
1000 Psi
Cartridge Assembly
Valve Bank Assembly –
3 Section (A-35 Series)
Valve Assembly – Outlet
Valve Section – Inlet
(A-35 Series)
Cartridge Assembly
Valve Assembly – Solenoid
Valve Assembly –
Pressure And Sequence
Hydraulic Lines Installation –
Lever Lockout
Hydraulic Lines Installation –
Auxiliary Hoist
Hoist Group
Rotation Indicator
Installation – Model 30
Driver Assembly
Driver Assembly
Indicator Assembly
Transmitter Assembly
Hoist Installation – Model
Ho-30b-26
Hoist Assembly –
Model Ho-30b-26
Motor Assembly – Hydraulic
Brake Assembly
Cable Follower And Idler
Installation
Cable Follower And Idler
Assembly
Cylinder Assembly –
Hydraulic
Hoist Installation –
Auxiliary
Hoist Assembly –
Model Ho-30b-16
Valves And Plumbing
Installation – Hoist
Not Available As Assembly
Valve Assembly –
Motor Control
Valve Assembly – Selector
Motor Assembly – Hydraulic
Brake Assembly
Idler Drum Assembly
Roller Assembly – Cable
Cable Follower
Installation
Cylinder Assembly –
Hydraulic
Roller Assembly – Cable
Turntable Group
Swing Brake Release
Installation
Swing Brake Release
Assembly – Trailing Boom
Turntable Drive
Installation
Swing Box Assembly –
Complete
Motor Assembly – Orbit
Brake Assembly – Swing
Valve Cover Installation –
Control
Door Assembly – Access
Fuel Tank Installation
Hydraulic Reservoir
Installation
Hyd Reservoir Assy
Hyd Reservoir Weld
Filter Assembly – Oil
Filter Assembly –
Hydraulic Oil
Horn Installation – Swing
Lock Installation – Swing
Hose Reel
Installation
Reel Assembly – Hose
Reel Assembly – Hose
Reel Assembly – Hose
Hydraulic Oil Cooler And
By-Pass Valve Installation
Valve Assembly – Solenoid
Valve Assembly – By-Pass
Valve Assembly –
Selector
Cooler Assembly – Oil
Motor Assembly – Hydraulic
Electro-Hydraulic Swivel
Installation
Swivel Assembly
Ring Assembly – Slip
Cylinder Installation –
Lift
Cylinder Assembly – Lift
Valve Assembly
– Overcenter
Shaft Installation –
Boom Pivot
Bearing Bolt Installation
Counterweight Installation
Engine Group
Hood Installation – Engine
Door Assembly – Access
Door Assembly – Access
Quick Start Installation
Battery Installation
Exhaust And Air Cleaner
Installation
Cleaner Assembly – Air
Engine Installation –
Dda 6-71n
Pump Assembly
Pump Assembly
Pump Assembly
Warning System
Installation-Audio/Visual
Light Installation – Red
Indicator
Fuel/Water Separater
Installation
Fuel/Water Separater
Assembly
Drive Train Group
Drive Line Installation
Drive Line Assembly
Drive Line Assembly
Propeller Shaft
Axle Group
Axle And Steering
Installation
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Wheel And Drum Assembly
Cylinder Assembly – Steer
Hub Cap Assembly
Torque Arm Assembly
Arm Assembly – Torque
Gear Assembly – Steering
Drag Link And Steering
Valve Assembly
Link Assembly – Drag
Equalizer Assembly
Axle Installation – Rear
Axle Assembly
Axle Assembly
Differential Carrier Assembly
Axle Assembly
Housing Assembly
Axle Assembly
Hub And Shaft Group
Axle Assembly
Brake Assembly
Beam Assembly – Equalizer
Loose Hardware Kit
Spring Brake Assembly
Axle Assembly
Axle Assembly
Differential Carrier Assembly
Axle Assembly
Housing Assembly
Axle Assembly
Wheel End Assembly
Axle Assembly
Brake Assembly
Drive Line Assembly
Tire And Wheel Assembly
Tire And Wheel Assembly
Hydraulic Lines Installation –
Power Steering
Valve Extension And Spacer
Installation
Outrigger Group
Outrigger Beam
Installation
Beam Assembly – Outrigger
Cylinder Assembly – 7″ Outrigger Jack
Complete Assembly
Cylinder Assembly –
Extension
Hydraulic Lines Installation –
Outrigger
Valve Installation – Control
– Outrigger
Valve Assembly – 5 Stack
Valve Assembly – 4 Stack
Outrigger Solenoid
Valve Assembly – Relief
Control Box Installation –
Outrigger
Panel Assembly –
Outrigger Control
Level Installation
Level Assembly
Selector Valve
Installation – Outrigger
Valve Assembly – Selector
Valve Assembly – Solenoid
Valve Assembly – Solenoid
Front Center Stabilizer
Installation
Cylinder Assembly –
Stabilizer
Float Assembly – Outrigger
Light Installation – Red
Indicator
Float Assembly –
Outrigger
Frame Group
Fenders And Battery Box
Installation – Front
Rear Fender Installation
Fuel Tank Installation
Lights And Horn
Installation – Exterior
Air System Schematic –
Gmc Engine
Reservoir Installation –
Power Steering
Reservoir Assembly –
Power Steering
Mud Guard Installation
Access Steps And Landing
Installation
Alarm Installation –
Back-Up
Hydraulic Lines Installation –
Supply, Pressure And Return
Air Brake And Electrical
Disconnect Installation
Sling Box Installation
Door Assembly
Rest Installation – Boom
Schematic – Air Brake
Disconnect
Not Available As Assembly
Electrical System
Installation – Carrier
Hookblock Tie-Down
Installation
Cab Carrier Group
Cab Installation
Cab
Door Assembly
Door Assembly
Heater Assembly –
Hot Water
Washer Installation –
Windshield
Not Available As Assembly
Rear View Mirror
Installation
Mirror Head And Loop
Assembly – Stainless Steel
Wiper Installation –
Windshield
Not Available As Assembly
Fan Installation – Cab
Circulating
Fan Assembly – 12 Volt Cab
Complete Assembly
Light Installation –
Swing Brake
Light Installation – Red
Indicator
Plate, Mounting
Installation – Load Chart
Panel Assembly
Acoustical Installation
Engine Carrier Group
Engine Installation – Gmc
8v-71n
Valve Assembly –
Flow Divider
Tachometer Generator
Assembly
Controller Assembly –
Slave Unit
Kit Assembly – Engine Brake
Kit Assembly – Engine Brake
Kit Assembly – Engine Brake
Kit Assembly – Engine Brake
Kit Assembly – Engine Brake
Kit Assembly – Engine Brake
Terminal Block
Installation
Terminal Block Assembly – Electrical
Brake Controls
Installation – Engine
Quick Start Installation
Hood Installation – Engine
Connector & Mounting Plate
Installation
| Field | Details |
|---|---|
| Document Type | Parts Manual |
| Brand | Grove |
| Machine Type | Crane |
| Model | Grove TM880 Crane |
| Serial Number | 69440 |
| File Format | |
| Language | English |
| File Size | 6.74 MB |
| Publication Date | 2005 |
| Number of Pages | 973 pages |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
Download Information
: File Format - PDF (Portable Document Format)
: Manual Images - (High-Quality PDF)
: Printable - Entire Manual
: Compatible - All versions of Windows, ios, android
: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics
: Download - You will receive the PDF manual in your email after the purchase
Order confirmation will be sent to the contact information you provided, and all updates will be delivered promptly.
If you encounter any issues, our dedicated support team is here to assist you. Please contact us at Support@themanualsgroup.com, and a team member will provide real-time updates and address any related queries promptly.
In the event that an incorrect item is purchased by mistake and you identify the correct item you require, we will exchange it for the appropriate item, on the condition that the replacement item is of equal value to the original purchase.
- Choosing a selection results in a full page refresh.
- Press the space key then arrow keys to make a selection.
- Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
