Grove Crane TMS145A 71116 Parts Manual 2018 PDF
-
Discount
- Regular price $80.00
- Description
- Download Information
Description
Download Grove Crane TMS145A 71116 Parts Manual 2018 PDF (English)
Download the Grove Crane TMS145A 71116 Parts Manual 2018 PDF for detailed parts identification, exploded diagrams, technical illustrations, and complete component reference information. This professional manual is designed for crane operators, technicians, and heavy equipment mechanics working on the Grove TMS145A crane model. It provides accurate replacement part numbers, assembly breakdowns, and maintenance support data to improve repair efficiency, reduce downtime, and ensure reliable crane performance. Ideal for workshop servicing, field repairs, and preventive maintenance operations. www.themanualsgroup.com

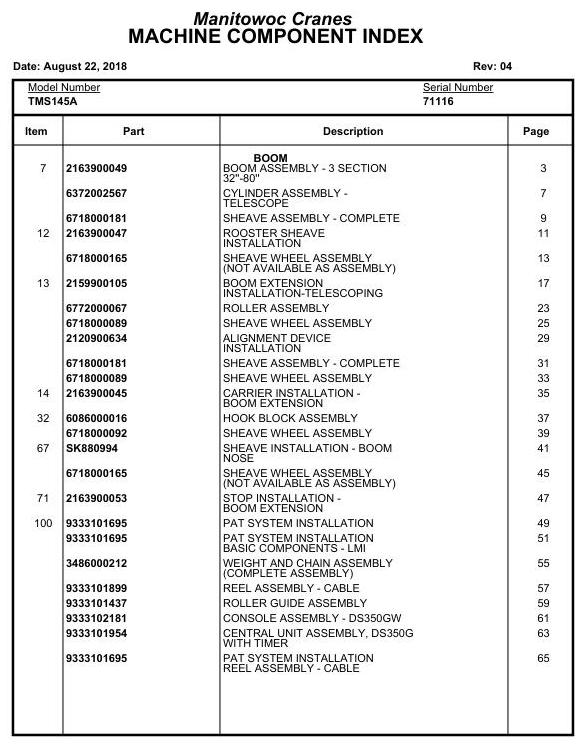

MODEL COVERED :
Grove TMS145A Crane
CONTENTS INCLUDED :
Boom
Boom Assembly – 3 Section
32”-80”
Cylinder Assembly –
Telescope
Sheave Assembly – Complete
Rooster Sheave
Installation
Sheave Wheel Assembly
(Not Available As Assembly)
Boom Extension
Installation-Telescoping
Roller Assembly
Sheave Wheel Assembly
Alignment Device
Installation
Sheave Assembly – Complete
Sheave Wheel Assembly
Carrier Installation –
Boom Extension
Hook Block Assembly
Sheave Wheel Assembly
Sheave Installation – Boom
Nose
Sheave Wheel Assembly
(Not Available As Assembly)
Stop Installation –
Boom Extension
Pat System Installation
Pat System Installation
Basic Components – Lmi
Weight And Chain Assembly
(Complete Assembly)
Reel Assembly – Cable
Roller Guide Assembly
Console Assembly – Ds350gw
Central Unit Assembly, Ds350g
With Timer
Pat System Installation
Reel Assembly – Cable
Pat System Installation
Console Assembly – Ds350g
Pat System Installation
Console Assembly – Ds350gw
Pat System Installation
Central Unit Assembly – With
Timer
Pat System Installation
Pressure Transducer
Mounting – Lmi
Pat System Installation
30” – 54” Tele Swingaway – Lmi
Weight And Chain Assembly
(Complete Assembly)
Pat System Installation
30” Offset Swingaway – Lmi
Weight And Chain Assembly
(Complete Assembly)
Pat System Installation
Auxiliary Boom Nose – Lmi
Weight And Chain Assembly
(Complete Assembly)
Pat System Installation
Anti 2 Block Weight Assembly
Pat System Installation
Minimum Layer Device
Pat System Installation
Decal Installation – Ds350
Pat System Installation
Wiring Diagrams
Superstructure
Turntable Drive Assembly
Swing Box Assembly –
Complete
Swing Box And Brake
Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Brake Assembly – Swing
Valve Cover Installation –
Control
Cylinder Installation –
Lift
Cylinder Assembly – Lift
Hoist Installation – Main
Or Auxiliary
Hoist Assembly – High
Profile
Hoist Assembly
Valve Assembly – Motor
Control
Brake Assembly
Gear Reduction Assembly
Motor Assembly – Hydraulic
Vane Type
Counterweight Installation
Lock Installation – Swing
Cable Assy, Swing Lock
Bearing Bolt Installation
Rotation Indicator
Installation – Model 15
Driver Assembly
Driver Assembly
Indicator Assembly
Transmitter Assembly
Horn Installation – Swing
Swivel Installation –
Electric/Hydraulic
Swivel Assembly –
Hydraulic
Ring Assembly – Slip
Swivel Assembly –
Electric/Hydraulic
Swivel Assembly –
Hydraulic
Ring Assembly – Slip
Pivot Shaft Installation –
Boom
Hydraulic Lines Installation –
Mid-Telescope
Hydraulic Lines Installation –
Free Swing W/Lever Lockout
Hydraulic Lines Installation – Lift
Valve Cover Access Ladder Inst
Cover Plate Installation
Idler And Cable
Follower Installation
Cooler Installation – Oil
Hydraulic
Fan Assembly – Electric
Control Valve And Linkage
Installation
Valve Bank Assembly –
4 Section (A-35 Series)
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Outlet
Cartridge Assembly
Cartridge Assembly –
Relief Valve
Valve Assembly – Relief
1000 Psi
Valve Bank Assembly –
1 Section
Valve Assembly – Outlet
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Relief
2250 Psi
Cartridge Assembly
Valve Assembly – Relief
2250 Psi
Cartridge Assembly
Cartridge Assembly
Valve Bank Assembly –
1 Section (A-20 Series)
Valve Assembly – Section
Inlet (A-20 Series)
Valve Section – 4 Way
Check, Anti-Cavitation
Check, Anti-Cavitation
Valve Assembly –
Pressure Reducing/Sequence
Hydraulic Schematic – Main
And Auxiliary Hoist
Auxiliary Air Supply
Reservoir Installation
Electrical System
Installation
Superstructure Cab
Control Installation –
Air Throttle
Pedal And Valve Assembly –
Accelerator
Valve Assembly – Control
Electrical System
Installation – S/S
Panel Assembly – S/S
Fuse And Connector
Wiper Installation –
Cab Windshield
Washer Installation –
Windshield
Fan Installation – Cab
Circulating
Fan Assembly – 12 Volt Cab
(Complete Assembly)
Heater Installation –
Diesel
Heater Assembly – Diesel
Heater Assembly – Diesel
Exhaust Parts
Heater Assembly – Diesel
Case And Heater Exchanger
Parts
Heater Assembly – Diesel
Heater Assembly – Diesel
Parts
Case And Heat Exchanger
Heater Assembly – Diesel
Fuel And Ignition Systems
Heater Assembly – Diesel
Fuel And Ignition Systems
Heater Assembly – Diesel
Control Panel Parts
Heater Assembly – Diesel
Control Panel Parts
Heater Assembly – Diesel
Circuit Board Parts
Heater Assembly – Diesel
Carburetor Parts
Heater Assembly – Diesel
Carburetor Parts
Heater Assembly – Diesel
Motor And Blower Parts
Heater Assembly – Diesel
Motor And Blower Parts
Heater Assembly – Diesel
Remote Control Parts
Fuel Tank Installation
Diesel Heater
Exhaust Installation –
Heater
Extinguisher Installation – Fire
Hydraulic Lines Installation –
Lever Lockout
Acoustical Installation
Seat Installation
Seat Assembly
Valve And Pedal
Installation – Swing Brake
Valve Assembly –
Power Brake
Grab Rail Installation
Warning System
Installation-Audio/Visual
Cab Modification
Door Assembly
Door Assembly
Superstructure Controls
Installation
Pedal And Valve Assembly –
Accelerator
Valve Assembly – Control
Valve Assembly – Dual Brake
Valve Assembly – Solenoid
Cab Installation
Valve Assembly –
Selector
Control Lever Installation
Instruments And Lights
Installation
Carrier/Lowerworks
Engine Installation – Cat
3208t
Filter Assembly – Primary Fuel
Reservoir Assembly –
Power Steering
Valve Assembly – Control
Compressor Assembly – Air
Tachometer Generator
Assembly
Cylinder Assembly – Throttle
Pressure Sensing Kit –
Engine Brake Lock-Up
Fitting
Fender Installation – Rear
Reservoir Installation –
Hydraulic
Valve Installation – Control
– Outrigger
Valve Assembly – 4 Stack
Outrigger Solenoid
Valve Assembly – Outrigger Selector
(Complete Assembly)
Valve Assembly – Solenoid
Battery Box Installation
Sling Box Installation
Hydraulic Lines Installation –
Supply, Pressure And Return
Valve Assembly – Sequence
Alarm Installation –
Back-Up
Float Assembly – Outrigger
Valve Extension
Installation – Tire
Manifold Installation
Hood Installation – Engine
Hood Assembly – Rear
Section
Quick Start Installation
Rest Installation – Boom
Outrigger Beam
Installation
Cylinder Assembly –
Stabilizer
Cylinder Assembly
Exhaust System
Installation
Cleaner Installation – Air
Cleaner Assembly – Air
Radiator Installation
Pump Installation
Pump Assembly
Drive Assembly – 2 Pump
Pump Assembly
Propeller Shaft Assy
Remote Control Steer
Installation
Cylinder Assembly – Steer
Valve Assy.
Valve Assy.
Valve Assembly – Solenoid
Valve Assembly – Relief
Hose Retainer Rod
Installation
Stabilizer Installation –
Fifth Outrigger
Cylinder Assembly –
Stabilizer
Valve Assembly – 5 Stack
Valve Assembly – Relief
Float Assembly – Outrigger
Hydraulic Lines Installation –
Supply, Pressure And Return
Hydraulic Manifold
Installation
Valve Assembly – Check
Carrier/Frame Cab
Cab Installation – Carrier
Cab Weldment And Assembly
Door Assembly
Door Assembly
Heater Assembly –
Hot Water
Steering Column Assembly
Valve Assembly – Dual Brake
Throttle Pedal
Installation
Accelerator Pedal Assy
Accelerator Pedal Design “B”
Accelerator Pedal Design “A”
Instruments And Lights
Installation
Harness Assembly –
Instruments And Lights
Acoustical Installation
(Carrier Cab)
Electrical System
Installation – Carrier
Panel Assembly –
Fuse And Connector
Harness Assembly –
P.C. Board Carrier
Stabilizer Installation –
Cab
Warning System
Installation-Audio/Visual
Remote Control Electrical
System Installation
Remote Control Valve
Installation
Valve Assembly – Solenoid
Shift Controls
Installation
Transmission Shift Control
Kit
Transmission Shift Valve
Assembly
Mounting Bracket Assembly
Decals
Decal Installation
| Field | Details |
|---|---|
| Size | 5.22 MB |
| Format | |
| Language | English |
| Brand | Grove |
| Type of Machine | Crane |
| Type of Manual | Parts Manual |
| Model | Grove TMS145A Crane |
| Serial Number | 71116 |
| Publication Date | 2018 |
| Number of Pages | 755 Pages |
