Grove Crane TMS250C 71924 Parts Manual 2016 PDF
-
Discount
- Regular price $70.00
- Description
- Download Information
Description
Download Grove Crane TMS250C 71924 Parts Manual 2016 PDF (English)
Download the Grove Crane TMS250C 71924 Parts Manual 2016 PDF for complete parts identification, exploded diagrams, technical illustrations, and detailed component reference information. This professional manual is designed for crane operators, service technicians, and heavy equipment mechanics working on the Grove TMS250C crane model. It provides accurate replacement part numbers, assembly breakdowns, and maintenance support data to improve repair efficiency, reduce downtime, and ensure reliable crane performance. Ideal for workshop servicing, field repairs, and preventive maintenance operations. www.themanualsgroup.com

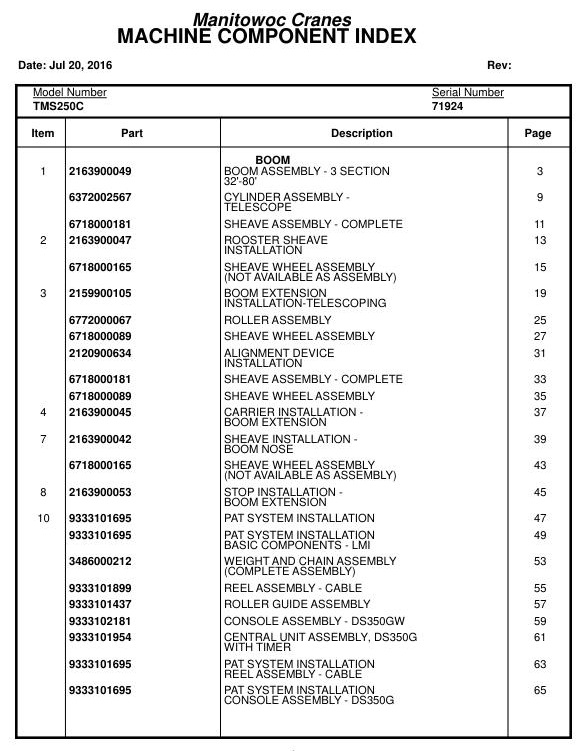

MODEL COVERED :
Grove TMS250C Crane
CONTENTS INCLUDED :
Boom
Boom Assembly – 3 Section
32′-80′
Cylinder Assembly –
Telescope
Sheave Assembly – Complete
Rooster Sheave
Installation
Sheave Wheel Assembly
(Not Available As Assembly)
Boom Extension
Installation-Telescoping
Roller Assembly
Sheave Wheel Assembly
Alignment Device
Installation
Sheave Assembly – Complete
Sheave Wheel Assembly
Carrier Installation –
Boom Extension
Sheave Installation –
Boom Nose
Sheave Wheel Assembly
(Not Available As Assembly)
Stop Installation –
Boom Extension
Pat System Installation
Pat System Installation
Basic Components – Lmi
Weight And Chain Assembly
(Complete Assembly)
Reel Assembly – Cable
Roller Guide Assembly
Console Assembly – Ds350gw
Central Unit Assembly, Ds350g
With Timer
Pat System Installation
Reel Assembly – Cable
Pat System Installation
Console Assembly – Ds350g
Pat System Installation
Console Assembly – Ds350gw
Pat System Installation
Central Unit Assembly – With
Timer
Pat System Installation
Pressure Transducer
Mounting – Lmi
Pat System Installation
30′ – 54′ Tele Swingaway – Lmi
Weight And Chain Assembly
(Complete Assembly)
Pat System Installation
30′ Offset Swingaway – Lmi
Weight And Chain Assembly
(Complete Assembly)
Pat System Installation
Auxiliary Boom Nose – Lmi
Weight And Chain Assembly
(Complete Assembly)
Pat System Installation
Anti 2 Block Weight Assembly
Pat System Installation
Minimum Layer Device
Pat System Installation
Decal Installation – Ds350
Pat System Installation
Wiring Diagrams
Superstructure
Pivot Shaft Installation –
Boom
Hydraulic Lines Installation –
Mid-Telescope
Horn Installation – Swing
Control Valve And Linkage
Installation
Valve Bank Assembly –
4 Section (A-35 Series)
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Outlet
Cartridge Assembly
Cartridge Assembly –
Relief Valve
Valve Assembly – Relief
1000 Psi
Valve Bank Assembly –
1 Section
Valve Assembly – Outlet
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Relief
2250 Psi
Cartridge Assembly
Valve Assembly – Relief
2250 Psi
Cartridge Assembly
Cartridge Assembly
Valve Assembly – 1 Section Control
Valve Assembly – Section
Outlet (A-20 Series)
Valve Assembly –
Pressure Reducing/Sequence
Valve Assembly – Solenoid
Hoist Installation – Main
Or Auxiliary
Hoist Assembly – High
Profile
Hoist Assembly
Valve Assembly – Motor
Control
Brake Assembly
Gear Reduction Assembly
Motor Assembly – Hydraulic
Vane Type
Tubing Installation
Hoist Installation – Main
Or Auxiliary
Hoist Assembly – High
Profile
Hoist Assembly
Valve Assembly – Motor
Control
Brake Assembly
Gear Reduction Assembly
Motor Assembly – Hydraulic
Vane Type
Tubing Installation
Rotation Indicator
Installation – Model 15
Driver Assembly
Driver Assembly
Indicator Assembly
Transmitter Assembly
Rotation Indicator
Installation – Model 15
Driver Assembly
Driver Assembly
Indicator Assembly
Transmitter Assembly
Hydraulic Lines Installation –
Main And Auxiliary Hoist
Idler And Cable
Follower Installation
Idler Drum Installation –
Hoist
Turntable Bearing And
Drive Installation
Swing Box Assembly Complete
( Model Gb-100a )
Swing Box And Brake
Assembly
Brake Assembly – Swing
(Complete Assembly)
Motor Assembly – Orbit
Valve Cover Weldment And
Installation
Cylinder Installation –
Lift
Cylinder Assembly – Lift
Counterweight Installation
Lock Installation – Swing
Cable Assy, Swing Lock
Bearing Bolt Installation
Hydraulic Lines
Installation
Hydraulic Manifold
Installation
Valve Assembly – Check
Hydraulic Lines Installation –
Free Swing W/Lever Lockout
Hydraulic Lines Installation – Lift
Air Lines Installation –
Valve Cover Access Ladder Inst
Cover Plate Installation
Cooler Installation – Oil
Hydraulic
Fan Assembly – Electric
Swivel Installation –
Electro And Hydraulic
Swivel Assembly –
Hydraulic
Ring Assembly – Slip
(Complete Assembly)
Superstructure Cab
Cab Installation
Cab Weldment And Assembly
Valve Assembly –
Selector
Fire Extinguisher Assembly
Weatherstrip Installation
– Cab
Control Installation –
Air Throttle
Pedal And Valve Assembly –
Accelerator
Valve Assembly – Control
Wiper Installation –
Cab Windshield
Washer Installation –
Windshield
Fan Installation – Cab
Circulating
Fan Assembly – 12 Volt Cab
(Complete Assembly)
Control Lever Installation
Heater Installation –
Propane
Heater Assembly – Propane
Heater Assembly – Propane
Circuit Board Assy
Heater Assembly – Propane
Fuel And Ignition Systems
Heater Assembly – Propane
Remote Control Parts
Heater Assembly – Propane
Control Panel Parts
Heater Assembly – Propane
Motor And Blower Parts
Heater Assembly – Propane
Case And Exchanger Parts
Heater Assembly – Propane
Regulator And Exhaust Parts
Tank Mounting Kit
Installation – Propane
Exhaust Installation –
Heater
Tank Mounting Kit
Installation – Propane
Extinguisher Installation – Fire
Instruments And Lights
Installation
Hydraulic Lines Installation –
Lever Lockout
Acoustical Installation
Seat Installation
Seat Assembly
Valve And Pedal
Installation – Swing Brake
Valve Assembly –
Power Brake
Grab Rail Installation
Warning System
Installation-Audio/Visual
Load Chart Manual
Installation
Electrical System
Installation – S/S
Panel Assembly – S/S
Fuse And Connector
Lowerworks/Carrier
Rest Installation – Boom
Exhaust Installation –
Heater
Hydraulic Lines Installation –
Supply, Pressure And Return
Valve Assembly – Sequence
Drive Line Installation
Drive Line Assembly
Drive Line Assembly
Drive Line Assembly
Drive Line Assembly
Transfer Case
Installation
Case Assembly – Transfer
Cylinder Assembly – Air
Axle Installation – Rear
Tandem
Axle Assembly
Axle Assembly
Differential Carrier Assembly
Axle Assembly
Housing And Wheel End Parts
Leaf Spring Assembly –
Front
Steering Gear Assembly
Valve Installation – Control
– Outrigger
Valve Assembly – 4 Stack
Outrigger Solenoid
Valve Assembly – Outrigger Selector
(Complete Assembly)
Valve Assembly – Solenoid
Valve Assembly – 5 Stack
Valve Assembly – Relief
Outrigger Pad Storage
Installation
Hydraulic Lines Installation –
Outrigger
Outrigger Beam
Installation
Cylinder Assembly –
Stabilizer
Cylinder Assembly
Stabilizer Installation –
Outrigger
Cylinder Assembly –
Stabilizer
Float Assembly – Outrigger
Outrigger Float Assembly
Fenders Installation –
Front
Fender Installation – Rear
Fuel Tank Installation
Reservoir Installation –
Hydraulic
Exterior Lights And Horn
Installation
Air Tank And Valve
Installation
Valve Assembly –
Spring Brake
Dryer Assembly – Air
Battery Box Installation
Mud Flap Installation
Sling Box Installation
Ladder Installation –
Access
Air System Schematic
Alarm Installation –
Back-Up
Manifold Installation –
Hydraulic
Hydraulic Lines Installation –
Power Steering
Engine Installation –
Cummins
Reservoir Assembly –
Power Steering
Controller Assembly –
Slave Unit
Power-Take-Off Assembly
Pump Assembly – 3 Stage
Tandem
Pump Assembly – Steer
Cylinder Assembly – Throttle
Electrical System
Installation – Carrier
Harness Assy, Outrigger Cab To Board
Panel Assembly –
Fuse And Connector
Harness Assembly –
P.C. Board Carrier
Quick Start Installation
Cable Installation –
Clutch
Hood Installation – Engine
Muffler Installation
Cleaner Installation – Air
Cleaner Assembly – Air
(Complete Assembly)
Radiator Installation
Battery Installation
Carrier/Frame Cab
Cab Installation – Carrier
Cab Weldment And Assembly
Door Assembly
Door Assembly
Heater Assembly –
Hot Water
Steering Column Assembly
Valve Assembly – Dual Brake
Wiper Installation –
Windshield
Washer Installation –
Windshield
(Not Available As Assembly)
Seat And Seat Belt
Installation
(Not Available As Assembly)
Seat Assembly – Drivers
Shock
Throttle Pedal
Installation
Accelerator Pedal Assy
Accelerator Pedal Design “B”
Accelerator Pedal Design “A”
Instruments And Lights
Installation
Harness Assembly –
Instruments And Lights
Rear View Mirror
Installation
Mirror Head And Loop
Assembly – Stainless Steel
Acoustical Installation
(Carrier Cab)
Stabilizer Installation –
Cab
Warning System
Installation – A.V.
Shift Installation –
Transmission
Master Control Unit
Assembly
Control Installation –
P.T.O.
Air Shift Line
Installation
Clutch Installation
Clutch Assembly
Clutch Release Assembly
Harness Installation
Harness Assembly –
Cummins Engine
Link Assembly – Fusible
Decals
Decal Installation
| Field | Details |
|---|---|
| Brand | Grove |
| Type of Machine | Crane |
| Machine Model | Grove TMS250C Crane |
| Type of Manual | Parts Manual |
| Serial Number | 71924 |
| Publication Date | 2016 |
| Number of Pages | 941 pages |
| File Format | |
| File Size | 7.31 MB |
| Language | English |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
Download Information
: File Format - PDF (Portable Document Format)
: Manual Images - (High-Quality PDF)
: Printable - Entire Manual
: Compatible - All versions of Windows, ios, android
: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics
: Download - You will receive the PDF manual in your email after the purchase
Order confirmation will be sent to the contact information you provided, and all updates will be delivered promptly.
If you encounter any issues, our dedicated support team is here to assist you. Please contact us at Support@themanualsgroup.com, and a team member will provide real-time updates and address any related queries promptly.
In the event that an incorrect item is purchased by mistake and you identify the correct item you require, we will exchange it for the appropriate item, on the condition that the replacement item is of equal value to the original purchase.
- Choosing a selection results in a full page refresh.
- Press the space key then arrow keys to make a selection.
- Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
