Grove Crane TMS300B 70442 Parts Manual 2021 PDF
-
Discount
- Regular price $85.00
- Description
- Download Information
Description
Download Grove Crane TMS300B 70442 Parts Manual 2021 PDF (English)
Download the Grove Crane TMS300B 70442 Parts Manual 2021 PDF for complete parts identification, exploded diagrams, technical illustrations, and detailed component references. This factory-style manual is designed for crane technicians, operators, and heavy equipment mechanics who need accurate replacement part information for the Grove TMS300B crane model. Ideal for repair workshops, routine maintenance, and field servicing, the manual helps improve repair accuracy, reduce equipment downtime, and maintain dependable crane performance with reliable technical reference details. www.themanualsgroup.com
MODEL COVERED :
Grove TMS300B Crane

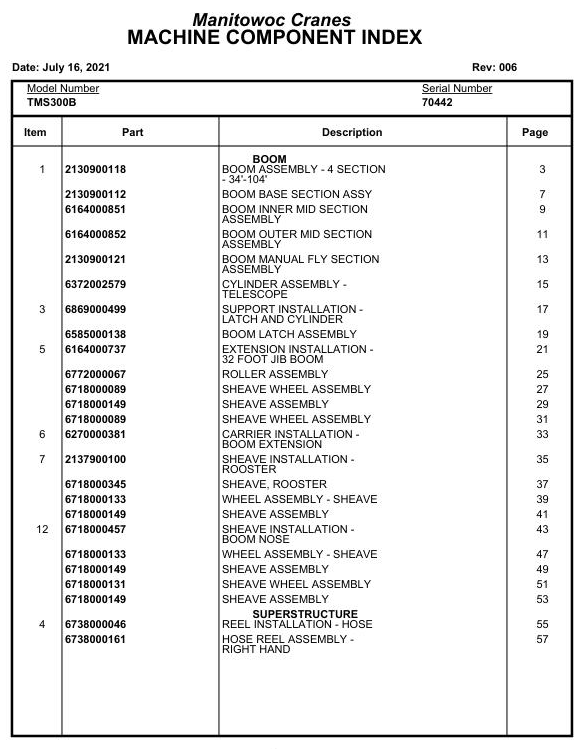

CONTENTS INCLUDED :
Boom
Boom Assembly – 4 Section
– 34′-104′
Boom Base Section Assy
Boom Inner Mid Section
Assembly
Boom Outer Mid Section
Assembly
Boom Manual Fly Section
Assembly
Cylinder Assembly –
Telescope
Support Installation –
Latch And Cylinder
Boom Latch Assembly
Extension Installation –
32 Foot Jib Boom
Roller Assembly
Sheave Wheel Assembly
Sheave Assembly
Sheave Wheel Assembly
Carrier Installation –
Boom Extension
Sheave Installation –
Rooster
Sheave, Rooster
Wheel Assembly – Sheave
Sheave Assembly
Sheave Installation –
Boom Nose
Wheel Assembly – Sheave
Sheave Assembly
Sheave Wheel Assembly
Sheave Assembly
Superstructure
Reel Installation – Hose
Hose Reel Assembly –
Right Hand
Hose Reel Assembly –
Right Hand
Hydraulic Lines Installation –
Mid-Telescope
Hydraulic Lines Installation –
Fly-Telescope
Pivot Shaft Installation –
Upper Boom
Horn Installation – Swing
Control Valve And Linkage
Installation
Valve Assembly – 1 Section Control
Valve Section – 4 Way
Check, Anti-Cavitation
Valve Section – Inlet
Cartridge, Relief –
1500 Psi
Valve Bank Assembly – 4
Section A-35 Series
Valve Assembly – Outlet
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Relief
1000 Psi
Cartridge Assembly
Valve Bank Assembly –
2 Section (A-20 Series)
Valve Assembly – Section
Inlet (A-20 Series)
Valve Assembly – Relief
2500 Psi
Valve Assembly – Relief
2500 Psi
Valve Bank Assembly –
2 Section (A-35 Series)
Valve Assembly – Outlet
Valve Section – Inlet
(A-35 Series)
Cartridge Assembly
Cylinder Assembly –
Lockout
Valve Assembly –
Pressure And Sequence
Valve Assembly – Solenoid
Covers Installation –
Hoist Mounting Structure
Hoist Installation – Main
Hoist Assembly –
Model Ho-30b-16
Valves And Plumbing
Installation – Hoist
(Not Available As Assembly)
Valve Assembly –
Motor Control
Valve Assembly – Selector
Motor Assembly – Hydraulic
Brake Assembly
Cylinder Assembly – Air
Valves And Plumbing
Installation – Hoist
(Not Available As Assembly)
Valve Assembly –
Motor Control
Valve Assembly – Selector
Hoist Installation –
Ho-30b-16 Auxiliary
Hoist Assembly –
Model Ho-30b-16
Valves And Plumbing
Installation – Hoist
(Not Available As Assembly)
Valve Assembly –
Motor Control
Valve Assembly – Selector
Motor Assembly – Hydraulic
Brake Assembly
Cylinder Assembly – Air
Rotation Indicator
Installation – Model 30
Driver Assembly
Driver Assembly
Indicator Assembly
Transmitter Assembly
Rotation Indicator
Installation – Model 30
Driver Assembly
Driver Assembly
Indicator Assembly
Transmitter Assembly
Hydraulic Lines Installation –
Main And Auxiliary Hoist
Follower Installation – Cable
Cable Follower
Installation
Turntable Drive
Installation
Swing Box Assembly –
Complete
Motor Assembly – Orbit
Brake Assembly
Manifold Installation –
Hydraulic
Brake Assembly
Cylinder Installation –
Lift
Cylinder Assembly
Counterweight Installation
Cylinder Assembly –
Counterweight Mover
Lock Installation – Swing
Bearing Bolt Installation
Hydraulic Lines Installation –
Counterweight Removal
Hydraulic Lines Installation –
Free Swing
Hydraulic Lines Installation –
Lift
Air Lines Installation –
Valve Installation –
Counterweight Removal
Valve Bank Assembly
1 Section (A-20 Series)
Valve Section – Outlet
Valve Assembly – Section
Inlet (A-20 Series)
Valve Assembly – Relief
2500 Psi
Valve Assembly – Relief
2500 Psi
Hydraulic Lines Installation –
Supply, Pressure And Return
Valve Assembly – Sequence
Swivel Installation –
Electro/Hydraulic
Swivel Assembly – 8 Port Hydraulic
(Complete Assembly)
Ring Assembly – Slip
(Complete Assembly)
Superstructure Cab
Cab Installation
Cab Weldment And Assembly
Valve Assembly –
Selector
Side Cover Installation –
Cab
Door Installation – Side
Door Installation – Side
Control Installation –
Air Throttle
Pedal And Valve Assembly –
Accelerator
Valve Assembly – Control
Valve And Pedal
Installation – Swing Brake
Valve Assembly –
Power Brake
Hydraulic Lines Installation –
Control Lever Lockout
Fan Installation – Cab
Circulating
Fan Assembly – 12 Volt Cab
(Complete Assembly)
Extinguisher Installation – Fire
Heater Installation –
Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Heater Assembly – Propane
Fuel Tank Installation
Propane
Exhaust Installation –
Heater
Acoustical Installation
Wiper Installation –
Cab Windshield
Instruments And Lights
Installation
Weatherstrip Installation
– Cab
Control Lever
Installation
Seat Installation
Seat Assembly
Washer Installation –
Windshield
Wiper Installation –
Skylight
Motor Assembly –
Windshield Wiper
Harness Assembly – Skylight
Wiper
Grab Rail Installation
Warning System
Installation-Audio/Visual
Load Chart Manual
Installation
Electrical System
Installation – S/S
Panel Assembly – S/S
Fuse And Connector
Carrier/Lowerworks
Rest Installation – Boom
Drive Line Installation
Drive Line Assembly
Horizontal Shaft
Drive Line Assembly
Transmission Installation
– Fuller
Transmission Assembly
Transmission Assembly
Air System
Transmission Assembly
Main Housing Assembly
Transmission Assembly
Yokes And Bars Assembly
Transmission Assembly
Main Shaft – Countershaft
Transmission Assembly
Main Drive, Idler, Bearing
Assembly
Transmission Assembly
Cylinder Assembly
Transmission Assembly
Auxiliary Gear Set Assemblies
Transmission Assembly
Brake Assembly – Countershaft
Axle And Steering
Installation – Front
Valve Assembly – Steering
Steering Gear Assembly
Cylinder Assembly – Steer
Wheel And Drum Assembly
Arm Assembly – Torque
Axle Assembly
Axle And Wheel End Group
Axle Brake Assy. L.H. Group
Axle Brake Assy. R.H. Group
Brake Chamber Assy. Group
Brake Chamber Assy. Group
Cylinder Assembly – Steer
Wheel And Drum Assembly
Arm Assembly – Torque
Axle Assembly
Axle Assembly
Axle And Wheel End Parts
Axle Assembly
Brake Assembly – Left Hand
Axle Assembly
Brake Assembly – Right Hand
Axle Assembly
Brake Chamber Assembly
Axle Assembly
Brake Chamber Assembly
Suspension Assembly
Axle Installation – Rear
Axle Bearing – Rear
Beam Assembly – Equalizer
Adapter Assembly
Wheel And Drum Assembly
Axle Assembly
Axle Assembly
Differential Carrier Parts
Axle Assembly
Housing Parts
Axle Assembly
Brake Assembly – Left Hand
Axle Assembly
Brake Assembly – Right Hand
Axle Assembly
Brake Chamber Assembly
Axle Assembly
Brake Chamber Assembly
Axle Assembly
Axle Assembly
Differential Carrier Parts
Axle Assembly
Housing Parts
Axle Assembly
Brake Assembly – Left Hand
Axle Assembly
Brake Assembly – Right Hand
Axle Assembly
Brake Chamber Assembly
Axle Assembly
Brake Chamber Assembly
Drive Line Assembly
Rod Assembly – Torque
Hydraulic Lines Installation –
Power Steering
Valve Extension
Installation – Tire
Tire And Wheel Assembly
Tire And Wheel Assembly
Float Assembly – Outrigger
Outrigger Beam
Installation
Cylinder Assembly –
Outrigger
Cylinder Assembly –
Extension
Hydraulic Lines Installation –
Outrigger
Valve Installation – Control
– Outrigger
Valve Assembly – Outrigger Selector
(Complete Assembly)
Valve Assembly – 4 Stack
Outrigger Solenoid
Valve Assembly – Solenoid
Valve Assembly – 5 Stack
Valve Assembly – Relief
Pad And Storage
Installation – Outrigger
Cylinder Installation –
Front Stabilizer
Cylinder Assembly –
Stabilizer
Fenders And Battery Box
Installation – Front
Fender Installation – Rear
Fuel Tank Installation
Reservoir Installation –
Hydraulic
Filter Assembly – Oil
Lights And Horn
Installation – Exterior
Air System Schematic
Reservoir Installation –
Power Steering
Reservoir Assembly –
Power Steering
Support Installation –
Tube
Support Installation –
Tube
Hydraulic Lines Installation –
Supply, Pressure And Return
Support Installation –
Tube
Mud Guard Installation
Ladder Installation –
Access
Ladder Installation –
Jib Access
Alarm Installation –
Back-Up
Engine Installation – Gmc
6-71n
Valve Assembly – Relay
Tachometer Generator
Assembly
Valve Assembly –
Flow Divider
Controller Assembly –
Slave Unit
Jacobs Engine Brake Kit
Jacobs Engine Brake Kit
Belt & Filter Gmc, 6-71n
Quick Start Installation
Radiator And Oil Cooler
Installation
Shift Installation – Transmission
(Not Available As Assembly)
Master Control Unit
Assembly
Pump And Manifold
Installation
Pump Assembly – 2 Section
Drive Assembly – Pump
Drive Line Assembly
Hood Installation – Engine
Brake Controls
Installation – Engine
Master And Slave Cylinder
Installation – Clutch
Cylinder Assembly – Master
Electrical System
Installation – Carrier
Panel Assembly –
Fuse And Connector
Harness Assembly –
P.C. Board Carrier
Exhaust System
Installation
Cleaner Installation – Air
Cleaner Assembly – Air
(Complete Assembly)
Battery Installation
Carrier/Frame Cab
Acoustical Installation
(Carrier Cab)
Cab Installation
Cab Weldment And Assembly
Door Assembly
Door Assembly
Heater Assembly –
Hot Water
Steering Column Assembly
Valve Assembly – Dual Brake
Wiper Installation –
Windshield
Washer Installation –
Windshield
(Not Available As Assembly)
Seat And Seat Belt
Installation
(Not Available As Assembly)
Seat Assembly – Drivers
Shock
Instruments And Lights
Installation
Harness Assembly –
Instruments And Lights
Mirror Installation –
Rear View
Mirror Head And Loop
Assembly – Stainless Steel
Stabilizer Installation –
Cab
Fan Installation – Cab
Circulating
Fan Assembly – 12 Volt Cab
(Complete Assembly)
Throttle Pedal
Installation
Accelerator Pedal Assy
Accelerator Pedal Design “B”
Accelerator Pedal Design “A”
Decals
Decal Installation
| Specification | Details |
|---|---|
| Size | 6.23 MB |
| Format | |
| Language | English |
| Brand | Grove |
| Type of Machine | Crane |
| Type of Manual | Parts Manual |
| Model | Grove TMS300B Crane |
| Serial Number | 70442 |
| Publication Date | 2021 |
| Number of Pages | 957 Pages |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
Download Information
: File Format - PDF (Portable Document Format)
: Manual Images - (High-Quality PDF)
: Printable - Entire Manual
: Compatible - All versions of Windows, ios, android
: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics
: Download - You will receive the PDF manual in your email after the purchase
Order confirmation will be sent to the contact information you provided, and all updates will be delivered promptly.
If you encounter any issues, our dedicated support team is here to assist you. Please contact us at Support@themanualsgroup.com, and a team member will provide real-time updates and address any related queries promptly.
In the event that an incorrect item is purchased by mistake and you identify the correct item you require, we will exchange it for the appropriate item, on the condition that the replacement item is of equal value to the original purchase.
- Choosing a selection results in a full page refresh.
- Press the space key then arrow keys to make a selection.
- Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
