Grove Crane TMS640 87891 Parts Manual 2005 PDF
-
Discount
- Regular price $60.00
- Description
- Download Information
Description
Download Grove Crane TMS640 87891 Parts Manual 2005 PDF (English)
Download the Grove Crane TMS640 87891 Parts Manual 2005 PDF for complete OEM parts listings, exploded diagrams, and precise component identification. This manual provides detailed part numbers, structural layouts, hydraulic and electrical system references, and step-by-step assembly guidance for efficient maintenance and repair. Ideal for technicians, operators, and service workshops, it helps ensure correct replacement parts selection, reduce downtime, and support safe, reliable crane performance in field and workshop environments. www.themanualsgroup.com
MODEL COVERED :
Grove TMS640 Crane
CONTENTS INCLUDED :

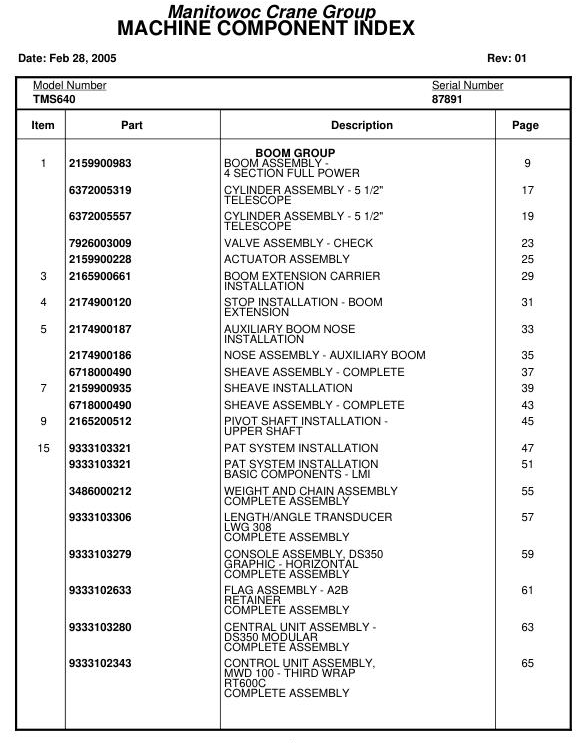

Boom Group
Boom Assembly –
4 Section Full Power
Cylinder Assembly – 5 1/2″
Telescope
Cylinder Assembly – 5 1/2″
Telescope
Valve Assembly – Check
Actuator Assembly
Boom Extension Carrier
Installation
Stop Installation – Boom
Extension
Auxiliary Boom Nose
Installation
Nose Assembly – Auxiliary Boom
Sheave Assembly – Complete
Sheave Installation
Sheave Assembly – Complete
Pivot Shaft Installation –
Upper Shaft
Pat System Installation
Pat System Installation
Basic Components – Lmi
Weight And Chain Assembly
Complete Assembly
Length/Angle Transducer
Lwg 308
Complete Assembly
Console Assembly, Ds350
Graphic – Horizontal
Complete Assembly
Flag Assembly – A2b
Retainer
Complete Assembly
Central Unit Assembly –
Ds350 Modular
Complete Assembly
Control Unit Assembly,
Mwd 100 – Third Wrap
Rt600c
Complete Assembly
Pat System Installation
Central Unit Assembly, Ds350g
Modular
Pat System Installation
Length/Angle Transducer,
Lwg308
Pat System Installation
Slip Ring Assembly – 2
Conductor
Pat System Installation
Console Assembly – Graphic
Pat System Installation
Internal Lightbar Kit
Pat System Installation
Pressure Transducer
Mounting – Lmi
Pat System Installation
25’-43’ Tele Offset
Swingaway – Lmi
Weight And Chain Assembly
Complete Assembly
Pat System Installation
25’-43’ Tele Offset
Swingaway – Lmi
Weight And Chain Assembly
Complete Assembly
Pat System Installation
32’ Swingaway – Lmi
Weight And Chain Assembly
Complete Assembly
Pat System Installation
Pin On Stub Nose / Boom
Ext. Fly Installation
Pat System Installation
Auxiliary Boom Nose – Lmi
Weight And Chain Assembly
Complete Assembly
Pat System Installation
Cable Assembly, Jumper
7’
Pat System Installation
Flag Assembly – A2b Retainer
Pat System Installation
Anti 2 Block Weight Assembly
Pat System Installation
Minimum
Wrap Kit – Main Hoist
Minimum Wrap Device
Control Unit Assembly,
Mwd 100 – Third Wrap
Rt600c
Complete Assembly
Pat System Installation
Sensor, Minimum Wrap W/Notch
Pat System Installation
Control Unit Assembly – Mwd100
Pat System Installation
Minimum
Wrap Kit – Auxiliary Hoist
Minimum Wrap Device
Pat System Installation
Sensor, Minimum Wrap W/Notch
Pat System Installation
Decal – Lmi
Pat System Installation
Wiring Diagrams
Hydraulic Lines
Installation – Telescope
Cab Group
Electrical System
Installation-S/S
Harness Assembly – S/S
Valve Cover Installation
Cab Installation
Cab Assembly
Cab Section
Door Assembly – Cab
Window Assembly
Pedal Assembly – Air Throttle
Air Lines Installation –
Cab
Console Installation –
Front
Console Assembly
Harness Installation –
Front Console
Harness Assembly –
Front Console
Air Lines Installation
Wiper Installation – Skylight
Window Assembly – Skylight
Bottom Cover Installation
Pedal And Valve
Installation – Telescope
Valve Assembly – Control
Acoustical Installation
Pedal Installation –
Swing Brake
Seat Installation – Single
Axis Control
Seat Assembly – Single
Axis Control
Controller Assembly –
Single Axis
Harness Assembly –
Seat Switches
Controller Assembly –
Single Axis
Windshield Washer
Installation
Fan Installation – Cab
Circulating
Fan Assembly – 12 Volt Cab
Complete Assembly
Fire Extinguisher
Installation
Mat Installation – Floor
Handle Installation – Control
Heater And Defroster
Installation
Heater Assembly – Propane
Heater Assembly – Propane
Circuit Board Assembly
Heater Assembly – Propane
Fuel And Ignition Systems
Heater Assembly – Propane
Remote Control Parts
Heater Assembly – Propane
Control Panel Parts
Heater Assembly – Propane
Motor And Blower Parts
Heater Assembly – Propane
Case And Exchanger Parts
Heater Assembly – Propane
Regulator And Exhaust Parts
Propane Tank And Exhaust
Installation
Kit, Tank Mounting
System Installation –
Electrical
Harness Assembly –
Cab Rear
Control Valve Group
Valve Installation –
Control
Valve Bank Assembly –
2 Section
Valve Bank Assembly –
2 Section
Valve Assembly – 1 Section
Valve Assembly –
Control
Valve Assembly – Sequence
Valve Assembly –
Pressure Reducing
Valve Assembly – 5 Station
Solenoid
Hydraulic Lines Installation –
Counterweight Removal
Hydraulic Lines Installation –
Supply, Pressure And Return
(Superstructure)
Valve Assembly
Valve Assembly – Residual
Check
Hydraulic Lines Installation –
Main And Auxliary Hoist
Hydraulic Lines
Installation
Hoist Group
Hoist Installation – Main And
Auxiliary
(Ho30d-16g)
Hoist Assembly – Ho30d – 16g
Hoist Assembly – Ho30d – 16g
Group Assembly – Right Hand
Group Assembly – Left Hand
Group Assembly – Center
Drum Assy
Motor Assembly – Hydraulic Vane Type
Complete Assembly
Brake Assembly
Valves And Plumbing
Installation
Valve Assembly – Control
Cable Follower And Idler
Drum Assembly
Kicker Bar Installation
Hoist Assembly – Ho30d – 16g
Hoist Assembly – Ho30d – 16g
Group Assembly – Right Hand
Group Assembly – Left Hand
Group Assembly – Center
Drum Assy
Motor Assembly – Hydraulic Vane Type
Complete Assembly
Brake Assembly
Valves And Plumbing
Installation
Valve Assembly – Control
Cable Follower And Idler
Drum Assembly
Kicker Bar Installation
Sensor Installation –
Hoist Rotation
Rotation Sensor Assembly
Harness Assembly –
Rotation Sensor
Sensor Installation –
Hoist Rotation
Rotation Sensor Assembly
Harness Assembly –
Rotation Sensor
Mirror Installation – Hoist
– Main & Auxiliary
Hydraulic Lines
Installation
Turntable Group
Turntable Bearing And
Drive Installation
Box Assembly – Swing
Complete
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Lock Assembly – Swing
Lower Shaft And Lift
Cylinder Installation
Cylinder Assembly – 10.00’’
Lift
Swivel Installation –
Electric/Hydraulic
Swivel Assembly – Electric
/ Air And Hydraulic
Swivel Assembly – 10 Port
Ring Assembly – Slip
Bearing Bolt Installation
Lock Pin Installation –
Turntable
Positive Swing Lock
Installation
Lever Installation –
Positive Swing Lock
Cooler Installation – Oil
Hydraulic
Motor Assembly
Cooler Assembly – Oil
Oil Cooler Cover
Installation
Air Lines Installation
Lubrication Installation –
Turntable Bearing
Stowage Installation –
Remote Counterweight
Switch
Box Assembly – Cwt
Removal Switch
Control Assembly
Hydraulic Lines
Installation
Hydraulic Lines
Installation – Lift
Engine Group
Hood Installation – Engine
Weatherstrip Installation
– Engine Hood
Drive Train Group
Drive Line Installation
Drive Line Assembly
Drive Line Assembly
Drive Line Assembly
Transmission Shift
Installation
Control Assembly – Master
Unit
Axle Group
Axle/Steering Installation
– Front
Link Assembly – Drag
Link Assembly – Drag
Link Assembly – Drag
Gear Assembly – Power
Steering
Shaft Assembly – Double
U-Joint
Arm Assembly – Torque
Torque Arm Assembly
Axle Assembly
Axle Assembly
Axle And Wheel End Parts
Axle Assembly
Brake Parts – Left Hand
Axle Assembly
Brake Parts – Right Hand
Axle Assembly
Air Brake Chamber
Axle Assembly
Air Brake Chamber
Wheel And Drum Assembly
Hub Cap Assembly
Cylinder Assembly – 2″
Steer
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Wheel And Drum Assembly
Hub Cap Assembly
Cylinder Assembly – 2″
Steer
Axle Installation – Rear
Axle Assembly
Axle Assembly
Differential Carrier Assembly
Axle Assembly
Housing Parts
Axle Assembly
Brake Parts
Axle Assembly
Brake Parts
Axle Assembly
Axle Assembly
Differential Carrier Parts
Axle Assembly
Wheel End Assembly
Axle Assembly
Brake Assembly
Axle Assembly
Brake Parts
Beam Assembly – Equalizer
Drive Line Assembly
Wheel And Drum Assembly
Axle Bearing – Rear
Adapter Assembly
Air Lines Installation –
Rear Axle
Axle Assembly – Rear
Rt46-160
Axle Assembly – Front Rear
Axle Assembly – Front Rear
Differential Carrier
Axle Assembly – Front Rear
Housing Parts
Axle Assembly – Front Rear
Brake Parts – Left Hand
Axle Assembly – Front Rear
Brake Chamber Assembly
Axle Assembly – Front Rear
Brake Parts – Right Hand
Axle Assembly – Front Rear
Brake Chamber Assembly
Axle Assembly
Axle Assembly
Differential Carrier Parts
Axle Assembly
Wheel End Assembly
Axle Assembly
Brake Assembly
Axle Assembly
Brake Parts
Beam Assembly – Equalizer
Drive Line Assembly
Wheel And Drum Assembly
Axle Bearing – Rear
Adapter Assembly
Air Lines Installation –
Rear Axle
Tire And Wheel Assembly
Tire And Wheel Assembly
Valve Extension
Installation – Tire
Hydraulic Lines Installation –
Power Steering
Outrigger Group
Cylinder Installation –
Fifth Outrigger Jack
Cylinder Assembly –
4.50’’ Jack
Beam Installation –
Outrigger
Beam Assembly – Outrigger
Cylinder Assembly –
4.50’’ Jack
Cylinder Assembly – 2 1/2″
Outrigger Extension
Stowage Installation –
Outrigger Float
Float Assembly – Outrigger
Valve Installation –
Outrigger Control
Valve Assembly – 5 Stack
Valve Assembly – 4 Stack
Outrigger Solenoid
Valve Assembly – Integrated Outrigger/
Valve Assembly – Relief
Hydraulic Lines Installation –
Outrigger
Control Box Installation –
Outrigger Remote
Control Box Assembly
Cable Assembly – Remote
Outrigger
Frame Group
Decal Installation – Tms640
Decal Installation –
Tms640
Decal Installation – English
Lmi
Frame Section
Stud Installation – Weld
Fenders And Decking
Installation
Fender Assembly –
Left Front
Fender Assembly –
Right Front
Fender Assembly –
Left Rear
Fender Assembly –
Right Rear
Tray Assembly – Front
Sling Box Installation
Sling Box Assembly
Fuel Tank And Ladder
Installation
Tank Assembly – 90 Gallon Fuel
Battery Installation
Exterior Lights And Horn
Installation
Light Assembly –
Turnsignal And Marker
Light Assembly –
Turnsignal And Marker
Light Assembly – Left Rear
Light Assembly – Right
Rear
Light Assembly –
Identification
Alarm Installation –
Back-Up
Mirror Installation –
Rear View
Head And Loop Assembly –
Mirror
Rest Installation – Boom
Air Tank And Valve
Installation
Air Dryer Assembly – 12 Volt
Valve Assembly –
Spring Brake
Tire Inflation Kit
Installation
Tire Inflation Kit
Electrical System
Installation
Harness Assembly – Carrier
Hydraulic
Reservoir Installation –
Reservoir Assembly – Hydraulic
Cover Assembly – 16 1/4″ Inspection
Inspection
Filter Assembly
Support Installation –
Plumbing And Tube
Not Available As Assembly
Hydraulic Lines Installation –
Supply, Pressure And Return
Cab Carrier Group
Cab Installation
Cab Assembly
Cab Section
Door Assembly
Ventilator Assembly
Complete Assembly
Plenum Assembly – Heater
Column Assembly – Steering
Column Assembly – Steering
Valve Assembly – Dual Brake
Pedal Assembly – Air Throttle
Light Assembly – Dome
Wheel Assembly – Steering
Seat Assembly
Fan Assembly – 12 Volt Cab
Complete Assembly
Air Lines Installation –
Cab
Console Installation –
Front
Front Console Assembly-
Carrier
Harness Installation –
Carrier Console
Harness Assembly – Carrier
Console
Air Lines Installation –
Console
Fire Extinguisher
Installation
Acoustical Installation
Mat Installation – Floor
Air Lines Installation –
Carrier
Electrical System
Installation
Harness Assembly – Cab
Engine Carrier Group
Engine Installation –
For Reference Only
Engine Assembly – Cummins
6cta8.3
Transmission Assembly
Transmission Assembly
Air System
Transmission Assembly
Main Housing Assembly
Transmission Assembly
Yokes And Bars Assembly
Transmission Assembly
Mainshaft – Countershaft
Transmission Assembly
Main Drive, Idle, Bearing
Assembly
Transmission Assembly
Cylinder Assembly
Transmission Assembly
Auxiliary Assembly
Pump Assembly – Steer
Slave Unit Assembly
Slave Unit Assembly
Slave Unit Assembly
Cylinder Assembly – Throttle
Filter Assembly – Fuel
Harness Installation – Engine
Harness Assembly – Engine
Clutch Installation
Clutch Assembly
Clutch Release Assembly
Engine Components
Radiator And Oil Cooler
Installation
Radiator And Charge Air
Cooler Assembly
Pump And Manifold
Installation
Pump Assembly
Pump Assembly
Drive Assembly – Pump
Drive Line Assembly
Clutch Control Rod
Installation
Cleaner Installation – Air
Cleaner Assembly – Air
Complete Assembly
Exhaust System
Installation
Quick Start Installation
| Field | Details |
|---|---|
| Document Type | Parts Manual |
| Brand | Grove |
| Machine Type | Crane |
| Model | Grove TMS640 Crane |
| Serial Number | 87891 |
| Publication Date | 2005 |
| Language | English |
| Format | |
| Number of Pages | 1287 pages |
| File Size | 11.59 MB |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
Download Information
: File Format - PDF (Portable Document Format)
: Manual Images - (High-Quality PDF)
: Printable - Entire Manual
: Compatible - All versions of Windows, ios, android
: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics
: Download - You will receive the PDF manual in your email after the purchase
Order confirmation will be sent to the contact information you provided, and all updates will be delivered promptly.
If you encounter any issues, our dedicated support team is here to assist you. Please contact us at Support@themanualsgroup.com, and a team member will provide real-time updates and address any related queries promptly.
In the event that an incorrect item is purchased by mistake and you identify the correct item you require, we will exchange it for the appropriate item, on the condition that the replacement item is of equal value to the original purchase.
- Choosing a selection results in a full page refresh.
- Press the space key then arrow keys to make a selection.
- Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
