Download Grove Crane TMS875B 84738 Parts Manual 2005 PDF (English)

Grove Crane TMS875B 84738 Parts Manual 2005 PDF provides complete OEM parts information, including detailed exploded diagrams, system layouts, and accurate part numbers for maintenance and repair. This manual is essential for technicians, operators, and service engineers working on Grove TMS875B cranes. It supports troubleshooting, correct component identification, and efficient servicing to reduce downtime and improve safety. Ideal for workshop and field use, this PDF ensures reliable crane performance through proper maintenance planning and precise technical guidance for all major crane systems. www.themanualsgroup.com

MODEL COVERED :
Grove TMS875B Crane

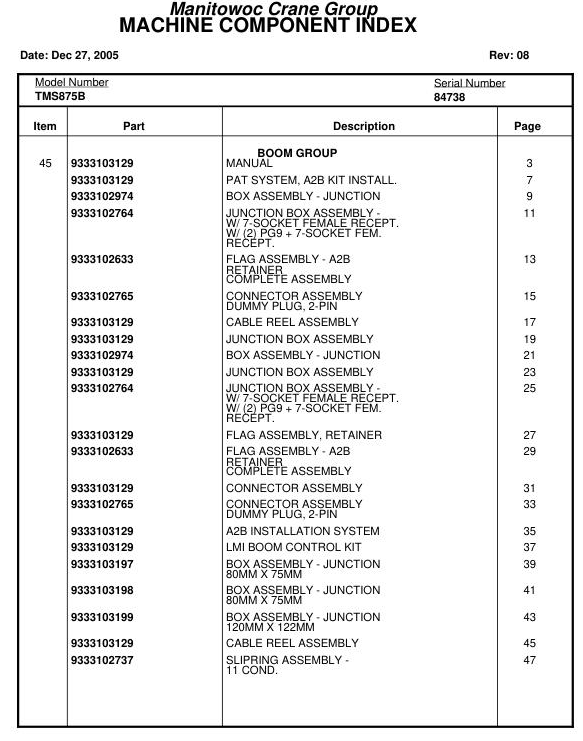

CONTENTS INCLUDED :
Manual
Pat System, A2b Kit Install.
Box Assembly – Junction
Junction Box Assembly – W/ 7-Socket Female Recept.
Flag Assembly – A2b Retainer
Connector Assembly Dummy Plug, 2-Pin
Cable Reel Assembly
Junction Box Assembly
Flag Assembly, Retainer
Connector Assembly
A2b Installation System
Lmi Boom Control Kit
Box Assembly – Junction 80mm X 75mm
Box Assembly – Junction 120mm X 122mm
Slipring Assembly – 11 Cond.
Junction Box Assy.
Lmi Boom Control Kit Install.
Lightbar Installation – Lmi
Lightbar Install. Lmi-External
Lightbar, External
Lightbar Driver Assembly (External)
External Lightbar Installation
Lightbar – External
Lightbar Driver Assy.
Lmi System Kit – Boom Control
Central Unit, Boom Control System
Console Assembly – Vertical, Graphic
Cable Assy, 10 X 0.5 Ss X 11’ W/ 14 Pin Plug
Cable Assembly
Cable Assy, 10 X .5 Ss X 1 4’ W/ 14 Soc.
Central Unit – Ds350 Control
Console Assy. – Graphic
Cable Assemby
Lmi System Kit W/Data Logger
Central Unit – Ds350 Boom Cont
Console Assembly Graphic
Lmi System Kit, Installation
Decal Installation
Aux. Boom Nose Kit
Junction Box Assembly – 80mm X 75mm, Pg9 + 2-Pin
Aux Boom Nose / Boom Ext. Nose Kit, Rt865bxl
Boom Extension Base Kit
Junction Box Assembly – Pg11 & 2-Pin Recept.
Junction Box Assemby
Boom Extension Kit
Auxiliary Boom Nose Install.
Cable Connector Lmi
Weight Assembly – A2b
Boom Assembly – Five Section
Cylinder Assembly – 6.00’’ Telescope
Cylinder Assembly – 5 1/2″ Telescope
Valve Assembly – 2 Way
Sheave Installation
Sheave Assembly
Fold Boom Installation
Boom Assembly – Fold Jib Boom
Fly Assembly – Jib Boom Extension
Mast Assembly
Pin Assembly – Boom Extension
Alignment Device Installation
Carrier Installation – Boom Extension
Stop Installation – Boom Extension
Nose Installation – Auxiliary Boom
Nose Assembly – Auxiliary Boom
Remote Grease Installation
Kit Installation
A2b System Kit Installation
Lmi Boom Control Kit Installation
Kit Installation – Boom Extension Base
Electrical System Installation
Harness Assembly – Superstructure
Kit Installation – Lmi System
Lines Installation – Heater – Superstructure
Cab Installation
Cab Assembly
Cab Section
Window Assembly – Rear Complete Assembly
Window Assembly – Right Hand
Skylight Assembly – Sliding
Motor Assembly – Wiper 24 Volt
Control Assembly – Electronic Throttle
Door Assembly
Harness Assembly – Wiper
Instruments And Lights Installation
Panel Assembly – Switch
Harness Installation – Switch Panel
Harness Assembly – Switch Panel
Panel Assembly – Front Console
Gauge Cluster – 24v
Potentiometer – Modified
Harness Installation – Front Console
Harness Assembly – Front Console Complete Assembly
Harness Assembly – Front Console
Windshield Washer Installation
Control Handle And Auxiliary Rotation Installation
Extinguisher Installation – Fire
Fan Installation – Cab Circulating
Fan Assembly – 24 Volt Cab Complete Assembly
Lever Installation
Pedal Assembly – Foot
Acoustical Installation
Control Seat Installation
Seat Assembly – Dual Axis Control Control
Valve Assembly – Joy Stick Complete Assembly
Harness Assembly – Left Hand Seat Arm
Harness Assembly – Right Hand Armrest Complete Assembly
Sk970809
Armrest Assembly – Modified
Pedal Installation – Swing Brake
Control Assembly – Hydraulic Throttle
Wiper/Washer Installation – Skylight
Heater Installation – Hot Water
Heater Assembly – Hot Water
Work Light Installation – Stationary
Light Assembly – Work
Screen Installation – Sun
Bottom Cover Installation
Pedal Installation – Boom/Telescope
Single Function Rocker Pedal
Mat Installation – Floor
Harness Assembly – Superstructure Cab
Panel Assembly-Power
Harness Assembly – Power
Relay Assembly
Cable Assembly – Foot Pedal
Controller Installation – Outrigger
Controller Assembly – Outrigger Hand
Load Chart Manual Installation
Valve Installation – Hydraulic
Valve Assembly – Two Section
Valve Assembly – 5 Section Control
Hydraulic Lines Installation
Hydraulic Lines Installation – Supply, Pressure And Return
Valve Assembly – Residual Check
Valve Assembly – Thermal Cooler Control
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Hoist
Hydraulic Lines Installation – Telescope
Hydraulic Lines
Hoist Installation – Main And Auxiliary
Hoist Assembly
Motor Assembly – Hydraulic Vane Type Complete Assembly
Brake Assembly
Valves And Plumbing Installation – Hoist
Valve Assembly – Hoist Control
Follower Assembly – Cable
Mirror Installation – Hoist
Indicator Installation – Hoist Rotation
Rotation Indicator Assembly
Turntable Bearing And Drive Installation
Box Assembly – Swing
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Hydraulic
Turntable Section
Weld Stud Installation – Turntable
Lubrication Installation – Turntable Bearing
Cylinder Installation – 12’’ Lift
Cylinder Assembly – 12″ Lift
Valve Assembly – Holding Complete Assembly
Cover Installation – Control Valve
Cover Assembly – Valve
Door Assembly – Rear
Door Assembly – Front
Lock Installation – Swing – 360 Degree
Pin Installation – Turntable Lock
Swivel Installation – Electric/Water/Hydraulic
Swivel Assembly – Electric/Water/Hydraulic
Swivel Assembly – 8 Port Hydraulic
Swivel Assembly – 2 Port Water
Slip Ring Assembly – 35 Conductor
Bearing Bolt Installation
Cooler Installation – Hydraulic Oil
Cooler Assembly – Oil Complete Assembly
Cover Installation
Pivot Shaft Installation
Drive Line Installation – Eaton Axles
Drive Line Assembly
Cooler Installation – Transmission Oil
Mounting Kit – Oil Cooler
Front Axle And Steering Installation
Axle Assembly – Front-Front
Axle Assembly – Front
Arm Assembly – Torque
Axle Assembly – Rear Front
Gear Assembly – Power Steering
Link Assembly – Drag
Cylinder Assembly – 2″ Steer
Axle Installation – Rear
Axle Assembly – Rear
Axle Assembly – Front Rear ( W/Inter Axle Diff Lock )
Axle Assembly – Rear Rear
Axle Assembly – Rear Rear Differential Carrier
Axle Assembly – Rear Rear Axle Housing And Shaft
Axle Assembly – Rear Rear Brake Assembly – Left Hand
Axle Assembly – Rear Rear Brake Assembly – Right Hand
Axle Assembly – Rear Rear Brake Chamber Assembly
Beam Assembly – Equalizer
Loose Hardware
Hub And Drum Assembly – Rear
Loose Shipping Group Assembly
Kit – Air Shift Unit
Tire And Wheel Installation
Tire And Wheel Assembly – Bridgestone 445/65r 22.5
Tire And Wheel Installation – Aluminum
Tire And Wheel Assembly
Air Lines Installation – Axle Differential Lock
Stowage Installation – Outrigger Float
Jack Installation – Fifth Outrigger
Cylinder Assembly-3 1/2″ Outrigger Jack Complete Assembly
Float Assembly – Outrigger
Control Box Installation – Outrigger
Control Box Assembly – Outrigger
Cable Assembly – Left Hand Outrigger Control
Cable Assembly – Right Hand Outrigger Control
Hydraulic Lines Installation – Outrigger
Decal Installation – Tms870/Tts870
Frame Section
Fender And Decking Installation
Fender Assembly – Right Hand Center
Fender Assembly – Left Hand Front
Mud Flap Installation
Box Installation – Sling
Box Assembly – Sling
Rest Installation – Boom
Access Ladder Installation
Exterior Lights And Horn Installation – Carrier
Harness Installation – Light Bracket
Harness Assembly – Light Bracket
Back-Up Alarm Installation
Alarm Installation – Back-Up
Air Tank And Valve Installation
Dryer Assembly – Air (24 Volt)
Valve Assembly – Spring Brake
Valve Assembly – Supply Dump
Hydraulic Tank Installation
Reservoir Assembly – Hydraulic
Filter Assembly
Cover Assembly – Inspection Manhole
Hydraulic Valve Installation – Carrier
Valve Assembly – Outrigger / Rear Steer
Valve Assembly – Flow Divider
Fuel Tank Installation
Harness Assembly – Carrier
Tire Inflation Kit
Air Lines Installation – Carrier
Air Lines Installation – Trailing Boom
Stowage Installation – Headache Ball
Hook Installation – Pintle
Hook Assembly – Pintle Complete Assembly
Mirror Installation – Rear View
Head And Loop Assembly – Mirror
Converter Installation – 24v – 12v
Console Installation – Front
Console Assembly – Carrier Front
Acoustical Installation – Carrier Cab
Air Horn Installation
Air Lines Installation – Air Horn
Window Installation – Electric Power
Lift Assembly – Electric
Air Line Installation – Console
Air Line Installation – Cab
System Installation – Electrical
Harness Assembly – Carrier Cab
Relay Panel Assembly
Harness Assembly – Relay Panel
Mat Installation – Carrier Cab Floor
Seat And Seat Belt Installation
Seat Assembly
Heater And Defroster Installation
Heater Assembly
Differential Valve And Light Installation
Engine Brake Switches Installation
Cover Installation – Bottom
Light Installation – Interior Dome
Light Assembly – Dome Complete Assembly
Hood Installation – Engine
Hood Assembly – Engine
Weatherstrip Installation – Engine Hood
Battery Box Installation
Hydraulic Lines Installation – Steer
Engine Installation – For Reference Only
Engine Assembly – Cummins M11 400e
Transmission Assembly
Transmission Assembly Valve Assembly
Transmission Assembly Hoses And Connections
Transmission Assembly Slave Valve
Transmission Assembly Air Filter/Regulator
Transmission Assembly Shift Bar Housing
Transmission Assembly Case Assembly
Transmission Assembly Mainshaft Assembly
Transmission Assembly Countershaft Assembly
Transmission Assembly Input Shaft And Drive Gear
Transmission Assembly Integral Pump
Transmission Assembly Reverse Idler
Transmission Assembly Auxiliary Case Assembly
Transmission Assembly Mainshaft
Transmission Assembly Countershaft
Transmission Assembly Auxiliary Drive Gear
Transmission Assembly Range Cylinder
Slave Unit Assembly Complete Assembly
Slave Unit Assembly
Pump Installation
Pump Assembly – Gear
Drive Assembly – Pump ( With Disconnect )
Drive Line Assembly Complete Assembly
Fan Drive Installation
Clutch Installation Not Available As Assembly
Clutch Release Assembly
Harness Assembly – Engine
Harness Assembly – Select Power
Harness Assembly – Cummins Select
Harness Assembly – Oem Chassis
Harness Assembly – Coolant Level Switch
Pump Assembly – 2 Section Gear With Priority Flow Divider Set
Engine Components
Solenoid Assembly – Modified Fan Clutch
Quick Start Installation
Exhaust Installation – Air Cleaner And
Cleaner Assembly – Air
Transmission Shift Installation
Master Control Unit Modification
Cooler Installation – Radiator/Charge Air
Cooler Assembly – Radiator/Charge Air
Battery Installation
Rod Installation – Clutch
Alphabetical Index
Recommended Spare Parts List
Belt And Filter Maintenance List
Foot Note Index
