MODEL COVERED :
Grove YB7725 Crane

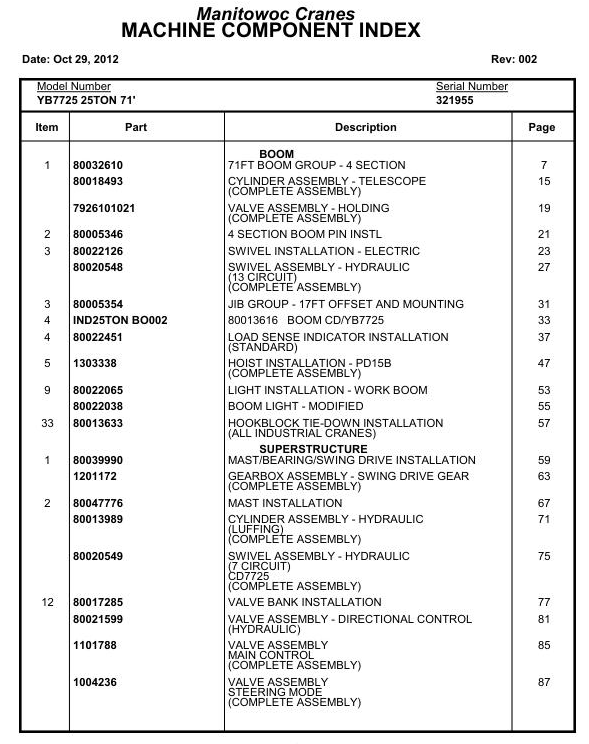

CONTENTS INCLUDED :
Boom
71ft Boom Group – 4 Section
Cylinder Assembly – Telescope
(Complete Assembly)
Valve Assembly – Holding
(Complete Assembly)
4 Section Boom Pin Instl
Swivel Installation – Electric
Swivel Assembly – Hydraulic
(13 Circuit)
(Complete Assembly)
Jib Group – 17ft Offset And Mounting
80013616 Boom Cd/Yb7725
Load Sense Indicator Installation
(Standard)
Hoist Installation – Pd15b
(Complete Assembly)
Light Installation – Work Boom
Boom Light – Modified
Hookblock Tie-Down Installation
(All Industrial Cranes)
Superstructure
Mast/Bearing/Swing Drive Installation
Gearbox Assembly – Swing Drive Gear
(Complete Assembly)
Mast Installation
Cylinder Assembly – Hydraulic
(Luffing)
(Complete Assembly)
Swivel Assembly – Hydraulic
(7 Circuit)
Cd7725
(Complete Assembly)
Valve Bank Installation
Valve Assembly – Directional Control
(Hydraulic)
Valve Assembly
Main Control
(Complete Assembly)
Valve Assembly
Steering Mode
(Complete Assembly)
Valve Assembly – Distribution
Valve Bank Plumbing
Hydraulic Swivel Hook Up(7725)
Valve And Plumbing Group – Outrigger
Valve Assembly – 5 Section Control
(Complete Assembly)
Valve Assembly – Outrigger Control
4 Section
(Complete Assembly)
Lowerworks/Carrier
Axle Installation – Front
With Orf Fittings
Axle Assembly – Drive/Steer
Front And Rear
Hub And Components Group
Differential Group
Crown Wheel And Pinion Group
Steering Cylinder Group
Steering Knuckle Group
Brake Group
Crown Wheel And Pinion Group
Seat Installation – Adjustable
Seat Assembly – Adjustable Suspension
(Complete Assembly)
Rear Axle Installation W/Orfs Ftgs
Axle Assembly – Drive/Steer
Front And Rear
Hub And Components Group
Differential Group
Crown Wheel And Pinion Group
Steering Cylinder Group
Steering Knuckle Group
Brake Group
Crown Wheel And Pinion Group
Fire Extinguisher Assembly
Decking Installation
Harness Installation – Mast
(For Reference Only)
Harness Assembly – Boom
(Complete Assembly)
Heater/Defroster Group
Heater Assembly
(Complete Assembly)
Engine Hood Installation
Door Assembly
Light Group – Strobe Encl Cab
Mirror Installation
Hoist Cover Install – Standard 25ton
Light Installation – Dome
Fuel Tank Installation
Windshield Washer Installation
Tire And Axle Mounting Group
Driveline Installation
Shaft Assembly – Drive Long
Shaft Assembly – Drive Short
Plumbing Installation – Brake
Plumbing Install – Steering
Axle Lockout Installation
Cylinder Assembly
Axle Lockout
(Complete Assembly)
Operator’s Compartment Electrical
With Outrigger Monitor
Out & Down Outrigger Install
Cylinder Assembly – Vertical Outrigger
(Complete Assembly)
Kit, Seal – Head Assy.
Kit, Seal – Piston Assy.
Cylinder Assembly – Horizontal Outrigger
(Complete Assembly)
Hydraulic Reservoir Install
Hydraulic Reservoir Assembly
Switch Group – Option
(Wiper/Washer)
Hydraulic Filter&Return Man Installation
Filter Assembly – Hydraulic
(Complete Assembly)
Switch Group – Option
(Defroster)
Pump Suction Line Installation
Switch Group – Option
(Heater)
Harness Installation – Cab
Harness Assembly – Cab
(Complete Assembly)
Electrical System Installation – Carrier
Ind 25ton
Harness Assembly – Carrier
Ind 25ton
Harness Assembly – Maf Qsb45
Battery Box Installation
Battery Box Assembly
Panel Assembly
Harness Assembly – Battery Box
Fuse Relay Panel
Harness Assembly – Battery Box
Fuse Relay Panel
Alarm Group – Outrigger Motion
Engine Installation-Qsb-4.5 T4
Engine Assembly – Qsb 4.5 T4
Engine Rework – Cummins Qsb4.5
Cummins Qsb4.5 Tier 4
Transmission Assembly – Powershift
4 Speed
(Complete Assembly)
Converter Housing Group
Case And Rear Cover Group
Turbine Shaft Group
Drive Plate Group
Torque Converter Group
Gear Group
Auxiliary Pump Drive Group
Pump Drive Group
Forward Shaft Group
Reverse Idler Group
High Idler Group
Reverse And 2nd Shaft Group
Low Speed Shaft Group
4th-High And 3rd Shaft Group
Idler Shaft Group
Output Shaft Group
Charging Pump Group
Disc Brake Group
Caliber Parking Brake Group
Caliber Parking Brake Group
Control Valve Mounting Group
Control Valve Assy. Group
Filter Assy. Trans. Group
Pump Assembly – Piston
(Clockwise Rotation)
Gear Pump Assembly – 25cc
Hydraulic Lines Installation – Engine
Transmission Lines Plumbing
Electric System Installation – Engine T4
Harness Assembly – Engine
Ind7725
Breather Installation – Engine
Breather Installation – Engine
Radiator/Cac/Toc Installation
Radiator/Cac/Toc Assembly
Radiator/Cac/Toc Assembly
Surge Tank Assembly
Air Intake Installation (T4)
Air Cleaner Assembly
Exhaust System Installation
Wheel And Tire Group – Bias
(For Reference Only)
Tire & Wheel, 17.5-25 Tubeless
Outrigger Monitoring System Installation
Proximity Switch
Proximity Switch Assembly – 30mm
Pintle Hitch Installation – Front
Hook Assembly – Pintle
Pintle Hitch Installation – Rear
Hook Assembly – Pintle
Guard Installation – Light
Block Heater Installation
Cover Plate Installation
Cab Heater Lines Installation
Carrier/Frame Cab
Full Cab Assembly
Dash Base Assembly
Harness Assembly – Dash
Control Assembly –
Electronic Throttle
Pedal Assembly – Brake Modulating
(Complete Assembly)
Wheel Assembly – Steering
(Complete Assembly)
Controller Assembly – Single Axis
(Complete Assembly)
Cab Assembly – Enclosed
Door Strap Installation
Door Installation – Split W/ Strobe
Cab Split Door Assembly With Cup Holder
Window Assembly – Half Door
Loose Ship Items
Downhaul Weight Assembly – 105lbs
Socket Assembly – 5/8″ Wedge
(Complete Assembly)
Hookblock Assembly –
25ton, 5/8 Rope, 450#, 4pt
80013617 Looseship Cd/Yb7725
Specs/Schematics
Elect Schem Ind7725
Kit – Decals Universal
(English)
(For Reference Only)
Decal Installation – 7755
Decal Installation – 7755
Hydraulic Schematic
80042845 Spec Yb7725/Cd7725
Decals
Miscellaneous Decals
Decal Installation – Yb7725
(Nomenclature)
Decal – Load Rating And Range Diagram
Yb7725
(English)
