Download Grove Crane YB7725 322272 Parts Manual 2017 PDF (English)

Download the Grove Crane YB7725 322272 Parts Manual 2017 PDF for complete parts identification, exploded diagrams, and detailed component breakdowns. This comprehensive parts catalog includes accurate part numbers, assembly references, structural layouts, and crane system components for the Grove YB7725 crane. Ideal for technicians, engineers, and maintenance professionals, it helps simplify repairs, improve parts ordering accuracy, reduce downtime, and ensure proper maintenance using factory-approved parts documentation and specifications. www.themanualsgroup.com

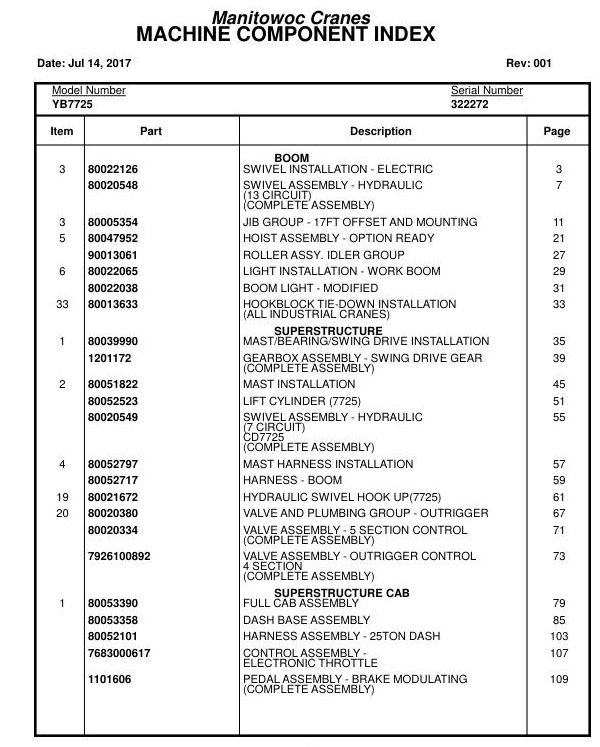

MODEL COVERED :
Grove YB7725 Crane

CONTENTS INCLUDED :
Boom
Swivel Installation – Electric
Swivel Assembly – Hydraulic
(13 Circuit)
(Complete Assembly)
Jib Group – 17ft Offset And Mounting
Hoist Assembly – Option Ready
Roller Assy. Idler Group
Light Installation – Work Boom
Boom Light – Modified
Hookblock Tie-Down Installation
(All Industrial Cranes)
Superstructure
Mast/Bearing/Swing Drive Installation
Gearbox Assembly – Swing Drive Gear
(Complete Assembly)
Mast Installation
Lift Cylinder (7725)
Swivel Assembly – Hydraulic
(7 Circuit)
Cd7725
(Complete Assembly)
Mast Harness Installation
Harness – Boom
Hydraulic Swivel Hook Up(7725)
Valve And Plumbing Group – Outrigger
Valve Assembly – 5 Section Control
(Complete Assembly)
Valve Assembly – Outrigger Control
4 Section
(Complete Assembly)
Superstructure Cab
Full Cab Assembly
Dash Base Assembly
Harness Assembly – 25ton Dash
Control Assembly –
Electronic Throttle
Pedal Assembly – Brake Modulating
(Complete Assembly)
Wheel Assembly – Steering
(Complete Assembly)
Controller Assembly – Single Axis
(Complete Assembly)
2 Speed Wiper & Washer Switch Install
Cab Harness Installation
Harness – Cab
Lowerworks/Carrier
Axle Installation – Front
With Orf Fittings
Axle Assembly – Drive/Steer
Front And Rear
Hub And Components Group
Differential Group
Crown Wheel And Pinion Group
Steering Cylinder Group
Steering Knuckle Group
Brake Group
Crown Wheel And Pinion Group
Seat Installation – Adjustable
Seat Assembly – Adjustable Suspension
(Complete Assembly)
Rear Axle Installation W/Orfs Ftgs
Axle Assembly – Drive/Steer
Front And Rear
Hub And Components Group
Differential Group
Crown Wheel And Pinion Group
Steering Cylinder Group
Steering Knuckle Group
Brake Group
Crown Wheel And Pinion Group
Fire Extinguisher Instl-2.5lb
Decking Installation
Engine Hood Installation
Door Assembly
Mirror Installation
Hoist Cover Install – Standard 25ton
Fuel Tank Installation
Tire And Axle Mounting Group
Driveline Installation
Shaft Assembly – Drive Long
Shaft Assembly – Drive Short
Plumbing Installation – Brake
Plumbing Install – Steering
Valve Bank Installation
Valve Assembly – Directional Control
(Hydraulic)
Valve Assembly
Main Control
(Complete Assembly)
Valve Assembly
Steering Mode
(Complete Assembly)
Valve Assembly – Distribution
Solenoid Valve – 4 Wheel Dr
Axle Lockout Installation
Cylinder Assembly
Axle Lockout
(Complete Assembly)
Out & Down Outrigger Install
Cylinder Assembly – Vertical Outrigger
(Complete Assembly)
Kit, Seal – Head Assy.
Kit, Seal – Piston Assy.
Cylinder Assembly – Horizontal Outrigger
(Complete Assembly)
Hydraulic Reservoir Install
Hydraulic Reservoir Assembly
Hydraulic Filter&Return Man Installation
Filter Assembly – Hydraulic
(Complete Assembly)
Switch Group – Option
(Defroster)
Pump Suction Line Installation
Switch Group – Option
(Heater)
Valve Bank Plumbing
Electrical Group
Electrical System Installation – Carrier
Ind 25ton
Harness Assembly Carrier
Ind 25ton
Harness Assembly – Maf Qsb45
Battery Box Installation
Battery Box Assembly
Panel Assembly
Harness Assembly – Battery Box
Fuse Relay Panel
Harness Assembly – Battery Box
Fuse Relay Panel
Alarm Group – Outrigger Motion
Engine Installation-Qsb-4.5 T4
Engine Assembly – Qsb 4.5 T4
Engine Rework – Cummins Qsb4.5
Alternator Mounting
Transmission Assembly – Powershift
4 Speed
(Complete Assembly)
Converter Housing Group
Case And Rear Cover Group
Turbine Shaft Group
Drive Plate Group
Torque Converter Group
Gear Group
Auxiliary Pump Drive Group
Pump Drive Group
Forward Shaft Group
Reverse Idler Group
High Idler Group
Reverse And 2nd Shaft Group
Low Speed Shaft Group
4th-High And 3rd Shaft Group
Idler Shaft Group
Output Shaft Group
Charging Pump Group
Disc Brake Group
Caliber Parking Brake Group
Caliber Parking Brake Group
Control Valve Mounting Group
Control Valve Assy. Group
Transmission Filter Option Grp
Filter Assy. Trans.
Transmission Filter Installation
Piston Pump – Var. Disp.
Gear Pump Assembly – 25cc
Hydraulic Lines Installation – Engine
Transmission Lines Plumbing
Electric System Installation – Engine T4
Harness Assembly – Engine
Ind7725
Breather Installation – Engine Assembly
Breather Installation – Engine
Radiator/Cac/Toc Installation
Radiator/Cac/Toc Assembly
Radiator/Cac/Toc Assembly
Surge Tank Assembly
Air Intake Installation (T4)
Air Cleaner Assembly
Exhaust System Installation
Wheel And Tire Group – Bias
(For Reference Only)
Tire & Wheel, 17.5-25 Tubeless
Outrigger Monitoring System Installation
Proximity Switch
Proximity Switch Assembly – 30mm
Pintle Hitch Installation – Front
Pintle Hook Assy.Chain & Cable
Pintle Hook.W/Chain Safety Pin
Pintle Hook.W/Cable Safety Pin
Jaw Assy.
Pintle Hitch Installation – Rear
Pintle Hook Assy.Chain & Cable
Pintle Hook.W/Chain Safety Pin
Pintle Hook.W/Cable Safety Pin
Jaw Assy.
Guard Installation – Light
Block Heater Installation
Cover Plate Installation
Carrier/Frame Cab
Heater/Defroster Installation
Heater Assembly
(Complete Assembly)
Light Installation – Strobe
Windshield Washer Installation
Washer Bottle Harness
Cab – Enclosed
Windshield Wiper Assembly
Door Strap Installation
Door Installation – (Split)
Cab Split Door Assembly With Cup Holder
Window Assembly – Half Door
Door Stop Installation
Loose Ship Items
Wire Rope,5/8″,6×19, 390 Feet
Socket Assembly – 5/8″ Wedge
Hookblock Assembly –
25ton, 5/8 Rope, 450#, 4pt
Specs/Schematics
Elect Schem Ind7725
Hydraulic Schematic
Decals
Miscellaneous Decals
Kit – Decals Universal
(English)
(For Reference Only)
Kit – Graphics – Cab – English
Kit – Graphics – C/S – English
Decal Installation – Yb7725
(Nomenclature)
Decal – Load Rating And Range Diagram
Yb7725
(English)
Decal – Load Indicator Transmitter
(English)
Panel-Serial No.
Decal – P.C.S.A. Shield
(English)
Panel – Yardboss Serial Number
