Download Hyundai Excavator R300LC-9A Parts ( English )

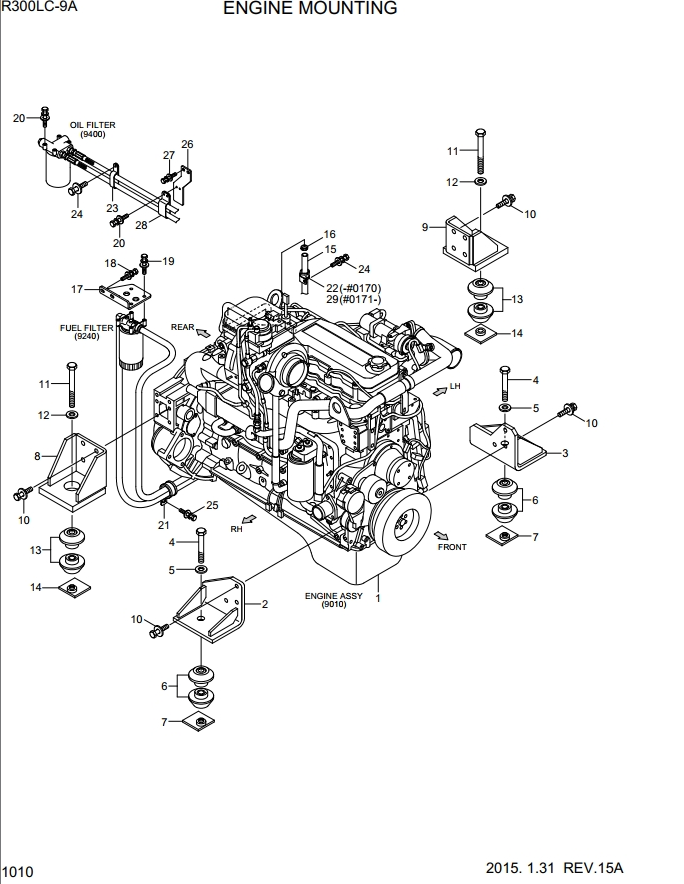

Streamline component identification, simplify spare parts ordering, and speed up machine maintenance with the official Hyundai Crawler Excavator R300LC-9A Parts Catalog Manual PDF. Engineered specifically for heavy equipment mechanics, parts department specialists, fleet managers, and field service technicians, this factory-authorized parts book provides exhaustive exploded-view assembly diagrams, itemized part numbers, sub-assembly breakdowns, and quantities required for every section of the Hyundai R300LC-9A crawler excavator. www.themanualsgroup.com

MODEL COVERED :
Hyundai R300LC-9A Crawler Excavator

CONTENTS INCLUDED :
Engine Mounting
Fan Drive System
Air Intake System
Exhaust System
Aftertreatment Device
Cooling System
Radiator Sub Assy (-#0166)
Radiator Sub Assy (#0167-)
Fan Motor(-#0003)
Fan Motor (#0004-)
Fuel System
Fuel Tank
Aircon & Heater Group
Isoview 3 Document (13)
Aircon & Heater Unit
Rh Electric (1_2)
Rh Electric(2_2)
Lh Electric(1_2)
Lh Electric (2_2)
Boom Electric
Engine Electric
Isoview 3 Document (21)
Electric Box(#0083-)
Cab Electric 1
Cab Electric 2
Cab Room Electric
Cluster
Bottom Electric
Fuel Filler Pump
Fuse Box
Pump Mounting
Hydraulic Tank
Upper Hyd Piping(Base)
Upper Hyd Piping(Attach)
Upper Hyd Piping(Travel)
Pilot Hyd Piping (Control 1)
Pilot Hyd Piping (Control 2)
Pilot Hyd Piping (Control 3)
Pilot Hyd Piping (2-Pattern Change)
Pilot Hyd Piping (Base 1)
Pilot Hyd Piping (Base 2)
Pilot Hyd Piping (Base 3)
Travel Hyd Piping (Type 1)
Travel Hyd Piping (Type 2,3)
Boom Hyd Piping(6.25m, Std)
Boom Hyd Piping(L_Reach, 10.2m)
Boom Hyd Piping(L_Reach, 8.5m)
Boom Grease Lub System(6.25m, Std)
Boom Grease Lub System(L_Reach, 10.2m)
Boom Grease Lub System(L_Reach, 8.5m)
Boom Safety Lock System
Quick Clamp Hyd Piping
Quick Clamp Hyd Piping(Option)
Quick Clamp(Close Type 1, -#0054)
Quick Clamp(Close Type 1, Opt, -#0054)
Quick Clamp(Close Type 2, #0054)
Quick Clamp(Close Type 2, Opt, -#0054)
Quick Clamp(Hook Type 1, -#0054)
Quick Clamp(Hook Type 1, Opt, -#0054)
Quick Clamp(Hook Type 2, -#0054)
Quick Clamp(Hook Type 2, Opt, -#0054)
Quick Clamp(Close Type, #0055-)
Quick Clamp(Closed Type 2, #008:Cool:
Quick Clamp(Close Type, Opt, #0055-)
Quick Clamp(Closed Type 2, Opt #008:Cool:
Quick Clamp(Hook Type, #0055-)
Quick Clamp(Hook Type 2, #008:Cool:
Quick Clamp(Hook Type, Opt, #0055-)
Quick Clamp(Hook Type 2, Opt #008:Cool:
Arm Hyd Piping(3.05m, Std)
Arm Hyd Piping(2.1m)
Arm Hyd Piping(2.5m)
Arm Hyd Piping(3.75m, Long)
Arm Hyd Piping(2.85m)
Arm Hyd Piping(L_Reach, 7.85m)
Arm Hyd Piping(Long Reach, 4.6m)
Arm Safety Lock System
Double Acting Main Piping Kit 1(-#0002)
Double Acting Main Piping Kit 1(#0003-)
Double Acting Main Piping Kit 2
Attach Piping Kit (S & D_Acting)
Single Pedal(Double Acting)
Single Acting Main Piping Kit(-#0002)
Single Acting Main Piping Kit(#0003-)
Main Pump
Regulator
Gear Pump
Main Control Valve(1_5)
Main Cntl Valve(1_5, #0099-)
Main Control Vavle(1_5, Type 2)
Isoview 3 Document (90)
Main Cntl Valve(2_5, #0099-)
Main Control Valve(2_5, Type 2)
Main Control Valve(3_5)
Main Cntl Valve(3_5, #0099-)
Main Control Valve(3_5, Type 2)
Main Control Valve(4_5)
Main Control Valve(4_5, #0099-)
Main Control Valve(4_5, Type 2)
Isoview 3 Document (99)
Main Control Valve(5_5, #0099-)
Main Control Valve(5_5, Type 2)
Swing Motor (Type 1)
Swing Motor(Type 2, -#0115)
Swing Motor (Type 2, #0116-)
Swing Motor (Type 3, 4)
Swing Reduction Gear (Type 1)
Swing Reduction Gear (Type 2)
Swing Reduction Gear (Type 3, 4)
Travel Motor(1_2, Type 1)
Travel Motor(2_2, Type 1)
Travel Reduction Gear(Type 1)
Travel Motor (1_2, Type 2,3)
Travel Motor (2_2, Type 2,3)
Travel Reduction Gear(Type 2,3)
Remote Control Lever (Type L1, -#0261)
Isoview 3 Document (116)
Remote Control Lever (Type L2)
Isoview 3 Document (118)
Remote Control Lever (Type L4, #0262-)
Isoview 3 Document (120)
Remote Control Lever (Type 2)
Remote Control Lever (Type L6, #0262-)
Remote Control Lever (Type L7, -#0261)
Remote Control Lever (Type 3)
Remote Control Pedal
Turning Joint
Boom Cylinder
Arm Cylinder
Bucket Cylider
Bucket Cylinder(Long Reach)
Bucket Cylinder(Long Reach, #0041-)
Solenoid Valve
Breaker Assy(1_3)
Breaker Assy(2_3)
Breaker Assy(3_3)
Isoview 3 Document (136)
Isoview 3 Document (137)
Undercarriage Mounting
Undercarriage Mounting(High Walker)
Lower Roller
Upper Roller
Idler
Track Chain
Adjust Component
Cab Mounting
Cab Assy (1_4)
Isoview 3 Document (147)
Cab Assy(2_4)
Cab Assy(3_4)
Cab Assy (4_4, Door)
Cab Interior 1
Cab Interior 2
Cab Interior 3
Console Box(1_2, Lh)
Console Box 2(Lh)
Console Box(Rh)
Seat Base Assy
Seat (Suspension, Heated, 1_2)
Seat(Suspension, Heated, 2_2)
Storage Box Assy
Bottom Plate Mounting
Cowling 1
Cowling 2
Side Cowl Assy(Lh)
Side Cover Assy(Lh)
Side Cowl Assy(Rh)
Engine Hood
Under Cover
Tool Box Mounting
Tool Box
Grommet Group
Upper Frame & Counterweight
Lower Frame & Cover
Lower Frame & Cover(H_Walker)
Swing Ring Grease Lub System
Swing Ring Grease Lub System_1
Boom Mounting
Boom Mounting(Long Reach, 10.2m)
Boom Mounting(Long Reach, 8.5m)
Boom (6.25m, Std)
Boom (6.25m, Heavy Duty, -#0261)
Boom (10.2m, Long Reach)
Boom(8.5m, Long Reach)
Arm (3.05m, Std)
Arm (7.85m, Long Reach)
Arm (2.1m)
Arm (2.5m)
Arm (2.85m)
Arm (3.75m)
Arm (3.05m, Heavy Duty, -#0261)
Arm(4.6m, Long Reach)
Bucket Control Group
Bucket Control Group(4.6m Arm)
Bucket Control Group (Long Reach)
Bucket(3 Teeth)
Bucket(4 Teeth)
Bucket(5 Teeth)
Bucket(5 Teeth, Long Reach)
Bucket(5 Teeth, Casting)
Bucket(6 Teeth)
Bucket(5 Teeth, Heavy Duty)
Bucket(6 Teeth, Heavy Duty)
Bucket(5 Teeth, Rock)
Bucket(Slope Finising)
Bucket(0.55m Sae Heaped, Ditch Cleaning)
Bucket(4 Teeth, Heavy Duty)
Tools
Hce-Dt Kit
Decals
Manuals
Dataplate
Rear Gear Housing
Cylinder Block
Valve Tappets
Crankshaft And Bearings
Crankcase Breather
Crankcase Breather Plumbing
Coolant Heater Starting Aid
Air Inlet Plumbing
Vibration Damper
Rear Gear Train Mounting
Engine Ground Mounting
Thermostat
Alternator
Alternator Mounting
Exhaust Recirculation
Exhaust Recirculation Water Plumbing
Exhaust Recirculation Air Plumbing
Fan Drive
Fan Drive Mounting
Fuel Drain Plumbing
Fuel Filter Mounting
Fuel Filter Plumbing
Fuel Filter Location(-#0126)
Fuel Filter Location(#0127-)
Flywheel Housing
Flywheel Housing Mounting
Fuel Inlet Fitting
Fuel Pump
Fuel Plumbing
Flywheel
Flywheel Mounting
Front Gear Cover
Heater Plumbing
Auxiliary Pump Mounting
Air Intake Connection
Air Intake Manifold
Lifting Bracket Mounting
Lifting Arrangement
Engine Oil Cooler
Full Flow Oil Filter
Oil Level Gauge
Lubricating Oil Pump
Nameplate
Oil Filler Arrangement
Oil Pan
Engine Control Module
Camshaft
Connecting Rod And Piston
Cylinder Head
Injector
Injector Plumbing
Turbocharger 1
Turbocharger 2
Remote Oil Drain
Rocker Lever
Engine Coolant Vent
Oil Level Sensor
Heat Shield
Starting Motor Mounting
Starting Motor
Exhaust Manifold Mounting
Exhaust Manifold
Turbocharger Plumbing
Valve Cover Arrangement
Water Inlet Connection
Water Outlet Connection
Water Pump Drive
Belt Tensioner
Water Pump
Ecm Wiring Harness 1
Ecm Wiring Harness 2
Exhaust Outlet Connection
