MODEL COVERED :
MERCEDES 714 TRANSMISSION

MANUAL CONTENT INCLUDE :
AP26.00-D-2601A Manual transmission – oil change 25.02.2019.pdf
AP26.00-D-2601A Manual transmission – oil change 25.02.2019
Model 636 with transmission 716.65
Model 638
except code G40 (Automatic transmission)
Model 639 with transmission 716.6
except code MA0 (E-CELL 60 kW)
Model 667 with transmission 711.11/13/61
Model 668 with transmission 710.6, 712.21/613/621, 715.00/02/05
Model 670 with transmission 710.6/84, 711.61, 712.21/613/621, 714.08/50, 715.00/02/05Model 690.6 with transmission 711.620
Model 901, 902, 903, 904 with transmission 711.60/61
Model 901, 902, 903, 904, 905 with transmission 711.62
Modification notes
Transmission in model 638
Transmission 716 in model 636, 639
N26.00-2319-01 S26.00-4500-01
Transmission 711, 712, 715 (example)
Transmission 710 (S5-42)
N26.00-2268-01 N26.00-0286-01
AP26.00-G-2601E Manual transmission – oil change 14.7.10.pdf
AP26.00-G-2601E Manual transmission – oil change 14.7.10
TRANSMISSION 715.350 /351 /361 in MODEL 000.001
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
Shown on transmission 715.351
1 Oil filler plug
Shown on transmission 714.140
1 Oil filler plug2 Oil drain screw3 Screw plug
1 Clean area around oil filler screw (1), oil drain Only change the oil when the transmission
screw (2 and 6) and screw plug (3) on is at operating temperature.
transmission housing
2 Remove oil filler screw (1)
AP26.00-G-2601OHA Manual transmission – oil change 20.12.2016.pdf
AP26.00-G-2601OHA Manual transmission – oil change 20.12.2016
Transmission 714.140/143 in model 000.001
1 Oil filler plug
handling of transmission oil. Health risk and safety glasses.
caused by swallowing transmission oil Do not pour transmission oil into beverage
bottles.
under transmission manufacturer.
Clean
Drain transmission oil
3 Remove oil filler screw (1)
transmission fluid, unscrew drain screws (2) and completely drain automatic transmission
fluid
5 Tighten cleaned drain screws (2) *BA26.40-N-1003-01H Oil drain screw to transmission housing
Fill with transmission oil
AP26.00-G-2610E Manual transmission – check oil level correct 14.7.10.pdf
AP26.00-G-2610E Manual transmission – check oil level, correct 14.7.10
TRANSMISSION 715.350 /351 /361 in MODEL 000.001
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
Shown on transmission 715.351
1 Oil filler plug
Shown on transmission 714.140
1 Clean area around oil filler screw (1) on Check oil level when transmission is cold.
transmission housing
2 Remove oil filler screw (1)
hole for the oil filler screw (1). Have a container at the ready to collect any discharged transmission oil. Clean oil filler screw (1). Observe Specifications for
Operating Fluids:
AP26.00-G-2610OHA Manual transmission – check oil level correct 20.12.2016.pdf
AP26.00-G-2610OHA Manual transmission – check oil level, correct 20.12.2016
Transmission 714.140/143 in model 000.001
1 Oil filler plug
handling of transmission oil. Health risk and safety glasses.
caused by swallowing transmission oil Do not pour transmission oil into beverage
bottles.
under transmission manufacturer.
Clean
automatic transmission fluid and remove oil filler screw (1)
4 Check transmission oil level, if necessary
refill up to lower edge of opening for oil filler Check transmission oil level only when
screw (1) transmission is cold.
AP43.30-G-4301G Retarder – oil change 8.6.11.pdf
MODEL 000.001 with TRANSMISSION 714.100 /120 /140 /143 /160 /161
with Voith retarder R115E
AP43.30-G-4302OHA Perform oil change of hydrodynamic retarder 25.11.2016.pdf
Model 000.001 with transmission 714.140/143
Transmission with hydrodynamic retarder R115 E (integrated), Voith- 153.000188xx, H67.1500xx
1 Drain screw (hydrodynamic retarder)
AP43.30-G-4302OHB Perform oil change of hydrodynamic retarder 25.11.2016.pdf
Model 000.001 with transmission 714.140/143
Transmission with hydrodynamic retarder R115 E (integrated), Voith- 153.000452xx
1 Drain screw (hydrodynamic retarder)
under transmission manufacturer.
4 Open maintenance flap covering See information from vehicle
AR25.20-G-0200B Remove and install clutch throwout lever 28.9.10.pdf
MODEL 000.001 with TRANSMISSIONS 715.521 /560
MODEL 000.001 with TRANSMISSION 714.100 /120 /140 /143 /160 /161
1 Screw
1 Remove transmission or engine See vehicle operator’s manual or repair
instructions.
AR26.10-G-0001G Disassemble assemble transmission 27.2.12.pdf
AR26.10-G-0001G Disassemble, assemble transmission 27.2.12
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
T26.10-0018-09
Shown on transmission 714.140
1 Drive shaft bearing cap 13 Shift mechanism 18 Countershaft
5 Drive shaft 15 Sliding yoke (only transmission 19 Main shaft
714.14/16) 8 Countershaft bearing cover 20 Rear transmission housing
16 Shift forks 9 Countershaft shim 26 Rear transmission cover
17 Shift rails 11 Front transmission housing 35 Reverse gear wheel
Disassemble
1 Drain transmission oil AP26.00-G-2601E
2 Remove transmission See vehicle operating/repair instructions.
3 Remove clutch housing AR26.30-G-0330G Only perform on transmission without
integrated clutch housing.
4 Attach transmission to assembly device Universal assembly stand GS
Adapter “GSA SKN” for transmission with integral clutch housing
Adapter “GSA SKN 2” for transmission without integral clutch housing
AR26.10-G-0001OHA Disassemble assemble transmission 20.01.2017.pdf
AR26.10-G-0001OHA Disassemble/assemble transmission 20.01.2017
Transmission 714.140/143 in model 000.001
T26.10-0018-09
Shown on transmission without hydrodynamic retarder R115 (integrated), Voith
1 Drive shaft bearing cap 16 Shift forks
11 Front transmission housing 20 Rear transmission housing
13 Shift 26 Rear transmission cover
15 Sliding yoke 35 Reverse gearwheel
1 Drain transmission oil
AP26.00-G-2601OHA
2 Remove the transmission See information provided by vehicle
manufacturer or transmission manufacturer.
3 Detach clutch housing from front transmission Only on front transmission housing (11)
AR26.18-G-2000OHA Remove install gear shift cylinder 25.11.2016.pdf
Transmission 714.140/143 in model 000.001
Vehicle with electropneumatic power shift (EPS)
AR26.18-G-2100OHA Remove install gate shift cylinder 25.11.2016.pdf
Transmission 714.140/143 in model 000.001
Vehicle with electropneumatic power shift (EPS)
AR26.30-G-0310G Remove install rear transmission cover 2.3.12.pdf
AR26.30-G-0310G Remove/install rear transmission cover 2.3.12
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
1 Main shaft transmission cover
2 Countershaft transmission cover
3 Screw4 Screw
1 Drain transmission oil AP26.00-G-2601E Collect transmission oil in a suitable
container if necessary so that it can be refilled into the transmission.
2 Remove output flange AR26.40-G-2475-03G
main shaft transmission cover (1)
5 Detach main shaft transmission cover (1) from Installation: Install new O-ring. Coat
transmission housing separating surface at oil return bore with
AR26.30-G-0310OHA Remove install rear transmission cover 20.01.2017.pdf
AR26.30-G-0310OHA Remove/install rear transmission cover 20.01.2017
Transmission 714.140/143 in model 000.001
Transmission without hydrodynamic retarder R115 (integrated), Voith
1 Main shaft transmission cover
2 Countershaft transmission cover
3 Screw plug
handling of transmission oil. Health risk and safety glasses.
caused by swallowing transmission oil Do not pour transmission oil into beverage
bottles.
*BA26.50-N-1004-01P Stretch bolt, output flange to transmission
main shaft
transmission oil in a suitable receptacle
3 Detach speed sensor (4) from main shaft *BA26.19-N-1003-01F Speedometer sensor to rear transmission
transmission cover (1) cover
4 Detach main shaft transmission cover (1) Installation: Replace O-ring.
from transmission housing

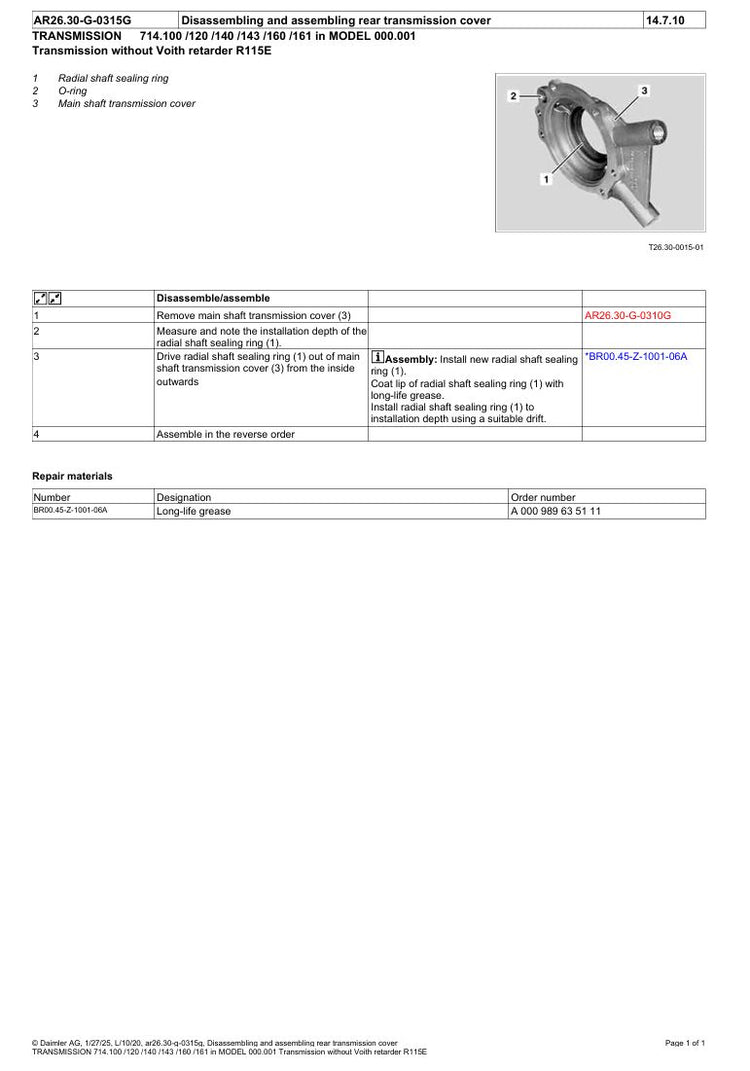

AR26.30-G-0315G Disassembling and assembling rear transmission cover 14.7.10.pdf
AR26.30-G-0315G Disassembling and assembling rear transmission cover 14.7.10
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
Transmission without Voith retarder R115E
1 Radial shaft sealing ring
3 Main shaft transmission cover
T26.30-0015-01
1 Remove main shaft transmission cover (3) AR26.30-G-0310G2 Measure and note the installation depth of the
AR26.30-G-0315OHA Disassembling and assembling rear transmission cover 28.11.2016.pdf
AR26.30-G-0315OHA Disassembling and assembling rear transmission cover 28.11.2016
Transmission 714.140/143 in model 000.001
Transmission without hydrodynamic retarder R115 (integrated), Voith
1 Radial shaft sealing ring
3 Rear transmission cover
T26.30-0015-01
1 Remove rear transmission cover (3) AR26.30-G-0310OHA
2 Remove O-ring (2)
transmission cover (3) from the inside
outwards
AR26.30-G-0330G Remove install clutch housing 14.7.10.pdf
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
1 Clutch release lever
3 Screw4 Front transmission housing
T26.30-0014-02
1 Remove transmission or engine See vehicle operating/repair instructions.
2 Remove clutch throwout lever (1) AR25.20-G-0200B
(2) from front transmission housing (4) torques depending on the material of the
clutch housing (2).
AR26.30-G-0330OHA Remove install clutch housing 25.11.2016.pdf
Transmission 714.140/143 in model 000.001
1 Release lever
3 Screw4 Front transmission housing
T26.30-0014-02
1 Remove the transmission See information provided by vehicle
manufacturer or transmission manufacturer.
2 Remove release lever (1) See the information from the transmission
manufacturer.
transmission housing (4)
Clean
AR26.30-G-1000-01G Determining shim for drive shaft bearing cover.pdf
Number Designation Transmission
714.100/120/140/143/160/161
BA26.40-N-1005-01H Bolt, strip clamp to transmission housing Nm 10 10
000 589 59 63 00 001 589 53 21 00 001 589 75 21 00 343 589 00 40 00
AR26.30-G-1000-01OHA Determining shim for drive shaft bearing cover.pdf
Transmission 714.140/143 in model 000.001
Test values for cover
Number Designation Transmission
714.140/143
BA26.40-N-1005-01H Screw/bolt, strip clamp to transmission housing Nm 10
001 589 53 21 00 000 589 59 63 00 343 589 00 40 00
AR26.30-G-1000-02G Determining shim for countershaft bearing.pdf
Number Designation Transmission
714.100/120/140/143/160/161
BA26.40-N-1005-01H Bolt, strip clamp to transmission housing Nm 10 10
000 589 59 63 00 001 589 53 21 00 001 589 75 21 00 343 589 00 40 00
AR26.30-G-1000-02OHA Determining shim for countershaft bearing.pdf– Transmission 714.140/143 in model 000.001
Test values for cover
Number Designation Transmission
714.140/143
BA26.40-N-1005-01H Screw/bolt, strip clamp to transmission housing Nm 10
001 589 53 21 00 000 589 59 63 00 343 589 00 40 00
AR26.30-G-1010G Remove install drive shaft and countershaft bearing covers 27.2.12.pdf
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
Shown on transmission 714.120 without integrated clutch housing
1 Drive shaft bearing cap
1 Remove transmission See vehicle operating/repair instructions.
2 Remove clutch housing AR26.30-G-0330G Only on transmission without integrated
clutch housing.
3 Attach transmission to assembly device Universal assembly stand GS
Adapter “GSA SKN” for transmission with
integral clutch housing
Adapter “GSA SKN 2” for transmission without integral clutch housing
GS universal assembly stand and adapter, see:gotis://A_25/35/49_06.0
4 Turn the transmission so that the drive shaft
points upwards.
front transmission housing and remove together with shims
6 Detach drive shaft bearing cap (1) from front After removing bolts: Loosen drive shaft
transmission housing and remove together bearing cap (1) from front transmission
with shims housing by applying light blows with a plastic
AR26.30-G-1010OHA Remove install drive shaft and countershaft bearing covers 20.01.2017.pdf
Transmission 714.140/143 in model 000.001
1 Drive shaft bearing cap
1 Remove the transmission See information provided by vehicle
manufacturer or transmission manufacturer.
2 Detach clutch housing from transmission Only on transmission without integrated clutch
housing
3 Attach transmission to assembly device The drive shaft must point upwards.
4 Detach countershaft bearing cap (2) from front
transmission housing and remove together with shims
5 Unscrew bolts around circumference of drive
transmission housing by tapping gently with a plastic mallet, and remove together with shims
Clean
AR26.30-G-1030OHA Disassembling and assembling drive shaft bearing cover 25.11.2016.pdf
Transmission 714.140/143 in model 000.001
1 Drive shaft bearing cap
AR26.30-G-6519OHA Disassembling and assembling inner bearing cover 28.11.2016.pdf
Transmission 714.140/143 in model 000.001
Transmission with “control cable” gearshift
1 Needle roller bearing
AR26.30-G-6522OHA Disassemble assemble reverse gear end stop bearing cap 28.11.2016.pdf
Transmission 714.140/143 in model 000.001
Transmission with “control cable” gearshift
1 Bearing cap
AR26.40-G-2471G Disassemble assemble front section of transmission housing 14.7.10.pdf
AR26.40-G-2471G Disassemble/assemble front section of transmission housing 14.7.10
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
1 Outer race of tapered roller bearing
1 Remove main shaft and countershaft Transmission 714.10/12 AR26.50-G-0001GA
Transmission 714.14/16 AR26.50-G-0001GB
2 Remove drive shaft. AR26.50-G-4743G
AR26.40-G-2474OHA Disassemble assemble front transmission housing 25.11.2016.pdf
AR26.40-G-2474OHA Disassemble/assemble front transmission housing 25.11.2016
Transmission 714.140/143 in model 000.001
1 Countershaft tapered roller bearing outer race
AR26.40-G-2475-03G Remove install output flange.pdf
Number Designation Transmission Transmission
714.100/120/140/ 714.100/120/140
BA26.50-N-1004-01I Stretch bolt, output flange to transmission main Nm 450 -shaft
Repair materials
AR26.40-G-2475-03OHA Remove install output flange.pdf
handling of transmission oil. Health risk and safety glasses.
caused by swallowing transmission oil Do not pour transmission oil into beverage
bottles.
Transmission 714.140/143 in model 000.001
Gear set, shafts
Number Designation Transmission
714.140/143 in model 000.001
BA26.50-N-1004-01P Stretch bolt, output flange to transmission main shaft Nm 450
717 589 00 31 00 035 589 01 33 00
AR26.40-G-2475G Remove install rear section of transmission housing 28.9.10.pdf
AR26.40-G-2475G Remove/install rear section of transmission housing 28.9.10
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
1 Backup lamp switch
2 Front transmission housing
3 Bearing bolt4 Rear transmission housing
5 Holding lugs
1 Remove transmission See vehicle operator’s manual or repair
instructions.
2 Detach clutch housing from transmission Only on transmission without integrated clutch AR26.30-G-0330G
housing.
3 Attach transmission to assembly device Universal assembly stand GS
Adapter “GSA SKN” for transmission with integral clutch housing
Adapter “GSA SKN 2” for transmission
without integral clutch housing
4 Turn the transmission so that the output
flange points upwards
5.1 Detach retarder from transmission with Voith retarderR115E AR43.30-G-0002G
5.2 Remove rear transmission cover without Voith retarderR115E AR26.30-G-0310G
AR26.40-G-2477OHA Remove install rear transmission housing 20.01.2017.pdf
AR26.40-G-2477OHA Remove/install rear transmission housing 20.01.2017
Transmission 714.140/143 in model 000.001
1 Backup lamp switch
2 Front transmission housing
3 Bearing pin4 Rear transmission housing
T26.40-0005-02
4 Rear transmission housing
5 Holding lugs
1 Remove the transmission See information from vehicle
manufacturer.
2 Attach transmission to assembly device
3 Detach clutch housing from transmission Only on transmission without integrated clutch
housing.
AR26.40-G-2478OHA Disassemble assemble rear transmission housing 20.01.2017.pdf
AR26.40-G-2478OHA Disassemble/assemble rear transmission housing 20.01.2017
Transmission 714.140/143 in model 000.001
1 Outer race
AR26.45-G-0071OHA Remove install oil pump 20.01.2017.pdf
Transmission 714.140/143 in model 000.001
Transmission with hydrodynamic retarder R115 E (integrated), Voith
1 Transmission
5 Outer oil pump housing
1 Remove hydrodynamic retarder Transmission 714.140/143 in model AR43.30-G-0064OHA
000.001Transmission with hydrodynamic
retarder R115 E (integrated), Voith- 153.000188xx, H67.1500xx
Transmission 714.140/143 in model AR43.30-G-0064OHB
000.001Transmission with hydrodynamic retarder R115 E (integrated), Voith 153.000452xx
transmission housing pump housing (5).
3 Detach ring gear (7) and impeller (8) in
AR26.45-G-0071OHB Remove install oil pump 20.01.2017.pdf
Transmission 714.140/143 in model 000.001
Transmission without hydrodynamic retarder R115 E (integrated), Voith
Shown with non-integrated outer oil pump
1 Rear transmission cover, countershaft– 2 Seal
1 Remove rear countershaft transmission cover AR26.30-G-0310OHA (1)
integrated in the rear countershaft transmission cover (1).
Observe installation position of outer oil
transmission housing
6 Remove shim (7) and guide pin (8) from rear
AR26.50-G-0001OHA Remove install main shaft and countershaft 20.01.2017.pdf
Transmission 714.140/143 in model 000.001
1 Puller
1 Remove the transmission See information provided by vehicle
manufacturer or transmission manufacturer.
2 Attach transmission to assembly device
3 Remove rear transmission housing AR26.40-G-2477OHA
4 Pull out oil guide tube (3) Installation: Check the oil guide pipe (3)
AR26.50-G-0420G Disassemble and assemble main shaft 14.7.10.pdfTRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
G26.50-3220-09
2 Tapered roller bearing (with transmission 714.10/12) 19 Thrust spring
3 Synchronizer ring 11.2 6th gear wheel 20 Retaining ring4 Synchronizer cone (with transmission 714.14/16) 21 Synchronizer body
5 Thrust spring 12 Needle roller bearing 22 Sliding sleeve
AR26.50-G-0420OHA Disassemble and assemble main shaft 20.01.2017.pdf
Transmission 714.140/143 in model 000.00
T26.50-0029-09
AR26.50-G-0460OHA Remove install reverse gear wheel 20.01.2017.pdf
Transmission 714.140/143 in model 000.001
1 Jack
1 Remove rear transmission housing AR26.40-G-2477OHA
2 Pull bushing (1) off needle bearing (2)
AR26.50-G-2000G Remove install transmission output flange 14.7.10.pdf
AR26.50-G-2000G Remove/install transmission output flange 14.7.10
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
Shown on version with Voith retarder R115E
AR26.50-G-2000OHA Remove install transmission output flange 20.01.2017.pdf
AR26.50-G-2000OHA Remove/install transmission output flange 20.01.2017
Transmission 714.140/143 in model 000.001
1 Stretch bolt
manufacturer or transmission manufacturer.
Risk of injury Wear protective gloves, protective clothing Danger ! to skin and eyes due to AS00.40-Z-0001-01A
handling of transmission oil. Health risk and safety glasses.
caused by swallowing transmission oil Do not pour transmission oil into beverage
bottles.
AR26.50-G-2002-01G Remove install reverse idler shaft with reverse.pdf
Number Designation Transmission Transmission
714.100/120/140/ 714.100/120/140
BA26.50-N-1003-01I Bolt, reverse gear shaft retaining plate to Nm 58 58transmission housing
343 589 00 33 01 714 589 21 63 00 714 589 00 61 00
The reverse gear can only be removed if the rear transmission housing is removed. The
reverse gear must be inserted into the recess before installation of the rear transmission
housing.
Shown on transmission 714.120 with Voith retarder R115E
T26.50-0022-01
AR26.50-G-2002-01OHA Remove install reverse idler shaft with reverse.pdf
Transmission 714.140/143 in model 000.001
Gear set, shafts
Number Designation Transmission
714.140/143 in model 000.001
BA26.50-N-1003-01P Bolt, reverse gear shaft retaining plate to transmission housing Nm 58
343 589 00 33 01 714 589 00 61 00 714 589 21 63 00
AR26.50-G-4743G Remove install drive shaft 14.7.10.pdf
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001– Shown without integrated clutch housing
2 Front transmission housing
T26.50-0017-01
1 Detach clutch housing from transmission Only on transmission without integrated clutch AR26.30-G-0330G
housing.
2 Attach transmission to assembly device Universal assembly stand GS
Adapter “GSA SKN” for transmission with integral clutch housing
Adapter “GSA SKN 2” for transmission without integral clutch housing
GS universal assembly stand and adapter, see:gotis://A_25/35/49_06.0
AR26.50-G-4743OHA Remove install drive shaft 20.01.2017.pdf
Transmission 714.140/143 in model 000.001
Shown on transmission without integrated clutch housing
1 Drive shaft
2 Front transmission housing
T26.50-0017-01
1 Detach clutch housing from transmission Only on transmission without integrated clutch
housing
2 Attach transmission to assembly device
3 Remove rear transmission housing AR26.40-G-2477OHA
AR26.50-G-4744OHA Dismantle assemble drive shaft. 20.01.2017.pdf
Transmission 714.140/143 in model 000.001
1 Drive shaft with gearwheel
AR26.50-G-4775G Disassemble assemble countershaft 14.7.10.pdf
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
1 Tapered roller bearing
(with transmission 714.10/12)
4.2 6th gear countershaft gear
(with transmission 714.14/16)
5 3rd and 4th gear countershaft gear
1 Remove countershaft (6) Transmission 714.10/12 AR26.50-G-0001GA
Transmission 714.14/16 AR26.50-G-0001GB
2 Detach tapered roller bearings (1 and 7) from Use aluminum protective jaws in order to
AR26.50-G-4775OHA Disassemble assemble countershaft 20.01.2017.pdf
Transmission 714.140/143 in model 000.001
1 Countershaft
AR26.50-W-4744HB Dismantle assemble drive shaft. 07.07.2016.pdf
Transmission 715.371 in model 963, 964
with code G2E (Transmission G 281-12/14.93-1.0)
Transmission 715.381 in model 963, 964
with code G2F (Transmission G 330-12/11.63-0.77)
Modification notes
1 Disassemble transmission AR26.10-W-0005HB
2 Remove retaining ring (11)
AR26.55-G-0003OHA Remove install pressure regulating valve 20.01.2017.pdf
Transmission 714.140/143 in model 000.001
Transmission with hydrodynamic retarder R115 E (integrated), Voith
1 Transmission
2 Valve element
handling of transmission oil. Health risk and safety glasses.
caused by swallowing transmission oil Do not pour transmission oil into beverage
bottles.
AR26.55-G-0003OHB Remove install pressure regulating valve 20.01.2017.pdf
Transmission 714.140/143 in model 000.001
Transmission without hydrodynamic retarder R115 E (integrated), Voith
1 Spring (long)
transmission oil cooling)
6 Valve actuator (on vehicles with
7 Valve element (on vehicles with
8 Seals
16 Seal
17 Rear transmission cover, countershaft
18 Spacer (on vehicles without
19 Overpressure valve (on vehicles with G26.55-3129-05
20 Overpressure valve (on vehicles
without transmission oil cooling)
Shown on vehicle with transmission oil cooling
7 Valve element
AR26.55-G-3000-01G Determine shim for oil pump.pdf
Test values for transmission oil cooling, oil pump
Number Designation Transmission
714.100/120/140/143/160/161
On transmission without countershaft transmission cover.
W26.55-1023-01
1.2 Mount oil pump housing (1) and inner oil pump housing (2) on to countershaft transmission
cover (3) and measure height (B) using a depth gauge.
On transmission with countershaft transmission cover (3).
If a seal is installed (4), this must be mounted on the countershaft transmission cover (3) before measurement.
AR26.55-G-3000-01OHA Determine shim for oil pump.pdf
Transmission 714.140/143 in model 000.001
Check values for oil pump
Number Designation Transmission
714.140/143 in
On transmission without 1.1
countershaft transmission cover (3).Mount oil pump housing (1) on
inner oil pump housing (2) and
1.2 On transmission with
countershaft transmission cover (3).
Mount oil pump housing (1) and
AR26.55-G-3000GA Remove install oil pump and pressure relief valve 14.7.10.pdf
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
without Voith retarder R115E
transmission oil cooling)
6 Valve actuator (on vehicles with
7 Valve element (on vehicles with
8 Spring pin (on vehicles with
9 Sealing ring
10 Parts on vehicles with transmission
oil cooling
12 Parts on vehicles without
transmission oil cooling
G26.55-3105-05
Shown on transmission 714.120 with transmission oil cooling
7 Valve element
AR26.55-G-3000GB Remove install oil pump and pressure relief valve 14.7.10.pdf
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
with Voith retarder R115E
1 Transmission
2 Valve element
AR26.56-G-1000OHA Remove install oil strainer 22.01.2017.pdf
Transmission 714.140/143 in model 000.001
1 Spring
1 Drain transmission oil
AP26.00-G-2601OHA
AR26.60-G-0001-03OHA Adjusting shift finger.pdf
Transmission 714.140/143 in model 000.001
Transmission with electropneumatic power shift (EPS)
714 589 02 21 00
AR26.60-G-0001-03OHB Adjusting shift finger.pdf
Transmission 714.140/143 in model 000.001
Transmission with “control cable” gearshift
715 589 01 21 00
AR26.60-G-0001GB Remove and install gearshift system 28.9.10.pdf
RANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
with combined gate and gear shift
vehicle frame without removing the transmission if the gap
between the bearing cap (2) and vehicle
frame is over 35 cm. If there is less space available, the transmission must be removed before the shift mechanism is removed.
See vehicle operator’s manual or repair
AR26.60-G-0001GC Remove and install gearshift system 28.9.10.pdf
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
with separate gearshift gate and gear
vehicle frame without removing the transmission if the gap
between the bearing cap (5) and vehicle
available, the transmission must be removed before the shift mechanism is removed.
See vehicle operator’s manual or repair
5 Remove reverse gear catch bolt (2) Only with transmission 714.14/16
6 Remove bolts (6)
AR26.60-G-0001OHA Remove and install gearshift system 22.01.2017.pdf
Transmission 714.140/143 in model 000.001
Transmission with “control cable” gearshift
1 Shift
1 Remove the transmission See information from vehicle
manufacturer.
2 Remove starter lockout switch (2) *BA26.19-N-1006-01F Starter interlock switch to transmission
housing
4 Unscrew guide (5) from front transmission *BA26.60-N-1004-01S Pilot stud to transmission housing
transmission housing and pull out
Notes on self-locking nuts and bolts AH00.00-N-0001-01A
AR26.60-G-0001OHB Remove and install gearshift system 28.06.2017.pdf
Transmission 714.140/143 in model 000.001
Transmission with electropneumatic power shift (EPS)
1 Gear shift cylinder
8 Front transmission housing
9 Compressed-air line10 Bracket
1 Remove the transmission See information from vehicle
manufacturer.
AR26.60-G-0010OHA Remove install shift forks and shift rails 22.01.2017.pdf
Transmission 714.140/143 in model 000.001
1 Fuse
AR26.60-G-0011GB Disassembling and assembling transverse gearshift tube 14.7.10.pdf
– TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
– with combined gate and gear shift
AR26.60-G-0011GC Disassembling and assembling transverse gearshift tube 14.7.10.pdf
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
with separate gate and gear shift
AR26.60-G-0016OHA Disassemble assemble shift guide 22.01.2017.pdf
Transmission 714.140/143 in model 000.001
Transmission with “control cable” gearshift
1 Outer bearing cover
AR26.60-G-0050GA Remove install right side shift mechanism 28.9.10.pdf
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
with integral shift
AR26.60-G-0051GA Remove install left side shift mechanism 28.9.10.pdf
TRANSMISSION 714.100 /120 /140 /143 /160 /161 in MODEL 000.001
with integral shift
AR26.60-G-0630OHA Remove install shift module 22.01.2017.pdf
Transmission 714.140/143 in model 000.001
1 Shift cables
AR26.60-G-6515OHA Disassemble assemble gearshift system 22.01.2017.pdf
Transmission 714.140/143 in model 000.001
Transmission with “control cable” gearshift
1 Retaining ring
AR26.60-G-6515OHB Disassemble assemble gearshift system 22.01.2017.pdf
Transmission 714.140/143 in model 000.001
Transmission with electropneumatic power shift (EPS)T26.60-0001-09
AR26.60-G-6600OHA Remove install shift lever 22.01.2017.pdf
Transmission 714.140/143 in model 000.001
1 Boot
AR26.60-G-6626OHA Remove install shift cables 22.01.2017.pdf
Transmission 714.140/143 in model 000.001
Transmission with “control cable” gearshift
1 Shift cables
3 Expose maintenance flap of transmission and See information from vehicle
detach manufacturer.
AR43.30-G-0002-02OHA Determine thickness of drive shaft shim.pdfModel 000.001 with transmission 714.140/143 Transmission with hydrodynamic retarder R115 E (integrated), Voith- 153.000188xx, H67.1500xx
Check values for retarder/hydrodynamic retarder, hydraulic
transmission 714.140/143Transmission with hydrodynamic
retarder
otherwise the measurement results may be incorrect. This can result in damage to the hydrodynamic retarder or to the transmission.
Commercially available devices/tools
AR43.30-G-0002-02OHB Determine thickness of drive shaft shim.pdf
Model 000.001 with transmission 714.140/143
Transmission with hydrodynamic retarder R115 E (integrated), Voith- 153.000452xx
Check values for retarder/hydrodynamic retarder, hydraulic
transmission 714.140/143Transmission with hydrodynamic
retarder
because the bearing play must be set to within a few hundredths of a millimeter.An incorrect setting of the bearing play may result in damage to the hydrodynamic retarder or to the transmission.
2 Measure and note down dimension “A”.G43.30-3102-01
AR43.30-G-0002G Remove install retarder 8.6.11.pdf
MODEL 000.001 with TRANSMISSION 714.100 /120 /140 /143 /160 /161
with Voith retarder R115E
1 Coolant connection 7 Shim 11 Transmission
3 Screw 8 Sealing surface 12 Tapered roller bearing
1 Drain oil from transmission AP26.00-G-2601E
2 Drain oil from retarder AP43.30-G-4301G
3 Remove transmission (11) See vehicle operator’s manual or repair
instructions.
4 Detach clutch housing from transmission (11) Only on transmission (11) without integral AR26.30-G-0330G
clutch housing.
AR43.30-G-0064OHA Remove install hydrodynamic retarder 22.01.2017.pdf
Model 000.001 with transmission 714.140/143
Transmission with hydrodynamic retarder R115 E (integrated), Voith- 153.000188xx, H67.1500xx
G43.30-3133-09
4 Bolts 11 Transmission
5 O-rings 12 Angular roller bearing
1 Remove transmission (11) See information from vehiclemanufacturer.
3 Detach clutch housing from transmission (11) On transmission (11) without integrated clutch
housing.
AR43.30-G-0064OHB Remove install hydrodynamic retarder 22.01.2017.pdf
Model 000.001 with transmission 714.140/143
Transmission with hydrodynamic retarder R115 E (integrated), Voith- 153.000452xx
1 Coolant connection
10 Hydrodynamic retarder11 Transmission
12 Angular roller bearing
1 Remove transmission (11) See information from vehicle manufacturer.
3 Detach clutch housing from transmission (11) On transmission (11) without integrated clutch
housing.
4 Attach transmission (11) to assembly device
5 Remove output flange from transmission (11) AR26.50-G-2000OHA
6 Detach both coolant connections (1) from

FILE SIZE : 9.4 MB
TOTAL PAGES : 80
FILE FORMAT : PDF
DOWNLOAD INFORMATION : YOU WILL RECEIVE THE DOWNLOAD LINK ON YOUR GIVEN E-MAIL.
