Download Sany Reach Stacker SRSC45H1 Parts Book Manual PDF (English)

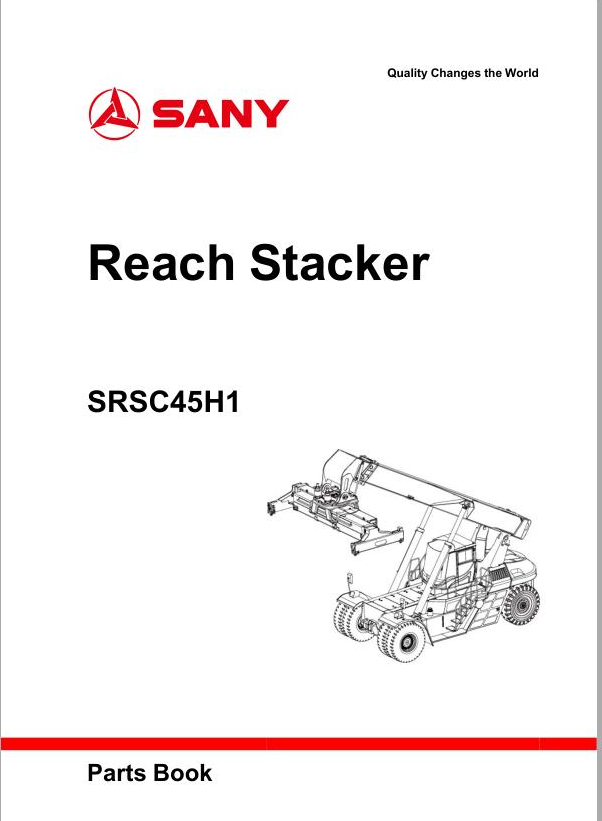

Access the comprehensive Sany Reach Stacker SRSC45H1 Parts Book Manual PDF to keep your heavy-duty material handling equipment operating at peak performance. This official parts catalog features detailed exploded views, precise component diagrams, and accurate part numbers for the SRSC45H1 model, covering the engine, hydraulics, boom, spreader, and electrical systems. Whether you are performing routine maintenance, troubleshooting, or ordering replacement parts, this digital guide ensures fast and accurate identification. www.themanualsgroup.com

MODEL COVERED :
Sany SRSC45H1 Reach Stacker

CONTENTS INCLUDED :
Group 1 SRSC45H1 Container Reachstacker Assembly
13318338 SRSC45H1 Container Reachstacker Assembly
Group 2 Power system
13572974 Power system
13571912 Assembly, engine and gearbox
60308536 Transmission
60138966 Components, housing, gearbox
60138967 Components, rear cover, gearbox
60140031 Shaft, turbine
60138822 Group, gear, power input end
60139513 Components, hub
60138447 Drive plate group
60139867 Components, drive pump support
60139839 Shaft, transmission, grade 2 3 4, front wheel driving
60138844 Group, gear, speed-change, grade 1
60139838 Shaft, clutch, forward gear
60139893 Shaft, clutch, speed-change, grade 3
60138840 Group, gear, speed-change, grade 3
60139319 Components, shaft, backward gear
60138916 Components, clutch, speed-change, grade 1
60138934 Components, clutch shaft, grade 3 4
60139145 Components, idler shaft
60139925 Components, output shaft
60138682 Components, pressure adjusting valve and feeding pump
60138721 Electric control valve assy.
60139923 Components, flange, output end
60138442 Components, transporting cover
60138738 Pressure regulating valve
60138654 Charging pump assy.
60138719 Regulating valve of charge pump
60138733 Components, cover, control valve box
60138722 Electric control valve assy.
60138891 Dual element filter assy.
60140286 Seal kit
60265416 Engine
60349715 Cylinder head
60349716 Valve cover
60349717 Cylinder block
60349718 Flywheel housing
60349719 Adapter
60349720 Control valve
60349721 Rocker arm shaft
60349722 Control valve
60349723 Timing gear plate
60349724 Camshaft
60349725 Crankshaft
60349726 Flywheel
60349727 Oil pan
60349728 Oil filter
60349729 Oil cooler
60349730 Fuel filter
60349731 Fuel filter
60349732 Fuel hose
60349733 Tandem pump
60349734 Fuel pump
60349735 Unit injector
60349736 Exhaust
60349737 Inlet
60349738 Heat shield
60349739 Turbocharger
60349740 Starter element
60349741 Separator
60349742 Coolant pump
60349743 Alternator
60349744 Starter motor
60349745 Control unit
60349746 Sensor
60349747 Tensioner
12447083 Assembly, fuel
160603010031A oil-water separator
13572118 Cooling system
11597891 Assembly, expansion wter tank
13572217 Intake system
60181998 Air filter
12566017 Intake pipe support
13572789 Exhaust system
Group 3 Assembly, working oil tank
13061144 Assembly, working oil tank
Group 4 Steering axle
14112723 Steering axle
A229900002057 Wheel rim 25
13897560 Connecting rod axial pin
10421960 Cylinder, steering
Group 5 Frame
13571846 Frame
13026020 Fix counter system
12457630 Dashboard, right
12451260 Assembly, cover plate
10719147 Cover board
10719146 Cover board
10437780 Cover board
12613084 Cover plate(4)
11338703 Cover plate
11326045 Filler opening capping plate
12759700 Cover Plate 6
10941541 Assembly, handrail and platform
12570559 Assembly, handrail and platform and pedal
12009348 Dashboard, rear, right
12457625 Dashboard, left
13116970 Dashboard, rear, left
10201511 Assembly, rearview mirror, left
10182064 Assembly, rearview mirrow, right
13434648 Wind guide casing
13115789 Assembly, covering parts
13556612 Left-hand platform
13115749 Left door
13114137 Right door
Group 6 Subassembly, cab, container reach stacker
12370923 Subassembly, cab, container reach stacker
12370924 Sub-body, cab, container reach stacker
13764738 Inner-decoration, assembly
13889736 Electirc system
A229900002144 Assemlby, wiper, rear window
130907000078A Front windscreen wiper assembly
Group 7 Assembly, operating console
10422631 Assembly, operating console
12142583 Pedal, double
60025888 Assembly, steering-column, adjustable
Group 8 System, air conditioning
13573135 System, air conditioning
60347035 Assembly, air conditioner
60137530 Assembly, evaporator
60137523 Assembly, condenser
14098130 Pipeline support
Group 9 Assembly, boom
13114711 Assembly, boom
13178278 Cylinder, pitching
12055819 Components, lower sliding block
A810303990183 Components, sliding block, upper
10202942 Cylinder, damping
13147817 Assembly, telescopic cylinder
Group 10 Body, spreader
13646779 Body, spreader
13648509 Spreader mechanical assembly
12608291 Right telescopic beam assem.
13559316 Twist lock mechanism
13394788 Device, mandrel
13559292 Device, twistlock
12632237 Turning lock cylinder
13559315 Handspike assembly
13394002 Assembly, turntable
12588669 Components ,sliding block seat
11783402 Assembly, pipeline, lubrication oil
13355793 Cylinder, sideshift
60136999 Gear box RR510DSS/13.6-RF2/43
60006613 Motor, gerotor
12606356 Assembly, beam, main
10207101 Cylinder, telescopic
12608221 Left telescopic beam assem.
13559316 Twist lock mechanism
13394788 Device, mandrel
13559292 Device, twistlock
12632237 Turning lock cylinder
13559315 Handspike assembly
12616119 System, hydraulic
14002572 Revolving valve group
60155033 Directional Valve Assembly, Solenoid
12618980 Group, telescopic side-shifting valve
60155035 Valve, reversal, electromagnetic
60059724 Valve, reversal, electromagnetic
60155033 Directional Valve Assembly, Solenoid
12618950 Telescopic twist-lock valve group
60059724 Valve, reversal, electromagnetic
60155035 Valve, reversal, electromagnetic
12602851 System, electrical, spreader
A810201052736 GP, control box, spreader
12934357 LED indication lamp
13499521 Proximity switch
13944189 Working lamp
A810508000146 Nameplate
Group 11 System, traveling
A810103070033 System, traveling
A229900002057 Wheel rim 25
60308535 Drive axle
Group 12 System, hydraulic
12602674 System, hydraulic
12602652 Layout, pipeline, frame
10409053 Diagram, assemblying, components, main valve
A819700001390 Body, multi-channel, spreader
B220301000240 Group, pump, double
60136526 Control valve
B220301000262 Plunger pump
60136526 Control valve
A810399000723 Body, multi-ported, oil-draining
A810299000203 Group, back pressure valve
B220400000033 Valve, cartridge
60193266 Filter, Oil Return
11155390 Layout, arm
13288352 Group, valve, telescope
A810201060300 System, hydraulic, antiswing
13862310 Group, antiswing valve
13848007 Right lift valve assembly
13848005 Left lift valve assembly
10397319 System, brake, radiator
12874447 Diagram, assemblying, components, brake valve
B220401001141 Valve, brake
10397015 Assembly, radiator device
B229900001004 Radiator
13886762 Brake valve group
60155035 Valve, reversal, electromagnetic
12912754 Sensor, pressure
10875728 Assembly, oil collecting block
10266030 Assembly, component, big accumulator
B229900003708 Accumulator
A819700001629 Group, cooling switching valve
14297586 Radiator assembly
12216954 Group, prefill valve
13417232 Assembly, pressure filter
60072294 Filter, pressure oil
10450139 System, steering
A810201062404 Assembly, flow amplifier
60167504 Amplifier, flow, dynamic
60167505 Gear, steering, dynamic
10432886 Diagram, layout, moving system
14353465 Group, moveable valve
10427001 System, control
14336960 Pilot filter assembly
A222100000128 Filter, pressurized oil
13424467 Assembly, pilot accumulator
13862340 Pilot valve assembly
12364911 Tube clamp assembly layout
Group 13 Assembly, fuel tank
10945119 Assembly, fuel tank
Group 14 Mechanism, cab moving
10679877 Mechanism, cab moving
13552532 Leading wheel assembly
11250059 Cylinder, moving, right
13552549 Leading wheel assembly
Group 15 Lubrication system
12617059 Lubrication system
Group 16 System, fire extinguisher
10557614 System, fire extinguisher
Group 17 Nameplate assembly
10117173 Nameplate assembly
Group 18 Electrical system
13127621 Electrical system
13487579 Layout, cab
13120438 Electric box assembly, cab
14279880 Electric box layout, cab
60343179 Power distribution case
11447306 24V10APowerInterface
14317549 Right panel assembly
13487572 Layout, front panel
13484262 Switch and radio
13476016 Display
13014972 Pedal, accelerator
13479619 Socket, 3 core
12907176 Assembly, operation, steering gear
14152611 Layout, boom
12895513 Lamp, working, LED
12893720 Light, alarm, LED
12889986 Sensor, length and angle
13479678 Socket, 6 core
14315923 Layout, electric, frame
12895513 Lamp, working, LED
12901982 Lamp, tail, LED
12901990 Lamp, mark, side, LED
12916541 Switch, proximity
13479619 Socket, 3 core
12912669 Sensor, liquid level
12934766 Power switch
12934743 Battery
14316199 Electric box assembly, vehicle body
14279877 Electric box layout, vehicle body
13119701 Electric box
12912711 Sensor, temperature
12912717 Sensor, temperature
12912580 Horn, polyphonic
13940546 Headlight, front
12912575 Horn
14010267 AMP socket, 2 core
14190503 Pressure sensor
13127421 Pressure sensor
13577240 Fuse
