Valtra AutoControl System AC35.3 Electrical Diagram Manual PDF

Valtra AutoControl System AC35.3 Electrical Diagram Manual PDF

  • Discount
  • $90.00
📲𝑴𝒂𝒌𝒆 𝒔𝒖𝒓𝒆 𝒚𝒐𝒖𝒓 𝑬-𝒎𝒂𝒊𝒍 𝒊𝒔 𝒄𝒐𝒓𝒓𝒆𝒄𝒕
⭐⭐⭐⭐⭐ 4.9/5 Rating ✓ Customer Satisfaction
⭐⭐⭐⭐⭐ 5.0/5 Rating ✓ Easy & Secure Checkout

Download Valtra AutoControl System AC35.3 Electrical Diagram Manual PDF (English)

Get the Valtra AutoControl System AC35.3 Electrical Diagram Manual PDF, a useful technical reference for understanding electrical circuits, wiring connections, components, and system layouts. This manual helps technicians, mechanics, and equipment owners identify electrical components, trace wiring, troubleshoot faults, and perform maintenance more efficiently. Designed for accurate electrical system reference, the Valtra AC35.3 diagram manual can support diagnostics, repairs, servicing, and workshop operations while helping reduce troubleshooting time and improve electrical repair accuracy.

MODEL COVERED:
Valtra AC35.3 AutoControl System
(T4 1A7 Versu, Stage III A (LRC))

CONTENTS INCLUDED:

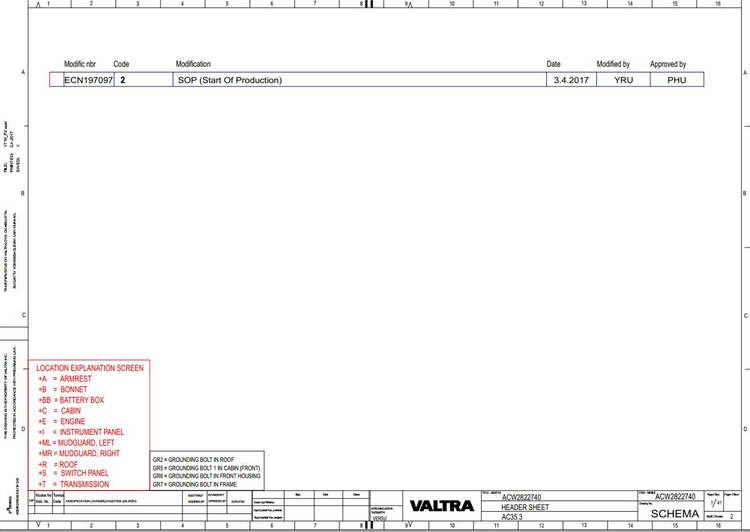

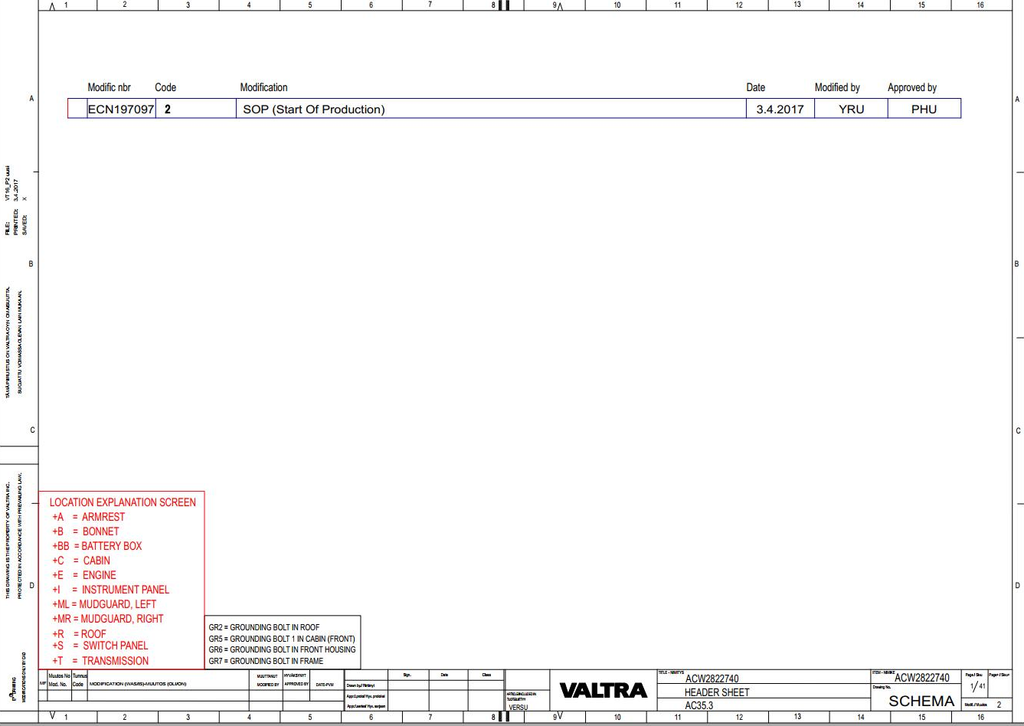

1 HEADER SHEET
2 BATT., MAIN SWITCH, COOLBOX, FLASH LIGHT
3 IGN.& LIGHT SWITCH, HAZARD, LED FLASH., ICL
4 DOOR STEP LIGHT
5 COMBI SWITCH, WINDSCREEN WIPER
6 TC1 SUPPLY, DIODES
7 POWER OUTLETS
8 ROOF ELECTRIC CENTER
9 LIGHTS
l0 AUTO AND MANUAL HVAC
11 ELECTRIC MIRRORS
12 WIPERS, REAR, ROOF,
13 ICL PUSH BUTTONS, WURTH SVref
14 CabECU: DRIVER INTERFACE, BRAKES
15 CabECU
OWER,REF,WORK.LIGHT CTRL,CAM.
16 CabECU: FRONT LOADER RELAYS
17 WINDSCREEN / REAR WINDOW HEATING
18 SIDE WINDOW WIPER, WASHER PUMPS
19 CAN, LCD, DIAGNOSTICS
20 TRAILER SOCKET / FRONT OPTIONS
21 TWIN TRAC / STEERING VALVE
22 CEA GUIDE / C3000 TERMINAL
23 MUDGUARDS, REAR LIGHTS
24 AUTOCOMFORT / FRONT AXLE SUSPENSION
25 AGCO GATEWAY
26 ENGINE SCR
27 ENGINE ELECTRICAL CENTRE & AUX DEVICES
28 ENGINE CONTROL
29 HIGH & DIPPED BEAMS
30 DL 4WD, PTO, P- BRAKE, ON/OFF VALVES
31 TRANSMISSION SENSORS
32 TRANSMISSION SOLENOIDS, DRIVING
33 TRANSM. & CREEPER & PTO SENSORS
34 ISOBUS
35 LH LINK
36 ARMREST NTO3
37 CABIN LIGHTS, RADIO
38 LOUDSPEAKERS AND SUBWOOFER
39 AUXILIARY HYDR., VALVE COMBINATIONS
40 EBERSPACHER
41 ISO 7638

Field Details
Document Type Electrical Diagram
Brand Valtra
Type of Machine AutoControl System
Model Valtra AC35.3 AutoControl System
Model / Version T4 1A7 Versu, Stage III A (LRC)
Format PDF
Language English
Number of Pages 41 Pages
File Size 1.32 MB

www.themanualsgroup.com

: File Format - PDF (Portable Document Format)


: Manual Images - (High-Quality PDF)


: Printable - Entire Manual


: Compatible - All versions of Windows, ios, android


: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics


: Download - You will receive the PDF manual in your email after the purchase
