Valtra AutoControl System AC37.6 Electrical Diagram Manual PDF

Valtra AutoControl System AC37.6 Electrical Diagram Manual PDF

  • Discount
  • $85.00
📲𝑴𝒂𝒌𝒆 𝒔𝒖𝒓𝒆 𝒚𝒐𝒖𝒓 𝑬-𝒎𝒂𝒊𝒍 𝒊𝒔 𝒄𝒐𝒓𝒓𝒆𝒄𝒕
⭐⭐⭐⭐⭐ 4.9/5 Rating ✓ Customer Satisfaction
⭐⭐⭐⭐⭐ 5.0/5 Rating ✓ Easy & Secure Checkout

Download Valtra AutoControl System AC37.6 Electrical Diagram Manual PDF (English)

The Valtra AutoControl System AC37.6 Electrical Diagram Manual PDF provides detailed electrical wiring diagrams, circuit layouts, component information, and troubleshooting references for Valtra equipment. This service manual helps technicians, mechanics, and equipment owners understand the AutoControl electrical system, identify wiring connections, locate electrical components, and diagnose faults efficiently. The AC37.6 electrical diagram manual is a useful reference for repair, maintenance, servicing, and electrical system inspection, helping ensure accurate troubleshooting and proper maintenance of Valtra machinery.

MODEL COVERED:
Valtra AC37.6 AutoControl System
(T4 1B8 and N4 1C8 Active with armrest)

CONTENTS INCLUDED:

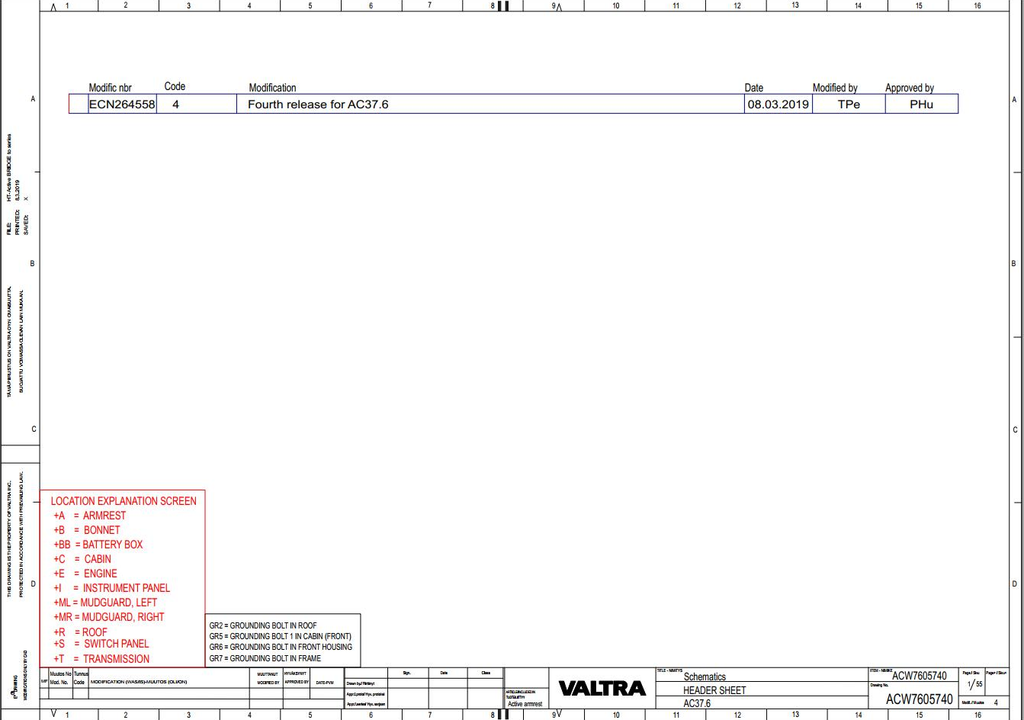

1 HEADER SHEET
2 BATT., MAIN SWITCH, COOLBOX, FLASH LIGHT
3 IGN.& LIGHT SWITCH, HAZARD, LED FLASH., ICL
4 BRAKES, DOOR STEP LIGHT, RESERVE RELAYS
5 COMBI SW, WINDSCREEN WIPER, REAR OPTIONS
6 REGENERATION SW, FUSES
7 SHUTTLE LEV.,PTO CTRLCLUTCH,WHEEL ANG.
8 POWER OUTLETS
9 ROOF ELECTRIC CENTER (AUTO HVAC)
10 LIGHTS
11 WORKING LIGHT CONTROL PANEL
12 AUTO HVAC
13 ELECTRIC MIRRORS
14 WIPERS, REAR, ROOF,
15 ICL PUSH BUTTONS
16 TC1 SUPPLY, 101, REVERSE BUZZER, DIMMER
17 I01 + PRESSURE AIR DRYER
18 I02
19 WINDSCREEN / REAR WINDOW HEATING
20 ACC.PEDAL EMERGENCY BRAKE
21 SIDE WINDOW WIPER, WASHER PUMPS
22 CAN, LCD, DIAGNOSTICS
23 SWITCH PANEL, REAR LINKAGE
24 SWITCH PANEL 4WD, DL ON/OFF
25 TRAILER SOCKET / FRONT OPTIONS
26 TWIN TRAC / STEERING VALVE
27 AUTOGUIDE / C3000 TERMINAL
28 FRONT LOADER, 6/2 SOLENOIDS
29 MUDGUARDS, REAR LIGHTS
30 AUTOCOMFORT / FRONT AXLE SUSPENSION
31 TELEMETRY AGCOMMAND / EXTRA OPTIONS
32 ENGINE SCR
33 ENGINE ELECTRICAL CENTRE & AUX DEVICES
34 ENGINE CONTROL
35 HIGH & DIPPED BEAMS
36 DL 4WD, PTO. P- BRAKE, ON/OFF VALVES
37 TRANSMISSION SENSORS
38 TRANSMISSION SOLENOIDS, DRIVING
39 TRANSM. & CREEPER & PTO SENSORS
40 ISOBUS
41 ARMREST / CONTROL GRIP, SEAT SWITCHES
42 CABIN LIGHTS, RADIO
43 LOUDSPEAKERS AND SUBWOOFER
44 AUXILIARY HYDR., VALVE COMBINATIONS
45 EBERSPACHER
46 MAN HVAC: ROOF CENTER
47 MAN HVAC: ROOF ELECTRIC CENTER
48 MAN HVAC: UGHTS
49 MAN HVAC: WORKING LIGHTS CONTROL PANEL
50 MAN HVAC: HVAC
51 ISO 7638 ABS SOCKET
52 ARMREST/ MIDSPEC
53 ARMREST/ MIDSPEC
54 ARMREST/ MIDSPEC
55 ARMREST/ MIDSPEC

Field Details
Document Type Electrical Diagram
Brand Valtra
Type of Machine AutoControl System
Model Valtra AC37.6 AutoControl System
Model / Version T4 1B8 and N4 1C8 Active with armrest
Format PDF
Language English
Number of Pages 55 Pages
File Size 4.15 MB

www.themanualsgroup.com

: File Format - PDF (Portable Document Format)


: Manual Images - (High-Quality PDF)


: Printable - Entire Manual


: Compatible - All versions of Windows, ios, android


: The manual includes - Bookmarks, Searchable Text, Wiring, and Hydraulic Schematics


: Download - You will receive the PDF manual in your email after the purchase
