Download Volvo Excavator EC230 Parts Manual PDF (English)

Access the comprehensive Volvo Excavator EC230 Parts Manual PDF to easily identify, order, and replace components for your heavy machinery. This official digital manual features detailed exploded views, precise part numbers, assembly schematics, and vital maintenance information tailored specifically for the Volvo EC230 excavator. Whether you are performing routine servicing, troubleshooting, or major repairs, this instant-download PDF ensures you get the exact parts you need to keep your equipment running at peak performance. www.themanualsgroup.com

MODEL COVERED :
Volvo EC230 Excavator

CONTENTS INCLUDED :

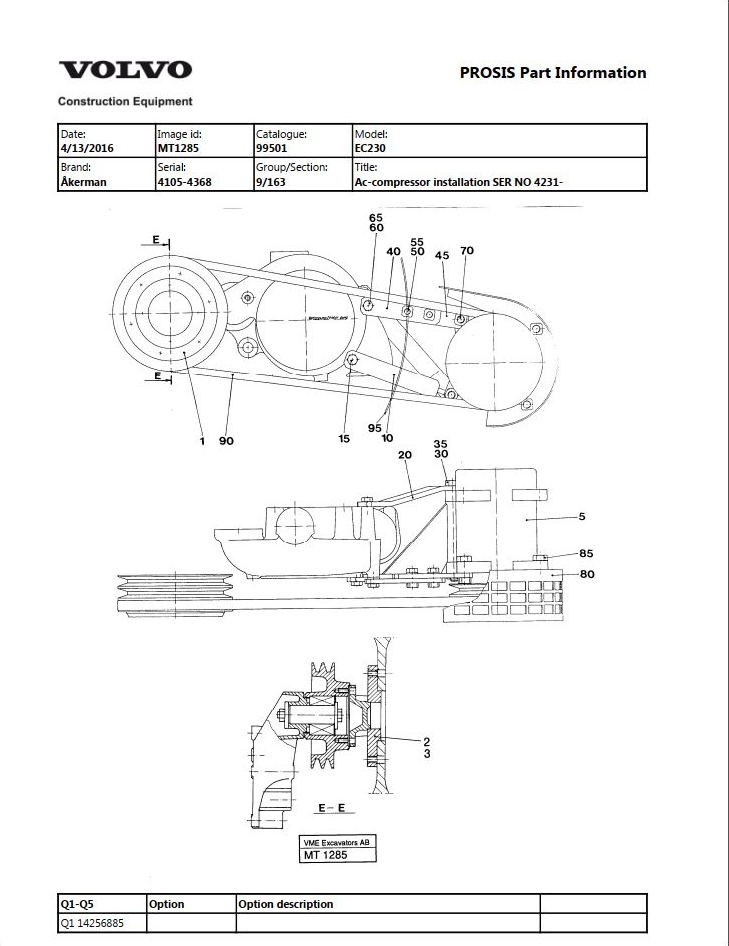

Ac-compressor installation SER NO 4231-
Air cond. control panel
Air condition, Driver’s seat 14256846
Air condition, engine 14256846
Air filter retainer
Air inlet
Anticavitation valve
Backhoe buckets, konv. attachment 14255317 14255318 14255319
Backhoe buckets, konv. attachment 14257674 14257911
Backhoe equipment 1
Backhoe equipment Connections
Backhoe equipment
Beacon 14246276
Boom cylinder
Brake valve
Bucket cylinder
Buckets for Quickfit 14253085 14253089 14253095
Buckets for Quickfit 14253086 14253094 14253103
Buckets for Quickfit 14253096 14253097 14257469
Cab filter, Micro filter Fine filter 14249180 14249181
Cab heater
Cable bucket 14253081
Cable bunch, cab
Cable bunch, machine
Cable bunch, Side panel, Lh
Cable bunch, Side panel, Rh
Casing with lock
Cat-walk 14241012
Centre passage with connections and hoses Lc short undercarriage
Cirkulation pump 14254114
Condenser installation
Connection board
Control block for end position damp 2 x
Control block for end position damp
Control pressure valve 1
Control pressure valve
Control unit for hydr. quick fit
Control unit for hydraulic hammer
Cover for fuel tank
Crawler track Ec229 14249487 14249498 14251582 14251583 14257555
Crawler track Ec230 14249520 14250633 14251584 14251585 14257554 14249492
Dipper 14254980 14254982
Dipper arm cylinder
Dipper cylinder materials handling equipm
Display unit
Door 14245371
Door, Lh rear
Door, Lh
Door, rear Lh
Door, rear Rh
Door, Rh
Driver seat Be-ge Viking
Driver’s cab with covering
Driver’s seat 1
Driver’s seat 2
Driver’s seat
Drying filter installation
Electric insatallation onbackhoe equipment
Electric installation 1
Electric installation 2
Electric installation for hydraulic hammer
Electric installation on driver’s cab
Electric installation on driver’s seat 1
Electric installation on driver’s seat 2
Electric installation
Electrical distribution box
Engine- and cab heater Lpg 2460 14254244 1
Engine- and cab heater Lpg 2460 14254244
Engine assembly
Engine control panel
Engine heater gasol 2400 1
Engine heater gasol 2400
Engine heater, Lpg 2440 14254276
Equipment for Germany
Filter box
Fire extinguisher 2 kg and 5 kg 14248860 14248861
Float position valve
Four way valve, secondaryboom, dipper, bucket
Four way valves Travel slewing
Four way valves, primary Boom, dipper, bucket
Front idler, Spring package and Tension cylinder
Fuel filling pump with connections
Fuel filling pump, el.
Fuel miser cylinder
Fuel miser valve
Gear box
Grab bucket link for quick fit 14253082
Grab bucket link, konv. attachment 14255320
Hand pump
High speed valve
Hose rupture valve on backhoe equipment 14257229
Hose rupture valve on handling equipment 14247490
Hose rupture valve
Hutch over engine
Hydr. quick fit equipmenton boom 14249783
Hydr. quick fit equipmenton dipper
Hydr. quick fit equipmenton super structure 14246054
Hydraulic and fuel tank with electric- and connection parts
Hydraulic and fuel tank
Hydraulic cylinder for quick fit
Hydraulic cylinder for slope bucket
Hydraulic hammer equipment on bom 14254205
Hydraulic hammer equipment on dipper 14254986 14254989 14254991
Hydraulic hammer equipment on dipper with shut-off cocks 14254988 14254990 14254992
Hydraulic hammer in base machine 1 pump 14254304
Hydraulic hammer in base machine 2 pumps 14254315
Hydraulic installation
Hydraulic quick fit 14255322
Hydraulics in undercarriage
Instrument box 14248213
Jalousie for rear window 14250379
Jib 14253079
Ladder with cage 14022280
Leak oil filter
Lines in valve compartment 1
Lines in valve compartment
Lines under driver’s seat
Load limiting device 14248197
Lunch box heater 14254176
Machine compartment and cab
Machine compartment
Main electric central
Main valve assembly with connections 1
Main valve assembly with connections
Main valve assembly
Materials handl. equipm. boom 6,00 m, dipper 4,40 boom 6,75 m, dipper 5,15
Oil cooler
Operator’s cab 14245371 14255535
Operator’s cab 14245371 14248412
Operator’s cab
Overcenter valve
Overflow valve
Overspeed guard 14246161
Pedal valve with connections and hoses
Pedal valve
Precyclone with ejector 14255708
Pressure limiting valve 1
Pressure limiting valve 2
Pressure limiting valve 3
Product identification plate
Pump gear box
Pump installation P4 14257206 14257213
Pump installation servo hydraulic
Pump installation
Pump P1, P2, P3
Pump P4, 110l min
Pump P4, Q = 78l min
Quick connection kits 14251612 14254092 14254211
Quick fit, mechanical 14255321
Radiator
Radio installation Converter 14245382 14255202
Ripper, Hammer attachment 14253092 14255386
Roof hatch with lock
Shunt with connections
Side panel, Lh
Side panel, Rh
Slew valve assembly
Slewing brake
Slewing ring attachment
Slope bucket equipment on 2,25 m dipper Lh and Rh
Slope bucket equipment on 2,80 m dipper Lh and Rh
Slope bucket equipment on2,25 and 2,80 m dipper tubes on top 14255230 14255233
Slope bucket equipment on3,30 m dipper Lh and Rh 14255234 14255235
Slope bucket equipment on3,30 m dipper tubes on top 14255236
Slope buckets, quick fit 14253098 14253100 1
Slope buckets, quick fit 14253098 14253100
Slope buckets, quick fit 14253099 14253102
Slope grab bucket equipm.in base machine 14246350
Slope grab bucket equipm.on boom 14255034
Solenoid valve with connections
Spark shield 14249858
Steering lever w hoses Control valve w hoses
Sun visor, internal and external 14247059 14250635
Superstructure
Swing gearbox
Tank brackets
Timer 14254336
Toggle switch panel
Tool kit 14249656
Top roller 14255666
Travel brake
Tropic roof 14244816
Turning joint
Undercarriage Ec 230 Undercarriage Ec 229 14247975 14249529
Unloading valve Slew valve assembly
Valve assembly for control with con- nections
Valve, circuit body and return valve
Valves for engine heater 14253234 14253236 14253237 14253238 14253239 14253240
Window lifts, Rh and Lh
Windscreen protection, entire and half Prot. net for roof window
Windscreen wiper, lower
Windscreen wiper, upper
Windshield washer 14253371
Windshields, upper and lower 14248410
Working hydraulic 1
Working hydraulic 2
Working lamp on boom 14022367
