Download Volvo Excavator ECR28 Parts Manual PDF (English)

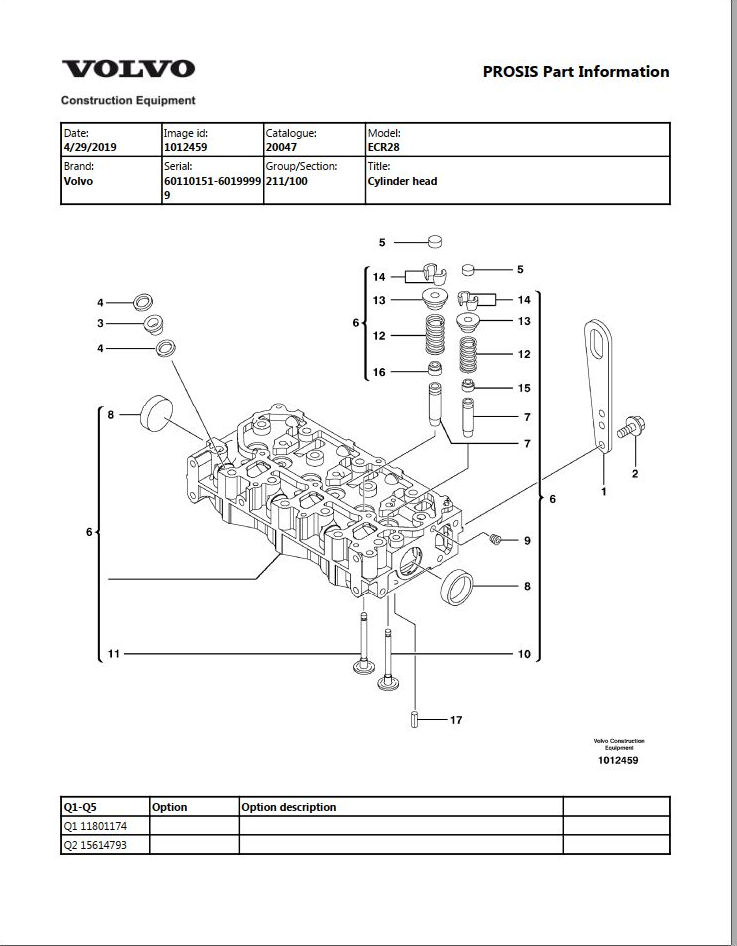

Get the Volvo Excavator ECR28 Parts Manual PDF for accurate parts identification, component details, and maintenance reference. This comprehensive manual is designed to help owners, operators, mechanics, and service professionals identify genuine Volvo ECR28 excavator parts with ease. Use the parts manual to locate assemblies, part numbers, diagrams, and detailed component information for efficient repairs, servicing, and maintenance. Keep your Volvo ECR28 excavator running reliably with a practical parts reference designed for workshop and field use. www.themanualsgroup.com
MODEL COVERED :
Volvo ECR28 Excavator
CONTENTS INCLUDED :
0 General
2 Engine with Mounting and Equipment
Cooling System
Engine Control
Engine
Fuel System
Inlet, Exhaust System
Lubricating System
3 Elec, Warning, Information, Instruments
Alternator
Battery
Cable, Fuse, Relay
Instrument, Sensor, Warning and Information
Lighting
Other Electrical Equipment
Radio kit
Starting System
4 Power Transmission
Balancing valve ( travelling )
Control valve
Engine coupling hydraulic pump
Hydraulic travelling motor 11839900
Hydraulic travelling motor
Lubrication ( slewing ring )
Slewing gear motor installation
Slewing gear motor SN 11523 –
Slewing gear motor
Slewing ring
Swivel joint equipment SN – 11522
Swivel joint equipment SN 11523 – 11606
Swivel joint equipment SN 11607-
Swivel joint SN – 11522
Swivel joint SN 11607 –
Travelling gear motor assy without brake
7 Frame, Springs, Damping, Axle Suspension, Wheel-Track Unit
Counterweight
Lower frame
Lower roller ( rubber tracks )
Lower roller ( steel tracks )
Platform
Rubber tracks
Sprocket
Steel tracks
Track tensioning ( rubber tracks )
Track tensioning ( steel tracks )
Upper roller ( steel and rubber tracks )
8 Machinery House, Cab, Exterior Trim Parts
Cab accessories fastening
Cab accessories
Cab console
Cab door
Cab glass
Cab heating installation
Cab sliding window ( front )
Cab sliding window ( right )
Cab windshield
Cabin floor ( standard and canopy )
Canopy
Document compartment1
Document compartment2
Engine coverage
Equipped cabin
Glue Kit for cab
Heater
Instrument panel, left
Lock ( engine coverage )
Operator’s station instrument panel ( left )
Operator’s station instrument panel ( right )
Operator’s station plating
Operator’s station
Operator’s station1
Operator’s station2
Plating REAR
Protecting plates.
Protection grill coveringthe front windows 11871352
Protection over drivers cab
Rear-view mirrors on cab
Safety belt 2 inch
Safety belt 3 inch
Safety belt STD
Suspended seat
Suspended seat1
Suspension seat assembly
Toolbox
Tools
Transfer cab STD , USA
Transfer canopy STD , USA
9 Hydraulic, Digging, Handling, Grading and Misc Equip
Mechanical Equipment – Attachment
Unit Digging
Working Hydraulics, Servo Hydraulic
| Field |
Details |
| Size |
8.61 MB |
| Format |
PDF |
| Language |
English |
| Brand |
Volvo |
| Type of Machine |
Excavator |
| Type of Manual |
Parts Catalog |
| Model |
Volvo ECR28 Excavator |
| Number of Pages |
447 Pages |
www.themanualsgroup.com
Download Information 📩 : The PDF manual will be emailed to you after your order has been processed by our sales team.
